Full Description
Please Note
This Nearly New Yamaha NS-5000 Premium Standmount Speakers (Pair), Black also includes an accompanying pair of Nearly New Yamaha SPS-5000 Black Speaker Supports.
Yamaha proudly introduces the NS-5000, a 30 cm (12″) 3-way bookshelf speaker system that illustrates the future direction of Yamaha’s speaker technology grown out of years of cutting-edge research on all aspects of designing Hi-Fi speakers, including components and materials. The NS-5000, built upon the tradition of natural sound for which all Yamaha speakers have been known — from the very first NS-20 and NS-30 models released in 1968 to the latest — and sets a new standard in sound excellence expected of Yamaha’s top-of-the-line speaker.
With non-colouration of sound, wide frequency response, consistent sound characteristics across the frequency range, and extremely low distortion set as self-imposed requirements for a new-generation speaker, we scientifically probed each of these characteristics to be incorporated into a flagship capable of bringing out the best of high-resolution audio sources. The result is the superb NS-5000, with sound and performance that sets a standard for all Hi-Fi speakers to come.
- Newly developed diaphragms boast acoustic velocity comparable to that of beryllium
- Newly developed R.S. (Resonance Suppression) Chambers suppress unwanted resonance in the mid and high ranges
- 30 cm (12”) 3-way bookshelf design draws on the tradition of the legendary NS-1000M
- Carefully crafted laminated plywood enclosure made of Japanese white birch from the island of Hokkaido
- Newly developed Acoustic Absorber eliminates sound-absorbing material to revive the original presence of the music
- Glossy black piano finish provides improved signal-to-noise performance — and adds to the luxurious joy of ownership
- Frequency-dividing Network

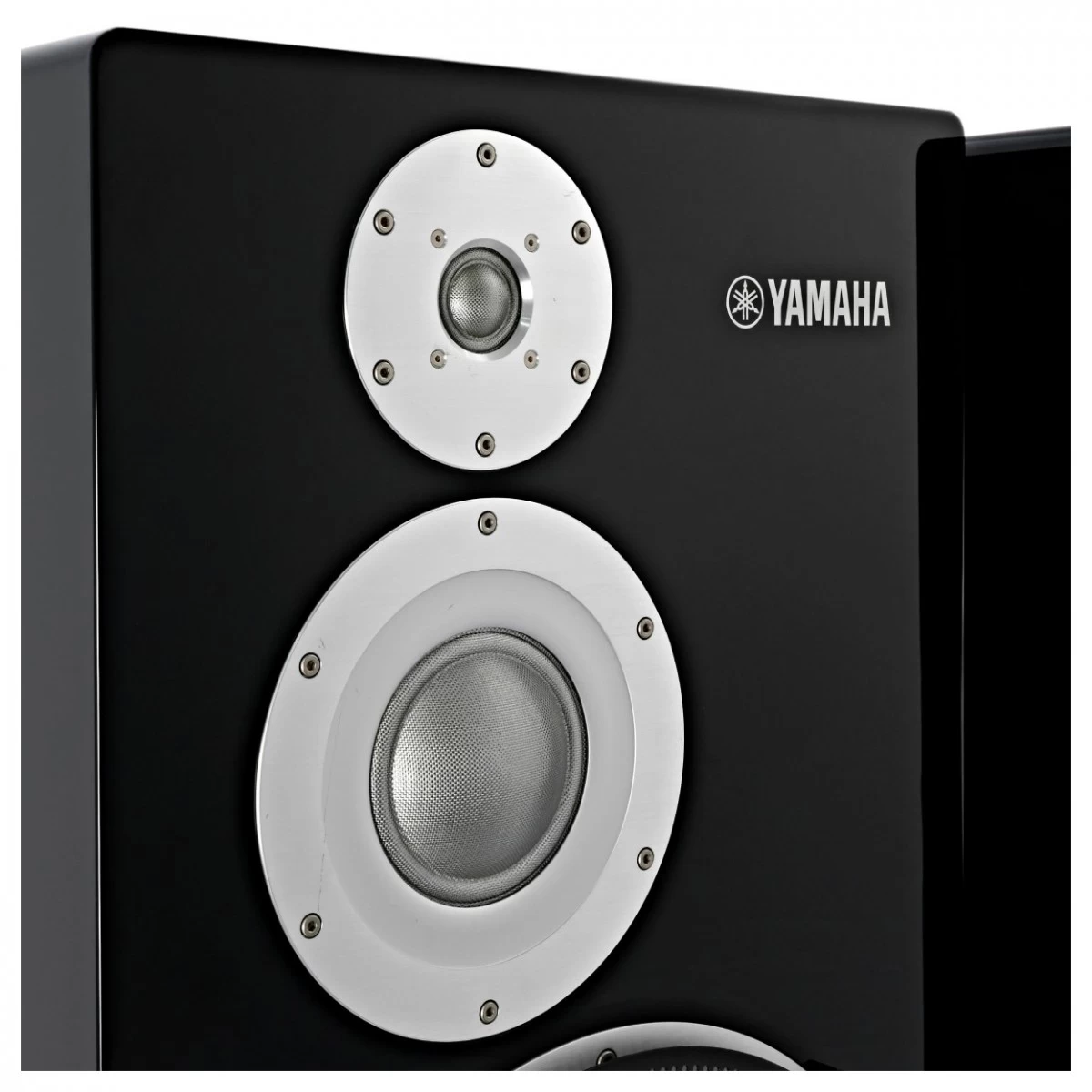

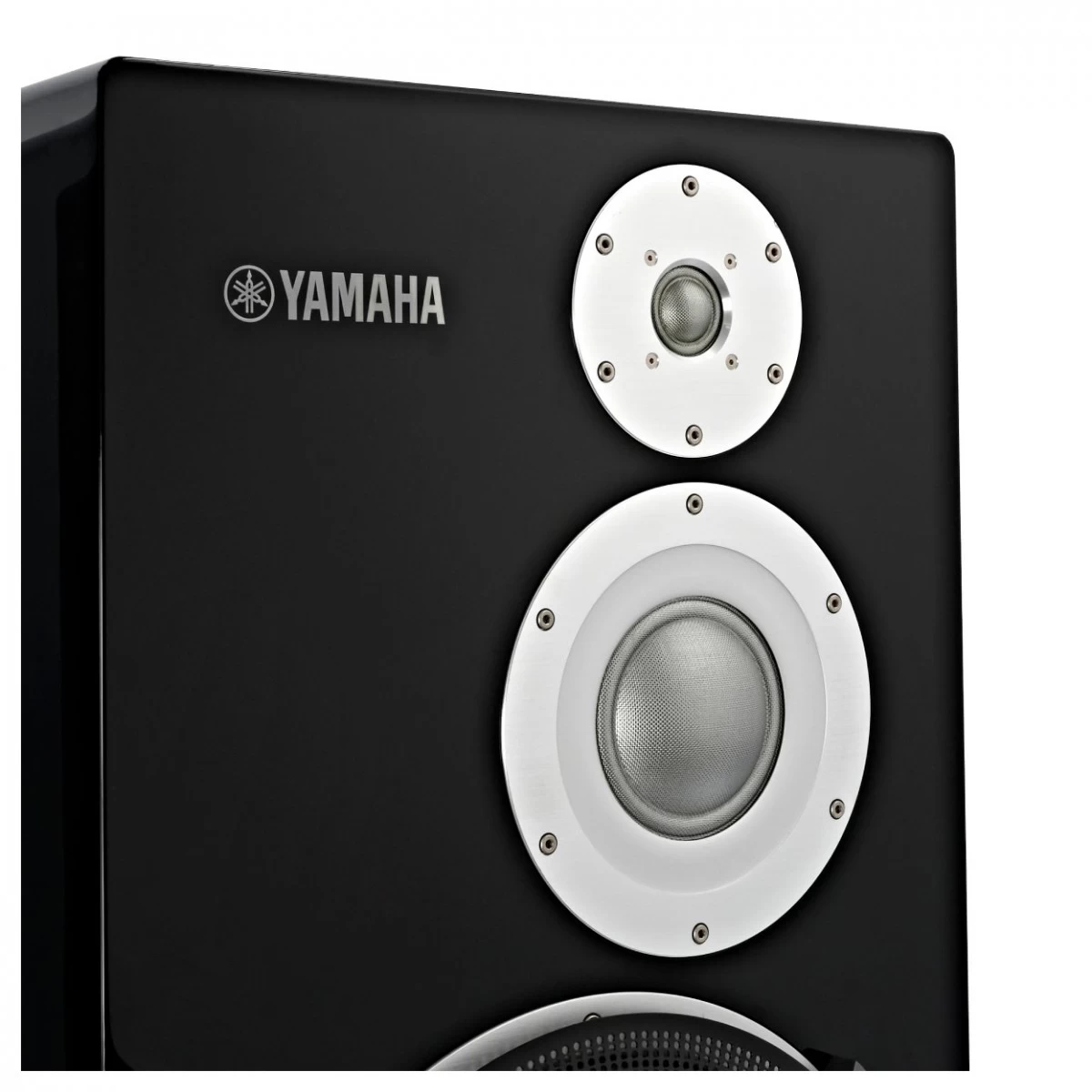

The NS-5000’s tweeter, midrange, and woofer all feature diaphragms made of 100 ZYLON a synthetic fiber created in Japan rated as the world’s strongest and boasting optimum elasticity and vapor-coated with Yamaha’s proprietary monel alloy. The soft-dome diaphragm suppresses peaks and dips in the frequency response caused by the inherent resonance of the diaphragm, while taking advantage of ZYLON’s high acoustic velocity comparable to that of beryllium. The result is a remarkably flat frequency response, with unified tone color and acoustic velocity over the entire frequency range, providing comfortable listening experience and meticulously accurate, superb sound reproduction of the highest degree.
Newly Developed R.S. Chambers
Mounted on the back of the tweeter and midrange speaker units are newly developed R.S. Chambers (patent pending) that suppress unnecessary tube resonance generated behind the diaphragm. Two specially shaped tubes installed in accordance with our proprietary acoustic analysis cancel tube resonance. These R.S. Chambers achieve higher-resolution audio reproduction by eliminating the need for a large quantity of sound-absorbing material inside the enclosure that tends to smooth the frequency response of each speaker unit and might degrade minute nuances of the sound.
Newly Developed Acoustic Absorber
The cuboid enclosure unifies internal standing waves at a specified frequency, which are cancelled by a newly developed resonance tube (patent pending). This technology eliminates the previous need for the huge amount of sound-absorbing material inside the enclosure. The result is the virtual elimination of standing waves with amazing efficiency and pin-point accuracy—to energetically revive the essential presence of music, formerly lost by sound absorption.
Frequency Dividing Network

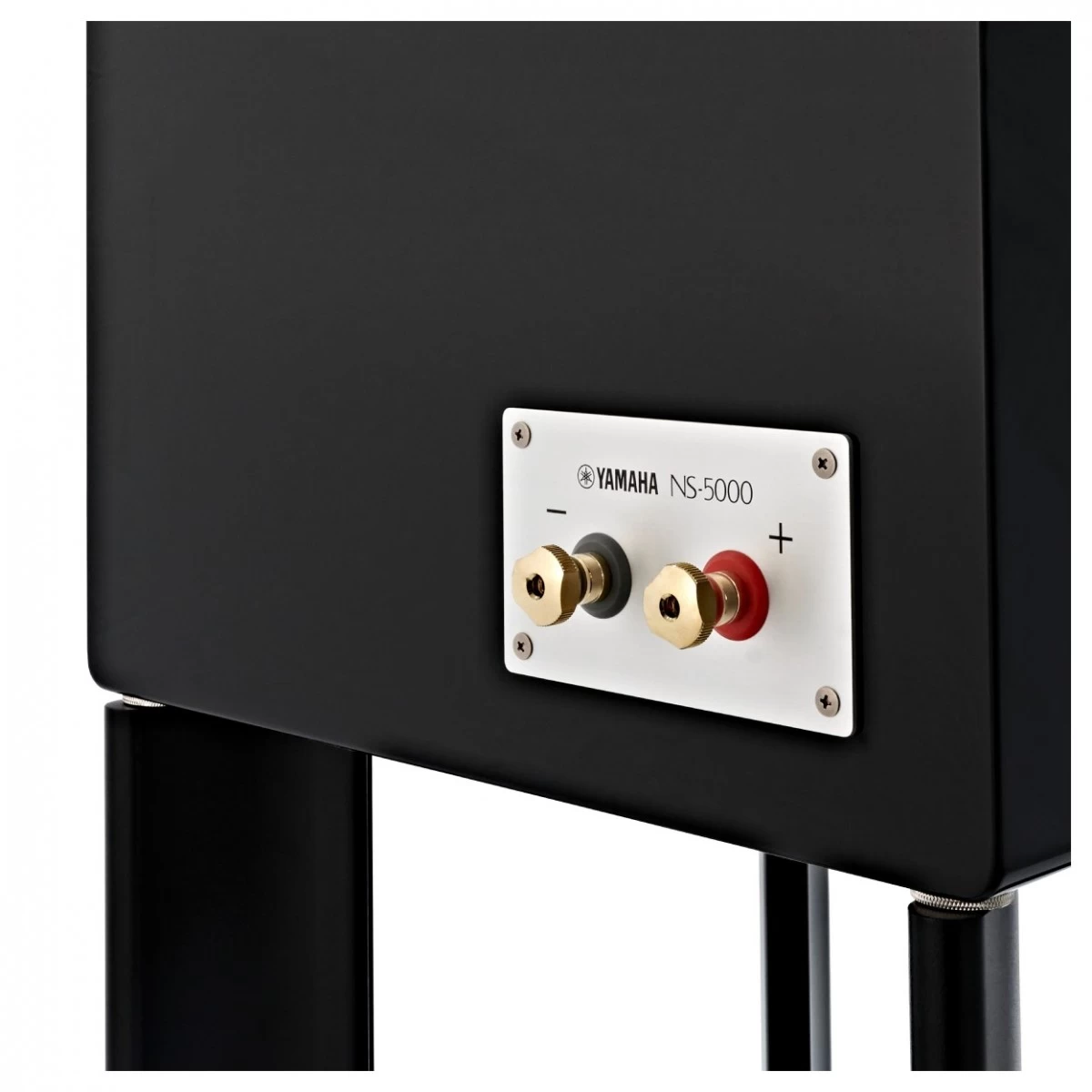

All drivers in the NS-5000 are connected in positive phase with single wiring to deliver a natural, pleasing listening experience. Components of its frequency-dividing network are mounted on a double-sided printed circuit board with extra-thick copper traces of 140 μ in thickness; a shorter signal path on the circuit board minimises the loss of sound data during transmission. Moreover, in order to minimise signal loss, we used for the network handpicked parts of only the highest quality, such as the MCap SUPREME EVO audio capacitor, which is made by Mundorf of Germany and renowned as the pinnacle of audio-use capacitor, Mundorf’s MResist SUPREME attenuator, and a woofer coil that weighs as much as 1.6 kg (3.52 lbs).
Glossy Black Piano Finish
All six external surfaces of the enclosure have a glossy black piano finish created using the same dedicated paint, primer, and polishing processes used for Yamaha’s renowned grand pianos. The uniform and hard membrane further increases the overall rigidity of the enclosure, and at the same time it suppresses fine vibrations, contributing to the bright sound and significantly enhanced signal-to-noise performance.

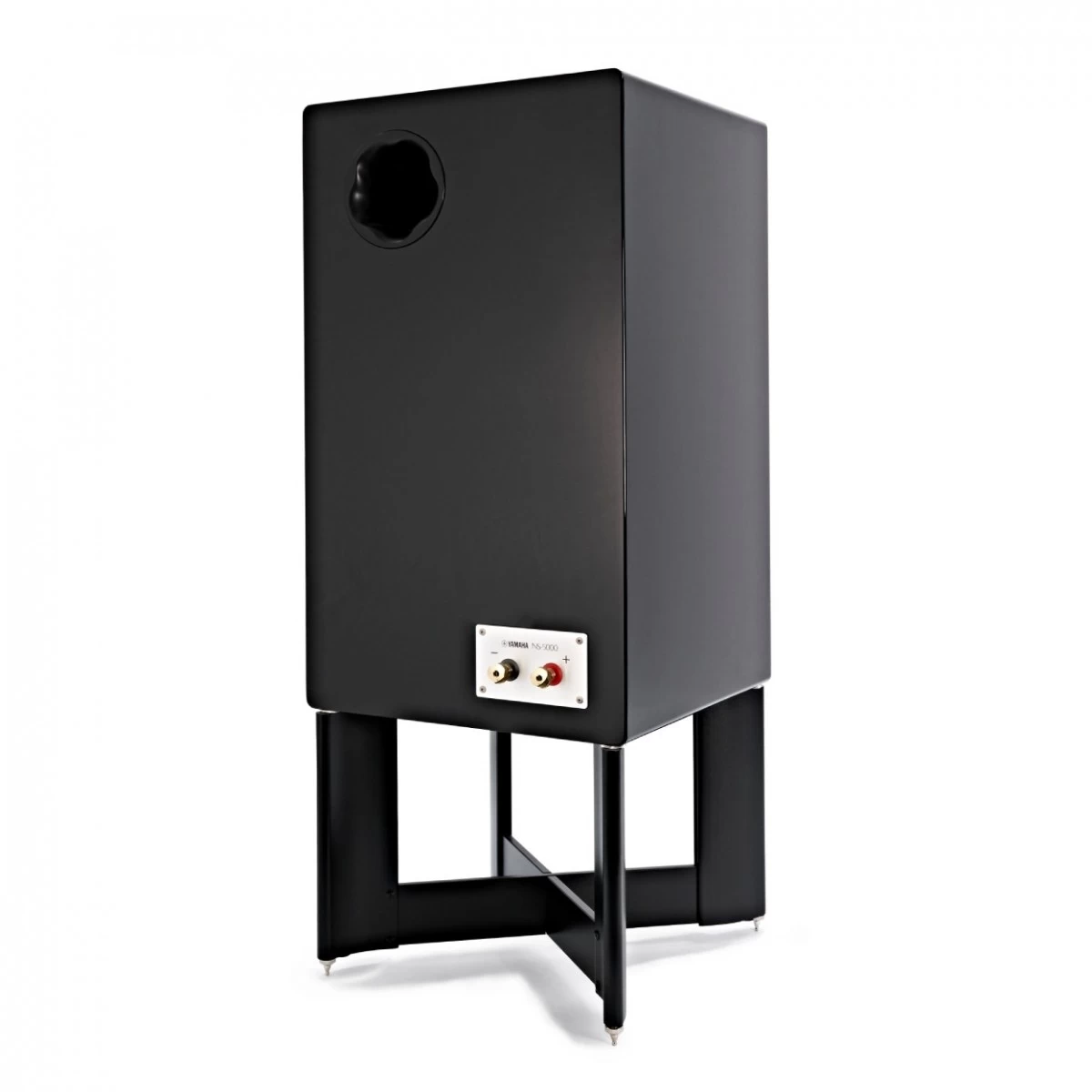

As a result of meticulous research on a variety of enclosure designs during the development of the NS-5000, we chose a bookshelf design as a successor to the continuing legacy of the NS-1000M (released in 1974), the pinnacle of Yamaha monitor speakers. This bass-reflex enclosure with an internal volume of 65 liters — the smallest possible size for a 30 cm (12”) 3-way configuration — is solidly assembled with the 3-way mitered joint construction technique and other traditional crafting methods. Reinforcing crosspieces inside the enclosure, based on FEM analysis, suppress “box ringing” caused by delayed vibration from the six surfaces of the enclosure. In addition, a twisted flare port prevents port noise (wind noise produced at each end of a bass reflex port) inherent in the bass reflex design, and improves resolution in the low frequency range while also enhancing signal-to-noise performance.

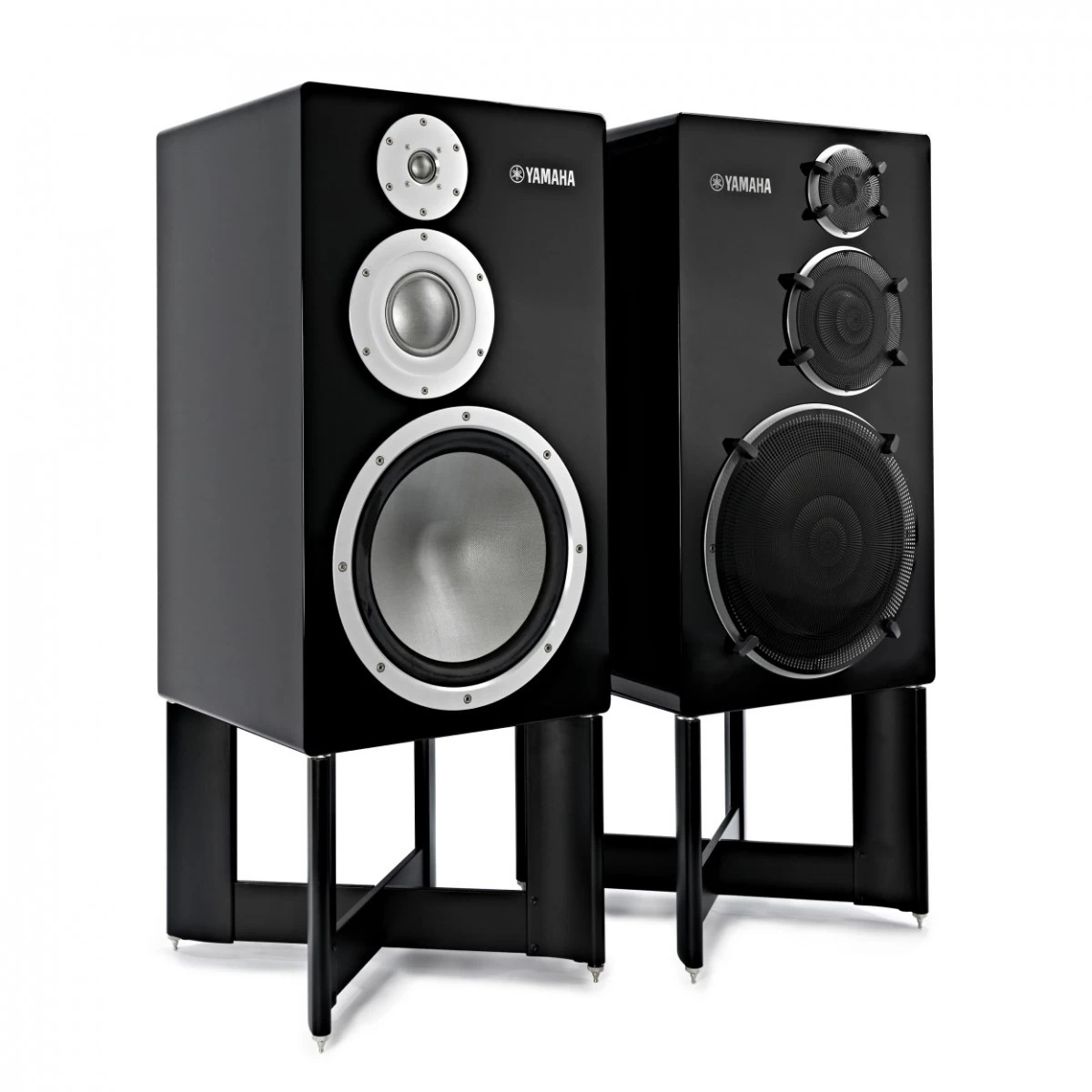

Yamaha SPS-5000 Black Speaker Support (Pair), Nearly New
Sophisticated simulation analysis was performed in designing the SPS-5000, in order to design a stand that solidly supports the NS-5000 without emanating any undesired sound. The legs have smooth curved surfaces and are all installed at an angle of 42° to the baffle surface to effectively minimise the effect of the reflection of sound from the speaker. In addition, in order that the height of a seated listener’ s ears matches the height of the tweeter of the NS-5000, the stand is set to a height of 304 mm (12”) (including spikes) — higher than that of a normal 30 cm (12”) bookshelf speaker, so that reflections from the floor surface are also minimised.
Steel Cut Spikes
The legs of the SPS-5000 allow for height adjustment, with the included spikes in order to restrict unnecessary vibration of the stand. The spikes can be removed for standing on the rubber legs, to suit the installation location. The stand is also equipped with height adjustment mechanisms (spacers) to prevent unsteadiness of the speaker. Specialised screws to fix the speaker to the stand are included as well.
Exceptionally Sturdy
The four legs which firmly support the speaker, are made of solid aluminium, and the total weight of 8 kg (17.6 lbs.) gives the stand tremendous vibration resistance that reduces speaker vibration to the absolute minimum.
Package Includes
- Yamaha NS-5000 Premium Standmount Speakers (Pair), Black – Nearly New
- Yamaha SPS-5000 Black Speaker Support (Pair) – Nearly New
Specifications
Yamaha NS-5000 Premium Standmount Speakers (Pair)
| Type | 3 way Bookshelf Bass-reflex Type |
|---|---|
| Woofers | 30 cm (12″) cone type |
| MidRange Driver | 8 cm (3-1/4″) dome type |
| Tweeter | 3 cm (1-1/4″) dome type |
| Frequency Response | 26 Hz-40 kHz (-10dB), -100 kHz (-30dB) |
| Nominal Input Power | 200 W |
| Maximum Input Power | 600 W |
| Sensitivity | 88 dB / 2.83 V/1 m |
| Crossover Frequencies | 750 Hz / 4.5 kHz |
| Impedance | 6 ohms (minimum 3.5 ohms) |
| Dimensions (W x H x D) | 395 x 690 x 381 cm; 15-1/2” x 27-1/8” x 15” (with speaker terminals) |
| Weight | 35.0 kg; 77.2 lbs. / unit |
Yamaha SPS-5000 Black Speaker Support (Pair)
| Dimensions (W x H x D) | 393 × 304 × 376 mm; 15-1/2” x 12” x 14-3/4” (with spikes), 393 x 285 x 376 mm; 15-1/2″ x 11-1/4″ x 14-3/4″ (without spikes) |
|---|---|
| Weight | 8.0 kg; 17.6 lbs./unit |
