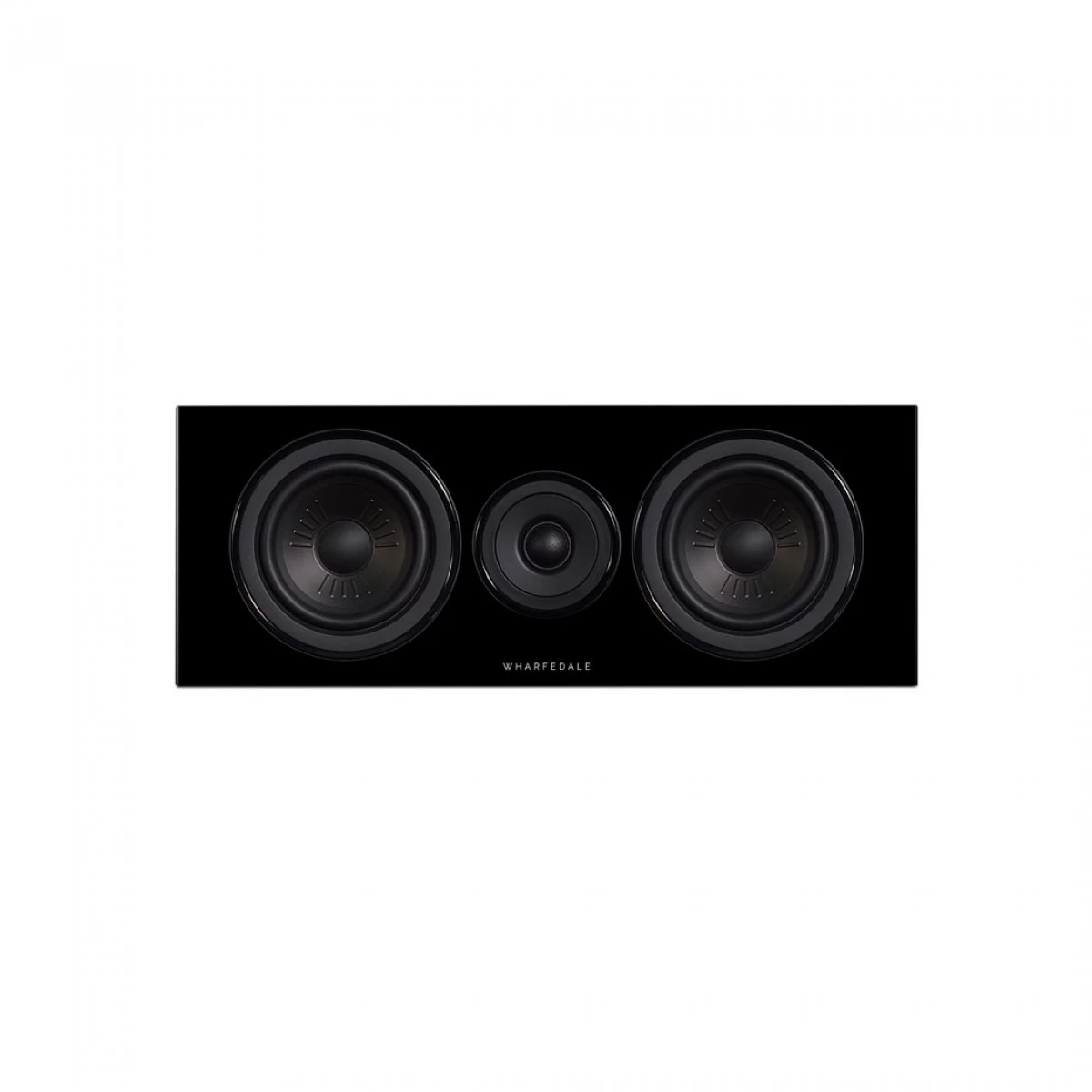

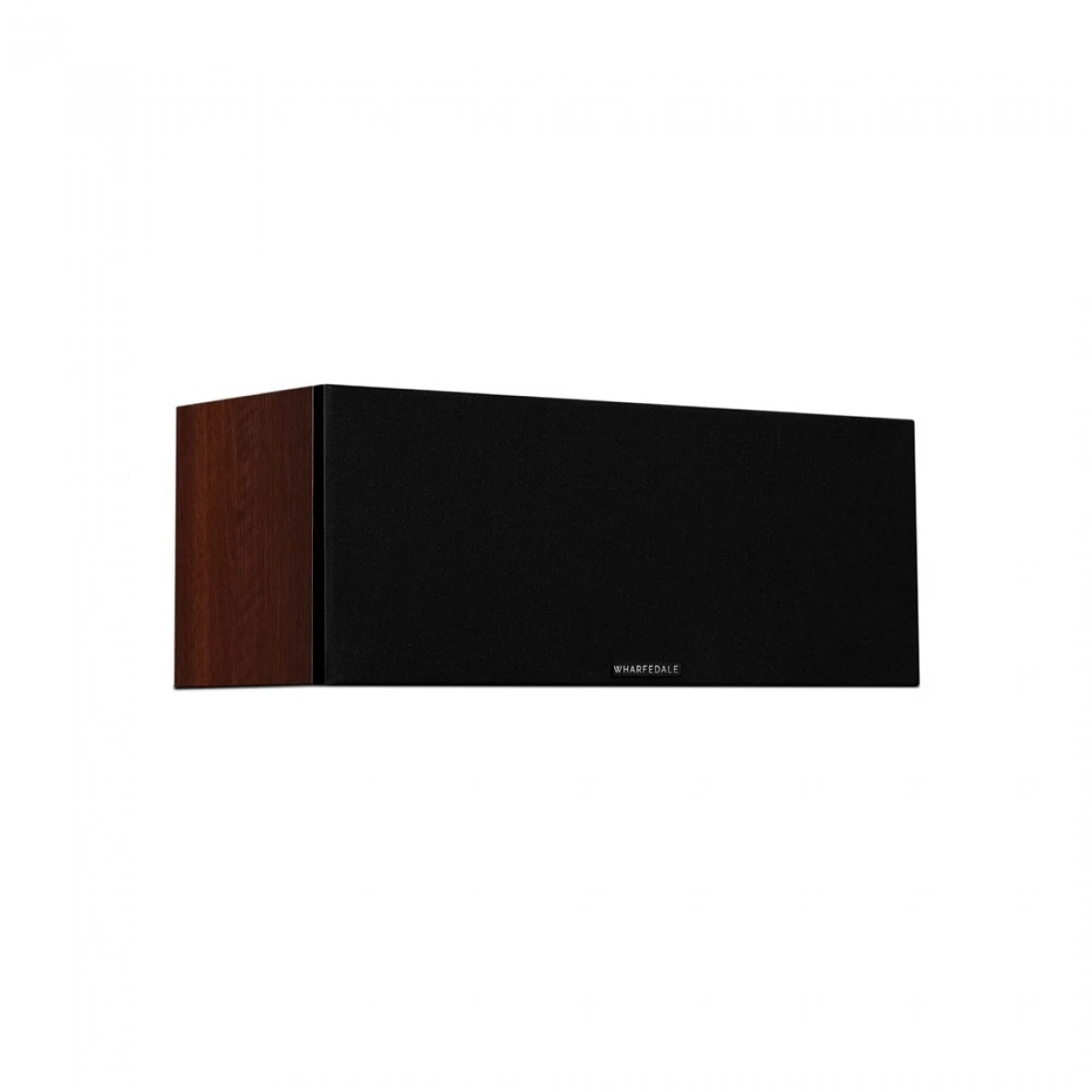

Name: Wharfedale Diamond 12.C Centre Speaker, Walnut Pearl
SKU: YXYUY 29740
Availability: InStock

Full Description

Klarity

Wharfedale constantly innovates new technology for the betterment of audio immersion and enjoyment. Since 2001 Wharfedale has used Kevlar for the construction of their Diamond speaker cones, however with 12 a new proprietary composite called Klarity has been created. The base ingredient for Klarity is polypropylene, a low distortion material that has been combined with mica to increase stiffness and reduce flexing resulting in a lightning-fast response. The result is an enthralling sound with precise accuracy and bold excitement for your audio.

Bass/Mid Drivers

Meticulous research has gone into delivering prime fidelity from the bass/mid drivers in the Diamond 12 series speakers. The diaphragms are driven by a precision-made magnet system with an aluminium compensation ring that minimises distortion and intermodulation usually associated with motor systems with ultra-low damping. The voice coil is wound on a high-power epoxy/glass fibre bobbin. This negates any eddy currents being added and assures the delivery of greater power compared to that delivered by an aluminium bobbin usually found in speakers at this price range.

Treble Unit and Crossover

Open and smooth extended high frequencies are assured thanks to the 25mm dome made from a woven polyester film with a high loss coating. Wide dispersion ensures perfect sound quality in any environment with a crossover network using an acoustic LKR 24dB topology and air-core inductors that allows seamless combination with the Klarity mid/bass drivers negating any distortion.

Cabinet Construction

The Diamond 12 series features a cabinet design that is usually reserved for speakers at a much higher price point. Wharfedale knows that sub-par design can lead to suboptimal results, no matter how good your drive system is. The rear-ported enclosure of each speaker has been designed to deliver prime sonic results with Intelligent Spot Bracing achieving an optimal reduction of cabinet resonance. The resonant properties of all materials used, including the glue, were carefully managed for natural, resonant free audio that offers full immersion.

Features

All-new Klarity drivers offer high rigidity, low colouration and a lightning-fast response
A precision-made magnet system with an aluminium compensation ring minimises distortion and intermodulation
The tweeter dome is made from a woven polyester film with a high loss coating for open and smooth highs with wider dispersion
An acoustic LKR 24dB topology delivers seamless crossover between speaker types
Intelligent Spot Bracing connects opposite walls that significantly reduces resonance

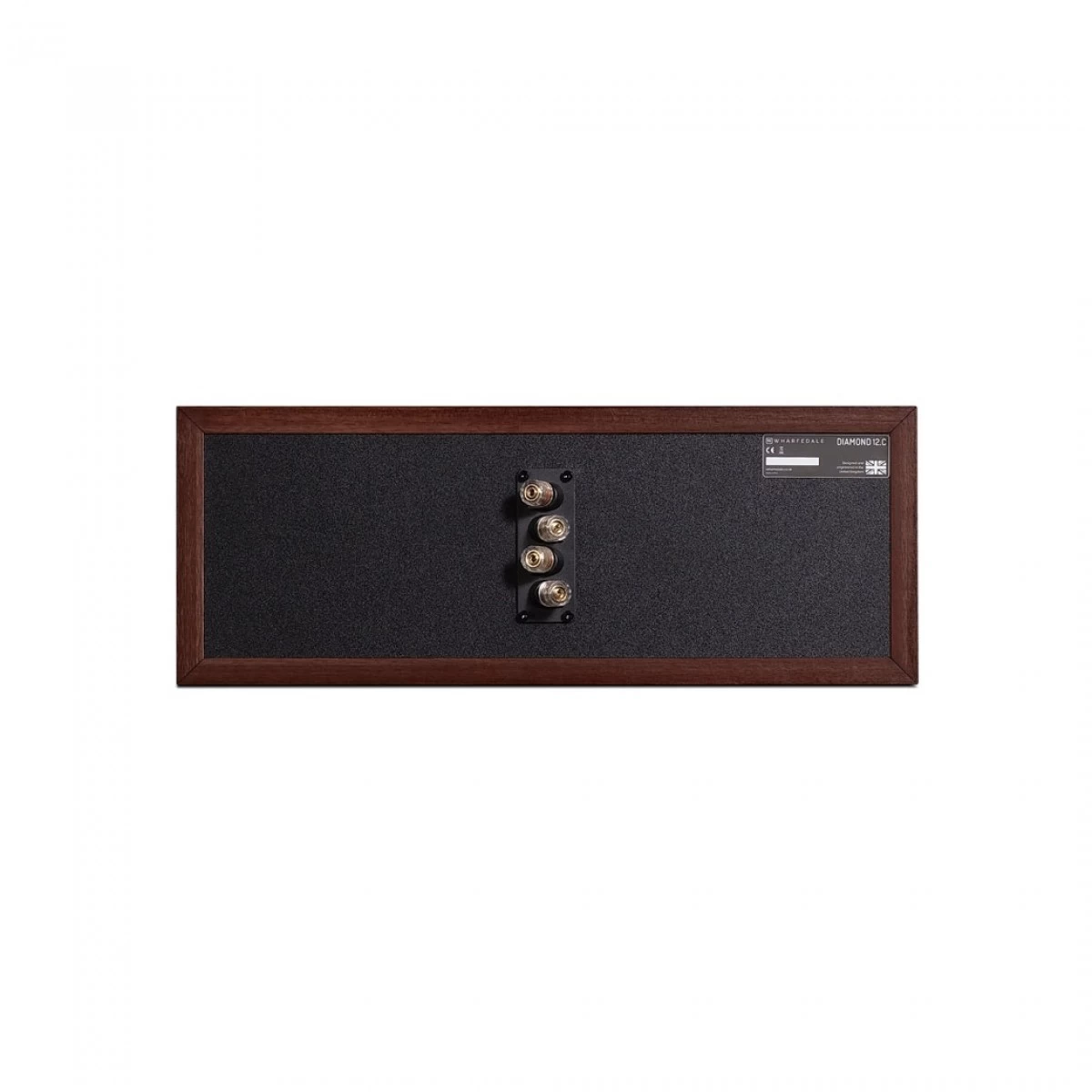

Bi-wire compatibility enables a clean separation of high and low frequencies for improved mid-range performance
Taken from our

Enclosure type	closed-box system
Transducer complement	2-way
Bass driver	6.5″(130mm) advanced PP Cone x 2
Treble driver	1″(25mm) Textile Dome
AV shield	No
Sensitivity(2.83V @ 1m )	90dB
Recommended ampli?er power	20-120W
Peak SPL	96dB
Nominal impedance	8Ω Compatible
Minimum impedance	4.0Ω
Frequency response(+/-3dB)	90Hz 20kHz
Bass extension(-6dB)	80Hz
Crossover frequency	2.2kHz
Cabinet Volume (in litres)	8.7L
Dimensions ( H x W x D )	180 x 480 mm x (180+28) mm
Net weight	8.5kg/pcs
Product code	WHRF-DIA12-C-WAL
