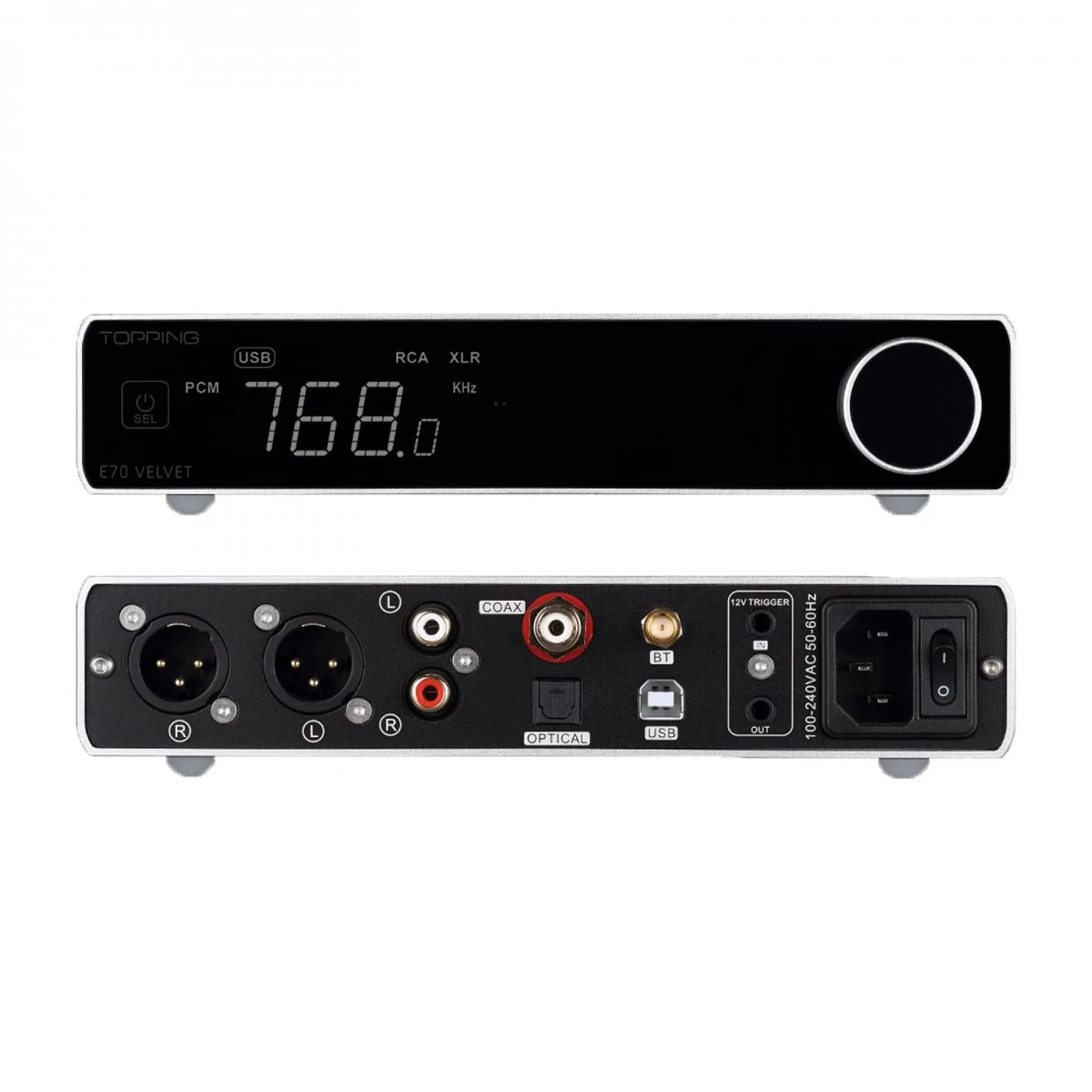

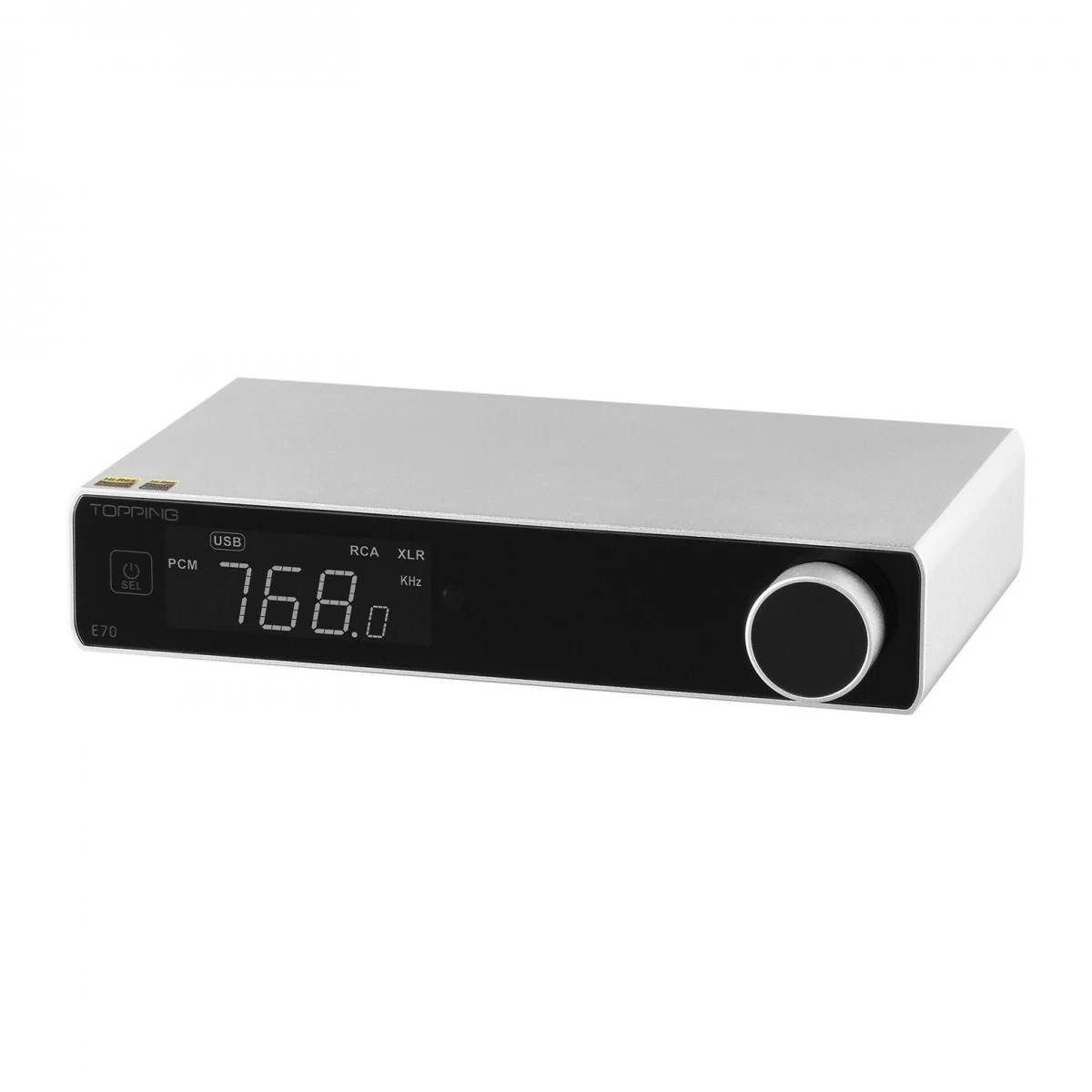

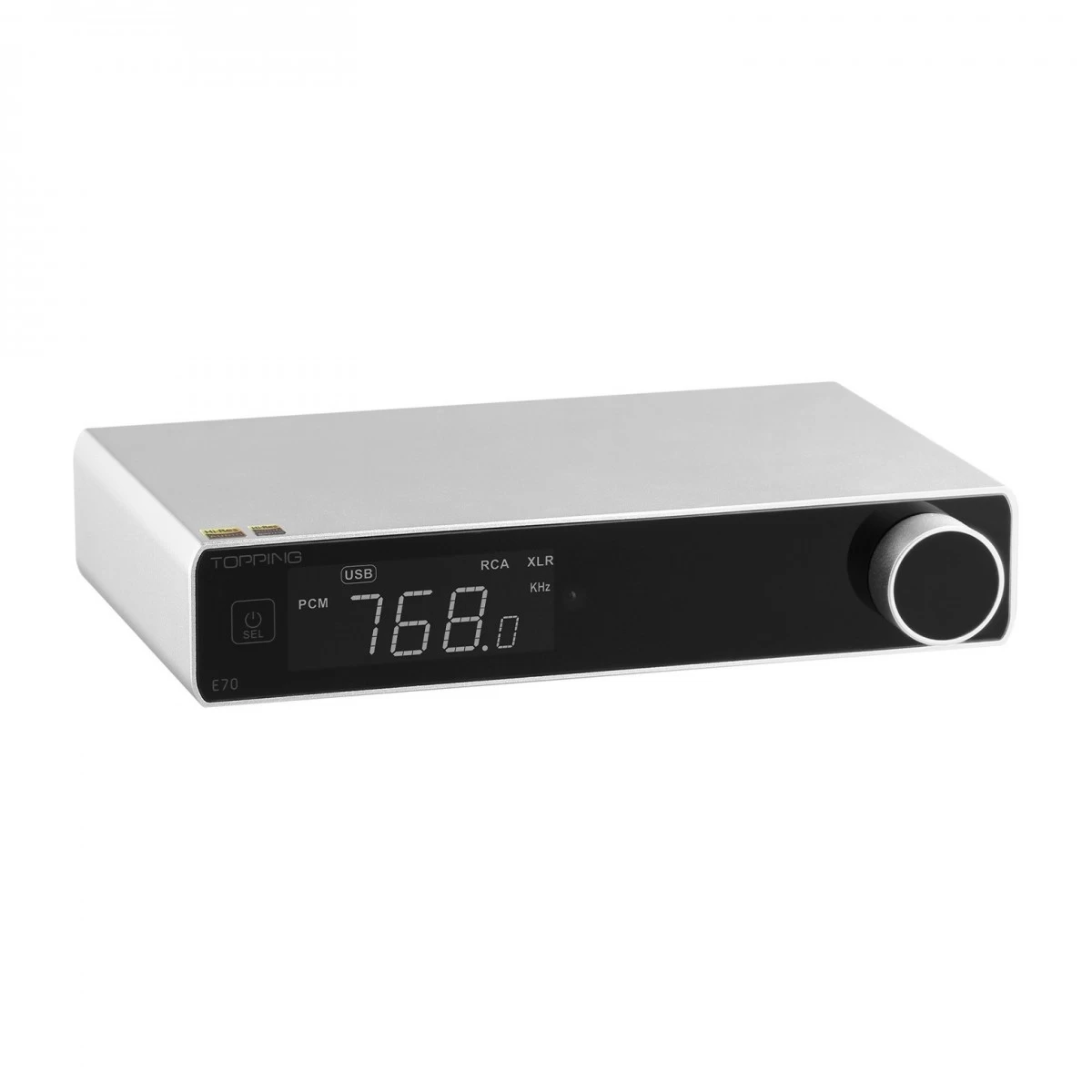

Topping E70 Velvet Desktop DAC, Silver

What’s in the Box?

• E70 Velvet

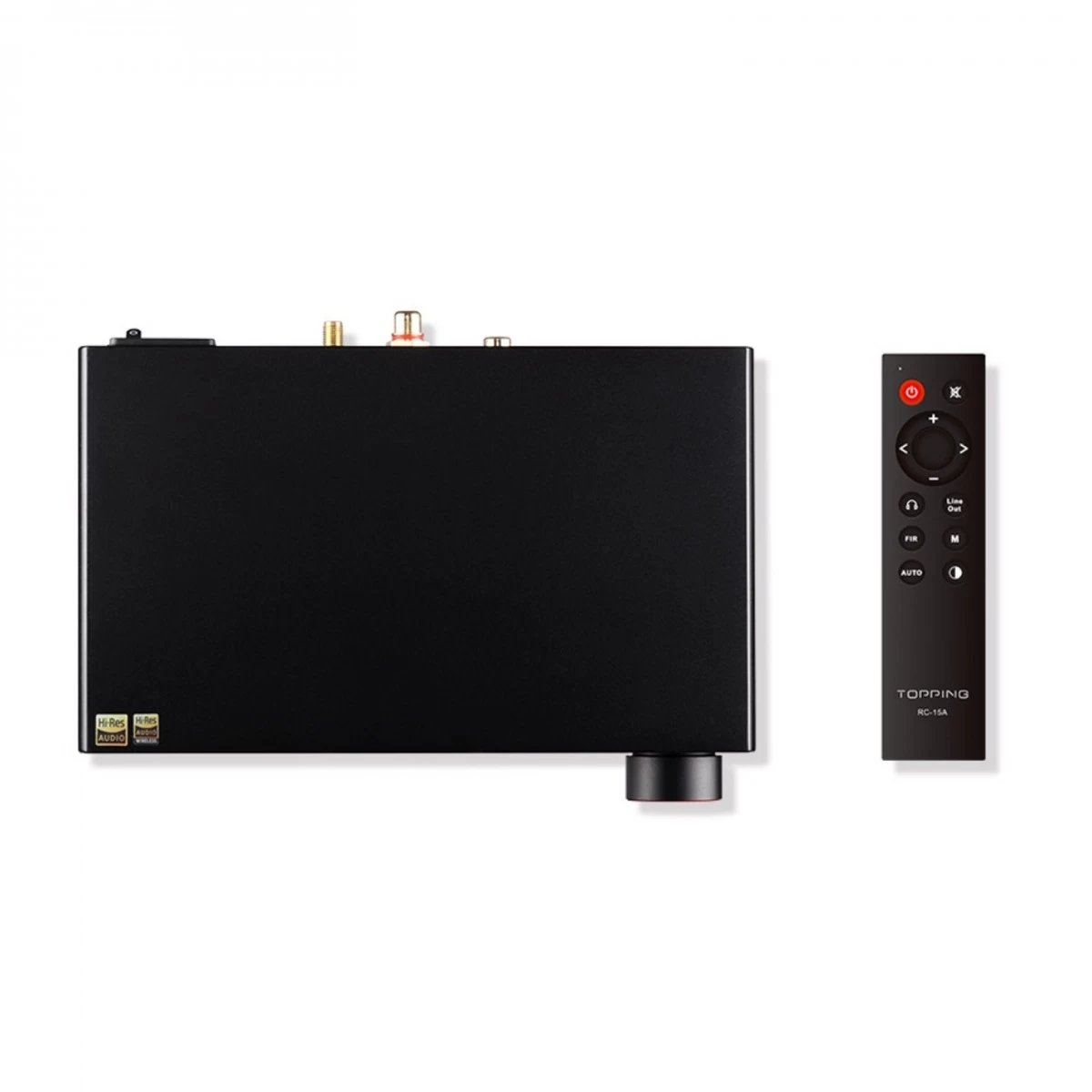

• Remote control
• USB cable
• AC cable
• Bluetooth antenna
• User manual
• Warranty card

Specifications

USB In

PCM	44.1kHz -768kHz/16bit-32bit
DSD (Native)	DSD64-DSD512
DSD (DoP)	DSD64-DSD256

Optical/Coaxial In

PCM	44.1kHz -192kHz/16bit-24bit
DSD (Native)	Not supported
DSD (DoP)	DSD64

Bluetooth In

PCM	AAC / SBC / APTX / APTX LL / APTX HD / LDAC / APTX-Adaptive
DSD (Native)	Not supported
DSD (DoP)	Not supported

DAC Parameters (RCA)

THD+N (A-wt)
THD 90kBw (No-wt)
SNR (A-wt)	125dB @1kHz
Dynamic range (A-wt)	125dB @1kHz
Frequency response	20Hz-40kHz (±0.3dB) 20Hz-40kHz (±1.0dB)
Output level	2.1Vrms @0dBFS (4V Mode) 2.5Vrms @0dBFS (5V Mode)
Noise @A-wt
Channel crosstalk	-130dB @1kHz
Channel balance	0.3 dB
Output impedance	50 Ω

DAC Parameters (XLR)

THD+N (A-wt)
THD 90kBw
SNR (A-wt)	131dB @1kHz
Dynamic range (A-wt)	131dB @1kHz
Frequency response	20Hz-40kHz (±0.2dB) 20Hz-40kHz (±0.8dB)
Output level	4.2Vrms @0dBFS (4V Mode) 5.0Vrms @0dBFS (5V Mode)
Noise@A-wt
Channel crosstalk	-143dB @1kHz
Channel balance	0.3 dB
Output impedance	100 Ω
