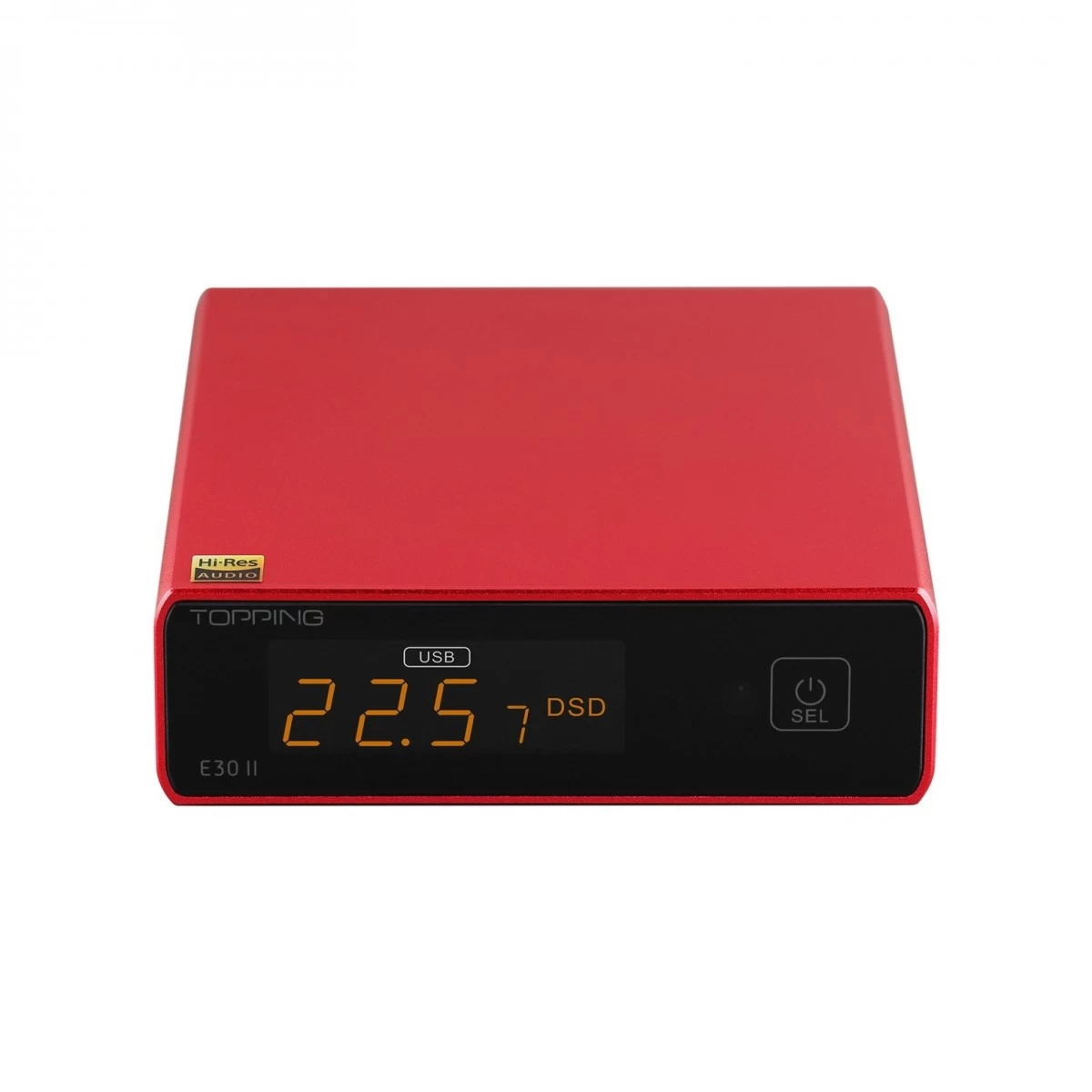

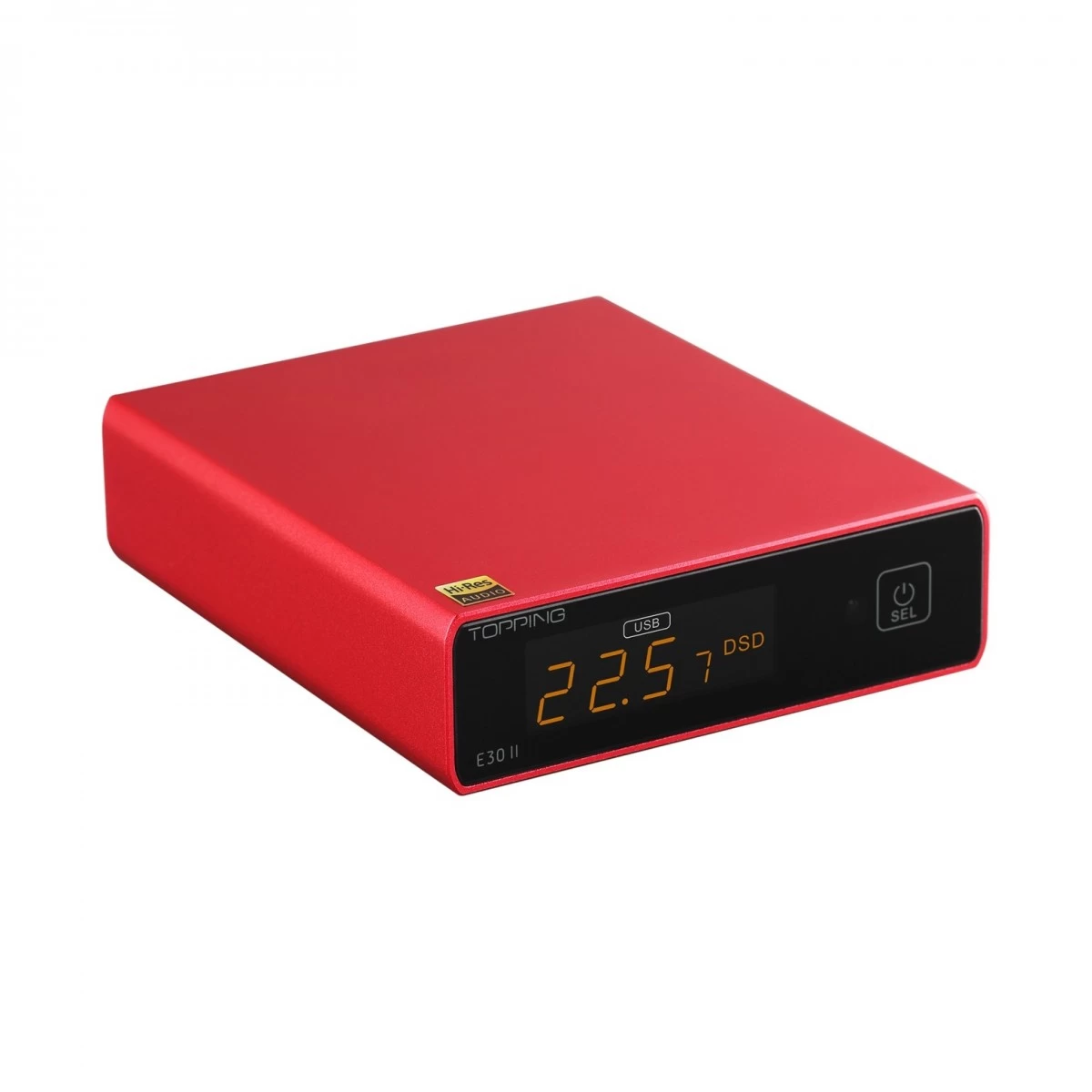

Topping E30 II Desktop DAC, Red

Original price was: £149.00.Current price is: £98.99.

SKU: YXYUY 70828 Categories: DACs, HiFi Separates

Free Shipping Worldwide
fast shipping
Safe Payments, the Smart Choice
Enjoy top quality items for less

Description
Reviews (0)

Full Description

Power, Performance, Desktop Scale

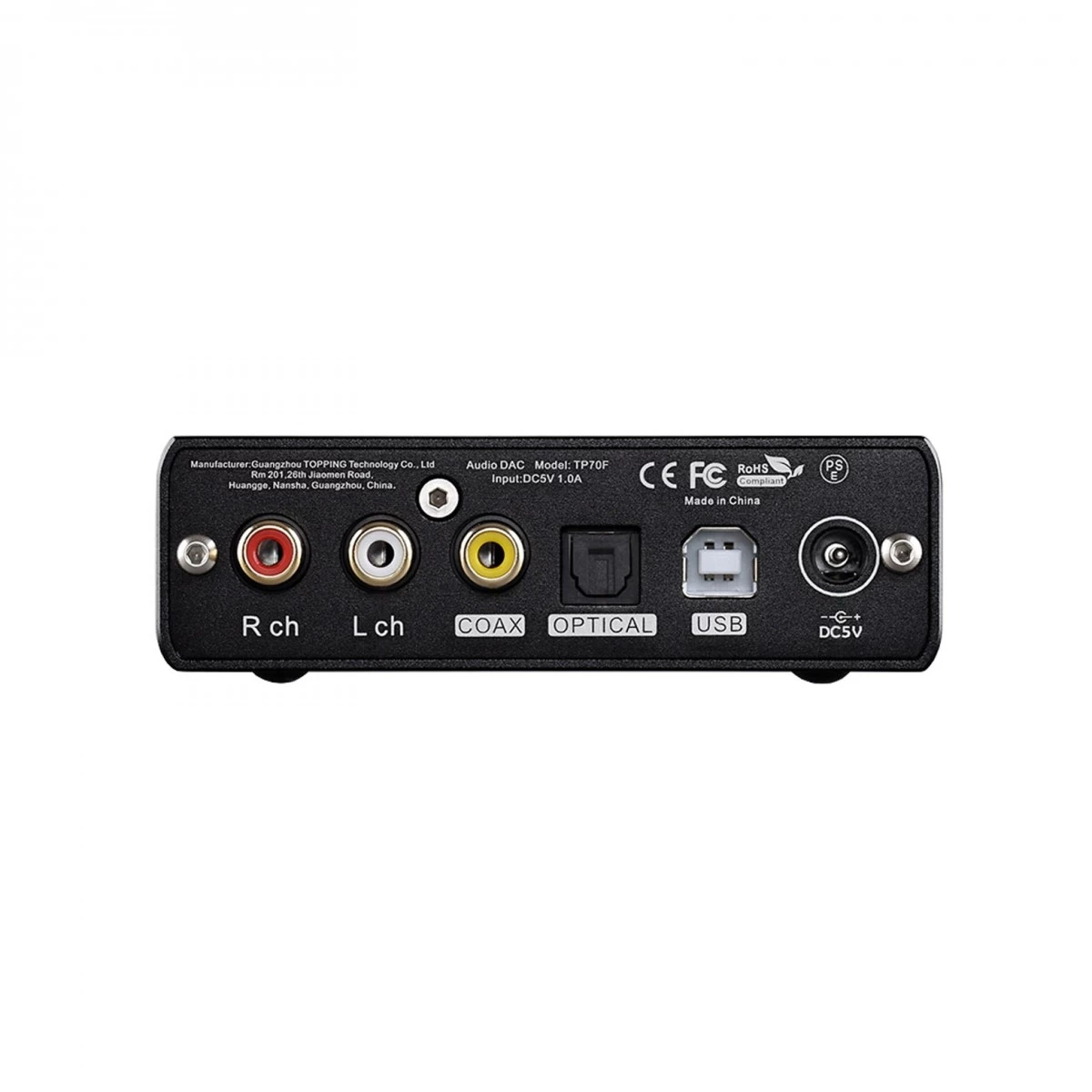

The E30 II brings double the brains, using two parallel VELVET Sound AK4493S chips over the one chip included in the model E30 I. Running together, this desktop DAC can offer high-resolution performance and quality. Inputs included are coaxial, optical and USB-B offering versatile connection options and with a dynamic range of up to 123dB that results in clear and precise conversion of your audio no matter the source.

Using a 5V power supply it’s easier than ever to power your DAC anywhere anytime, turning it into a portable powerhouse for hi-res music on the go. The E30 II can be controlled by touch interaction on the front of the unit or via the remote control for operation anywhere in the local environment.

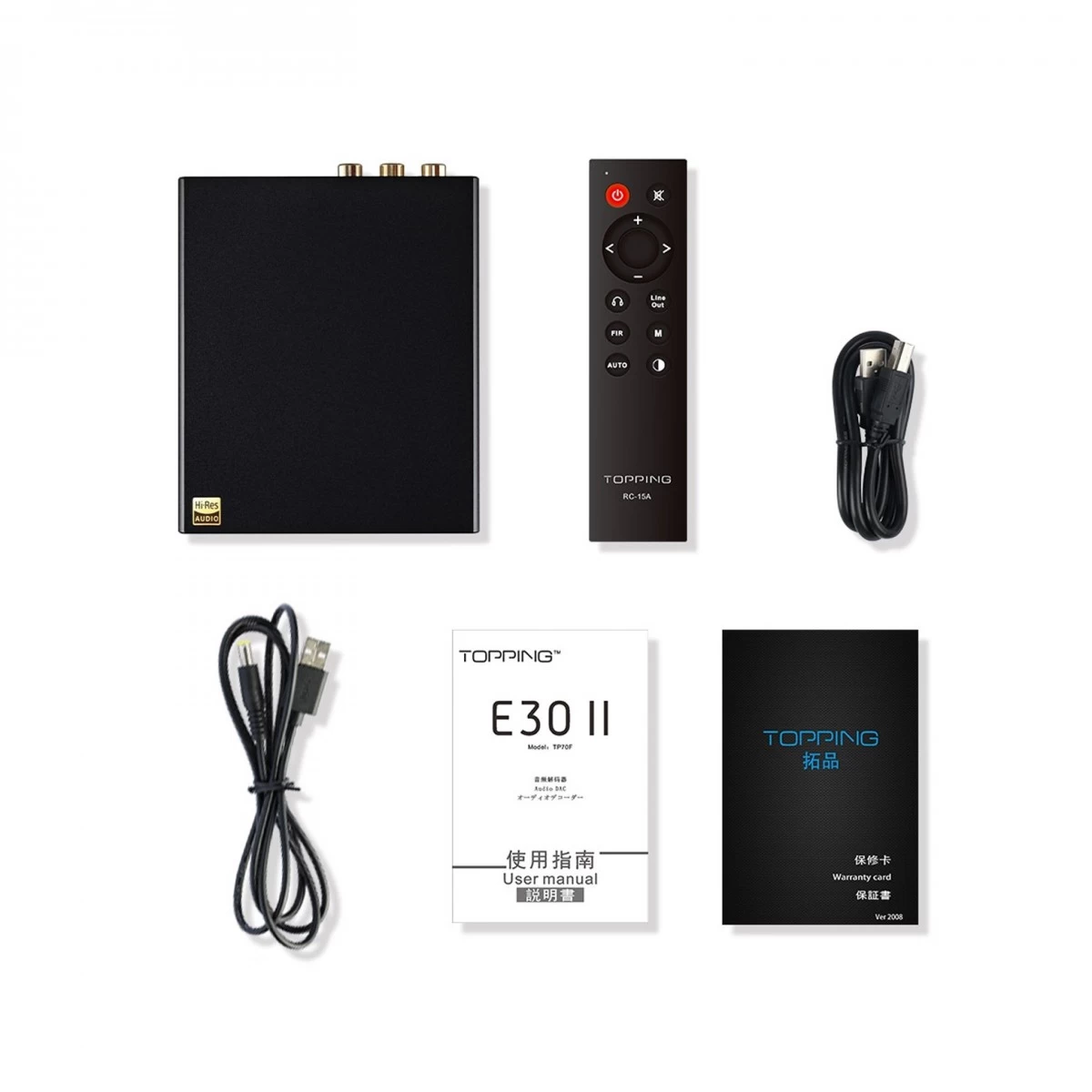

What’s in the box

x1 Topping E30 II Desktop DAC
x1 DC cable
x1 USB Cable
x1 Remote Control
x1 User manual (w/ Warranty card)

D/A Support

PCM

USB 44.1kHz-768kHz / 16bit-32bit

OPT/COAX 44.1kHz-192kHz / 16bit-24bit

DSD (Native)

USB DSD64 – DSD512

OPT/COAX Not supported

DSD (DoP)

USB DSD64 – DSD256

OPT/COAX Not supported

E30 II DAC Parameters (Line Out / USB In @96kHz)

THD+N @1kHz (A-wt)
THD @90kBw (No-wt)
SNR @A-wt	123dB @1kHz
Dynamic Range @A-wt	123dB @1kHz
Frequency Response	20Hz – 20kHz (±0.3dB) 20Hz – 40kHz (±0.8dB)
Output Level	2.1Vrms @0dBFS
Noise @A-wt
Channel Crosstalk @1kHz	-132dB
Channel Balance
Output Impedance	20&ohm;
