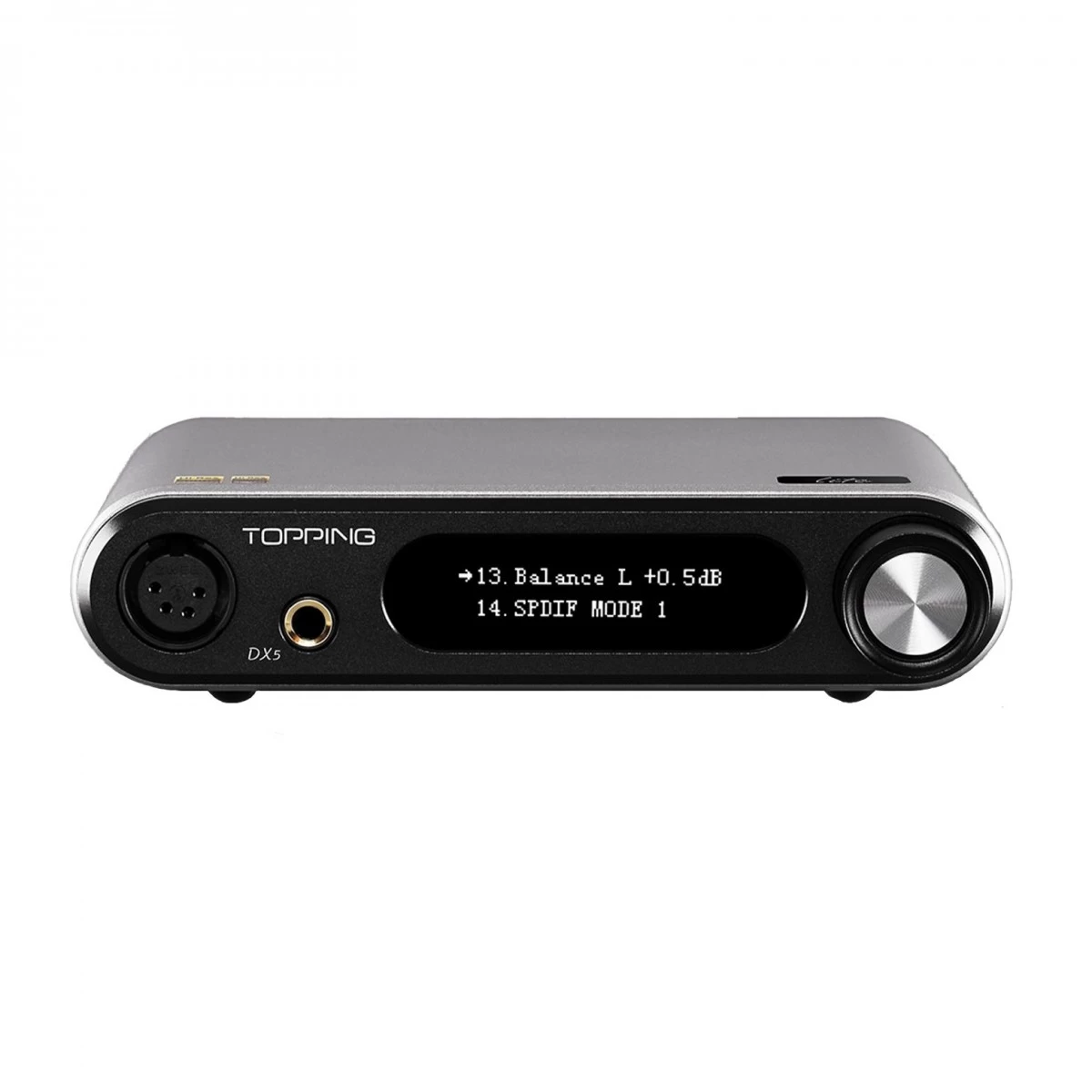

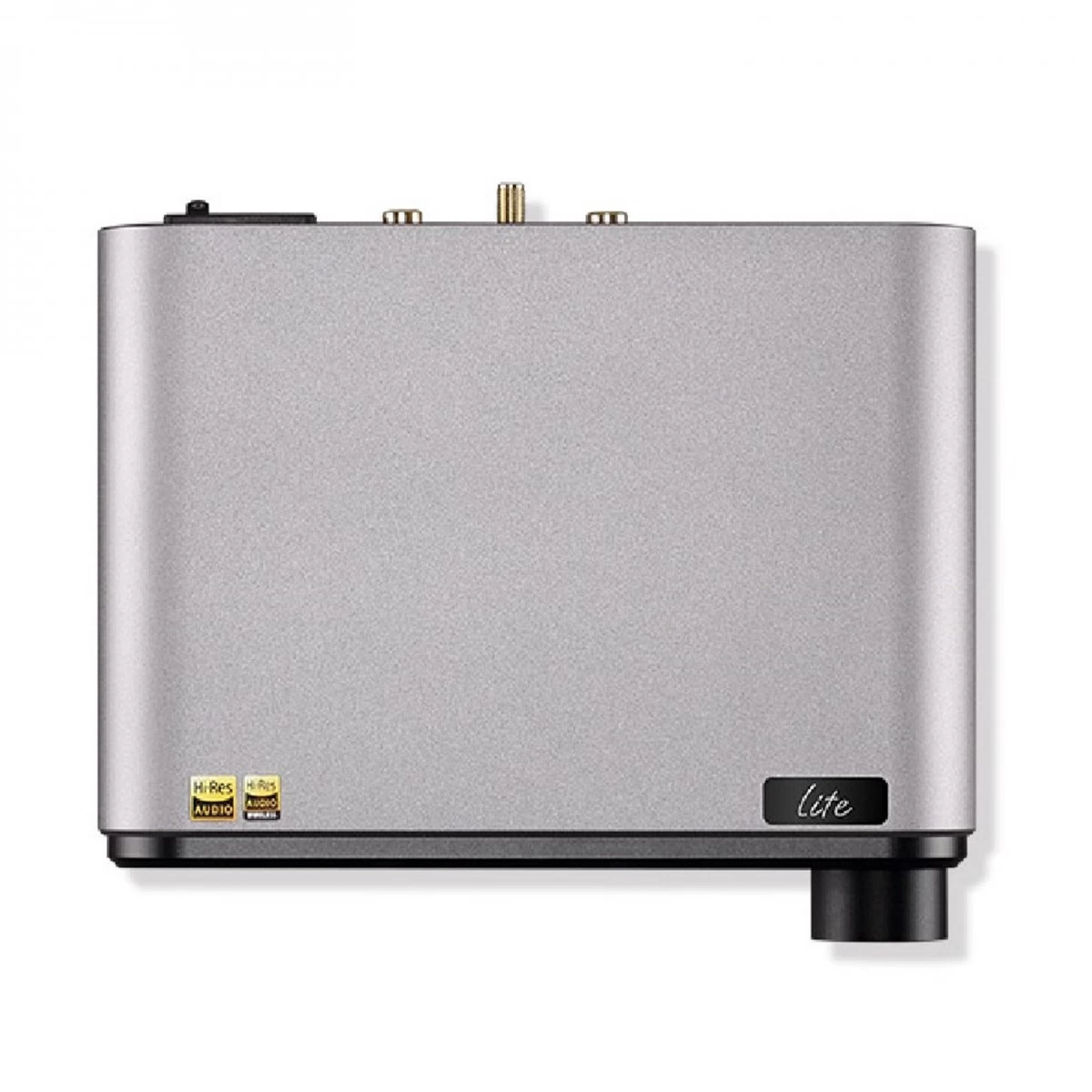

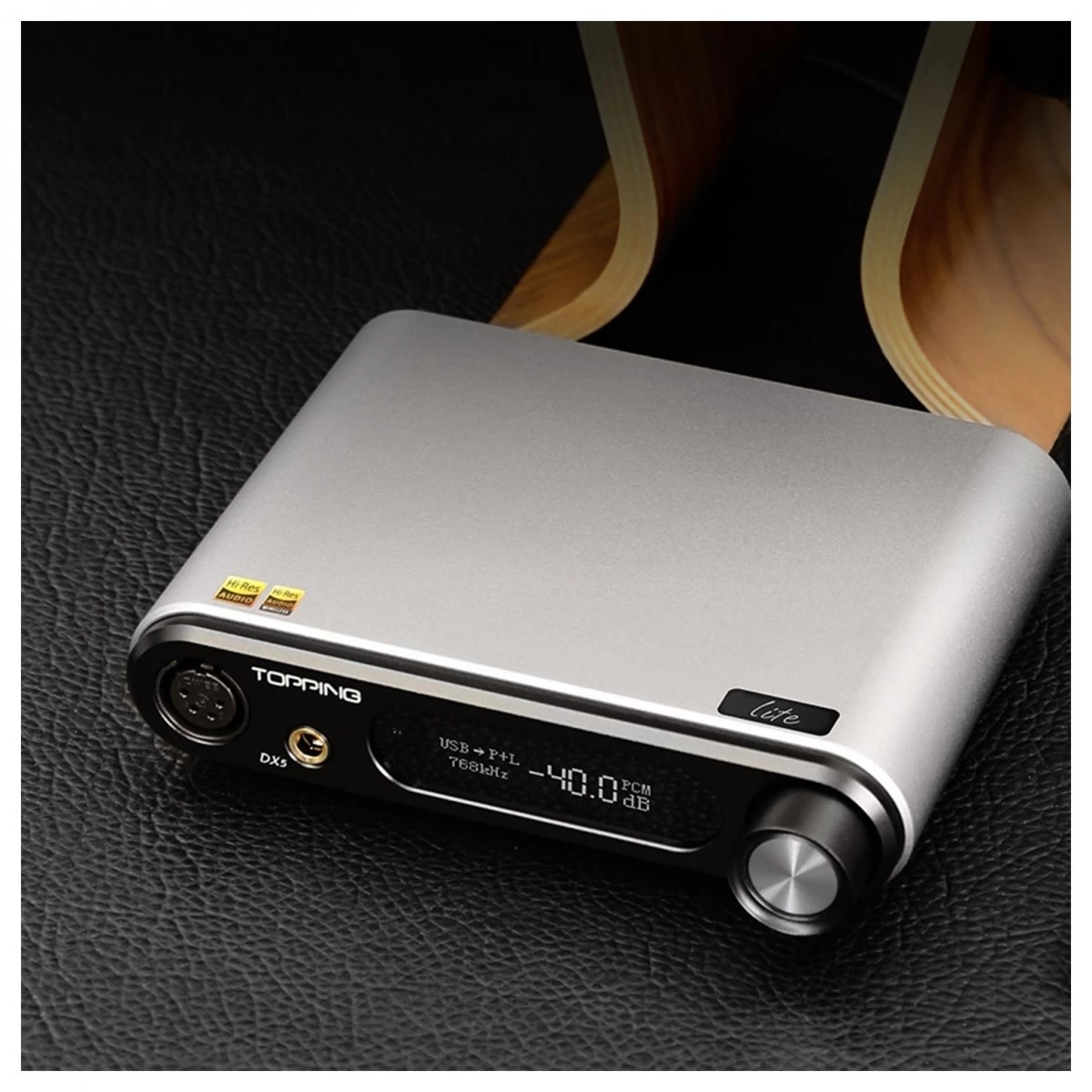

Topping DX5 Lite DAC And Headphone Amp, Grey

Full Description

What’s in the Box?

• DX5 Lite
• Remote Control
• USB cable
• 6.35mm to 3.5mm adaptor
• Bluetooth antenna
• AC cable
• User manual
• Warranty card

Specifications

USB In

PCM	44.1kHz -768kHz/16bit-32bit
DSD (Native)	DSD64-DSD512
DSD (DoP)	DSD64-DSD256
MQA	Not supported

Optical/Coaxial In

PCM	44.1kHz -192kHz/16bit-24bit
DSD (Native)	Not supported
DSD (DoP)	DSD64
MQA	Not supported

Bluetooth In

PCM	AAC / SBC / APTX / APTX LL / APTX HD / LDAC
DSD (Native)	Not supported
DSD (DoP)	Not supported
MQA	Not supported

Decoding Parameters (RCA)

THD+N@1kHz (A-wt)
THD @20-20kHz 90kBw
SNR@1kHz (A-wt)	125dB
Dynamic range @1kHz (A-wt)	125dB
Frequency response	20Hz-20kHz (±0.1dB) 20Hz-40kHz (±0.3dB)
Output level	2.1Vrms @0dBFS
Noise@A-wt
Channel crosstalk	-130dB @1kHz
Channel balance	0.3 dB
Output impedance	50 Ω

Decoding Parameters (XLR)

THD+N@1kHz (A-wt)
THD @20-20kHz 90kBw
SNR@1kHz (A-wt)	128dB
Dynamic range @1kHz (A-wt)	128dB
Frequency response	20Hz-20kHz (±0.1dB) 20Hz-40kHz (±0.3dB)
Output level	4.2Vrms @0dBFS
Noise@A-wt
Channel crosstalk	-140dB @1kHz
Channel balance	0.3 dB
Output impedance	50 Ω

Headphone Amplifier (6.35mm Headphone Jack)

THD+N @1kHz (A-wt)	<0.00010&percnt; @Output=145mW (32&ohm;)
THD @20-20kHz 90kBW	<0.00050&percnt; @Output=145mW (32&ohm;)
SNR @MAX OUT 1kHz (A-wt)	125dB @1kHz
Dynamic range @1kHz (A-wt)	125dB @1kHz
Frequency response	20Hz-20kHz (±0.1dB) 20Hz-40kHz (±0.3dB)
Output level	6Vpp @G=L 25Vpp @G=H
Noise @A-wt)	<1.7uVrms @G=L
Channel crosstalk	-114dB @1kHz
Gain	G=L 6.7dB (Vrms/FS) G=H 19dB (Vrms/FS)
Channel Balance	0.3 dB
Output impedance
Output power	1800mW x 2 @32&ohm; THD+N<1&percnt; 1000mW x 2 @64&ohm; THD+N<1&percnt; 250mW x 2 @300&ohm; THD+N8&ohm;

Headphone Amplifier (4-PIN-XLR headphone jack)

THD+N @1kHz (A-wt)	<0.00010&percnt; @Output=145mW (32&ohm;)
THD @20-20kHz 90kBW	<0.00050&percnt; @Output=145mW (32&ohm;)
SNR @MAX OUT 1kHz (A-wt)	125dB @1kHz
Dynamic range @1kHz (A-wt)	125dB @1kHz
Frequency response	20Hz-20kHz (±0.1dB) 20Hz-40kHz (±0.3dB)
Output level	6Vpp @G=L 25Vpp @G=H
Noise @A-wt)	<1.7uVrms @G=L
Channel crosstalk	-114dB @1kHz
Gain	G=L 6.7dB (Vrms/FS) G=H 19dB (Vrms/FS)
Channel Balance	0.3 dB
Output impedance
Output power	1800mW x 2 @32&ohm; THD+N<1&percnt; 1000mW x 2 @64&ohm; THD+N<1&percnt; 250mW x 2 @300&ohm; THD+N8&ohm;
