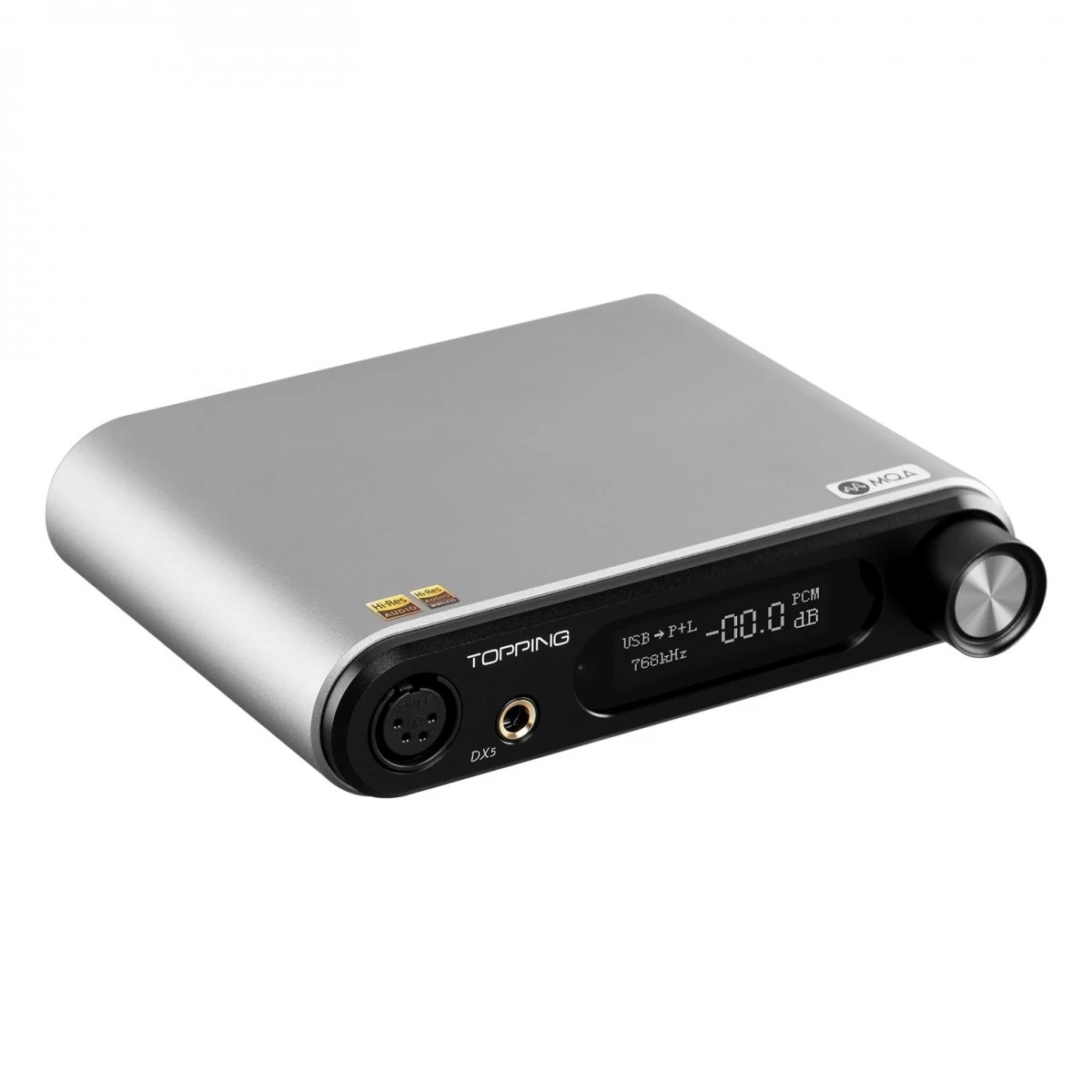

Topping DX5 DAC And Headphone Amplifier, Silver

Full Description

For high quality digital decoding with the means of maintaining signal clarity through either your headphones or a range of dynamic outputs, look no further than the Topping DX5 DAC and Headphone Amplifier. Topping have painstakingly engineered a combination of modest size with powerful capability. Dual ES9068AS DAC chips have been integrated as the heart of the low-noise D/A circuitry, supporting USB decoding up to PCM 768Khz/32bit and DSD512 native. The digital Optical / Coaxial inputs can be connected to A/V sources such as Blu-ray, TV or games console for improved home audio as well as supporting MQA Full Decoding, delivering authentic playback for a studio level of detail.

Multifunctional Outputs

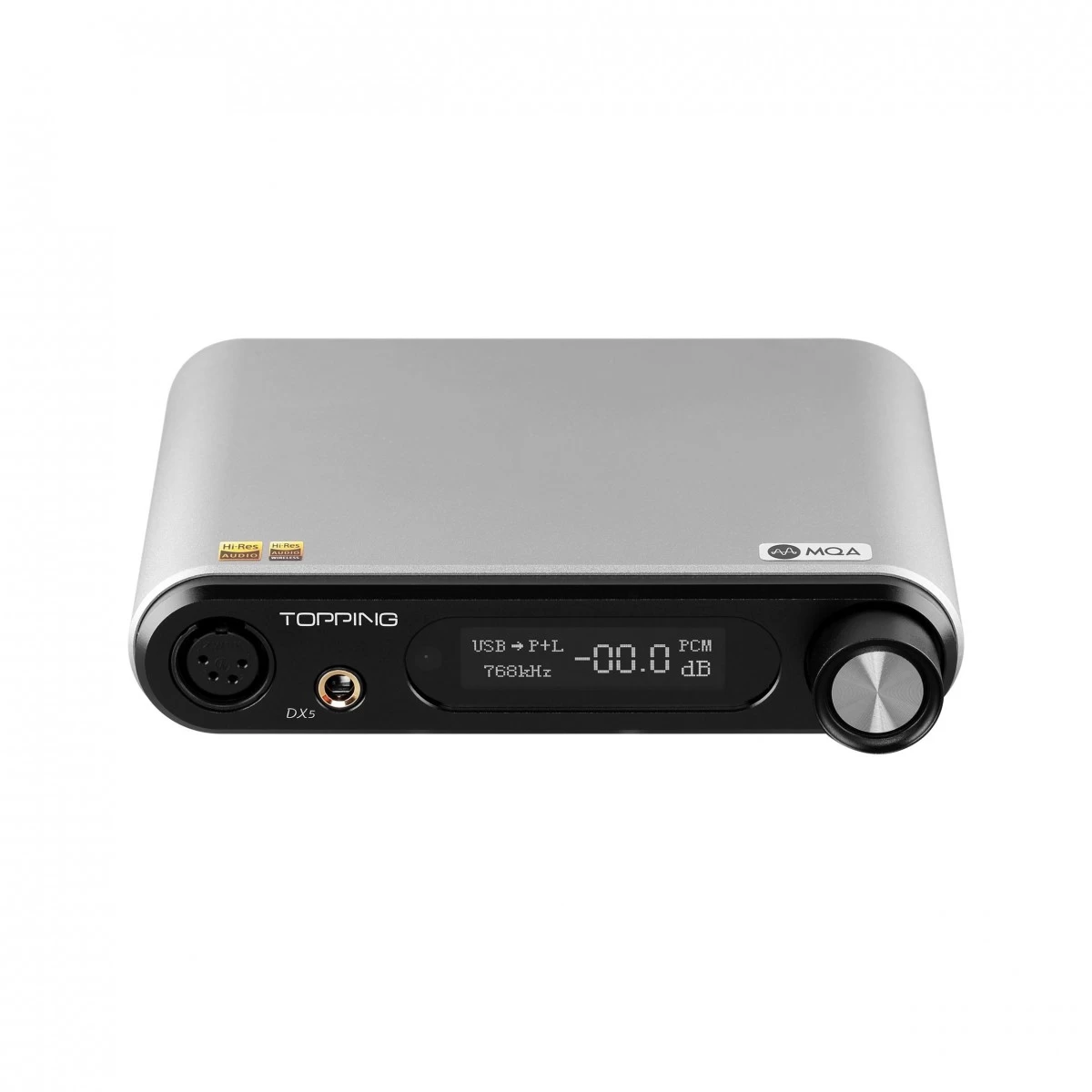

Besides the OLED display, the front panel all features both 6.35mm jack and 4-Pin XLR headphone outputs. Thanks to NFCA circuitry present throughout a range of Topping amps, pair with a range of headphone sensitivities whilst still maintaining exceptionally low levels of distortion. Between 1800mW per channel at 32Ω and 250mW at 300Ω, the DX5 fits the most power hungry over-ear headphones or sensitive IEMs alike.

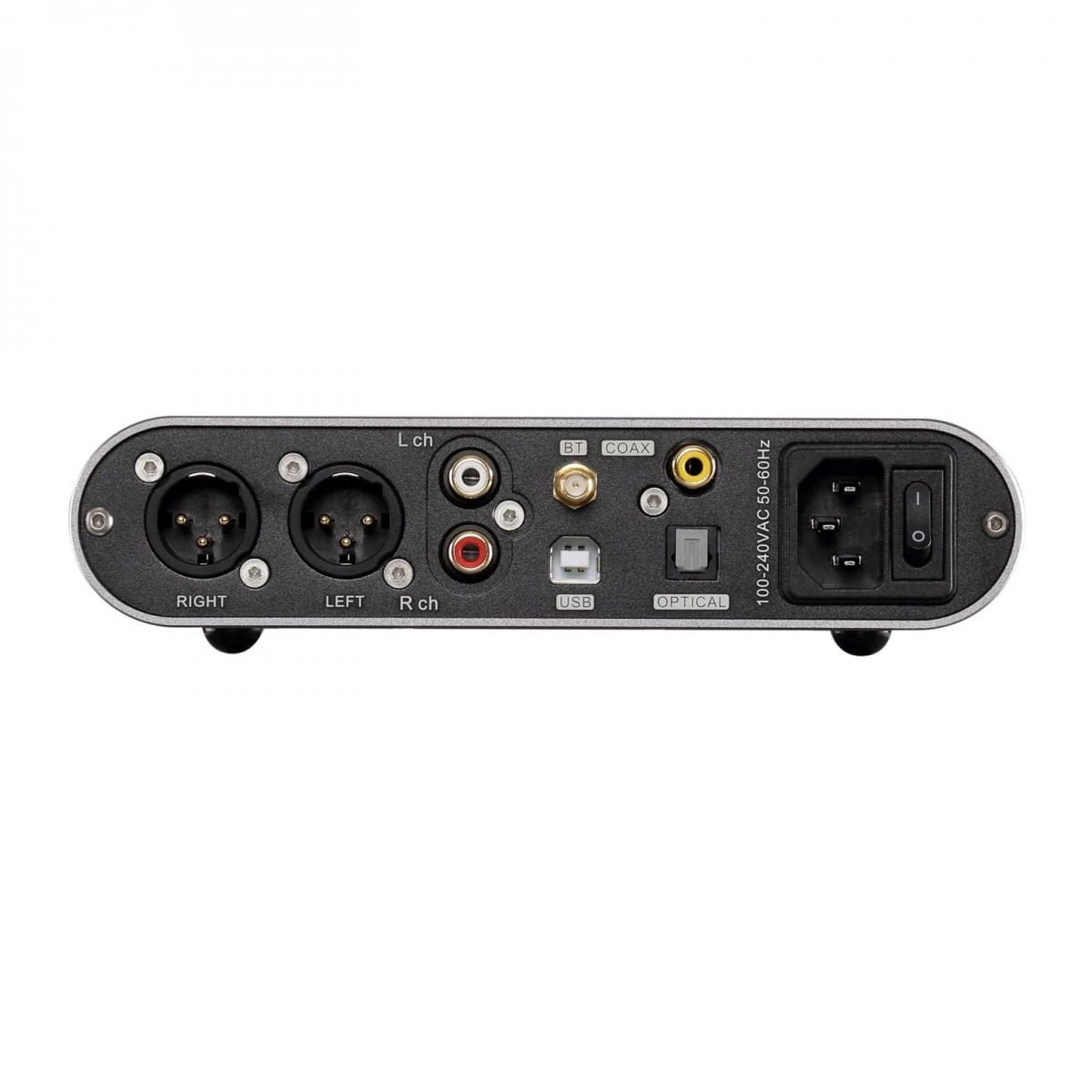

The DX5 also gives you the option of switching from a headphone amplifier to a preamplifier, with a pair of single ended RCA and balanced XLR outputs found on the rear panel. By connecting to either a power amplifier or active speakers, use the same powerful DAC capabilities to send high quality audio to your sound system all from a compact footprint. The DX5 is completely adaptable and comes with four output modes: Headphone amp, headphone amp + line out, DAC and preamplifier.

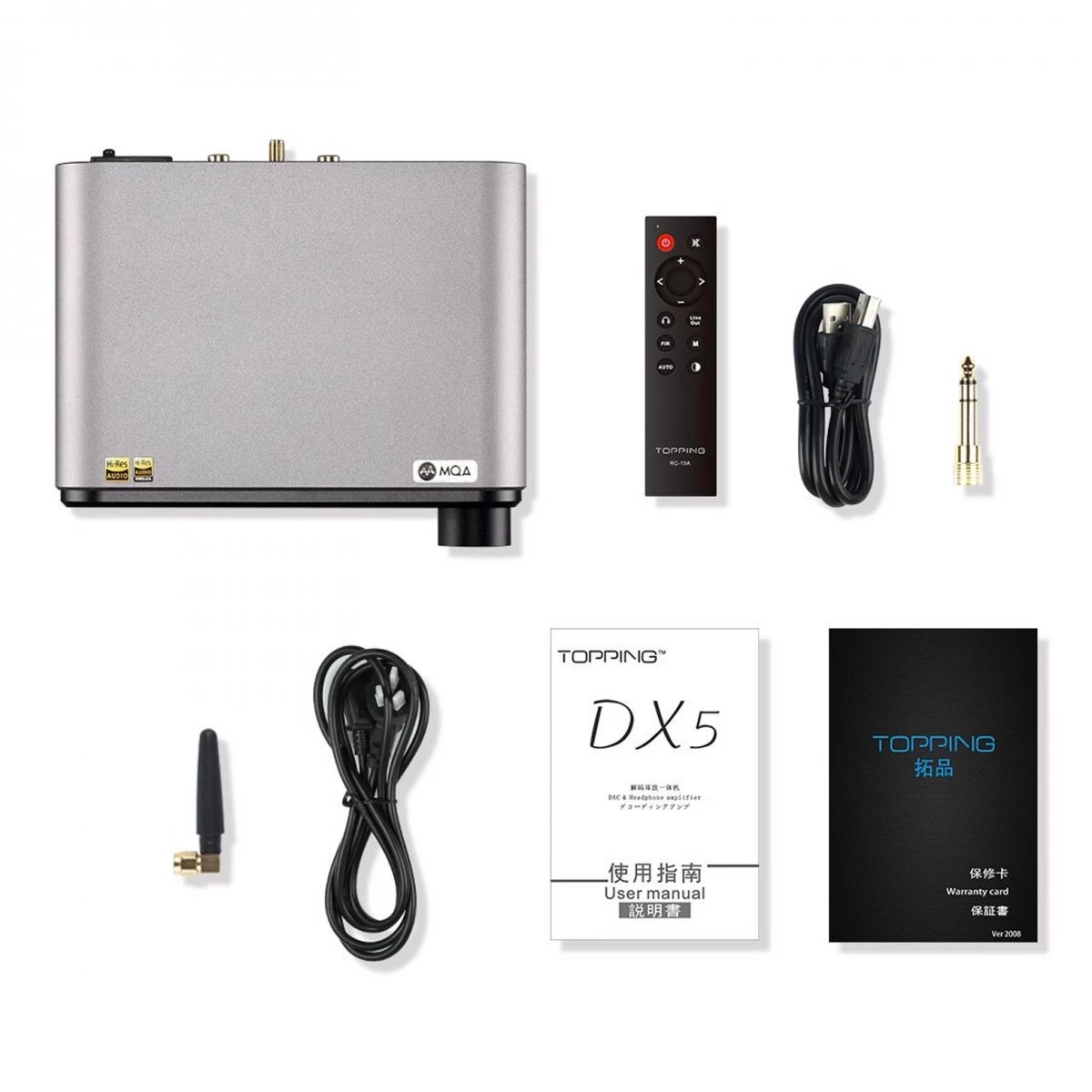

What’s in the Box?

• Topping DX5 DAC and Headphone Amplifier
• Remote control
• USB Cable
• 6.35mm to 3.5mm adaptor
• Bluetooth antenna
• AC cable
• User manual (w/ Warranty card)

Specifications

Supported formats: USB input

PCM	44.1kHz-768kHz 16bit-32bit
DSD (Native)	DSD64-DSD512
DSD (DoP)	DSD64-DSD256
MQA	Full Decode

Supported formats: Optical / Coaxial inputs

PCM	44.1kHz-192kHz 16bit-24bit
DSD (Native)	Not supported
DSD (DoP)	DSD64
MQA	Full Decode

Supported formats: Bluetooth connection

PCM	AAC SBC APTX APTX LL APTX HD LDAC
DSD (Native)	Not supported
DSD (DoP)	Not supported
MQA	Not supported

DX5 Decoding Parameters (Line Out / USB In @96kHz)

THD+N @1kHz (A-wt)	RCA <0.00010 XLR
THD @20-20kHz 90kBw	RCA <0.0005 XLR
SNR @1kHz (A-wt)	RCA 125dB XLR 128dB
Dynamic Range @1kHz (A-wt)	RCA 125dB XLR 128dB
Frequency Response	RCA 20Hz-20kHz (±0.1dB) RCA 20Hz-40kHz (±0.3dB) XLR 20Hz-20kHz (±0.1dB) XLR 20Hz-40kHz (±0.3dB)
Output Level	RCA 2.1 Vrms @0dBFS XLR 4.2Vrms @0dBFS
Noise @A-wt	RCA <1.5uVrms XLR
Channel Crosstalk	RCA -130dB @1kHz XLR -140dB @1kHz
Channel Balance	RCA 0.3dB XLR 0.3dB
Output Impedance	RCA 50&ohm; XLR 50&ohm;

DX5 Headphone Amplifier Specifications (USB In @96kHz)

6.35mm Headphone Jack

THD+N @1kHz (A-wt)	<0.00010 @Output=145mW (32&ohm;)
THD @20-20kHz 90kBW	<0.00050 @Output=145mW (32&ohm;)
SNR @MAX OUT 1kHz (A-wt)	125dB @1kHz
Dynamic Range @1kHz (A-wt)	125db @1kHz
Frequency Response	20Hz-20kHz (±0.1dB) 20Hz-40kHz (±0.3dB)
Output Level	6Vpp @G=L 25Vpp @G=H
Noise @A-wt	<1.7uVrms @G=L
Channel Crosstalk	-114dB @1kHz
Gain	G=L 6.7dB (Vrms/FS) G=H 19Db (Vrms/FS)
Channel Balance	0.3dB
Output Impedance
Output Power	1800mW x 2 @32&ohm THD+N<1 1000mW x 2 @64&ohm; THD+N<1 250mW x 2 @300&ohm; THD+N<1
Load Impedance	>8&ohm;

4-PIN-XLR Headphone Jack

THD+N @1kHz (A-wt)	<0.00010 @Output=145mW (32&ohm;)
THD @20-20kHz 90Kbw	<0.00050 @Output=145mW (32&ohm;)
SNR @MAX OUT 1kHz (A-wt)	125dB @1kHz
Dynamic Range @1kHz (A-wt)	125dB @1kHz
Frequency Response	20Hz – 20kHz (±0.1dB) 20Hz – 40kHz (±0.3dB)
Output Level	6Vpp @G=L 25Vpp @G=H
Noise @A-wt	<1.7uVrms @G=L
Channel Crosstalk	-114dB @1kHz
Gain	G=L 6.7Db (Vrms/FS) G=H 19dB (Vrms/FS)
Channel Balance	0.3dB
Output Impedance
Output Power	1800mW x 2 @32&ohm; THD+N<1 1000mW x 2 @64&ohm; THD+N<1 250mW x 2 @300&ohm; THD+N<1
Load Impedance	>8&ohm;

General

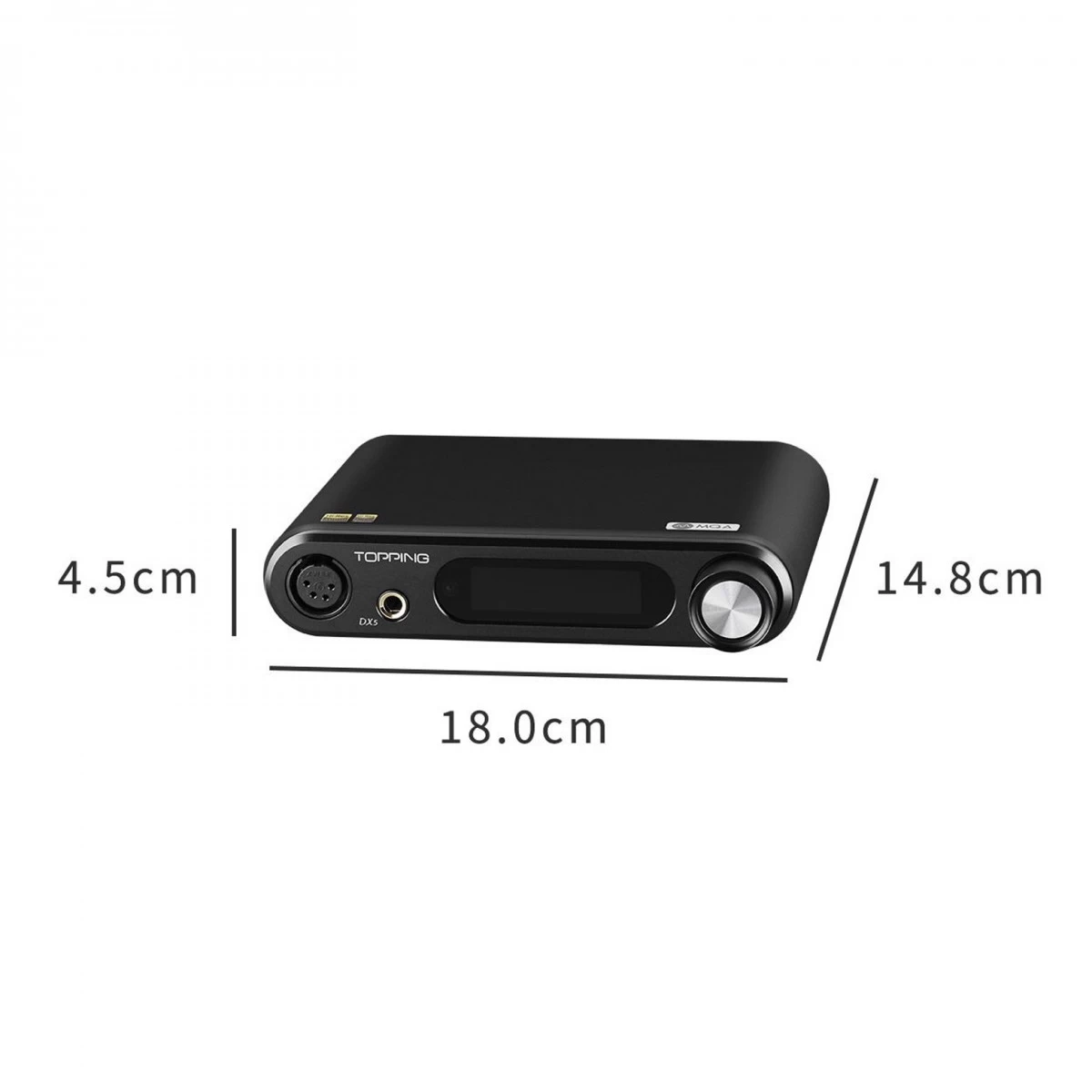

Dimensions (W x D x H)	180 x 148 x 45 mm
