Full Description
The SL-C700 realises accurate and high-quality music reproduction, drawing out the full potential inherent in a music CD. The High Res Re-master function enables high-precision expansion of bandwidth and bit depth for high-quality sound reproduction from music CDs. A high-precision master clock drives all the digital circuits. The SL-C700 is equipped with L/R independent high-precision DACs (Burr-Brown PCM1795).
The oversampling digital filter uses Technics’ original algorithm to ensure the most accurate conversion of the digital signal.
High-Precision Master Clock
A clock generated by high-precision crystal operates the CD reading, Audio DSP, and D/A converters to achieve highly precise digital synchronisation, resulting in accurate playback. Independent high-precision Burr-Brown PCM1795 (Texas Instruments) digital to analogue converters are used for each channel.
High Quality Analog Circuit
A symmetrical analogue layout eliminates interference between the left and right channels, while keeping signal paths as short as possible to prevent signal loss during transmission.
Technics High Res Re-master converts audio signals to up to 176.4 kHz/32 bits before digital to analogue conversion, allowing a natural and expressive sound.
High Rigidity Metal Double Chassis
To reduce vibration and noise that degrade the purity of sound, the Premium Series features a High Rigidity Metal Double Chassis, using inner and outer steel plates.
High Quality Parts
The high-quality electrolytic capacitors and film capacitors used in the power supply and audio circuits were carefully selected through listening tests.
1x Playback
To minimise the noise generated by the mechanisms and motors, the disc is played back at 1x speed, minimising audio-affecting power supply fluctuations.
| Disc Compatibility | Audio CD, CD-R/CD-RW (CD-DA/MP3/WMA, Discs recorded and finalised on recording devices) |
|---|---|
| Frequency Response | 2 Hz~20 kHz (-0.5 dB) |
| Dynamic Range (IHF-A) | 100 dB |
| Signal to Noise Ratio (IHF-A) | 117 dB |
| THD+N | 0.0018 % (1 kHz, 0 dB) |

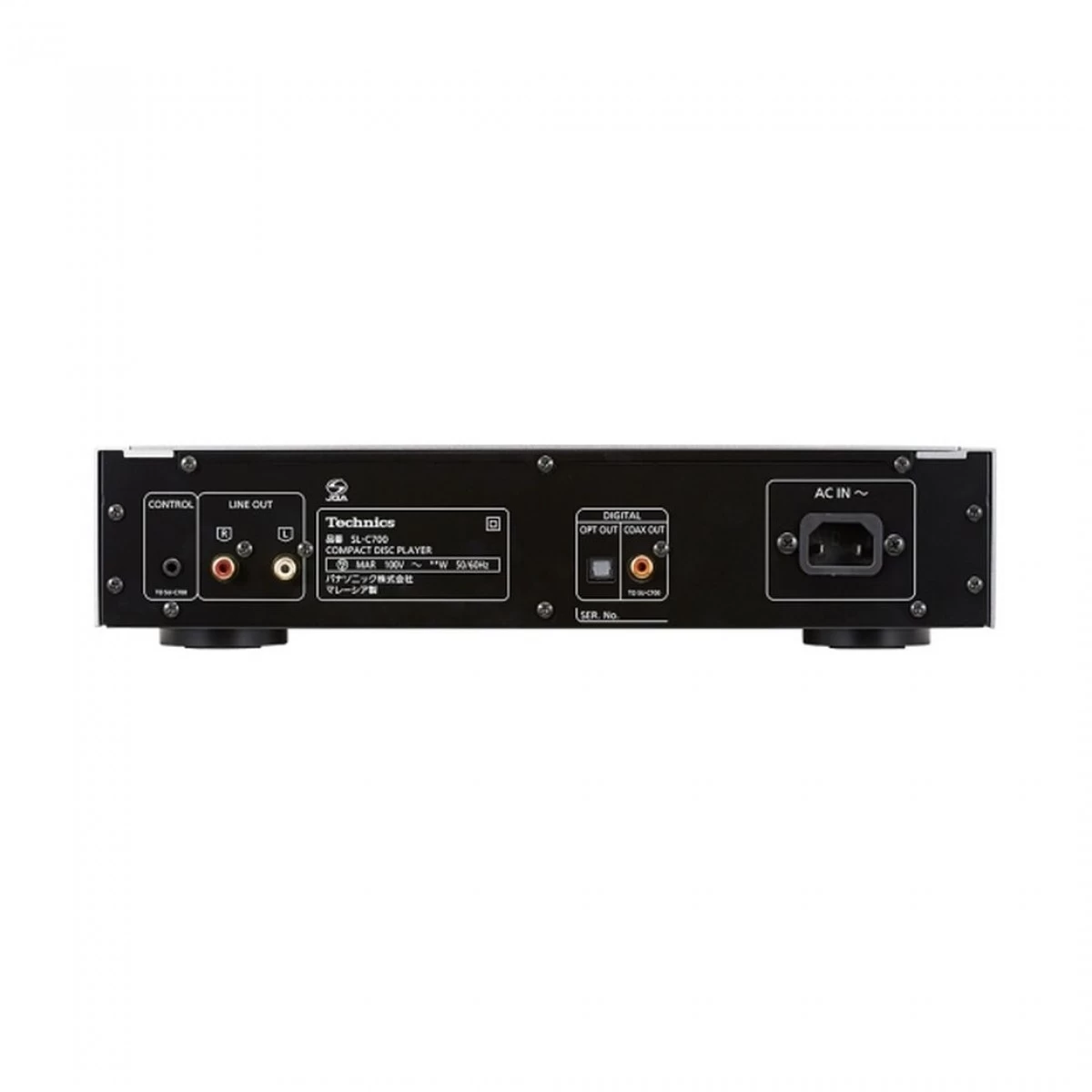

| Analogue Output Terminal | LINE x 1 |
| Digital Output Terminal | Coaxial Digital x 1, Optical Digital x 1 |
| System Port | System Control Input/Output (Φ3.5 mm Jack) |
| Power Supply | AC220-240 V, 50 Hz/60 Hz |
| Power Consumption | 10 W |
| Dimensions (W x H x D) | 340 x 78 x 295 mm |
| Weight | Approx. 5.2 kg |
| Accessories | Coaxial Digital Cable, Control Cable, AC Cords, Operating Instructions |
