TEAC UD-701N USB DAC/Network Player, Black
Original price was: £384.00.£95.99Current price is: £95.99.
- Free Shipping Worldwide
- fast shipping
- Safe Payments, the Smart Choice
- Enjoy top quality items for less
Full Description
Amazing Bluetooth
The UD-701N will relinquish all output limitations and aims to bring all audio devices together. The built-in Bluetooth receiver lets you play your music from your own mobile devices. This receiver also supports LDAC and aptXâ„¢ HD, which are able to produce high-resolution audio of 96kHz/24-bit and 48kHz/24-bit, respectively.
Pioneering TEAC ΔΣ (Delta Sigma) DAC
This product offers a built-in TEAC ΔΣ (Delta Sigma) DAC that will convert the digital audio signals to analog effortlessly. The DAC will produce terrific, pure, rich sounds that have a playback speed of 22.5MHz DSD as well as, 384kHz/32-bit PCM.

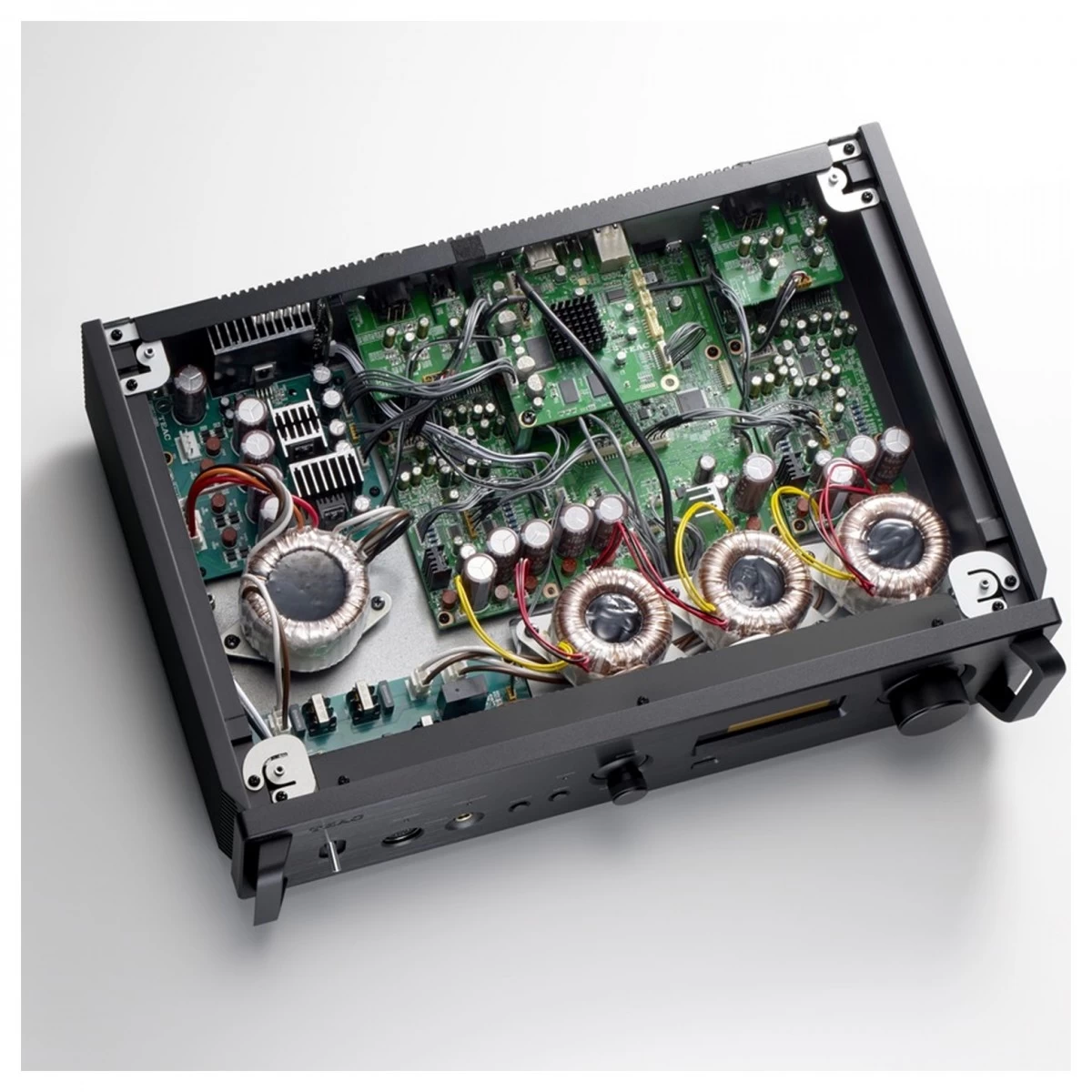

Dual Mono Structure
Through this pre-amplifier, there is a dual mono structure that will augment the audio quality. Unparalleled in its price range, this product is equipped with independent left and right toroidal core transformers in the power circuit as well as an analog output stage. There is limited interference from the left and right channels, so you can be mesmerised by the sensational sounds.
Transformers & Inputs
Harnessed with 2 toroidal transformers for the left and right analog signals, this product offers an additional 2 toroidal transformers for the network module and digital control sections. This player also supplies 2 line inputs and 4 digital outputs through RCA/XLR connectors so you can build out an exciting HiFi setup. Bulk Pet USB technology also enables the transmission of high-class audio data.
Miraculous Design
With a perfect design, this pre-amplifier has the minimum number of circuit board attachment screws so that it is a beautiful product to look at as well as to use. The design will reduce sound vibrations so you can hear a much clearer and crisp sound.
Apps & Streaming Platforms
There are countless ways in which you can further enhance your listening experience with the UD-701N. The TEAC HR Audio Player software can seamlessly play 22.5Mhz DSD and 384kHz/32-bit PCM. The Teac HR Streamer app allows you to create libraries and provides access to tracks that are stored on USB and NAS devices. You can also connect to all the major streaming services such as Spotify, TIDAL, and more.
What’s in the Box?
- Power cord
- Remote control
- AAA batteries x2
- Owner’s Manual
Features
- TEAC ΔΣ (Delta Sigma) discrete DAC transfer stunning audio quality
- Dual Mono structure is a treat for all audiophiles
- With a playback ability of 22.5MHz DSD and 384kHz/32-bit PCM, you are guaranteed great sounds
- RAC & XLR inputs allow you to build your own HiFi setup
- Bluetooth Receiver ensures you can listen to music wirelessly via mobile devices
- Supports the major streaming services such as Spotify & TIDAL so you can listen to your favourite playlists
- 4 toroidal transformers ensure you can have an array of methods for playing your audio
- The tremendous design will get the most out of your music
- The TEAC HR Audio Player & TEAC HR Steamer app bring your music together
Specifications
[list]Product Attributes
| EAN | 4907034223664 |
|---|---|
| Manufacturer number | UD-701N-B |
| Product weight | 11.8 kilograms |
| Power consumption | 0.4-40 W |
Audio Inputs
| Coaxial | 2 |
|---|---|
| Input level & impedance coaxial | 0.5Vp-p & 75Ω |
| Optical/Toslink | 2 |
| Input level optical | –24.0 to –14.5dBm peak |
| RCA | 1 |
| Input level & impedance RCA | 2.5Vrms & 25kΩ |
| XLR | 1 |
| Input level & impedance XLR | 5Vrms & 50kΩ |
| Music streaming services | Spotify
Qobuz
Tidal
TuneIn
BNC:1 |
| Impedance & frequency BNC | 50Ω & 10MHz |
| Ethernet | 1 |
| USB 2.0 | 2 |
| USB-B | 1 |
| Wireless | Bluetooth |
Amplification
| THD | 0.002% |
|---|---|
| S/N ratio | 108dB |
| Frequency response | 5-80000Hz |
| Channels | 2 |
| 12 volt trigger | In & Out |
Audio Outputs
| 6.3mm jack | 1 |
|---|---|
| Power & impedance 6.3mm jack | 500mW + 500mW (32Ω × 1 loaded). 16 to 600Ω |
| XLR (headphones) | 1 |
| Power & impedance XLR (headphones) | 700mW + 700mW (32Ω loaded). 16 to 600Ω |
| Output level & impedance RCA | 2.0Vrms (1kHz, Full-scale, 10kΩ loaded, FIxed at 0dB)
4.0Vrms (1kHz, Full-scale, 10kΩ laoded, Fixed at +6dB)
6.0Vrms (1kHz, Full-scale, 10kΩ loaded, Variable) |
| XLR | 1 |
| Output level & impedance XLR | 2.0Vrms (1kHz, Full-scale, 10kΩ loaded, FIxed at 0dB)
4.0Vrms (1kHz, Full-scale, 10kΩ loaded, FIxed at +6dB)
12Vrms (1kHz, Full-scale, 10kΩ loaded, Variable) |
Audio Codecs & Formats
| Supported file formats | MP3
AAC
ALAC
FLAC
MQA
DSD
WAV
AIFF |
|---|---|
| Bluetooth codecs | AAC
LDAC
LHDC
SBC
aptX
aptX HD |
| Bluetooth version | 4.2 |
Dimensions & Weight
| Product height | 11.1cm |
|---|---|
| Product width | 44.4cm |
| Product length | 33.4cm |
| Product weight | 11.8kg |
| Packsize height | 26.6cm |
| Packsize width | 47.7cm |
| Packsize length | 62.6cm |
| Packaged weight | 14.6kg |
Control Methods
| Controls | On Device
App Controlled
Remote Control
RS-232 |
|---|---|
| Controller app | Roon Ready
Proprietary App |
