TEAC UD-505-X USB DAC Preamplifier V2, Silver

Original price was: £384.00.Current price is: £99.99.

SKU: YXYUY 89256 Categories: DACs, HiFi Separates

Free Shipping Worldwide
fast shipping
Safe Payments, the Smart Choice
Enjoy top quality items for less

Description
Reviews (0)

Full Description

Independent, Low-noise Circuit Path

The TEAC UD-505-X Preamplifier uses a sophisticated dual monaural circuit design, ensuring that functions throughout the conversion process can take place independently of each other in separate, yet synchronised channels. From the dual oversized, high capacity toroidal transformers, through the DAC circuits and all the way to the output terminals, single channel processing ensures that unwanted noise is kept to an absolute minimum, with a consistent power supply regardless of demand. Boasting an excellent S/N ratio and total harmonic distortion below 0.002 .

High-Quality D/A Conversion

The dual monaural nature of the circuitry means that two D/A converter chips are built into each left and right channel. Using class leading ESS technology, these two ES9038Q2M SABRE32 Reference DACs ensure vastly diminished jitter and accurate USB data conversion up to 768kHz/32bit PCM and 22.5MHz DSD, bringing you closer than ever to the original recording. The two on-board clocks allow lightning fast sampling rates for 44.1kHz or 48kHz signals, with a BNC terminal to accommodate an external master clock generator for exponentially higher 10MHz sampling.

Output Signal Consistency

Once the conversion process has taken place, the analogue section of the UD-505-X guarantees the consistency of the current by introducing a buffer amp into the circuit path; The TEAC-HCLD 2 (an upgrade of the previous High Current Line Driver) bolsters the current supply. This HCLD enables the use of a balanced-drive headphone output, broadening compatibility with high-end, high-impedance products. Highley adjustable, volume control has also been integrated directly into the signal path in the form of a low noise four channel variable gain amp, adjustable in 0.5dB degrees.

A Headphone’s Full Potential

The TEAC UD-505-X comes with everything you need for high-quality personal listening. Stereo 6.3mm L/R channel headphone outputs along with a 4.4mm 5-pole jack are ergonomically positioned front and centre of the interface for easy listening. This enables the user to tap into their music connection in new and intuitive ways for highly expressive, audiophile headphone playback.

Of course, a standard unbalanced connection can be made via the left or right jack; The UD-505-X can even power two sets of headphones (with shared impedance and efficiency specs) for a joined listening experience, but where the UD-505-X really shines is through its balanced connections. The TEAC-HCLD2 circuit, key to the analogue output section, enables dedicated amplification for balanced drive connections, worthy of high-impedance headphone connections.

At its peak, active-ground drive mode enhances every whispered word and nuanced detail by driving the ground at 0V, lowing the noise level to optimal conditions. Unwanted sound is greatly diminished, including the electrical hum present in all system. With this impressive S/N ratio, you’ll be sure to hear things you’ve never heard before, even in your favourite songs.

Diligent Design

What’s the use of all this enhanced technology if it doesn’t have the physique to support it? The UD-505-X is an example of TEAC’s engineering prowess. Strong 8mm panels prevent the all-metal chassis from warping and defend from external electromagnetic forces found in most domestic environments. This contributes to the low noise level, making sure the internal circuits remain uninterrupted whilst in use.

The three feet have been placed strategically to the support key components within the unit and are specially designed so that, whilst they appear loose when lifted, they allow the feet to sit securely even on relatively uneven surfaces. This design also reduces intrusions from external vibrations and contributes to the overall isolation of the UD-505-X.

Key Features

Stereo 6.3mm ¼” TRS balanced jacks, including support for active ground drive mode and improved distortion reduction
4.4mm 5-pole balanced jack input
Incorporates an ESS ES9038Q2M SABRE32 Reference DAC chip per channel for dual monaural circuit design
TEAC-HCLD2 output buffer circuit retains signal consistency
Two integrated clocks detect 44.1kHz or 48kHz frequency requirements
Available connection for 10MHz external clock input, perfect for use with the TEAC CG-10M
DSD512 (22.5MHz) and PCM 768kHz/32bit PCM for audiophile level quality playback
7 PCM digital filters let you modify audio nuance based on your music
Connect via Bluetooth, with support high-quality formats; LDAC, Qualcomm aptX HD, AAC and SBC
Stressless Foot design offers vibration dampening support
Free TEAC HR Audio player programme for (Windows/Mac compatible) DSD512 playback

Specifications

Supported Formats

USB PCM	16/24/32 bit 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768kHz
USB DSD	2.8M/5.6M/11.2M/22.5MHz
Coaxial PCM	16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192kHz
Coaxial DSD	2.8MHz(supported with 176.4kHz/24-bit DoP format)
Optical PCM	16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192kHz
Optical DSD	2.8MHz(supported with 176.4kHz/24-bit DoP format)

DAC

USB DAC	x2 ESS Technology ES9038 Q2M
Up-conversion	Up to 384kHz/32-bit PCM, 24.5MHz DSD

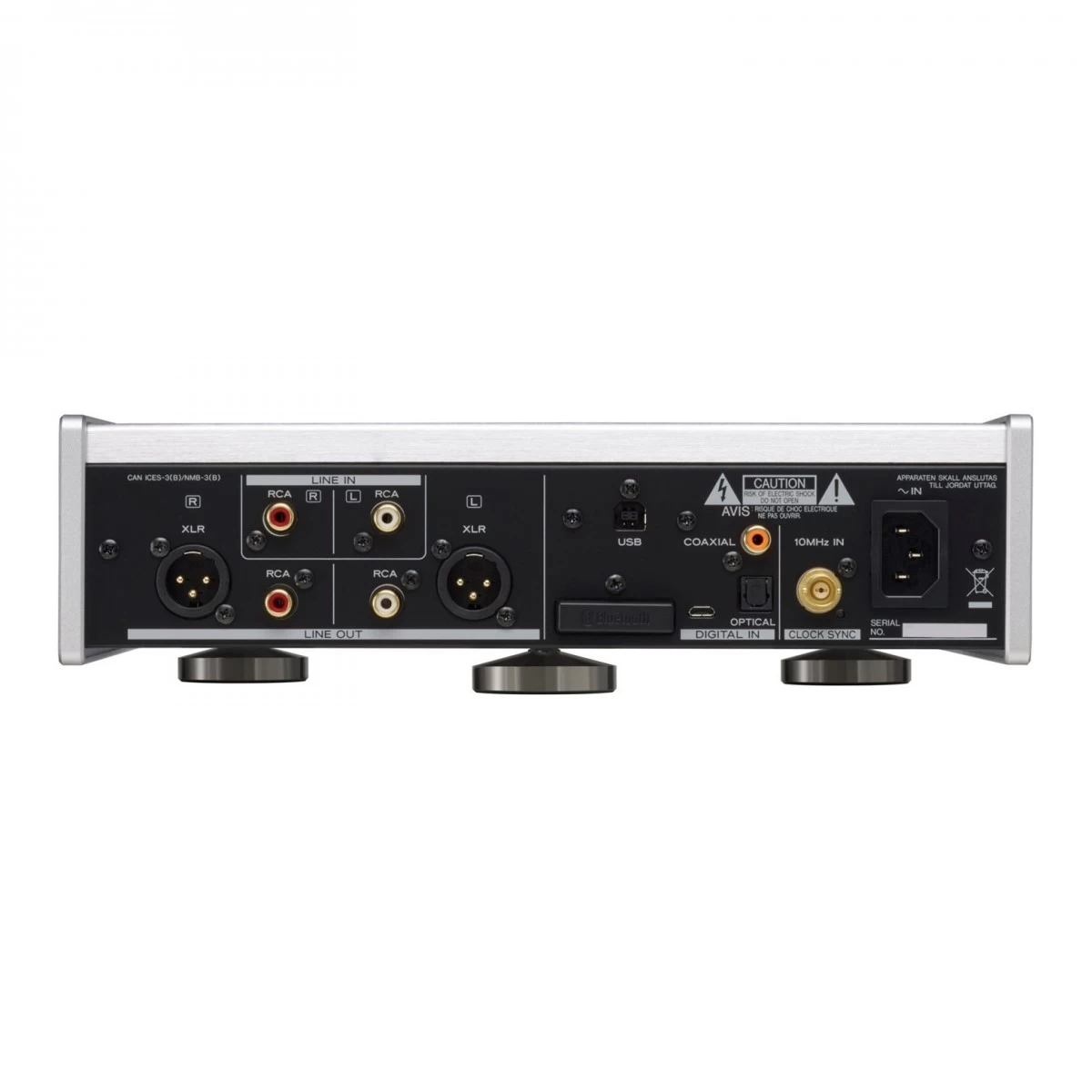

Audio inputs

USB

Connection type	USB B port, USB 2.0, asynchronous mode transfer, bulk transfer
Compatible Software	TEAC HR Audio Player (Windows, Macintosh)

Coaxial Digital (Rear)

Connection type	x1 RCA pin (gold-plated)
Input level	0.5Vp-p
Input impedance	75&ohm;

Optical Digital (Rear)

Connection type	x1 TOS-link
Input level	-24.0 to -14.5dBm peak

Coaxial Digital (Front)

Connection type	x1 1/8” (3.5mm) mini (combined with optical digital input, detected automatically)
Input level	0.5Vp-p
Input impedance	75&ohm;

Optical Digital (Front)

Connection type	x1 1/8” Mini Optical (combined with coaxial digital input, detected automatically)
Input level	-24.0 to -14.5dBm peak

Analog (Rear)

Connection type	x1 RCA pin (gold-plated)
Input impedance	24k&ohm;
Input sensitivity	130mV

Bluetooth®

Bluetooth® version	4.0
Output class	Class2 (Range: approx. 33ft/10m)
Supported profiles	A2DP AVRCP
Content protection	SCMS-T
Supported codec	LDAC™ Qualcomm® aptX™ HD aptX™ AAC SBC
No. of paired device	Maximum 8 devices

Audio Outputs

XLR Balanced

Connection type	x1 XLR pair (gold-plated)
Output level	Fixed (0dB), fixed (+6dB), variable, output off (selectable)
Maximum output level	2.0Vrms (1kHz, full scale, into 10k&ohm;, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10k&ohm;, when set to fixed (+6dB)) 12.0Vrms (1kHz, full scale, into 10k&ohm;, when set to variable)
Output impedance	188&ohm;

RCA Unbalanced

Connection type	x1 RCA pin pair (gold-plated)
Output level	Fixed (0dB), fixed (+6dB), variable, output off (selectable)
Maximum output level	2.0Vrms (1kHz, full scale, into 10k&ohm;, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10k&ohm;, when set to fixed (+6dB)) 6.0Vrms (1kHz, full scale, into 10k&ohm;, when set to variable)
Output impedance	150&ohm;

Headphone Outputs

Connector One

Connection type	x2 1/4” (6.3mm) TRS stereo jacks (gold-plated)
Polarity (balanced)	Tip: HOT, Ring: COLD, Sleeve: NC (GND)
Polarity (unbalanced)	Tip: L, Ring: R, Sleeve: GND

Connector Two

Connector type	x1 4.4mm 5-pole Pentaconn (gold-plated)
Polarity (balanced)	Tip: L+, Ring1: L-, Ring2: R+, Ring3: R-, Sleeve: GND

Maximum Output

Balanced

700mW + 700mW (into 32&ohm;)

Unbalanced

500mW + 500mW (into 32&ohm; ×1)

350mW + 350mW (into 32&ohm; ×2)

Active ground

500mW + 500mW (into 32&ohm;)

Clock Section

Internal Clock

Type	Crystal oscillator
Number of clocks	2 (44.1kHz and 48kHz)

External clock input

Connector	BNC (gold-plated)
Input frequency	10MHz
Input impedance	50&ohm;
Input level	Rectangle wave: equivalent to TTL levels Sine wave: 0.5 to 1.0 Vrms

Audio Performance

Frequency Response	10 to 80,000 Hz (+1/–3 dB, 192kHz PCM input, RCA output, digital filter off)
Total harmonic distortion	0.002&percnt; or less (192kHz PCM input, RCA output, digital filter off)
S/N ratio	110dB or higher (192kHz PCM input, RCA output, digital filter off)

Power

Power supply	AC 220 to 240V 50Hz
Power consumption (Operating)	18W
Power consumption (Standby)	0.4W

General

Dimensions (Including Protrusions) (W x H x D)	290 x 84.5 x 248.7 mm
Weight	4.1kg
Included Accessories	Power cord RCA mini plug adapter cable Remote control(RC-1330) x2 AAA batteries for remote control x3 feet cushions Owner’s Manual
Available Colours	Black Silver
