TEAC UD-505-X USB DAC Preamplifier V2, Black
£314.00 Original price was: £314.00.£95.99Current price is: £95.99.
- Free Shipping Worldwide
- fast shipping
- Safe Payments, the Smart Choice
- Enjoy top quality items for less
Full Description
Independent, Low-noise Circuit Path
The TEAC UD-505-X Preamplifier uses a sophisticated dual monaural circuit design, ensuring that functions throughout the conversion process can take place independently of each other in separate, yet synchronised channels. From the dual oversized, high capacity toroidal transformers, through the DAC circuits and all the way to the output terminals, single channel processing ensures that unwanted noise is kept to an absolute minimum, with a consistent power supply regardless of demand. Boasting an excellent S/N ratio and total harmonic distortion below 0.002 .
High-Quality D/A Conversion
The dual monaural nature of the circuitry means that two D/A converter chips are built into each left and right channel. Using class leading ESS technology, these two ES9038Q2M SABRE32 Reference DACs ensure vastly diminished jitter and accurate USB data conversion up to 768kHz/32bit PCM and 22.5MHz DSD, bringing you closer than ever to the original recording. The two on-board clocks allow lightning fast sampling rates for 44.1kHz or 48kHz signals, with a BNC terminal to accommodate an external master clock generator for exponentially higher 10MHz sampling.
Output Signal Consistency
Once the conversion process has taken place, the analogue section of the UD-505-X guarantees the consistency of the current by introducing a buffer amp into the circuit path; The TEAC-HCLD 2 (an upgrade of the previous High Current Line Driver) bolsters the current supply. This HCLD enables the use of a balanced-drive headphone output, broadening compatibility with high-end, high-impedance products. Highley adjustable, volume control has also been integrated directly into the signal path in the form of a low noise four channel variable gain amp, adjustable in 0.5dB degrees.
A Headphone’s Full Potential
The TEAC UD-505-X comes with everything you need for high-quality personal listening. Stereo 6.3mm L/R channel headphone outputs along with a 4.4mm 5-pole jack are ergonomically positioned front and centre of the interface for easy listening. This enables the user to tap into their music connection in new and intuitive ways for highly expressive, audiophile headphone playback.
Of course, a standard unbalanced connection can be made via the left or right jack; The UD-505-X can even power two sets of headphones (with shared impedance and efficiency specs) for a joined listening experience, but where the UD-505-X really shines is through its balanced connections. The TEAC-HCLD2 circuit, key to the analogue output section, enables dedicated amplification for balanced drive connections, worthy of high-impedance headphone connections.
At its peak, active-ground drive mode enhances every whispered word and nuanced detail by driving the ground at 0V, lowing the noise level to optimal conditions. Unwanted sound is greatly diminished, including the electrical hum present in all system. With this impressive S/N ratio, you’ll be sure to hear things you’ve never heard before, even in your favourite songs.
Diligent Design
What’s the use of all this enhanced technology if it doesn’t have the physique to support it? The UD-505-X is an example of TEAC’s engineering prowess. Strong 8mm panels prevent the all-metal chassis from warping and defend from external electromagnetic forces found in most domestic environments. This contributes to the low noise level, making sure the internal circuits remain uninterrupted whilst in use.
The three feet have been placed strategically to the support key components within the unit and are specially designed so that, whilst they appear loose when lifted, they allow the feet to sit securely even on relatively uneven surfaces. This design also reduces intrusions from external vibrations and contributes to the overall isolation of the UD-505-X.
Key Features
- Stereo 6.3mm ¼” TRS balanced jacks, including support for active ground drive mode and improved distortion reduction
- 4.4mm 5-pole balanced jack input
- Incorporates an ESS ES9038Q2M SABRE32 Reference DAC chip per channel for dual monaural circuit design
- TEAC-HCLD2 output buffer circuit retains signal consistency
- Two integrated clocks detect 44.1kHz or 48kHz frequency requirements
- Available connection for 10MHz external clock input, perfect for use with the TEAC CG-10M
- DSD512 (22.5MHz) and PCM 768kHz/32bit PCM for audiophile level quality playback
- 7 PCM digital filters let you modify audio nuance based on your music
- Connect via Bluetooth, with support high-quality formats; LDAC, Qualcomm aptX HD, AAC and SBC
- Stressless Foot design offers vibration dampening support
- Free TEAC HR Audio player programme for (Windows/Mac compatible) DSD512 playback
Specifications
Supported Formats
| USB PCM | 16/24/32 bit
44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768kHz |
|---|---|
| USB DSD | 2.8M/5.6M/11.2M/22.5MHz |
| Coaxial PCM | 16/24 bit
32k/44.1k/48k/88.2k/96k/176.4k/192kHz |
| Coaxial DSD | 2.8MHz(supported with 176.4kHz/24-bit DoP format) |
| Optical PCM | 16/24 bit
32k/44.1k/48k/88.2k/96k/176.4k/192kHz |
| Optical DSD | 2.8MHz(supported with 176.4kHz/24-bit DoP format) |
DAC
| USB DAC | x2 ESS Technology ES9038 Q2M |
|---|---|
| Up-conversion | Up to 384kHz/32-bit PCM, 24.5MHz DSD |
Audio inputs
USB
| Connection type | USB B port, USB 2.0, asynchronous mode transfer, bulk transfer |
|---|---|
| Compatible Software | TEAC HR Audio Player (Windows, Macintosh) |
Coaxial Digital (Rear)
| Connection type | x1 RCA pin (gold-plated) |
|---|---|
| Input level | 0.5Vp-p |
| Input impedance | 75Ω |
Optical Digital (Rear)
| Connection type | x1 TOS-link |
|---|---|
| Input level | -24.0 to -14.5dBm peak |
Coaxial Digital (Front)
| Connection type | x1 1/8” (3.5mm) mini (combined with optical digital input, detected automatically) |
|---|---|
| Input level | 0.5Vp-p |
| Input impedance | 75Ω |
Optical Digital (Front)
| Connection type | x1 1/8” Mini Optical (combined with coaxial digital input, detected automatically) |
|---|---|
| Input level | -24.0 to -14.5dBm peak |
Analog (Rear)
| Connection type | x1 RCA pin (gold-plated) |
|---|---|
| Input impedance | 24kΩ |
| Input sensitivity | 130mV |
Bluetooth®
| Bluetooth® version | 4.0 |
|---|---|
| Output class | Class2 (Range: approx. 33ft/10m) |
| Supported profiles | A2DP
AVRCP |
| Content protection | SCMS-T |
| Supported codec | LDAC™
Qualcomm® aptX™ HD
aptX™
AAC
SBC |
| No. of paired device | Maximum 8 devices |

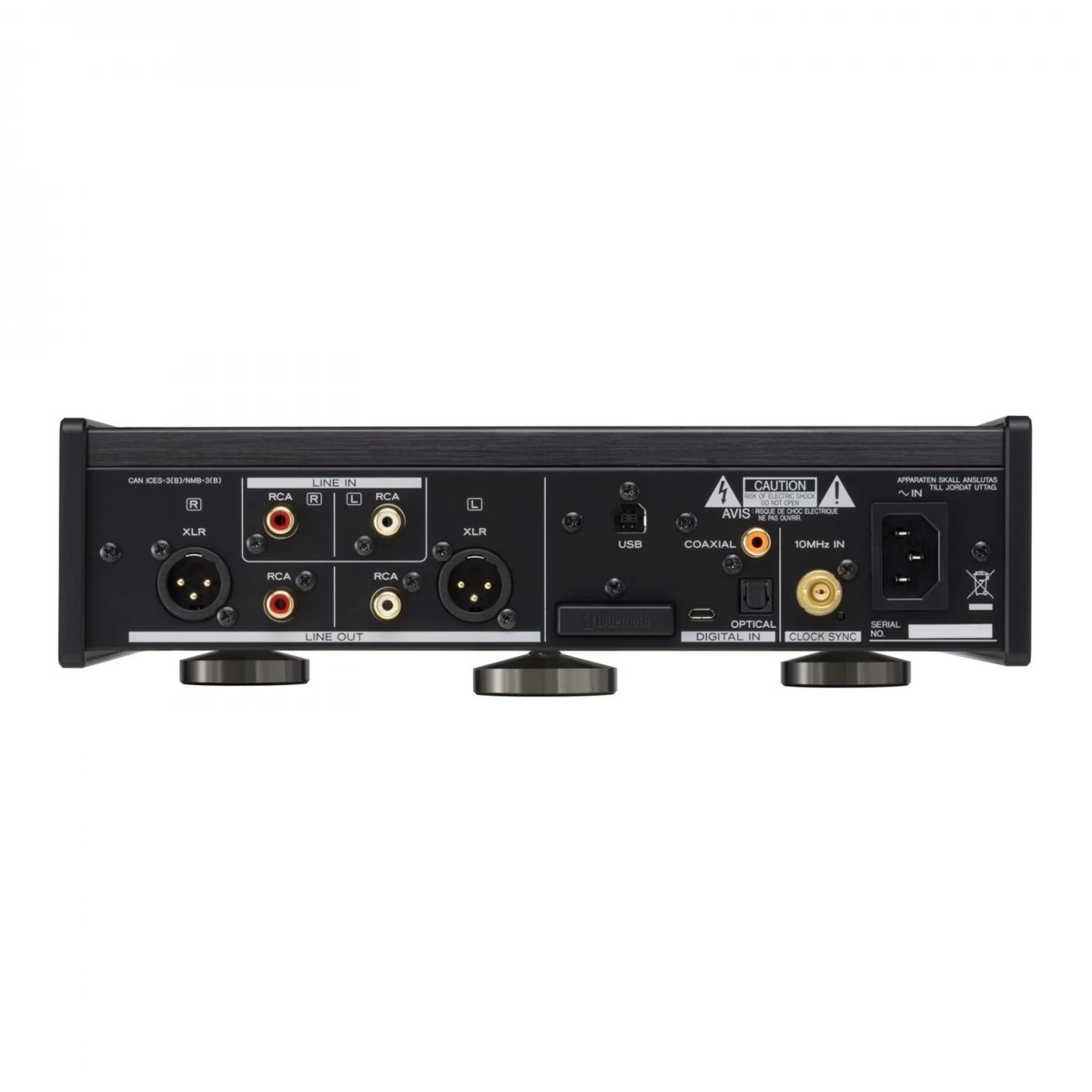

Audio Outputs
XLR Balanced
| Connection type | x1 XLR pair (gold-plated) |
|---|---|
| Output level | Fixed (0dB), fixed (+6dB), variable, output off (selectable) |
| Maximum output level | 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB))
4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB))
12.0Vrms (1kHz, full scale, into 10kΩ, when set to variable) |
| Output impedance | 188Ω |
RCA Unbalanced
| Connection type | x1 RCA pin pair (gold-plated) |
|---|---|
| Output level | Fixed (0dB), fixed (+6dB), variable, output off (selectable) |
| Maximum output level | 2.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (0dB)) [-] 4.0Vrms (1kHz, full scale, into 10kΩ, when set to fixed (+6dB)) [-] 6.0Vrms (1kHz, full scale, into 10kΩ, when set to variable) |
| Output impedance | 150Ω |
Headphone Outputs
Connector One
| Connection type | x2 1/4” (6.3mm) TRS stereo jacks (gold-plated) |
|---|---|
| Polarity (balanced) | Tip: HOT, Ring: COLD, Sleeve: NC (GND) |
| Polarity (unbalanced) | Tip: L, Ring: R, Sleeve: GND |
Connector Two
| Connector type | x1 4.4mm 5-pole Pentaconn (gold-plated) |
|---|---|
| Polarity (balanced) | Tip: L+, Ring1: L-, Ring2: R+, Ring3: R-, Sleeve: GND |
Maximum Output
| Balanced | 700mW + 700mW (into 32Ω) |
|---|---|
| Unbalanced | 500mW + 500mW (into 32Ω Ă—1)
350mW + 350mW (into 32Ω Ă—2) |
| Active ground | 500mW + 500mW (into 32Ω) |
Clock Section
Internal Clock
| Type | Crystal oscillator |
|---|---|
| Number of clocks | 2 (44.1kHz and 48kHz) |
External clock input
| Connector | BNC (gold-plated) |
|---|---|
| Input frequency | 10MHz |
| Input impedance | 50Ω |
| Input level | Rectangle wave: equivalent to TTL levels
Sine wave: 0.5 to 1.0 Vrms |
Audio Performance
| Frequency Response | 10 to 80,000 Hz (+1/–3 dB, 192kHz PCM input, RCA output, digital filter off) |
|---|---|
| Total harmonic distortion | 0.002% or less (192kHz PCM input, RCA output, digital filter off) |
| S/N ratio | 110dB or higher (192kHz PCM input, RCA output, digital filter off) |
Power
| Power supply | AC 220 to 240V 50Hz |
|---|---|
| Power consumption (Operating) | 18W |
| Power consumption (Standby) | 0.4W |
General
| Dimensions (Including Protrusions) (W x H x D) | 290 x 84.5 x 248.7 mm |
|---|---|
| Weight | 4.1kg |
| Included Accessories | Power cord
RCA mini plug adapter cable
Remote control(RC-1330)
x2 AAA batteries for remote control
x3 feet cushions
Owner’s Manual |
| Available Colours | Black
Silver |
