Name: TEAC PD-301DAB-X CD Player, Silver
SKU: YXYUY 64055
Availability: InStock

Full Description

Robust Full-Metal Body

Employing aluminum panels for the player’s front, sides and top means that the PD-301DAB-X provides unusual rigidity, minimising the adverse effect of unwanted vibrations on sound quality. And all from a package with a tiny footprint that occupies an area of just 215mm x 232mm (8.5” x 9.1”), allowing users to comfortably locate the unit on the smallest of desktops.

USB Input

Conventional digital audio formats such as MP3 and WMA can be played back from CD-ROM/CD-R/CD RW discs. In addition, music files in AAC and WAV formats are also supported when played from a USB flash drive inserted into the front USB port. Usefully, the player can show ID3 tag, song title and artist name info contained on MP3, WMA and AAC files on its LC-display.

Built-in DAB+/FM Tuner

Unrivalled in its price range, the PD-301DAB-X is implemented with a DAB+/FM Tuner within its metal cabinet. You can listen to all your favourite radio stations and DJ’s with no hassle whatsoever. Be more connected to your favourite audio entertainment.

Slot-Load CD Drive

The PD-301DAB-X features a compact, high-precision, slot-load CD drive mechanism that’s exclusively designed for professional audio applications. Thanks to its quick loading times and automatic playback function, users can get on with enjoying their music mere moments after inserting a CD into the slot.

High-Performance DAC

The PD-301DAB-X employs a high-performance DAC (digital to analogue converter), the PCM5142 from BurrBrown, for silky smooth audio reproduction.

What’s in the box?

AC adapter
AC cord for AC adapter
Remote control
2 AAA batteries
RCA-audio cable
DAB+/FM cable antenna
Owner’s Manual

Features

Slot-load CD player which supports an assortment of CD formats
BurrBrown PCM5142 32-bit D/A converter supplies accurate audio reproduction
The stylish, compact footprint design allows for easy installation and divine visuals
Built-in DAB+/FM Tuner grants access to the radio
MP3, WMA playback from CD-ROM provides the chance to listen to as much of your music as possible
MP3, WMA, AAC, WAV playback from USB flash drive broadens your music taste
Shuffle and Repeat playback ensures you get to know your favourite tracks inside out
USB Port allows you to play songs from USB storage drives
Coaxial and optical digital audio outputs allow for high-quality audio signals
Card-type Remote Control allows for easy operations

Specifications

CD Player Section

Supported Media	CD-DA, CD-ROM, CD-R, CD-RW
Max Number of Files	300 ( Including Folders )
Max Number of Folders	50
Max Number of Layers	16

USB Section

Supported USB Devices	USB Mass Storage Device Class
Interface	USB2.0 (Full Speed), USB1.0 (High Speed), USB 3.0 Compatible
File System	FAT16 , FAT32
Max Number of Files	300 ( including folders )
Max Number of Folders	50
USB Bass Power	DC 5V, Max 500mA

Supported File Formats

WAV (USB Onliy)	Bit Depth : 16-bit Sampling Frequency : 44.1k, 48kHz
MP3	Bit-rate : 32k to 320kbps and VBR Sampling Frequency : 16k, 22.05k, 24k, 32k, 44.1k, 48kHz Format : MPEG1/2 Audio Layer-3
WMA	Bit-rate : 32k to 320kbps and VBR Sampling Frequency : 8k, 11.025k, 16k, 22.05k, 32k, 44.1k, 48kHz Format : WMA ver.9 Standard ( DRM Not Supported )
AAC ( USB only )	Bit-rate : 8k to 320kbps and VBR Sampling Frequency : 8k, 11.025k, 12k, 16k, 22.05k, 24k, 32k, 44.1k, 48kHz
Format	MPEG4 AAC-LC

Tuner Section

Band

DAB Band-III, FM

Frequency Range

DAB : 174 to 240MHz

FM : 76.0 to 108.9MHz

Number of Presets

DAB : 10

FM : 20

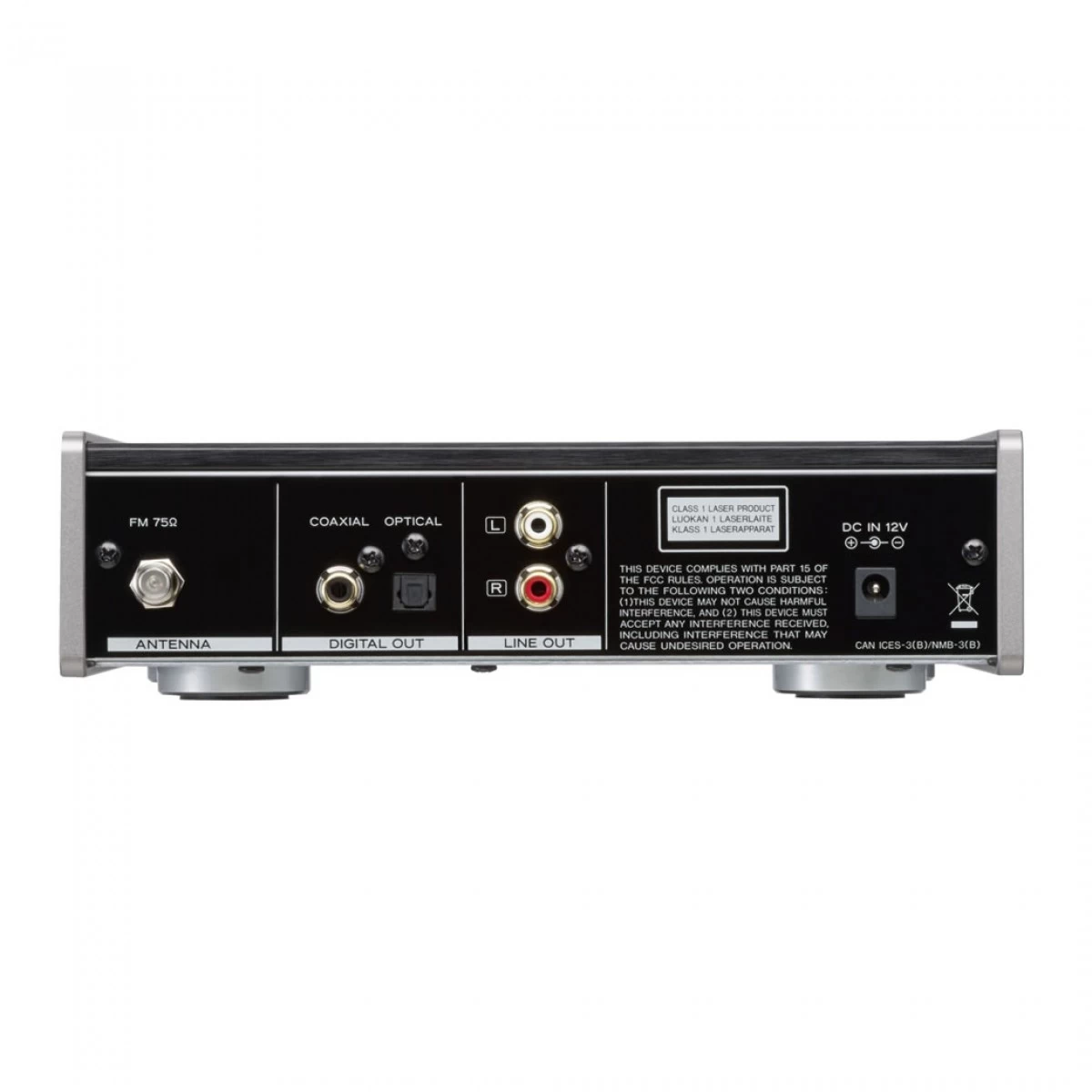

Audio Outputs

Analogue audio

Connector : RCA Pin x 1 Pair

Impedance : 470 Ohms or Less

Max Output Level : 2.0Vrms

Frequency Response : 20Hz to 10kHz ( -3dB )

Signal-To-Noise Ratio : 113dB

Total Harmonic Distortion 0.005 ( 1kHz )

Coaxial Digital Audio

Connector : RCA Pin x 1

Impedance : 75 Ohms

Output Level : 0.5Vp-p

Optical Digital Audio

Connector : TOS-Link x 1

Sampling Frequency : 44.1kHz

General

Operating Power	AC 100-240V, 50/60Hz
Power Consumption	8W
Overall Dimensions ( W x H x D )	215mm x 61mm x 238mm
Net Weight	2.1Kg
Included Accessories	AC adapter (GPE-152-120125W) x1 AC Cord for AC Adapter x1 Remote control (RC-1323) x 1 AAA batteries x 2 RCA Audio Cable x 1 FM Cable Antenna x 1 Owner’s Manual ( Including Warranty )
