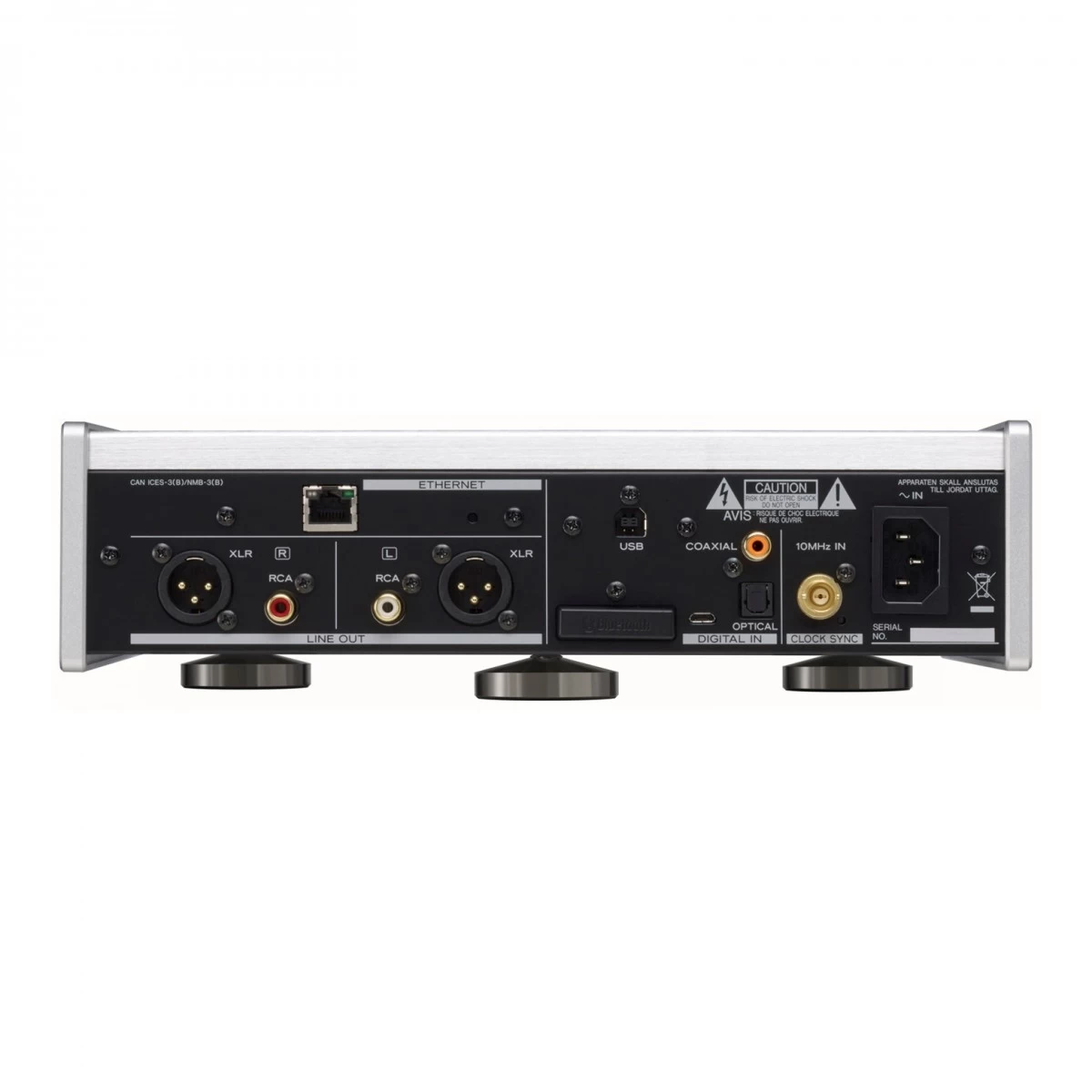

TEAC NT-505-X USB Network DAC Pre-amp V2, Silver

Original price was: £356.00.Current price is: £95.99.

SKU: YXYUY 27450 Categories: DACs, HiFi Separates

Free Shipping Worldwide
fast shipping
Safe Payments, the Smart Choice
Enjoy top quality items for less

Description
Reviews (0)

Full Description

Independent, Low-noise Circuit Path

The TEAC NT-505-X Preamplifier uses a sophisticated dual monaural circuit design, ensuring that functions throughout the conversion process can take place independently of each other in separate, yet synchronised channels. From the dual oversized, high capacity toroidal transformers, through the DAC circuits and all the way to the output terminals, single channel processing ensures that unwanted noise is kept to an absolute minimum, with a consistent power supply regardless of demand. Boasting an excellent S/N ratio and total harmonic distortion below 0.002&percnt;.

High-Quality D/A Conversion

The dual monaural nature of the circuitry means that two D/A converter chips are built into each left and right channel. Using class leading ESS technology, these two ES9038Q2M SABRE32 Reference DACs ensure vastly diminished jitter and accurate USB data conversion up to 768kHz/32bit PCM and 22.5MHz DSD, bringing you closer than ever to the original recording. The two on-board clocks allow lightning fast sampling rates for 44.1kHz or 48kHz signals, with a BNC terminal to accommodate an external master clock generator for exponentially higher 10MHz sampling.

Output Signal Consistency

Once the conversion process has taken place, the analogue section of the NT-505-X guarantees the consistency of the current by introducing a buffer amp into the circuit path; The TEAC-HCLD 2 (an upgrade of the previous High Current Line Driver) bolsters the current supply. This HCLD also broadens the scope of compatible with high-end headphones, with superior channel separation and clear audio. Highley adjustable, volume control has also been integrated directly into the signal path in the form of a discrete four channel variable gain amp, adjustable in 0.5dB degrees.

High-Quality Network Streaming

Coming with the free TEAC HR PC audio player (supporting 22.5MHz DSD and 32bit / 768kHz PCM processing) and streaming app for mobile devices (5.6MHz DSD and 192kHz PCM), enjoy high-quality music playback no matter how you’re connected. MQA decoding allows you to listen to your online playlists even if you have a weak internet connection, using advanced compression technology to efficiently retain an audiophile standard of music quality, remaining emotive and clear.

However, it doesn’t end there!

The NT-505-X is also compatible with multiroom Hi-res audio apps such as OpenHome and Roon, meaning it can be seamlessly integrated into your wireless home audio setup. Perfect for use with internet streaming services such as Spotify, TIDAL, Qobuz and Tunin, (as well as wireless connection with a range of Bluetooth audio codecs) get fast access to unlimited lossless audio.

Diligent Design

What’s the use of all this enhanced technology if it doesn’t have the physique to support it? The NT-505-X is an example of TEAC’s engineering prowess. Strong 8mm panels prevent the all-metal chassis from warping and defend from external electromagnetic forces found in most domestic environments. This contributes to the low noise level, making sure the internal circuits remain uninterrupted whilst in use.

The three feet have been placed strategically to the support key components within the unit and are specially designed so that, whilst they appear loose when lifted, they allow the feet to sit securely even on relatively uneven surfaces. This design also reduces intrusions from external vibrations and contributes to the overall isolation of the NT-505-X.

Key Features

Incorporates an ESS ES9038Q2M SABRE32 Reference DAC chip per channel for dual monaural circuit design
TEAC-HCLD2 output buffer circuit retains signal consistency
Two integrated clocks detect 44.1kHz or 48kHz frequency requirements
Available connection for 10MHz external clock input, perfect for use with the TEAC CG-10M
DSD512 (22.5MHz) and PCM 768kHz/32bit PCM for audiophile level quality playback
DSD128 (5.6MHz) and PCM 192kHz/24bit LAN streaming for NAS and PC digital libraries
7 PCM digital filters let you modify audio nuance based on your music
RDOT-NEO rendering algorithms for smooth, audio-improving up-conversions up to 384kHz/32bit PCM and 24.5MHz DSD
Support for precision MQA decoding for true audio processing
Connect via Bluetooth, with support high-quality formats; LDAC, Qualcomm aptX HD, AAC and SBC
USB input supports high resolution playback
Bulk Pet limiter technology ensures that USB transition is regulated, levelling burdens caused by heavy loads and preventing sound drop-outs
3.5mm 4-pole stereo headphone connection
Stressless Foot design offers vibration dampening support

Specifications

Supported Formats

USB PCM	16/24/32 bit 44.1k/48k/88.2k/96k/176.4k/192k/352.8k/384k/705.6k/768k Hz
USB DSD	2.8M/5.6M/11.2M/22.5M Hz
Coaxial Digital PCM	16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz
Coaxial Digital DSD	2.8MHz (supported with 176.4kHz/24-bit DoP format)
Optical Digital PCM	16/24 bit 32k/44.1k/48k/88.2k/96k/176.4k/192k Hz
Optical Digital DSD	2.8MHz (supported with 176.4kHz/24-bit DoP format)

DAC

USB DAC	ESS Technology ES9038 Q2M ×2
Up-conversion	up to 384kHz/32-bit PCM, 24.5MHz DSD

LAN

Connector	RJ-45×1(1000Base-T)
MQA Decoder	Built-in

Audio Inputs

USB (Rear)

Connection type	USB B port, USB 2.0, asynchronous mode transfer, bulk transfer
Compatible Software	TEAC HR Audio Player (Windows, Macintosh)

Coaxial Digital (Rear)

Connection type	x1 RCA pin (gold-plated)
Input level	0.5Vp-p
Input impedance	75&ohm;

Optical Digital (Rear)

Connection type	x1 TOS-link
Input level	-24.0 to -14.5dBm peak

Coaxial Digital (Front)

Connection type	x1 1/8” (3.5mm) mini (combined with optical digital input, detected automatically) (1/8” mini-RCA conversion cable included)
Input level	0.5Vp-p
Input impedance	75&ohm;

Optical Digital (Front)

Connection type	x1 1/8” Mini Optical (combined with coaxial digital input, detected automatically)

USB (Front)

Connection type	USB A port
Supported media	USB Flash Drive

Bluetooth®

Bluetooth® version	4.0
Output class	Class2 (Range: approx. 33ft/10m)
Supported profiles	A2DP AVRCP
Content protection	SCMS-T
Supported codec	LDAC™ Qualcomm® aptX™ HD aptX™ AAC SBC
No. of paired device	Maximum 8 devices

Audio Outputs

XLR Balanced

Connection type

x1 XLR pair (gold-plated)

Maximum output level

2.0Vrms (1kHz, full scale, into 10k&ohm;, when set to fixed (0dB))

4.0Vrms (1kHz, full scale, into 10k&ohm;, when set to fixed (+6dB))

12.0Vrms (1kHz, full scale, into 10k&ohm;, when set to variable)

Output impedance

188&ohm;

RCA Unbalanced

Connection type	x1 RCA pin pair (gold-plated)
Output level	Fixed (0dB), fixed (+6dB), variable, output off (selectable)
Maximum output level	2.0Vrms (1kHz, full scale, into 10k&ohm;, when set to fixed (0dB)) 4.0Vrms (1kHz, full scale, into 10k&ohm;, when set to fixed (+6dB)) 6.0Vrms (1kHz, full scale, into 10k&ohm;, when set to variable)
Output impedance	150&ohm;

Headphone Outputs

Connection type	x1 1/8” (3.5mm) Stereo TRS jack (gold-plated)
Polarity	Tip:L+, Ring1:R+, Ring3:L-, Sleeve:R-
Maximum output	500mW + 500mW (into 32&ohm;)
Supported impedances	16 to 600&ohm;

Clock Section

Internal Clock

Type	Crystal oscillator
Number of clocks	2 (44.1kHz and 48kHz)

External clock input

Connector	BNC (gold-plated)
Input frequency	10MHz
Input impedance	50&ohm;
Input level	Rectangle wave: equivalent to TTL levels Sine wave: 0.5 to 1.0 Vrms

Audio Performance

Frequency Response	10 to 80,000 Hz (+1/-3 dB, 192kHz PCM input, RCA output, digital filter off)
Total harmonic distortion	0.002 or less (192kHz PCM input, RCA output, digital filter off)
S/N ratio	110dB or higher (192kHz PCM input, RCA output, digital filter off)

Power

Power supply	AC 220 to 240V 50Hz
Power consumption (Operating)	18W
Power consumption (Standby)	0.4W

General

Dimensions (Including Protrusions) (W x H x D)	290 x 84.5 x 248.7 mm
Weight	4.1kg
Included Accessories	Power cord RCA mini plug adapter cable Remote control (RC-1330) x2 AAA batteries Owner’s Manual
Available Colours	Black Silver
