Full Description

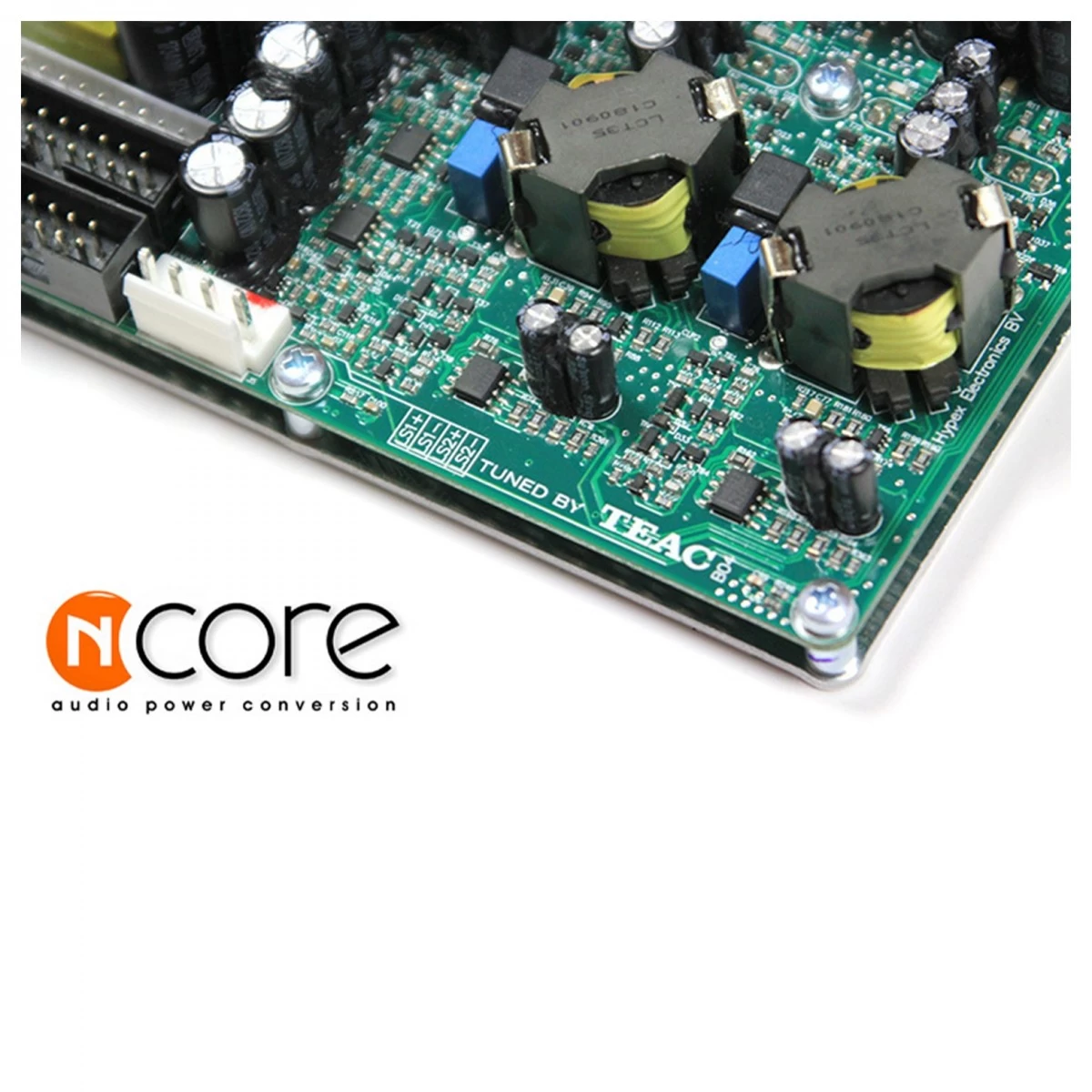

Ncore Power Amplifier
This amplifier is home to a terrific energy-saving Hyper Ncore power amplifier, capable of delivering 115W+115W output power. This product delivers the ultimate expression of musical enjoyment and allows you to gather an assortment of separates to create an immersive, spellbinding HiFi setup.
Varied Audio Inputs
Versatility is the speciality of this amplifier. Supplying 2 balanced XLR analogue inputs, this product can generate a great line-level audio signal and also minimises external noise when listening to your amazing music. Providing 3 sets of unbalanced RCA analogue inputs you can be certain you receive outstanding audio signals
Dual Level Meters

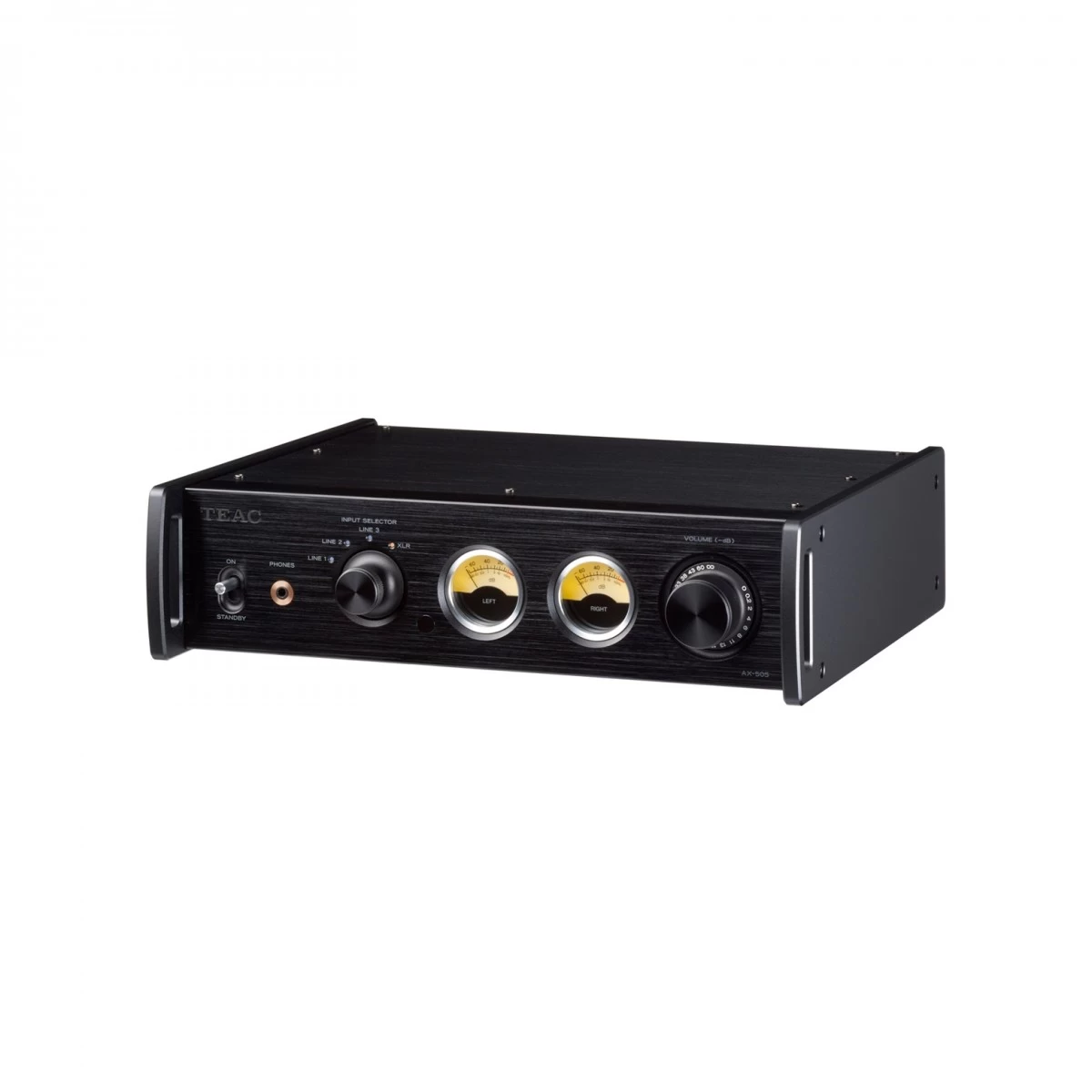

The AX-505 is also equipped with 2 level meters that work in perfect harmony with each other to provide an incredible visual experience alongside your audio. There is a backlight which will inform you whether the amplifier is switched on/off. Additionally, there is a gorgeous 4-step dimmer that emphasises your music and can be operated according to your preference.
CCLC Headphone Amplifier
Offering a 4-pole headphone output jack, you will have the thrilling chance to listen to your music intimately, without anyone else hearing. You can have a more personal connection to your music. The CCLC headphone amplifier reduces sonic colouration during processing so you can have a more enthralling sound.
Toroidal-Core Power Transformer
The AX-505 is harnessed with a high-capacity toroidal-core power transformer that provides a crystal clear current for your audio to travel. You will be able to sit in astonishment as you listen to your lovely music in exhilarating, impactful audio quality.
Dynamic Design
This amplifier will gift you with an excellent sound, so it’s vital that you are able to hear it clearly with no distractions. The passive-cooling design ensures there is no need for a cooling fan and the design allows the natural removal of heat. The stylish aluminium volume knobs will bring a sense of glamour to your home. The full-metal body enables the amplifier to be long-lasting and also has a compact design so it can be fitted anywhere in your living space.
What’s in the box?
- Power cord
- Remote control
- 2 AAA batteries
- Owner’s Manual
Features
- 115W + 115W of max output power enables the high-quality organisation of your separates
- MUSES8920 op-amps for high-quality sound
- Independent resistor ladder-type volume controls allow for versatile volume level
- A large capacity toroidal-core power transformer will provide high-quality audio signals
- CCLC headphone amplifier circuit for linear sound
- 1/8inch (3.5mm) 4-pole headphone jack supporting a ‘ground-separate’ connection allows for an intimate listening experience
- Dual level meter with a 4-step dimmable backlight generates accurate audio
- Stunning design for silent operation will apart well to the surroundings of your home
- XLR balanced analogue input allows you to build a brilliant HiFi setup
- Three sets of unbalanced RCA analogue audio inputs with a wide-pitch connector layout creates a dynamic sound
Specifications

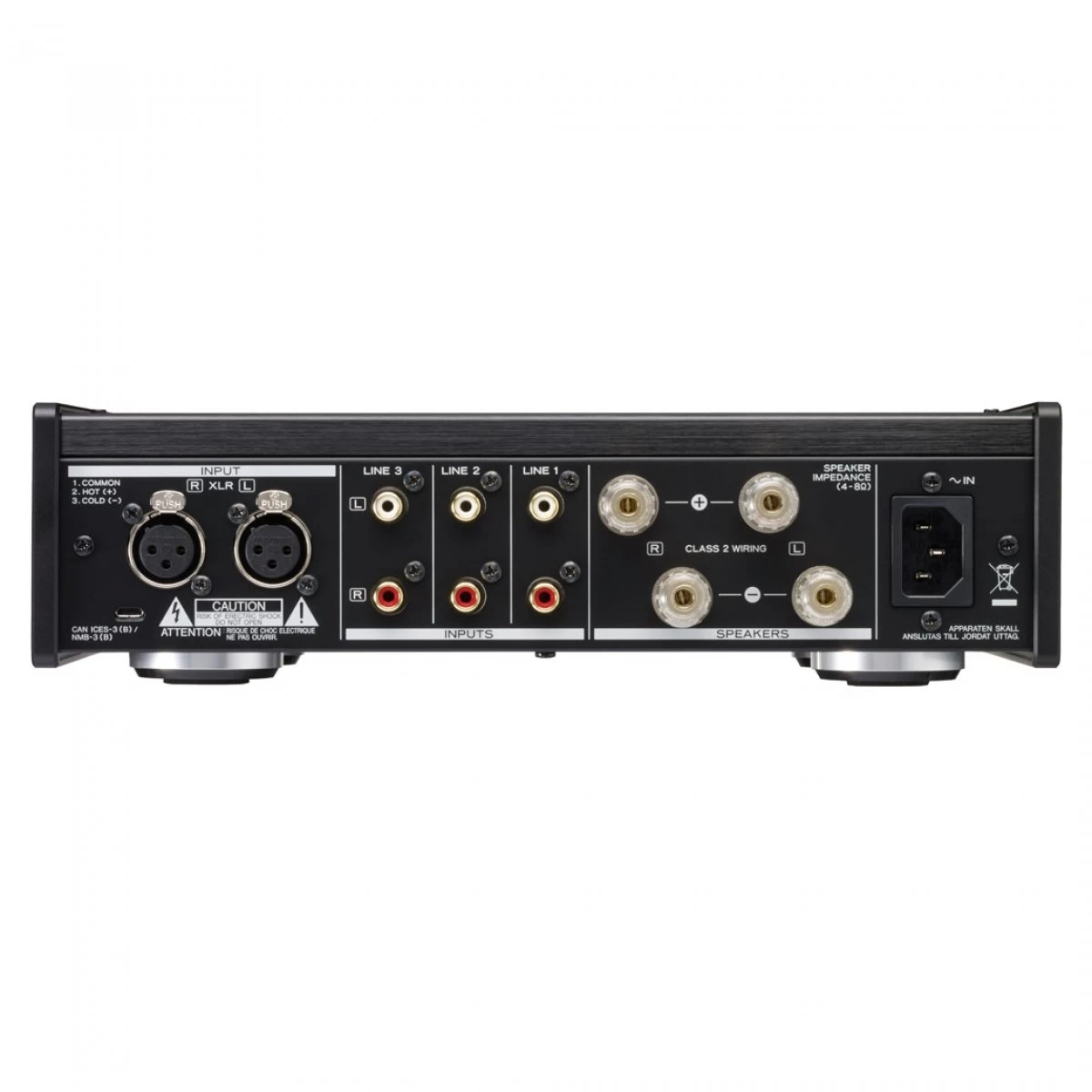

Analog Audio Inputs
| Balanced Connector | XLR (2:HOT), x 1 pair |
|---|---|
| Max input level | 3.0Vrms |
| Unbalanced Connector | RCA Pin x 3 pairs (gold-plated) |
| Max input level | 2.5Vrms |
| Audio outputs
Speakers Connector |
Screw-type x 1 set
(gold-plated, compatible with AWG8 and Banana plugs) |
| Supported speaker impedance | 4 to 8 ohms |
Headphone Output
| Connector | 1/8” (3.5mm) 4-pole stereo headphone jack x 1 |
|---|---|
| Connection | Ground separate |
| Max output power | 360mW + 360mW (32 ohms loaded, THD 10 , JEITA) |
| Frequency response | 5Hz to 150kHz (-3dB) |
| Signal-to-Noise ratio | 115dB |
| Total harmonic distortion | 0.003 (output power 30mW, 32 ohms loaded) |
| Compatible impedance range | 16 – 600ohms |
Audio Performance
| Rated output power | 115W + 115W (4 ohms, 1kHz, THD 0.8 )
70W + 70W (8 ohms, 1kHz, THD 0.8 ) |
|---|---|
| Total harmonic distortion | 0.002 (8 ohms, 1kHz, 12.5W, JEITA) |
| Signal-to-Noise ratio | 110dB (8 ohms, 1kHz, IHF-A) |
| Frequency response | 10Hz to 50kHz (-5dB, XLR input 1V, 8 ohms, JEITA) |
General
| Operating power | AC 220-240V, 50/60Hz (UK/Europe) |
|---|---|
| Power consumption | 56W |
| Overall dimensions (W x H x D) | 290 x 81.6 x 264mm |
| Net weight | 4.2 kg |

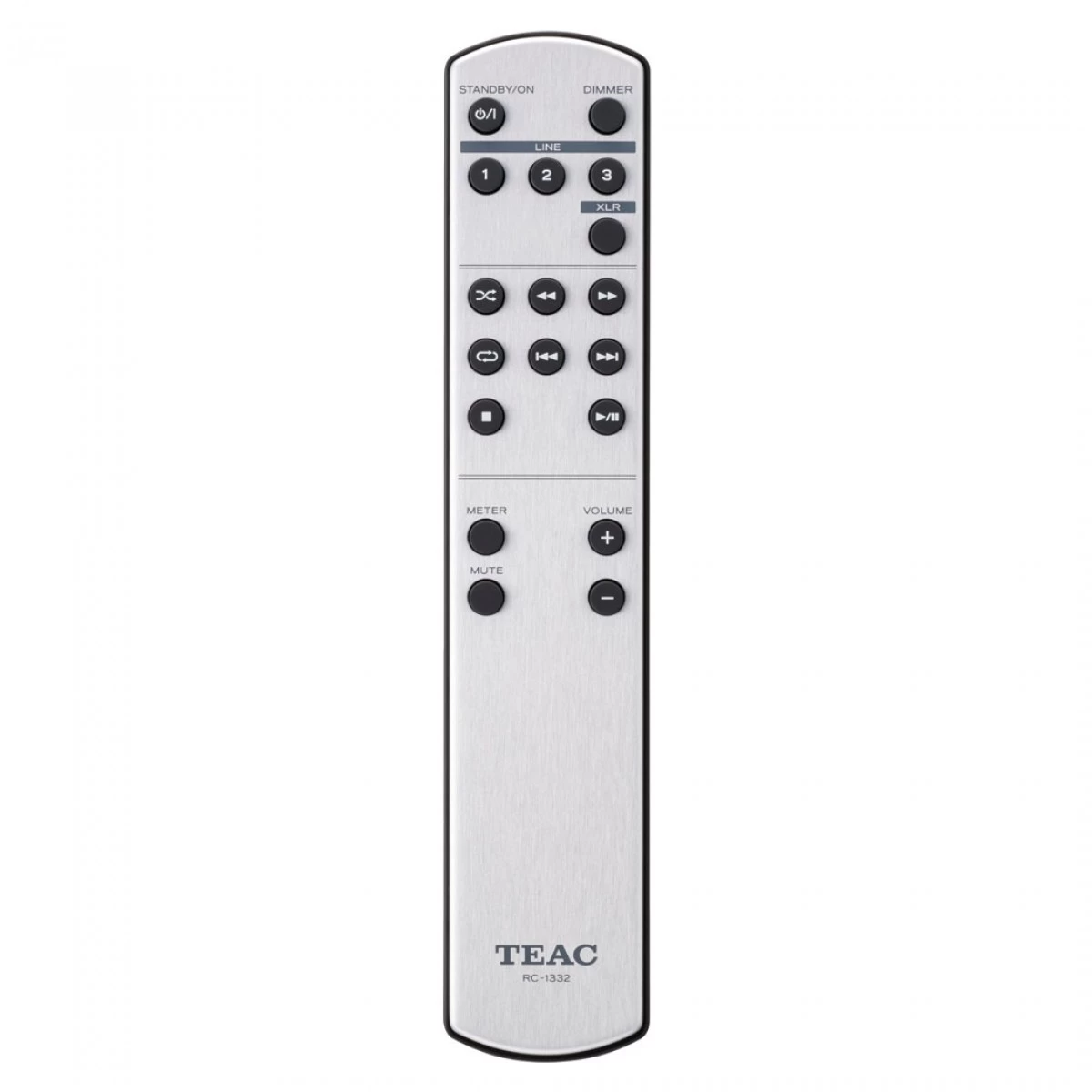

| Included items | Remote control (RC-1332)
AAA batteries
AC power cable
Owner’s manual |
