Full Description
Recording and Playback
Tap into your tape collection. The TEAC AD-850-SE supports CD, USB (mp3), external audio sources via RCA input and cassette, accommodating normal, chrome and metal type tapes. This deck makes digitalising deteriorating tape collections to USB simple, all without the need for a computer. Vice versa, USB (mp3), CD and external audio source can be recorded onto cassette, all with audio level adjustments to ensure the coherency of your tracks.
Karaoke Night
Let loose and sing along to your favourite backing tracks. The TEAC AD-850-SE has been built with a microphone input so you can record yourself or mix over tape, CD or USB audio. Including easy-to-use levelling for source, mic and overall level, the AD-850-SE offers a simple solution to home recording. For added flair, an echo effect can also be added, with an adjustable level of reverberation that mimics the acoustics you might hear in a karaoke hall.
Pitch Control and Functionality
As well as its broad playback capabilities, the TEAC AD-850-SE offers a host of on-board and compatible functionalities. Along with the standard loop, programmed and shuffle playback options for CD and USB (mp3), you can also increase and decrease pitch within a 10% range. The AD-850-SE will also accommodate timed playback for CD and USB or recording from an external device via LINE In to cassette tape with the settable power-on-start switch.
Key Features
- Built-in microphone input can be used to mix with CD, USB, cassette and external input audio
- Record input audio, including microphone, to cassette tapes
- Record input audio, including microphone, to USB (MP3) flash drive
- Microphone input features echo effect function, adding reverberation and great for karaoke
- Features shuffle and program playback modes for CD and USB
- MP3 file playback for USB and CD-R/RW with information display
- Large information panel clearly displays track, counter and source data with album title available for mp3 formats
- Counter reset button quickly sets cassette counter to “0000” for easy location of points of interest on tape
- Record function for cassette tapes programmable via external timer, with timer play-on-start for CD, cassette and USB
- Compliant with RoHS
What’s in the box?

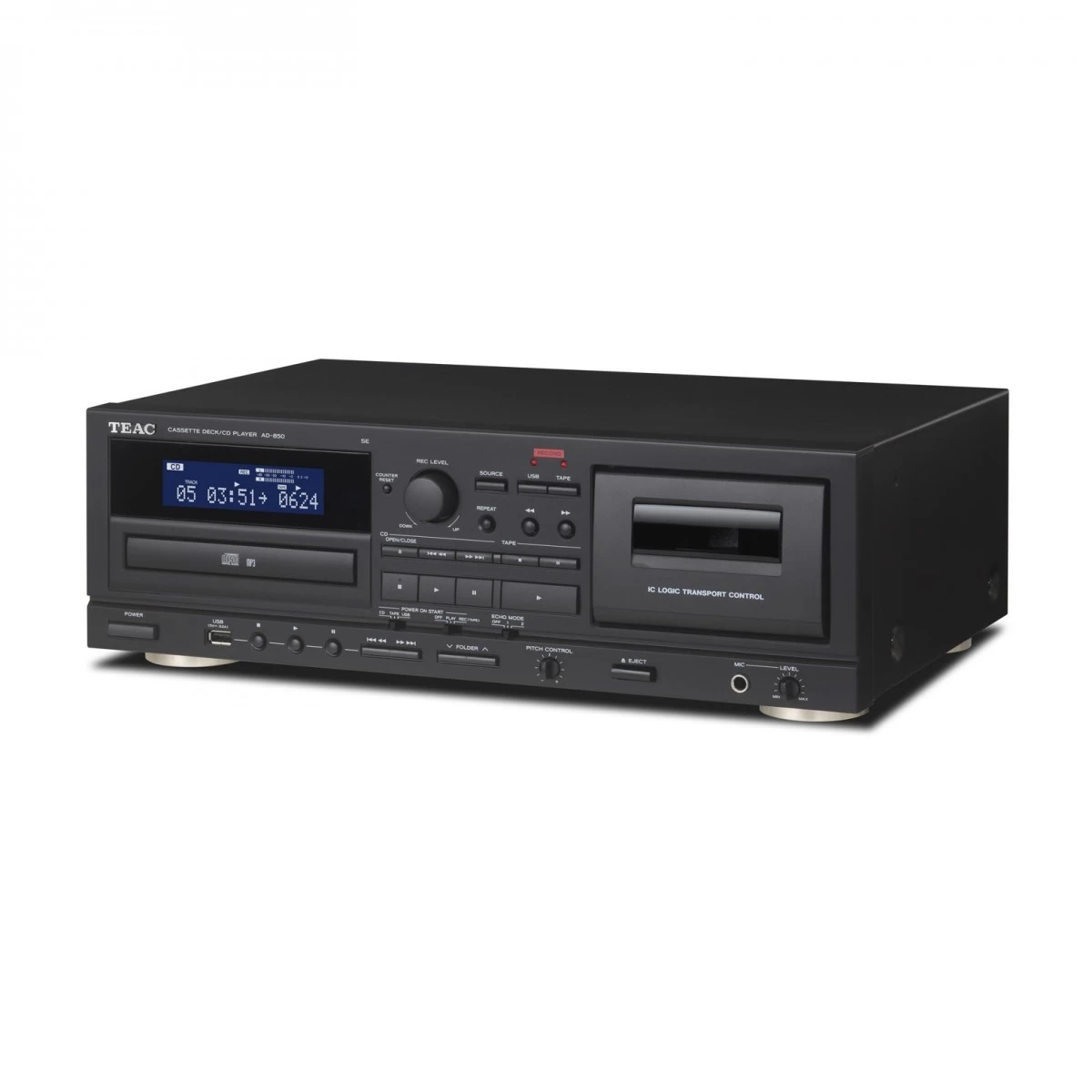

- x1 TEAC AD-850-SE CD-player/Cassette Deck

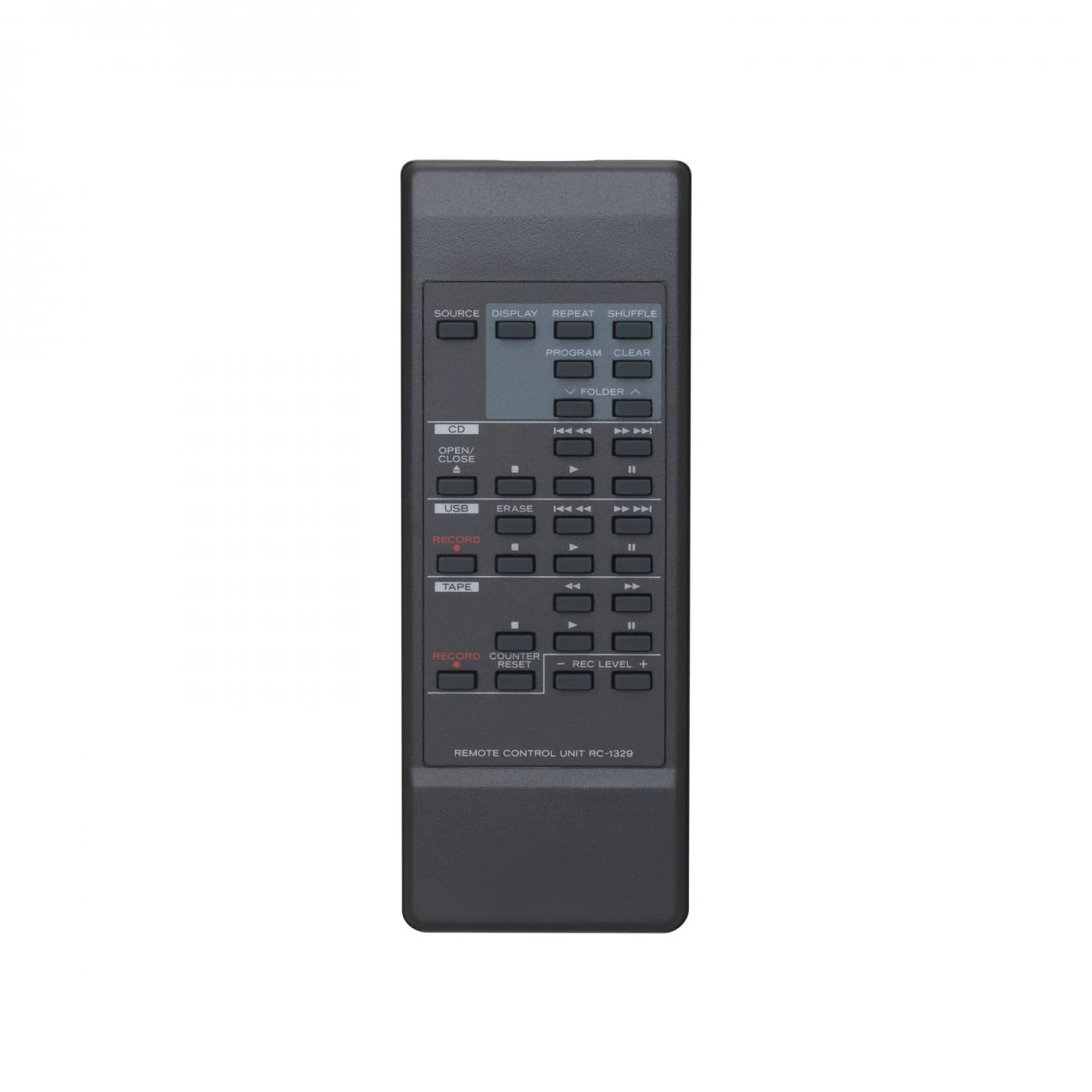

- x1 Remote control (RC-1329) (x2 AAA batteries included)
- x2 RCA audio cables
- x1 Owner’s manual (w/ Warranty card)
- x1 Quick-start recording guide
Specifications
Cassette tape
| Track system | 4-track 2-channel stereo |
|---|---|
| Head construction | x1 Recording/playback head
x1 Erase head |
| Tape type | C-46/C-60/C-90 |
| Tape speed | 4.76cm/sec |
| Motor | x1 DC servo motor |
| Pitch control | About +/-10 (playback only) |
| Wow and flutter | 0.25 (W.RMS) |
| Frequency response (Overall): Chrome | 50 to 12,000Hz +/-3dB |
| Frequency response (Overall): Normal | 50 to 12,000Hz +/-3dB |
| S/N ratio (overall) | 59dB (3 THD level WTD) |
| Winding time | About 120 seconds (C-60 tape) |
| Line input (RCA) | 462mV (50kΩ or higher input impedance) |
| Line output (RCA) | 462mV (50kΩ or higher impedance load) |
CD Player
| Pickup | 3-beam semiconductor laser |
|---|---|
| Digital filter | 8x oversampling digital filter |
| Frequency response | 20Hz to 20kHz +/-2dB |
| Total harmonic distortion | 0.02 or less (1kHz) |
| S/N ratio | 87dB or more (IHF-A) |
| Analog output (RCA) | 2.0V |
USB (1.1 FULL SPEED (12Mbps)): Playback
| Format | MP3 |
|---|---|
| Frequency response | 20Hz to 20,000Hz(+/-2dB) |
| S/N ratio | 85dB or less |
| Playback bit rate | 8k to 320k bps |
USB (1.1 FULL SPEED (12Mbps)): Recording
| Format | MP3 |
|---|---|
| Frequency response: CD – USB | 20Hz to 15,000Hz(+/-3dB) |
| Frequency response: Line in – USB | 100Hz to 15,000Hz(+/-3dB) |
| S/N ratio | 85dB or more |
| Bit rate | 128kbps |
Microphone input
| Connector | 6.3mm(1/4″) mono phone jack |
|---|---|
| Nominal input level | 0.78mV (−60dBm) |
| Input impedance | 47kΩ or more |
| Power supply function | None |
Other
| Power (Europe) | AC 230V, 50Hz |
|---|---|
| Power consumption | 13W |
| Dimensions, including protrusions (W x H x D) | 435 x 145 x 288mm |
| Net weight | 4.8kg |
| Operating temperature | 5 to 35°C |
| Operating humidity | 5 to 85 (no condensation) |
| Storage temperature | -20 to 55°C |
