Full Description
Developed Bass Response

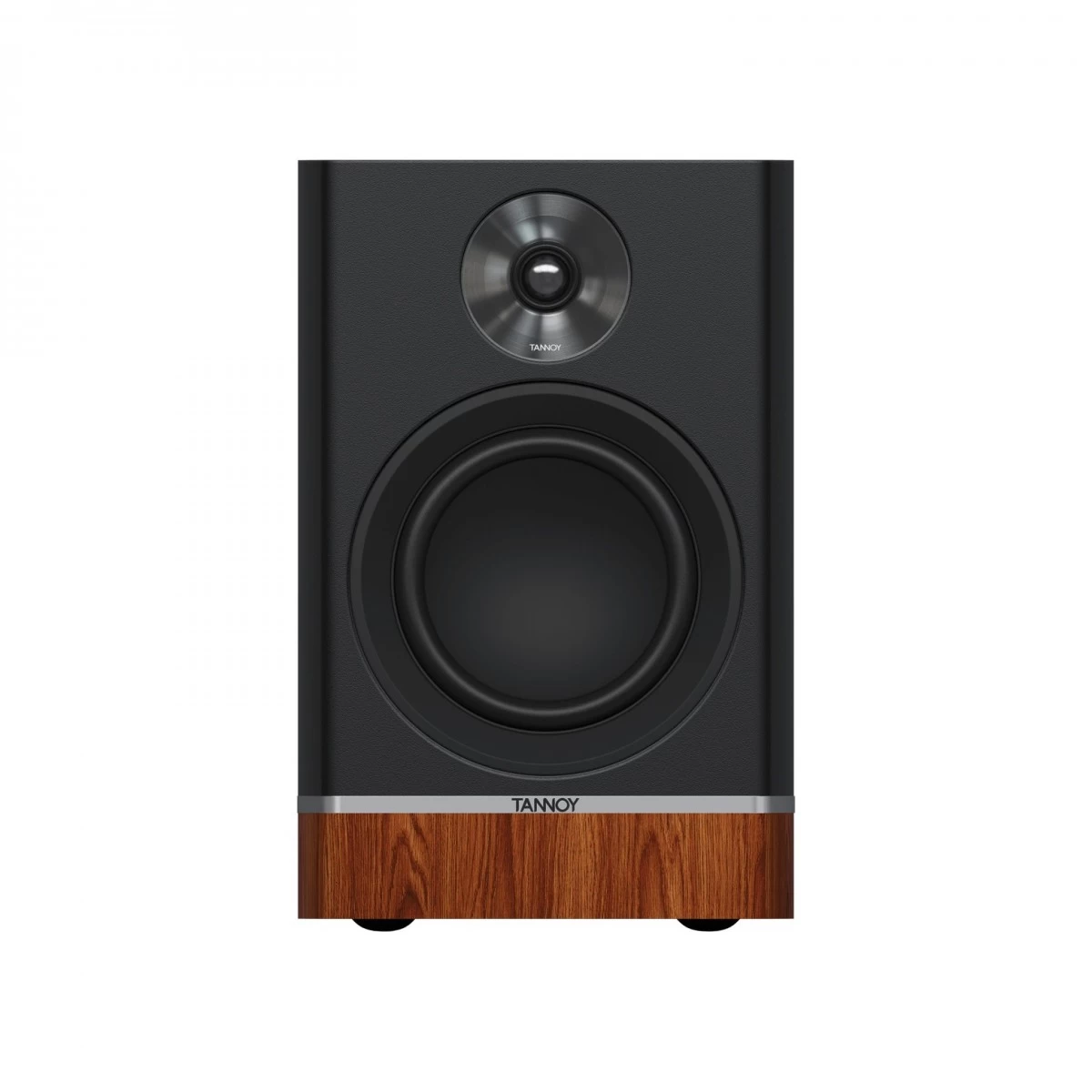

The Tannoy PLATINUM B6 bookshelf speakers use rigid, but lightweight materials to deliver a comprehensive experience. Capable of impressive extension beyond their modest dimensions, the 6.5” paper cone driver has a strong and open presence and is easily matched with home audio amplifiers. The low frequency response is bolstered by a rear ported reflex cabinet design.
Nuanced Frequency Range
Complementing the two-way design, the 1” silk dome tweeter ensures a smooth transition to high-end frequencies, introducing an overall sonic cohesion and remarkable reach above its price point. Vocals and instruments alike are presented naturally, driven by responsive neodymium magnets to ensure these speakers can keep up with a wide range of music tastes.
Streamlined Design
With a modest 23 x 23.5cm footprint, these speakers are the perfect pick for confined listening rooms where a sacrifice in quality is unacceptable. The cabinet is three-quarter inch thick MDF, with internal plywood supports to keep your speakers from vibrating during use. The external design is also orderly and minimalist, free of protrusions thanks to the included wraparound zipper grille.
Key features
- 6.5” paper cone mid-low frequency woofer with rear-ported reflex for impressive strength
- 1” silk dome diaphragm high frequency tweeter develops superior clarity
- Perfect for medium sized listening rooms for easy-going, no fuss home audio

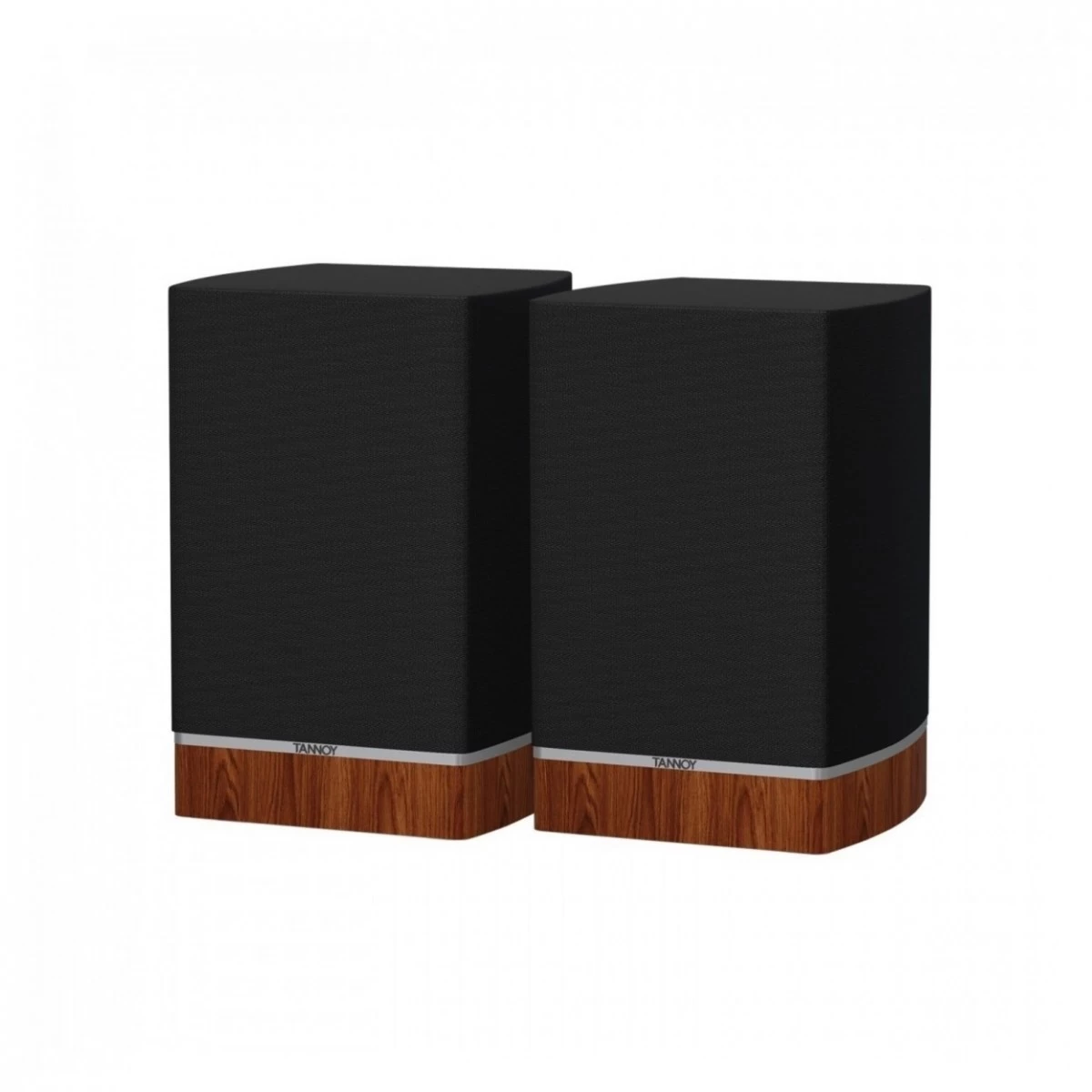

- Acoustically transparent zipper grille for clean presentation and style
- 24ct custom Tannoy binding posts ensure reliable signal authenticity
- Internally braced MDF cabinet diminishes rattle and noise
Specifications
System
| Frequency response | 50Hz – 20kHz (-6dB) |
|---|---|
| Recommended amplifier power | 20 – 80W |
| Power handling (IEC) | 40W continuous, 160W peak |
| Sensitivity | 86dB (1W @1m) |
| Impedance | 8Ω |
Components
| Transducers | 1 x 6.5″ (165mm) LF driver, paper cone
1 x 1″ (25.4mm) HF driver, silk dome diaphragm |
|---|---|
| Crossover type | 2 way |
| Crossover frequency | 2.5kHz |
| Type | Hard wired passive, low loss |
Enclosure

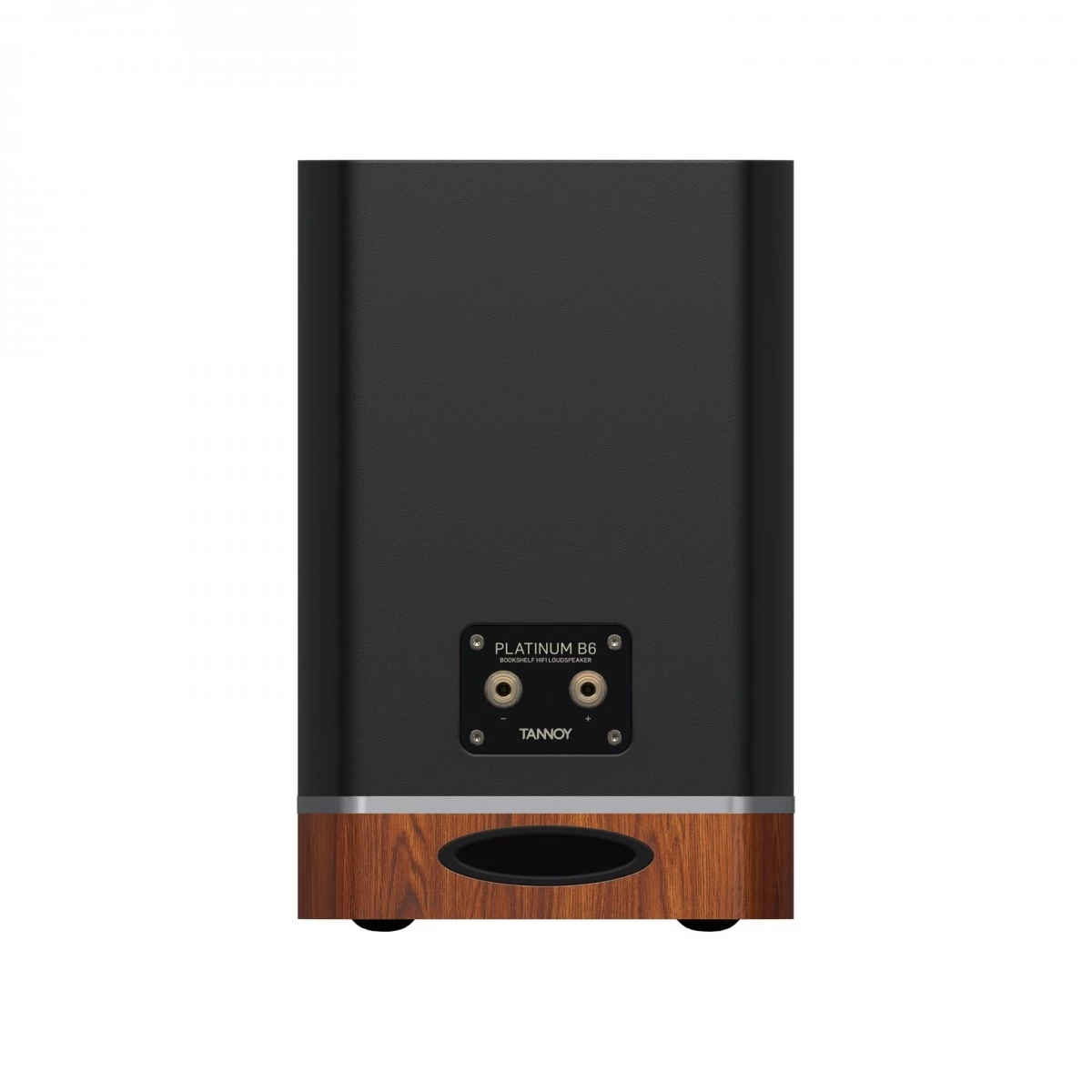

| Type | Rear ported reflex |
|---|---|
| Connectors | 2 x 4mm 24ct Tannoy customised binding posts |
| Dimensions (W x H x D) | 230 x 360 x 235mm |
| Net weight | 6.6kg |
| Construction | 19mm (3/4″) MDF with plywood internal bracing, heavily damped |
| Finishes | Burgundy
White
Black |
| Grille | High acoustic transparency zipper grille |
