Name: SVS PB1000 Pro Subwoofer, Black Ash
SKU: YXYUY 30515
Availability: InStock

Full Description

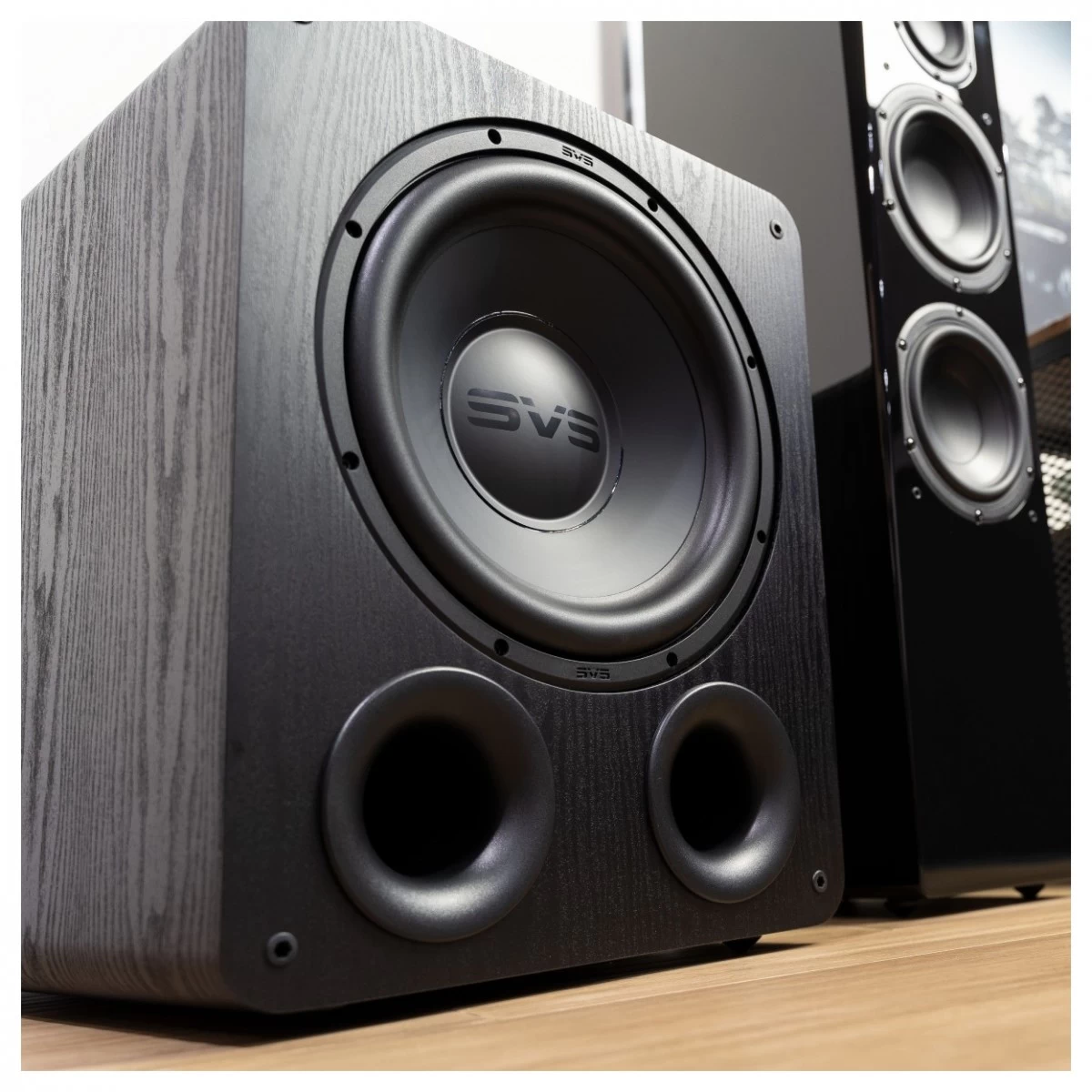

High Excursion Driver

Driver design has been significantly improved over the previous model; not only is it larger, but this extra surface area is contained within a proprietary injection moulded extreme-excursion surround which promotes controlled piston movements for sonic clarity and accuracy. This improved 12-inch driver also features a dual ferrite magnet motor for effortless bass delivery. The fibre composite cone has improved stiffness for achieving high sound pressure levels with minimal delay or unwanted noise. Linearity and fidelity are improved too with the addition of a dual-layer voice coil mechanism.

Sledge STA-325D

Amplification is provided by the PB-1000 Pro’s STA-325D Amplifier; a class D amp capable of 325 Watts but with over 820 Watts of peak power potential. Class D amplifiers are a classic choice for subwoofers given their high efficiency; they can achieve high power without taking up too much space within the subwoofer unit. For consumers, this means smaller, more convenient-sized subwoofers are available which still boast great power output. The STA-325D feature fully discrete MOSFETs (metal oxide semiconductor field-effect transistors) which have high input impedances and will process lots of incoming signals for amplification.

Pro Control

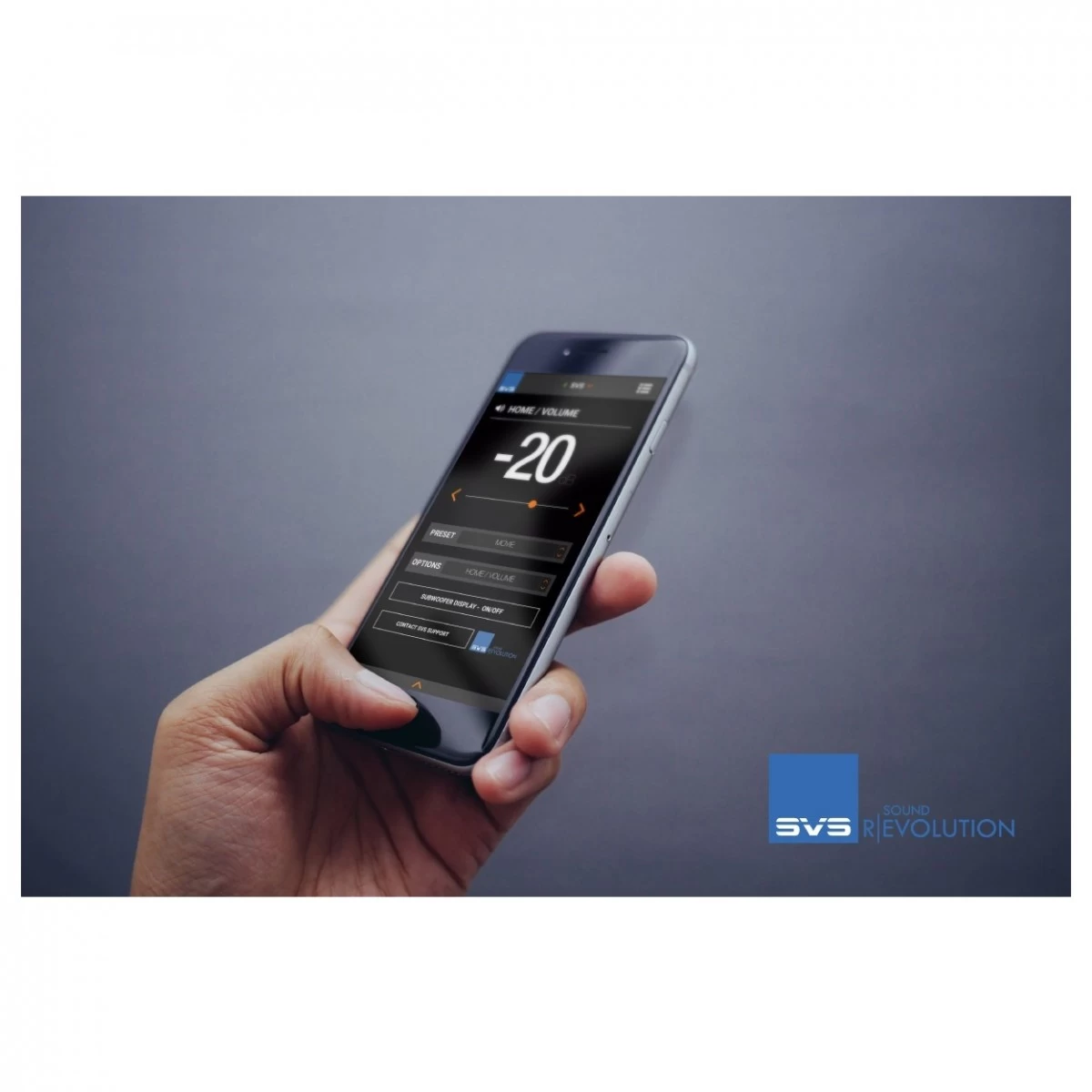

Conveniently control your PB-1000 Pro from a smartphone or tablet. Simply download the SVS app for iOS, Android or Amazon devices and set up your subwoofer via Bluetooth. From the app, save custom presets for tuning to specific settings in the touch of a button. Adjust your EQ with the 3-band parametric controller and get sound to the right levels for your room acoustics.

User Interface

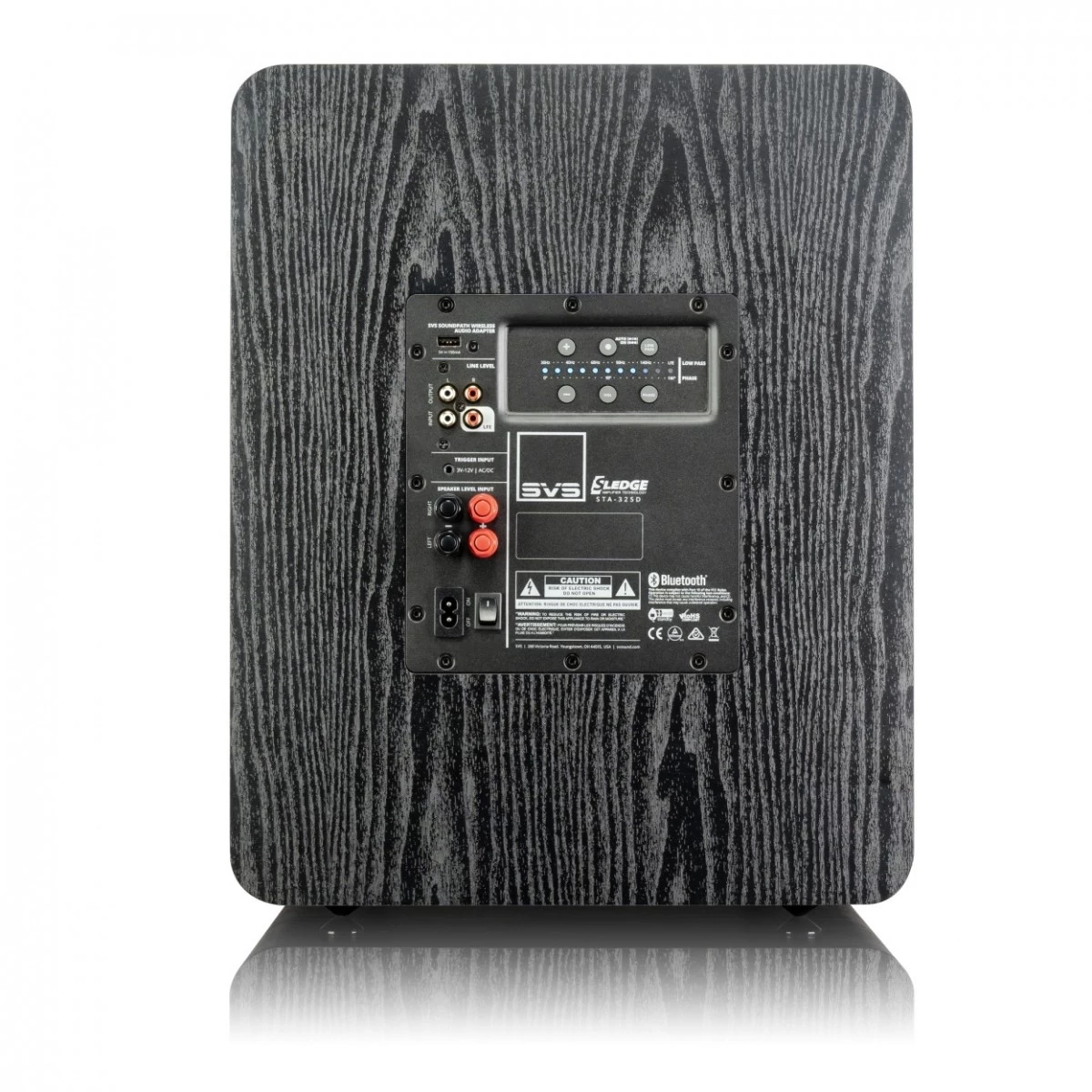

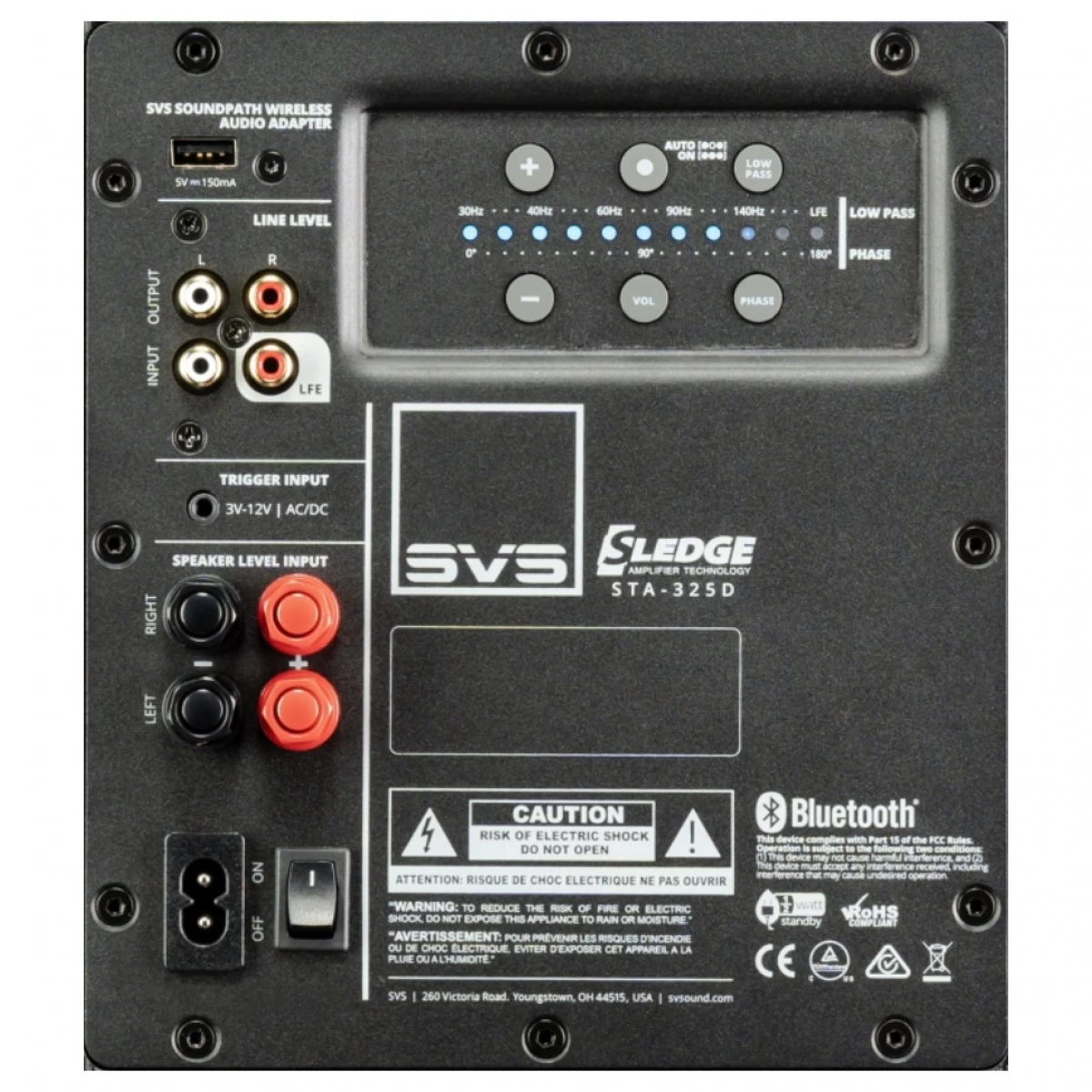

On the rear of the PB-1000 subwoofer, you’ll find an intelligent control interface with blue lights for status indication. From here you can adjust the subwoofer’s tuning levels, low pass filter and phase. Next to this interface there is a USB port, RCA audio interconnect input and speaker level stereo inputs for connecting the optional SVS SoundPath Wireless Audio Adapter, AV receivers/pre-amps, or older legacy receivers respectively.

Inert and Braced

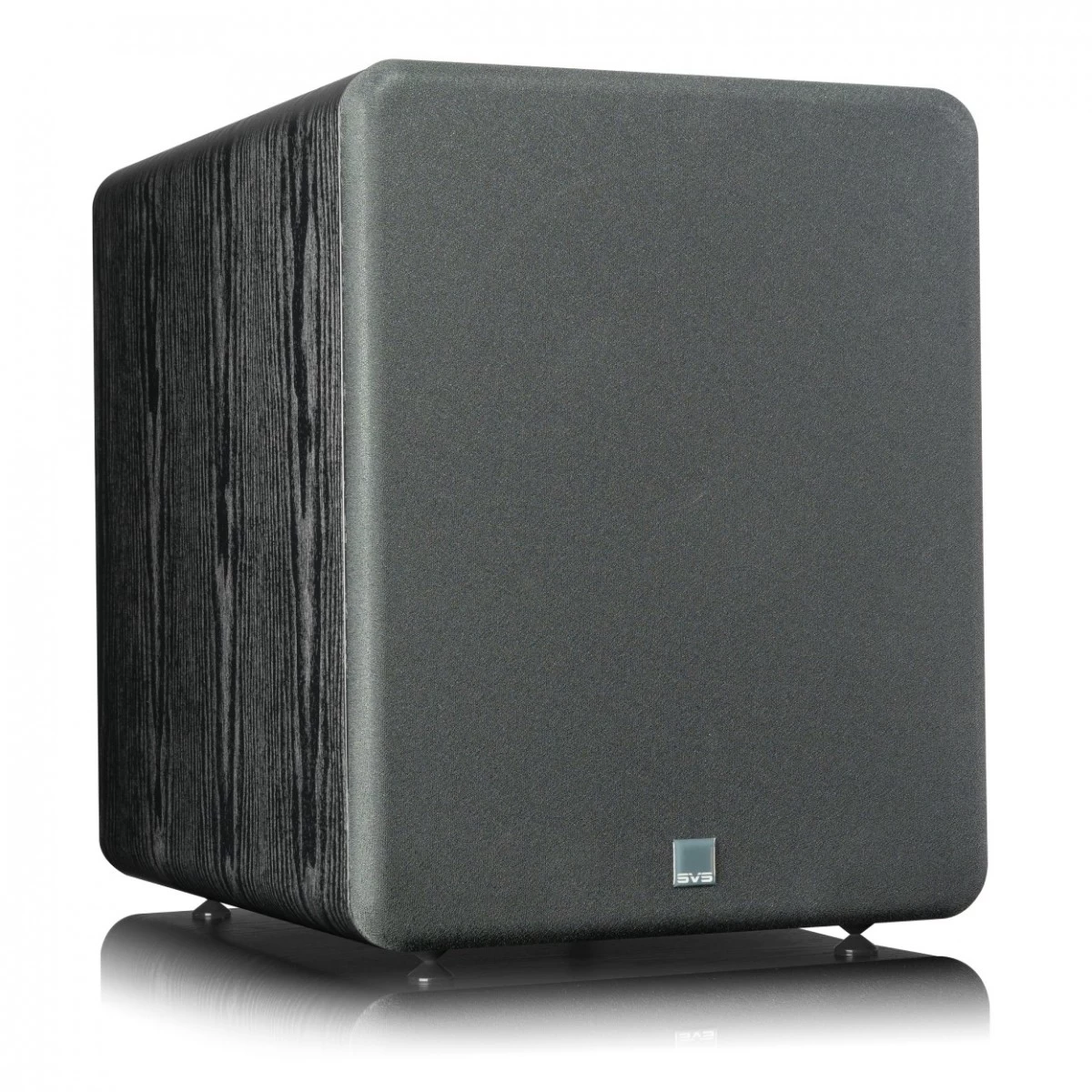

To keep the PB-1000 Pro rigid and devoid of annoying rattles, SVS has designed the subwoofer in an extra-thick MDF cabinet with internal bracing. A dual port design facilitates airflow in such a way that minimises distortion and enhances the quality of the bass delivery. Acoustic insulation has been added to eliminate any colouration arising from the cabinet itself. A fabric mesh grille is also supplied to help protect the subwoofer’s driver and boost the longevity of your investment.

Features

325 Watts RMS and 820+ peak output power ideal for medium-sized rooms
12-inch driver and Sledge STA-325D amplifier combine for effortless power and refined sound
Wide input voltage bandwidth works for both consumer and pro audio up to 4V line level input.
A straightforward user tutorial accessible via SVS app makes setup a breeze
Easily control the PB1000 Pro and its DSP remotely via the smartphone app
Rear panel interface with traditional physical controls
Premium high-purity copper voice coil winding design minimizes distortion and power compression with maximum heat dissipation, linearity, and tuned magnetics for high excursion
Precision machining for motor and narrow tolerance suspension parts ensures flawless linearity at the full range of excursion
12-inch powder-coated basket has been FEA optimised for ultimate rigidity, tensile strength, and energy transference
Oversized motor system for driving full excursion and industry leading SPL, with pinpoint transient speed
Oversized low carbon 1008 steel T-yoke with integrated pole piece extension for maximum cooling and electromagnetics

What’s in the Box?

SVS PB-1000 Pro Subwoofer
Protective non-resonant extra-thick ABS fabric mesh grille
Iso-elastomer feet
2 foam port tuning plugs
Extra heavy-duty, high current 6-foot power cord
Quick start guide

Specifications

Dimensions

Dimensions with grille (H x W x D)	479 x 380 x 509 mm
Dimensions without grille (H x W x D)	479 x 380 x 488 mm
Packaged dimensions (H x W x D)	594 x 506 x 619 mm
Weight – unboxed with grille	19.3 kg
Packaged weight	23.4 kg

Driver Specs

Driver	12-inch long-throw driver with high-precision tuned overhung motor configuration
Motor	Two-piece high-grade oversized Y35 Ferrite magnet motor
Driver weight	4.2 kg woofer with 3.14 kg motor
Excursion	13.1 mm Xmax, 26.8 mm Xmech precision aligned
Voice coil	1.5-inch diameter voice coil with high current 6-layer high-purity copper wire windings
Materials	High temperature 3003-H18 aluminium former/bobbing 6-inch composite cotton-poly extreme excursion linear spider Dual 24-strand copper-alloy high temperature leads Proprietary injection moulded gasket and NBR extreme-excursion surround Lightweight treated fibre composite cone for enhanced sensitivity and transient response Top plate assembly with low carbon 1010 steel for optimal magnetics

Amplifier Specs

Amplification	Cool-running Class D amplifier switching topology with massive 34A 120V MOSFET’s
Power	325 Watts RMS
Peak Dynamic Power	820+ Watts
DSP	50MHz Analogue Devices Audio DSP with high-resolution double precision 56bit filtering
Input impedance	16 kohm (unbalance RCA) 1 kohm (speaker level)
SMPS	High-efficiency LLC resonant SMPS with 17A 650V MOSFET, resonant switching results in lower EMI and highest efficiency.

SVS BLE Control App

Download	from iOS, Android, and Amazon operating systems
User Presets	3 complete nameable and customisable presets 3 PEQ’s per preset adjustable low pass, phase, polarity, room gain compensation, and control for best alignment with speakers
Support	IOS iphone5 or newer or Android 4.42 or newer
Feedback	Unique bidirectional feedback shows adjustments in real time on both app and subwoofer interface

General Specs

Cabinet Type	Forward Firing Ported
User interface	New Intelligent Feature Control (IFC) user interface with bright blue 11 LED bar display and easy push-button controls
EQ	Customer EQ and DSP limiter settings specifically for the 1000 Pro
Frequency Response	17-260 Hz +/- 3 dB (standard mode) 19-260 Hz +/- 3 dB (sealed mode)
