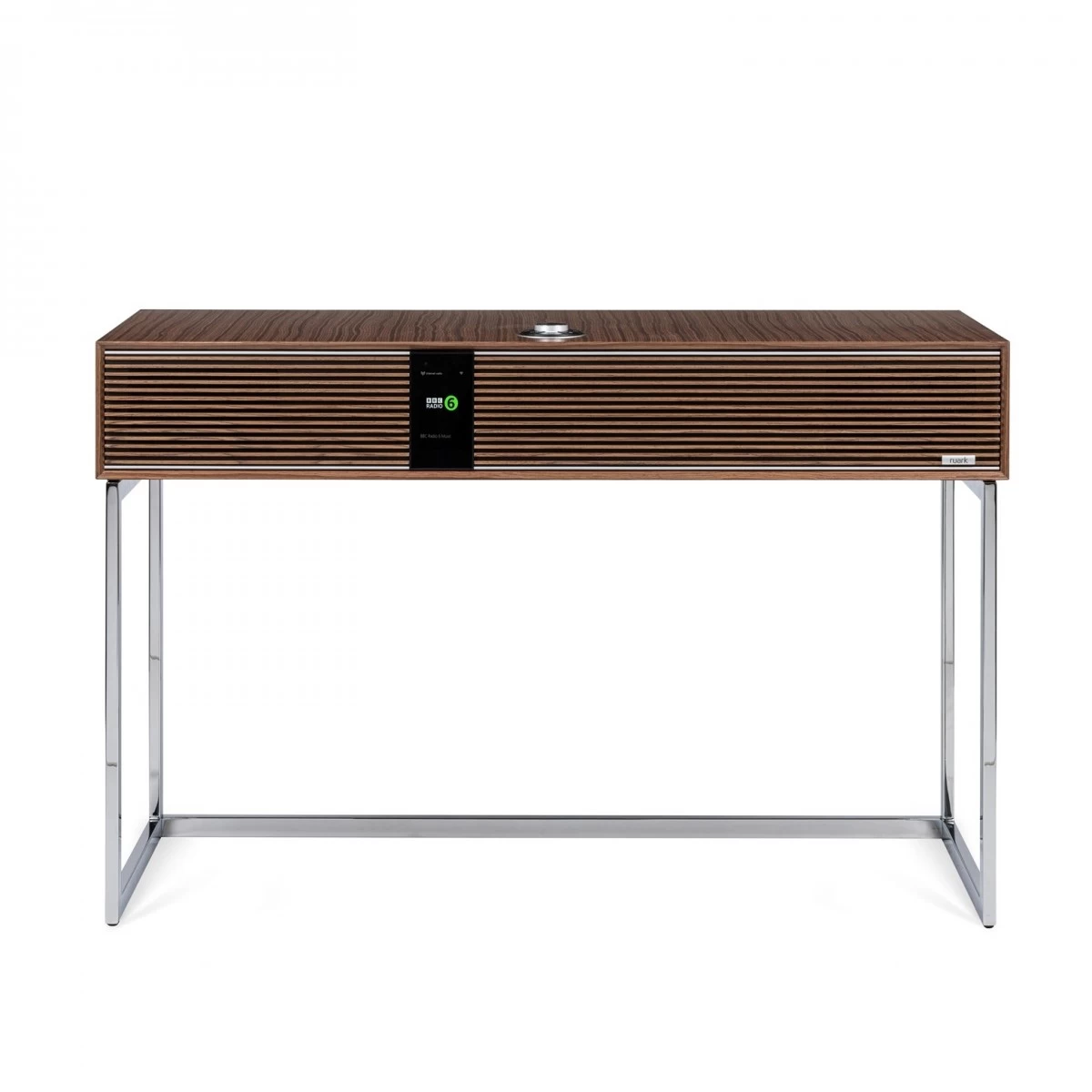

Ruark R810 High Fidelity Radiogram, Fused Walnut

Features

• 180W Class A-B discrete component amplifier powers two 100mm paper cone woofers and two 30mm silk dome tweeters
• Also features a 200mm Ruark long throw paper cone subwoofer for room-filling bass
• Cabinet construction features tuned twin bass reflex satellite enclosures and sealed subwoofer enclosure
• Streaming support for Spotify Connect, Tidal Connect, Apple AirPlay 2, and Chromecast Built-in
• DAB/DAB+, FM and Internet Radio
• aptX HD Bluetooth connectivity
• Digital inputs including TOSLINK (24-bit 192kHz) and USB-C
• Enhance your TV audio with HDMI ARC/eARC support
• High-resolution music up to 32-bit/384kHz
• UPnPTM media server compatible
• Features dedicated phono RCA input for turntable connection

What’s in the Box?

• Ruark R810 Radiogram
• 2m mains power cable

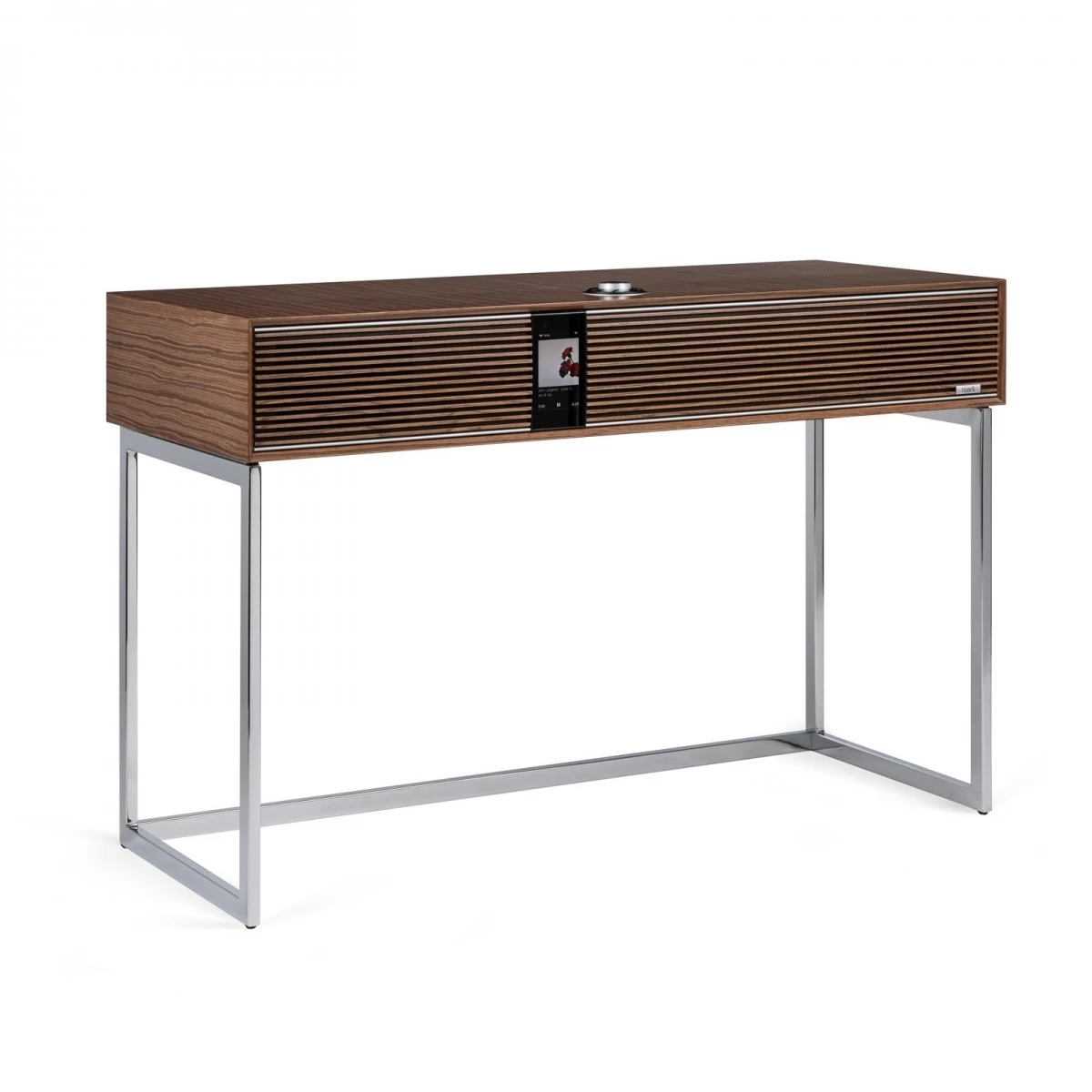

• 1 × polished chrome frame stand

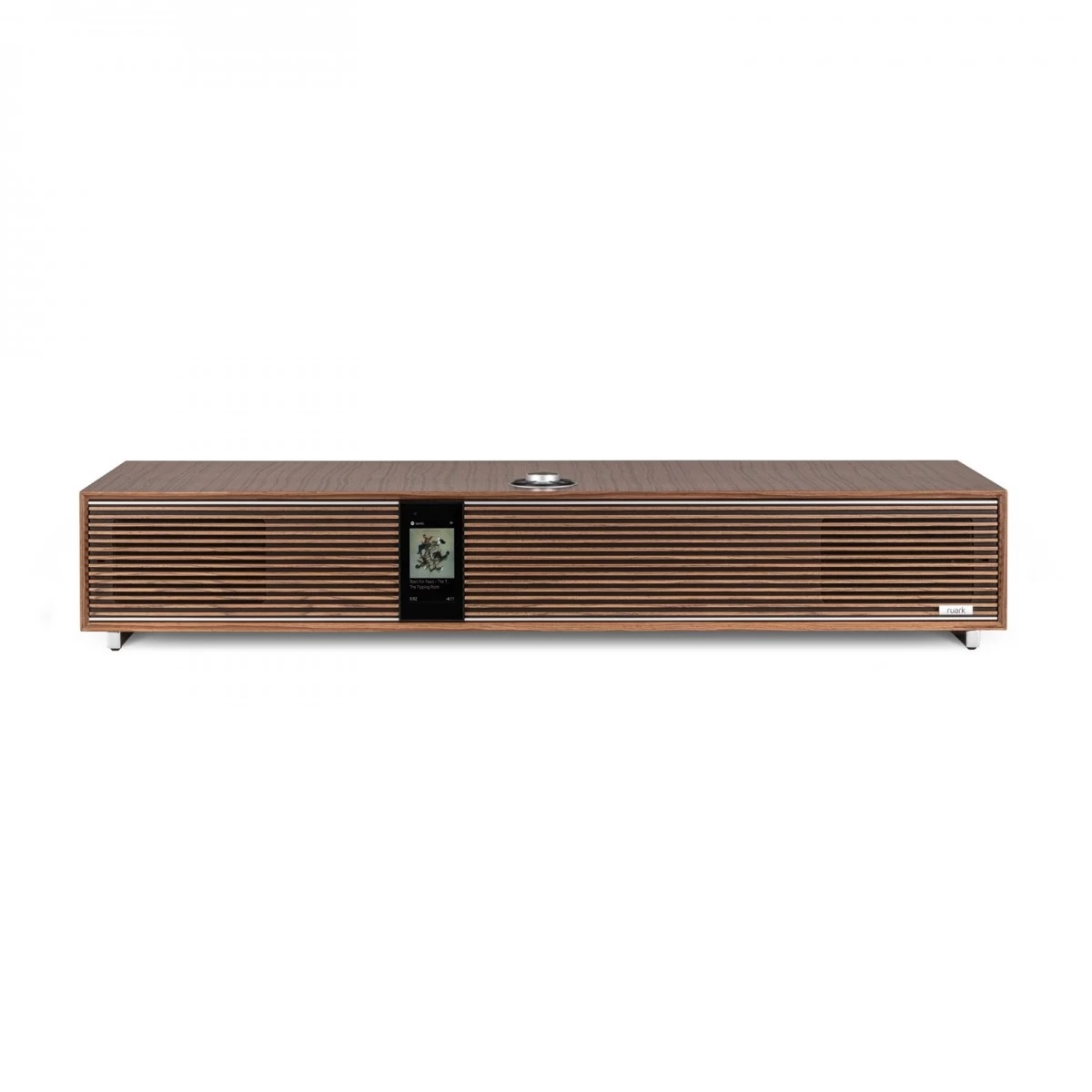

• 2 × polished chrome bar legs for mounting R810 on existing unit
• Quick start guide
• RotoDial BT LE rechargeable remote
• Telescopic aerial and spanner

&nbsp

Specifications

Audio

Frequency response	30Hz – 22kHz
Speaker units	2 × Ruark 27mm silk dome tweeters 2 × Ruark 100mm NS+ bass-mid units 1 × Ruark 200mm long throw subwoofer
Amplifier	180W RMS Discrete 5-channel Class A-B
Enhancements	Adjustable treble, bass and sub settings Stereo+ audio enhancement Adaptive EQ provides ideal sound according to volume
Cabinet type	Tuned reflex stereo enclosures and sealed subwoofer enclosure

Features

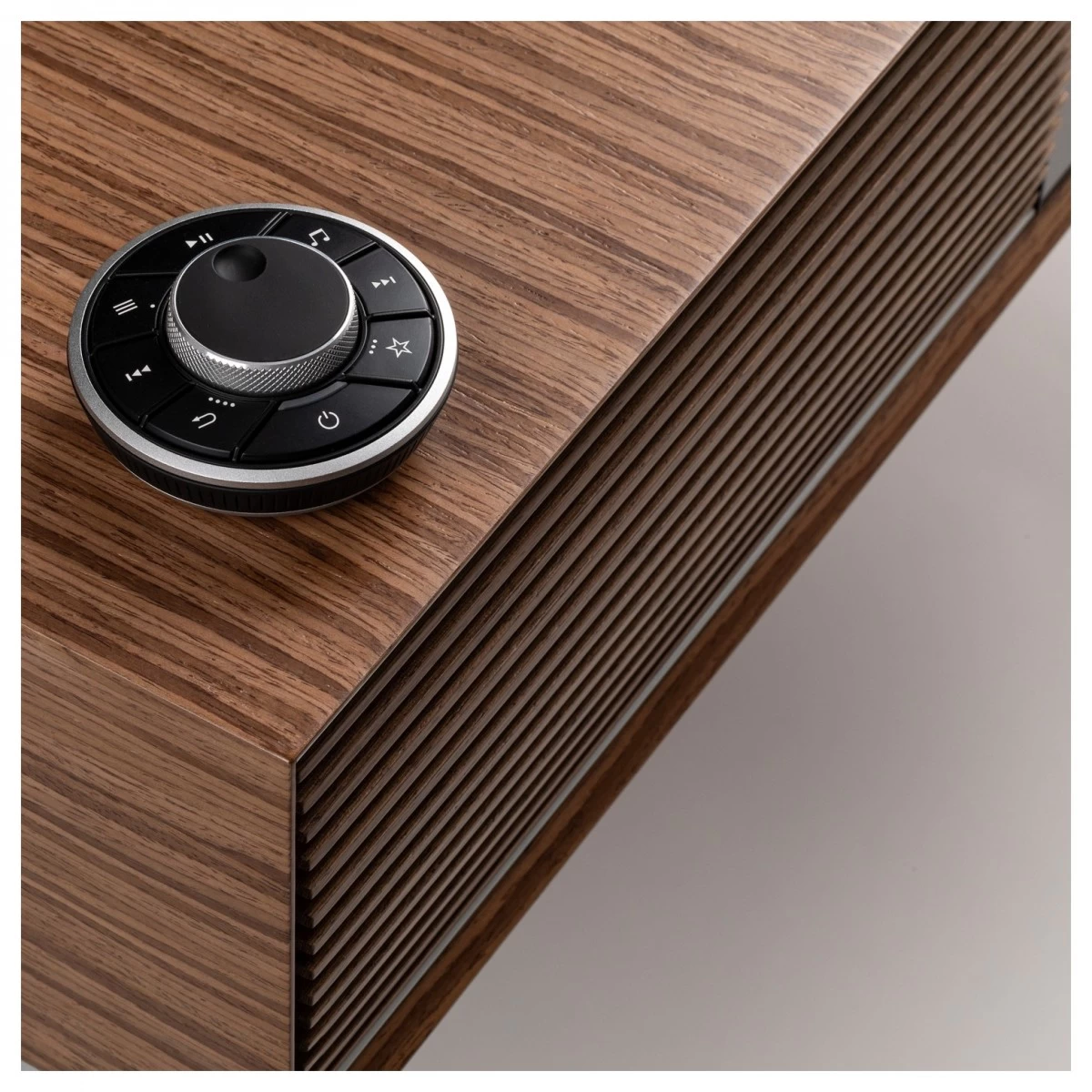

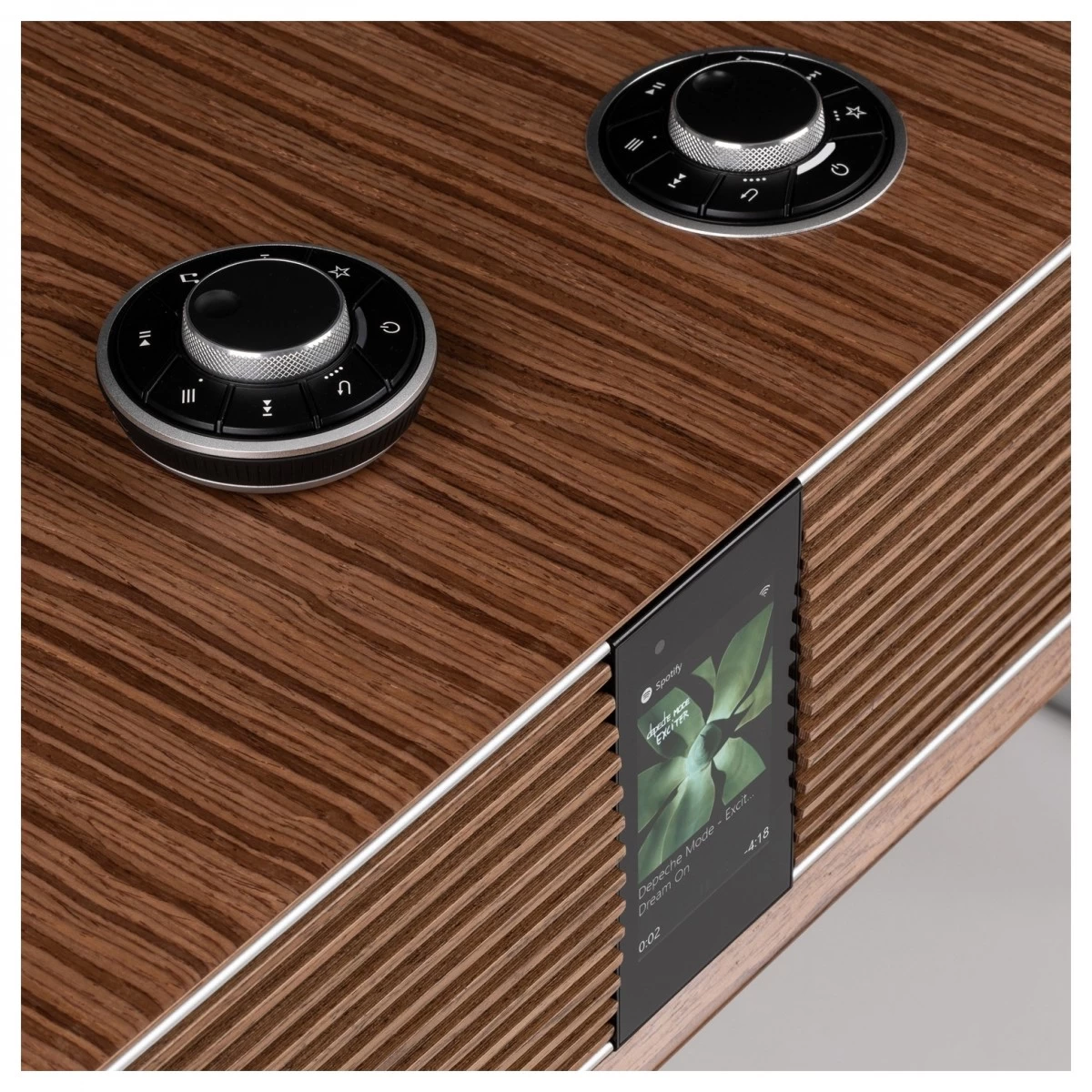

Controller	Ruark RotoDial control system
Remote Control	RotoDial BT LE rechargeable remote
Display	Hi-Res 4″ colour TFT
Presets	20 Global presets
App Control	Via Spotify, BBC Sounds and more
Auto-Standby	Adjustable power saving mode
Adjustable Input Levels	Line-in and optical
USB Charge Port	USB-C 5V 1A (5W)
Software Updates	Over-the-air and USB
User Interface Languages	Multilingual

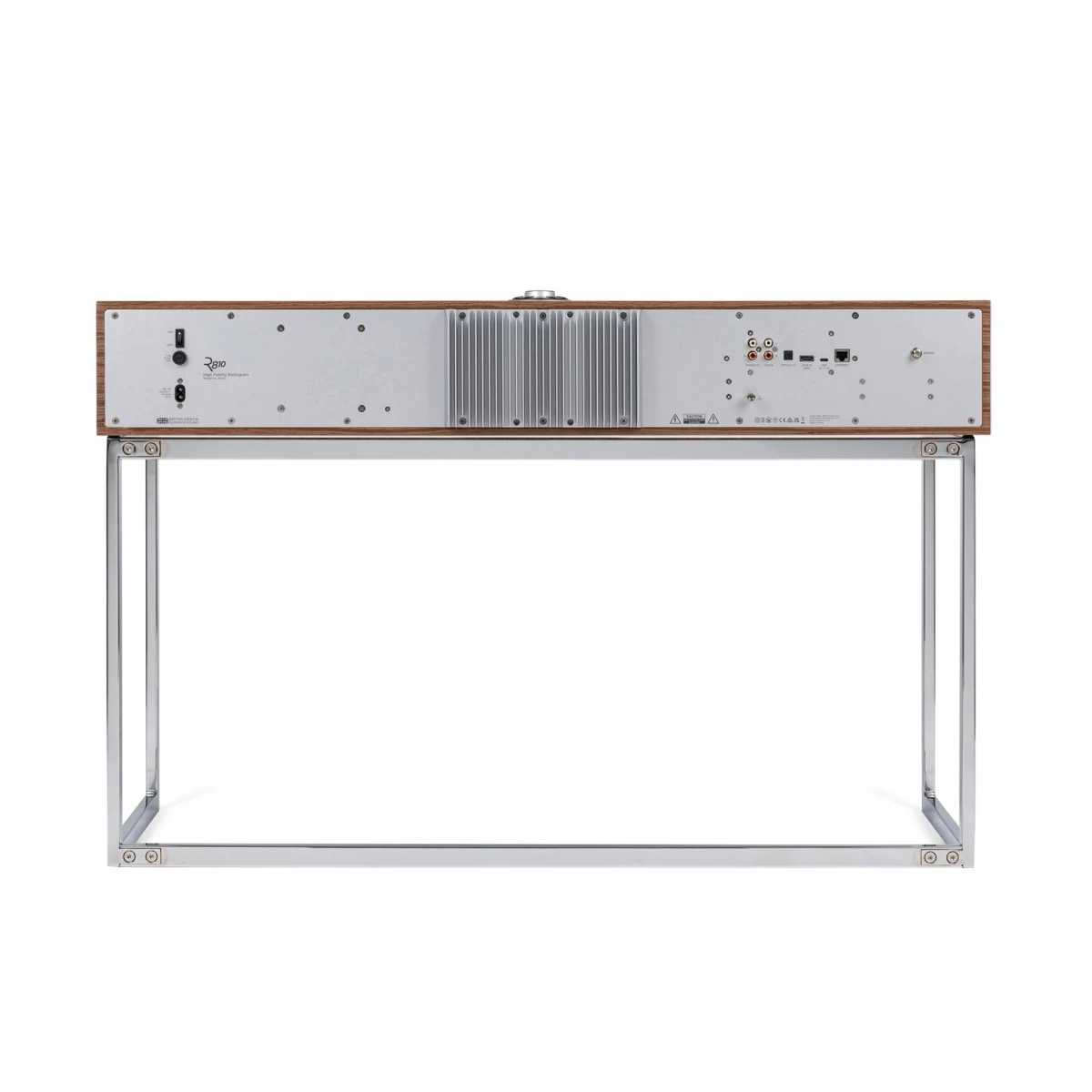

Connectivity

Radio	Internet Radio, DAB/DAB+ and FM with RDS (87.5-108MHz)
Multiroom capable	Via Apple AirPlay and Chromecast built-in
Wi-Fi	802.11 a/b/g/n/ac/ax, WPS2, WEP, WPA, WPA2
Streaming	Apple AirPlay and Google Chromecast built-in
Built-in music services	Spotify Connect and TIDAL Connect
Supported music services	Amazon Music, BBC Sounds, Deezer, Qobuz and many more
Bluetooth	5.1, aptX HD, SBC, AAC, BLE, A2DP
Ethernet	RJ45 connector 10/100 Mbps
DLNA	UPnP™ DLNA media server compatible
CD player	CD playback via external USB CD drive (optional)
HDMI	ARC and eARC
Line-input	Stereo RCA input (up to 2.3Vrms)
Turntable input	Stereo RCA input with RIAA MM phono gain stage
Optical input	TOSLINK digital input up to 24-bit 192kHz
USB-C	playback port
Aerial Connector	75Ω F-type

Supported Audio Formats

MP3	up to 48kHz 320kbps
AAC	formats up to 96kHz 320kbps
FLAC, ALAC and WAV	up to 32-bit 384kHz
WMA	formats up to 48kHz 320kbps
WMA 9	up to 48kHz 256kbps

General Specifications

Standard finishes	Fused Walnut Veneer or Soft Grey Lacquer
Product dimensions (W x D x H)	Cabinet: 1000 x 400 x 152 mm Inc. stand, dial and mains connector: 1000 x 435 x 650 mm
Product weight	27kg (30.7kg inc. stand)
Product power input	100-240VAC, 50-60Hz, 2.5A
Power consumption
