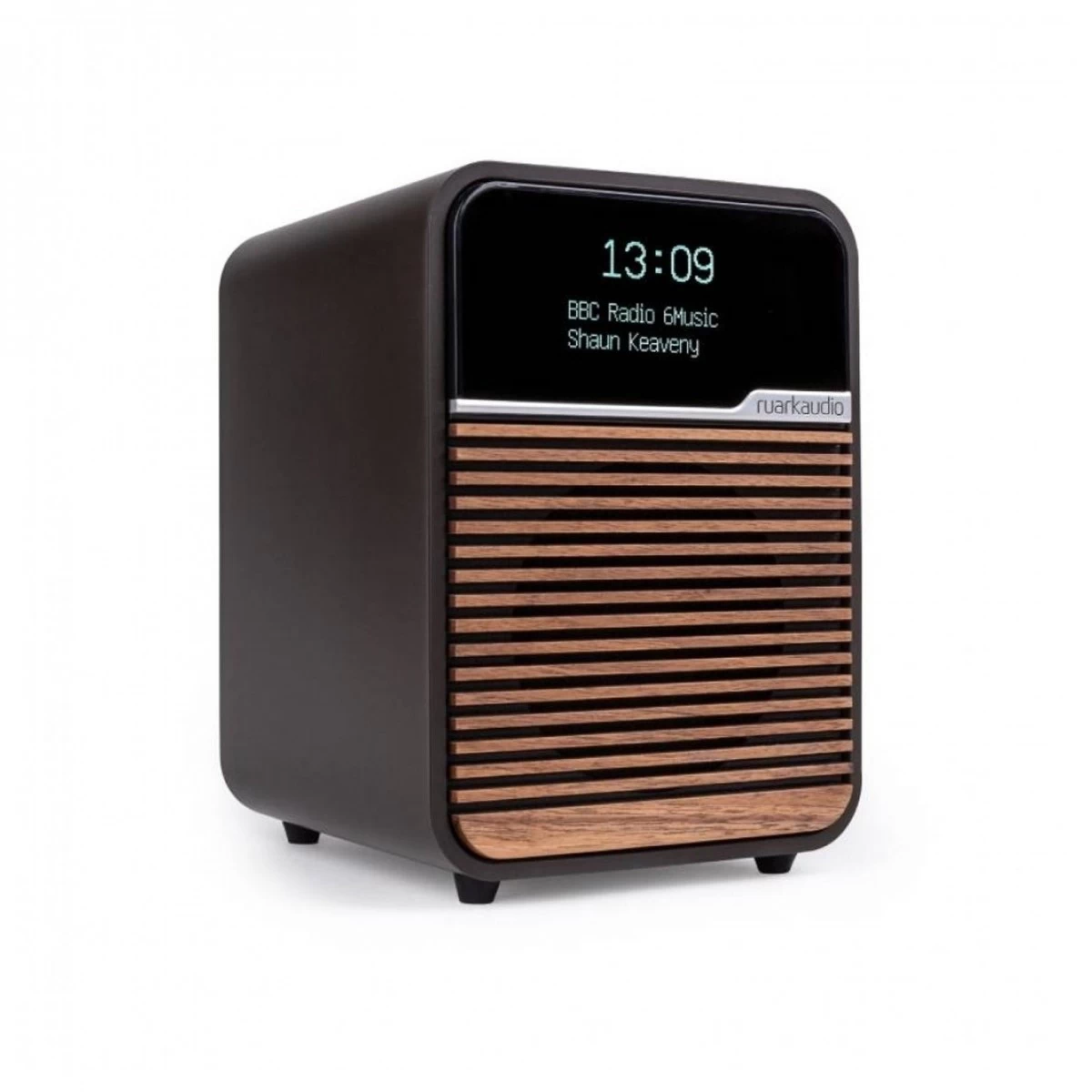

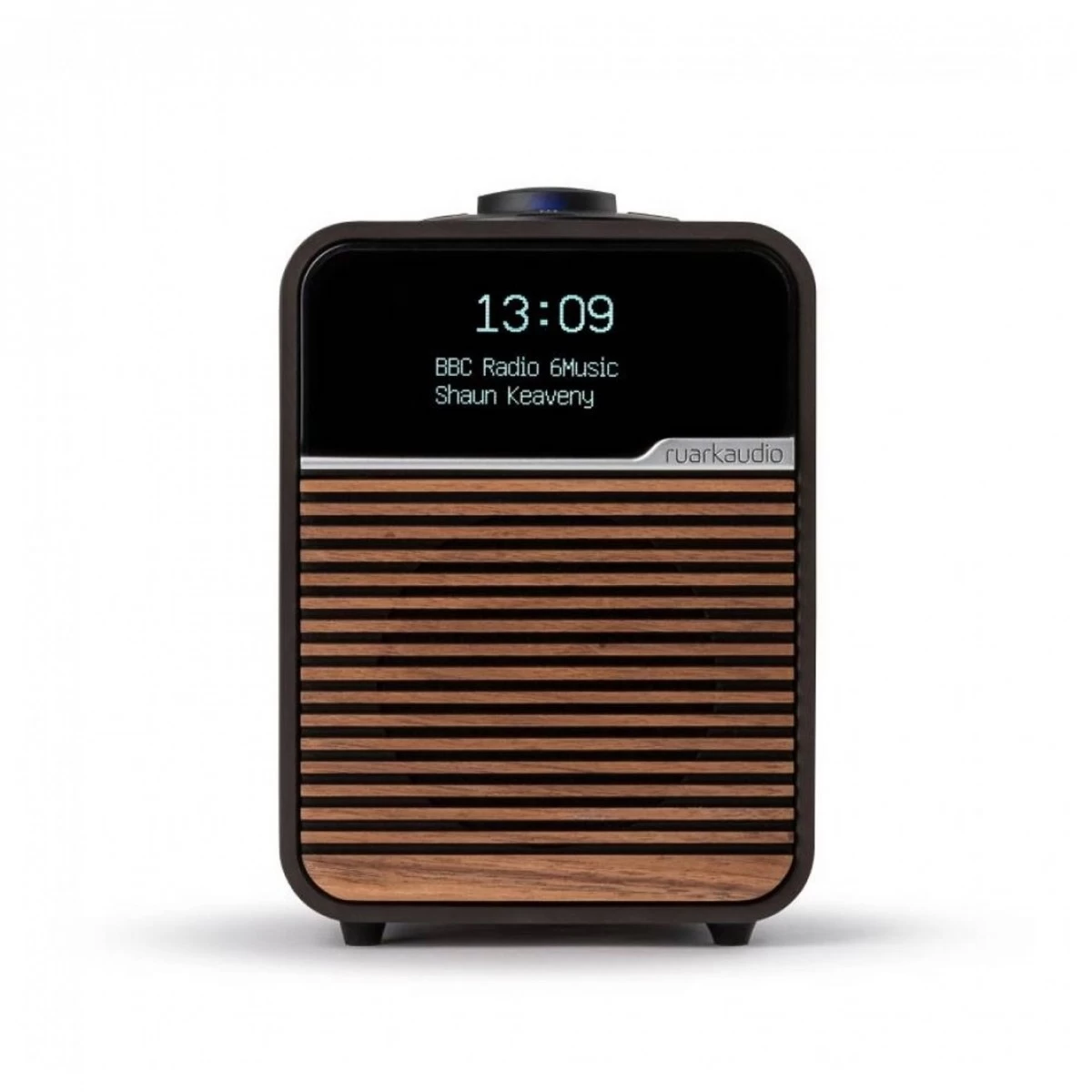

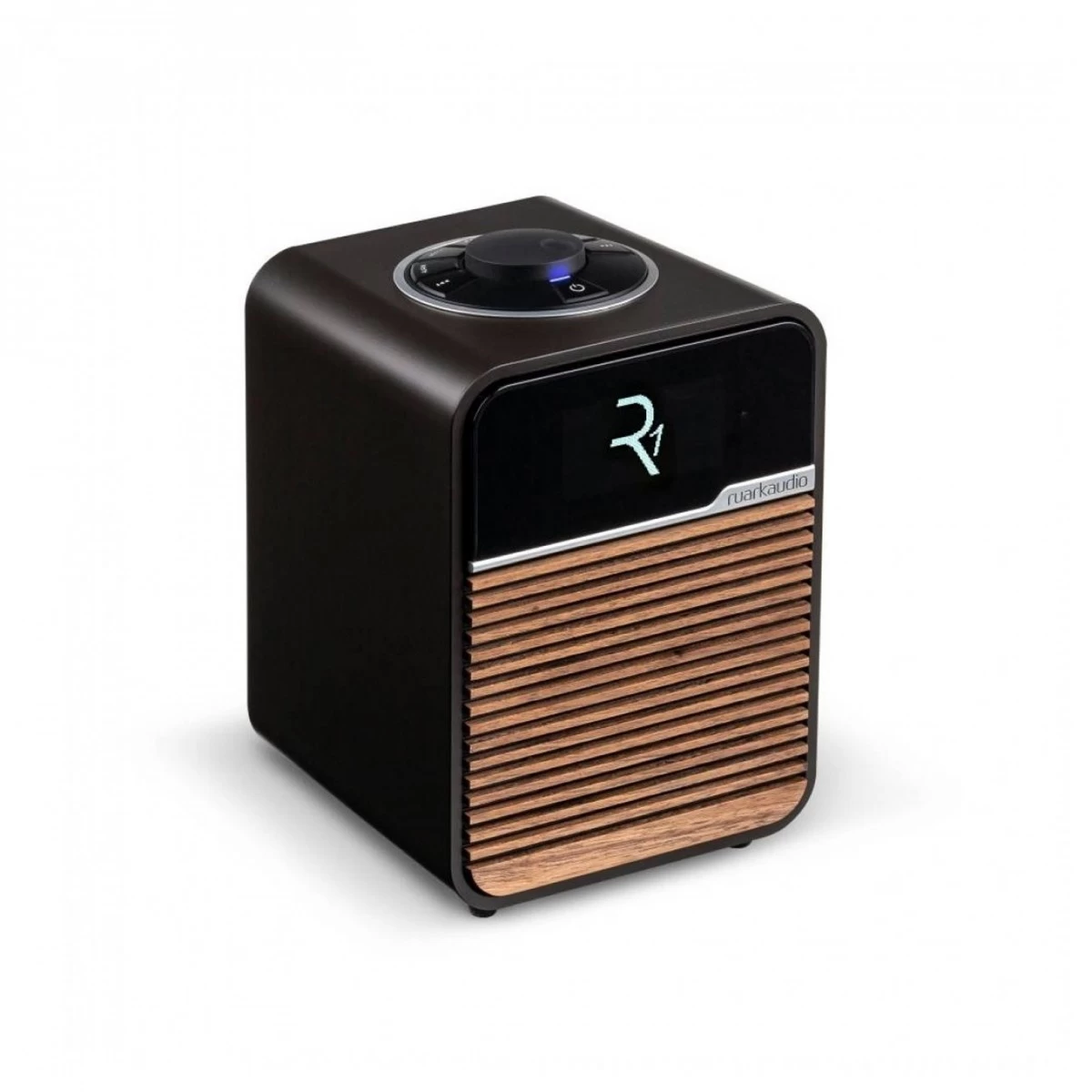

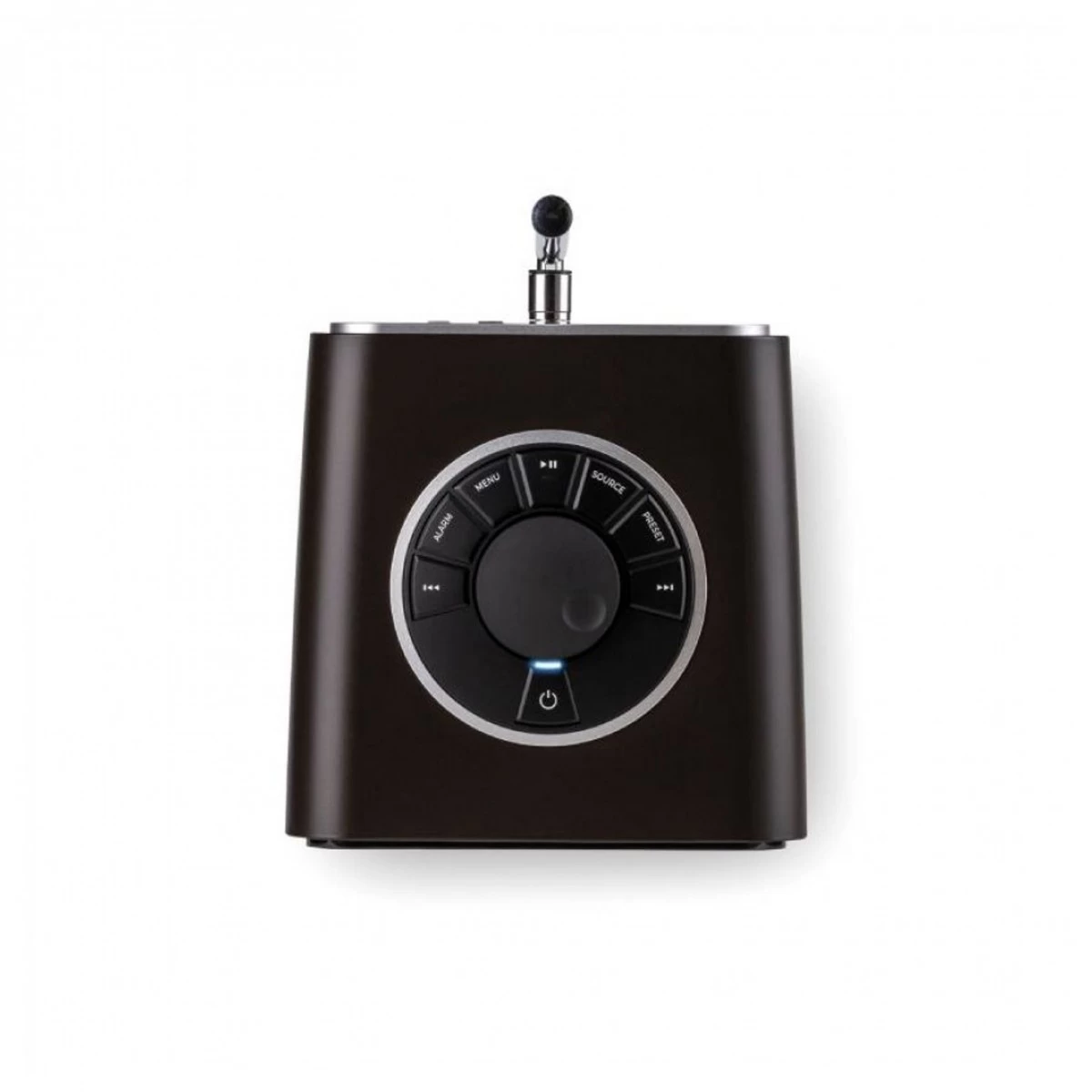

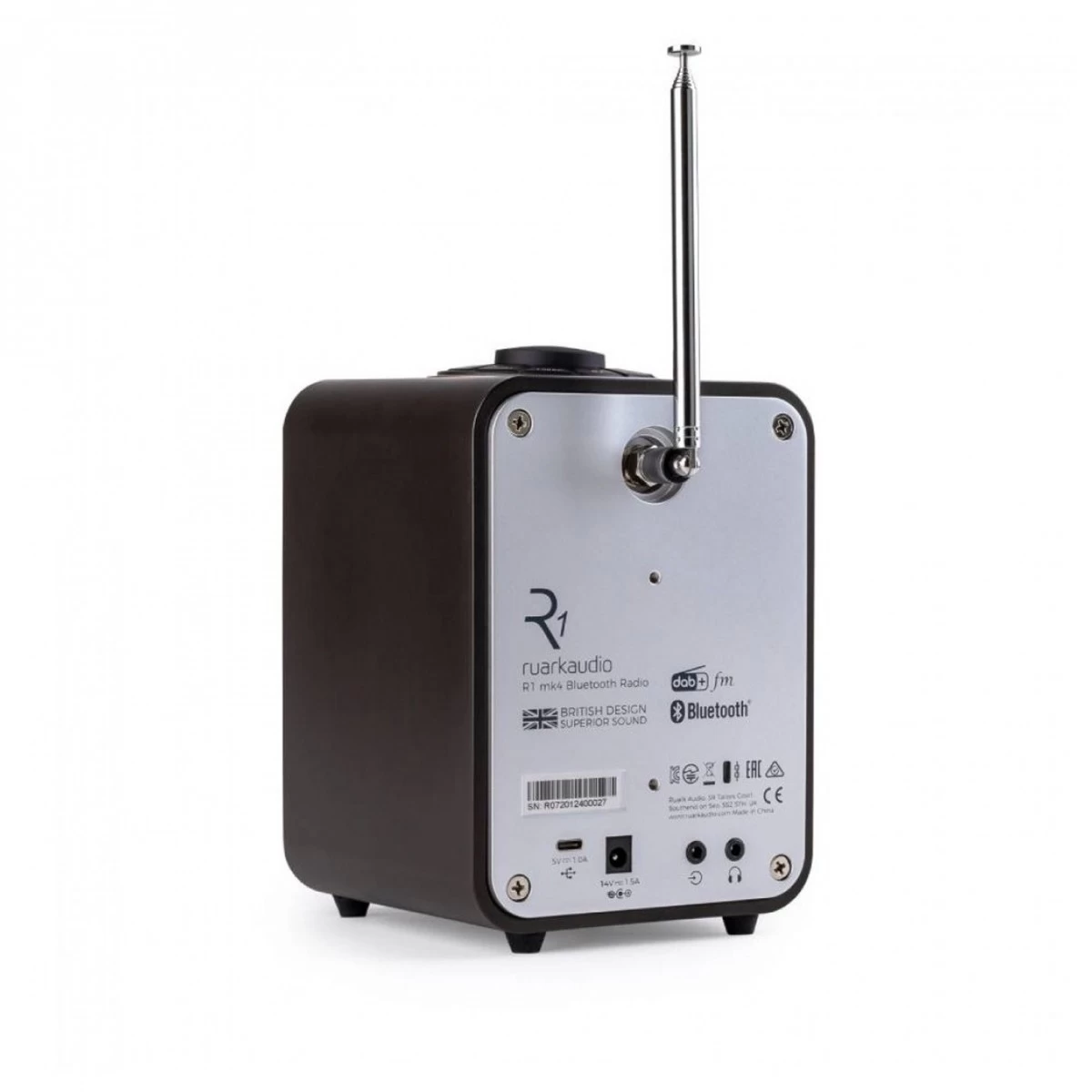

Ruark Audio R1 MK4 Bluetooth Radio, Espresso W/ Remote & Battery

Key Features

• DAB/DAB + provides digital radio stations
• You can access FM frequencies from across the globe
• Bluetooth V4.2 offer wireless connectivity to your smart devices
• 9W Class AB amplifier offers strong audio signals
• 75mm Ruark NS+ driver augments the sound of the bass
• 55Hz – 20kHz frequency response provides a diverse sound
• The adjustable EQ elevates the sound quality
• Multiple inputs help to enhance your listening experience
• Compact design enables flexible positioning

What’s in the box?

• R1 Radio
• 1 x AC power adapter
• Quick start guide

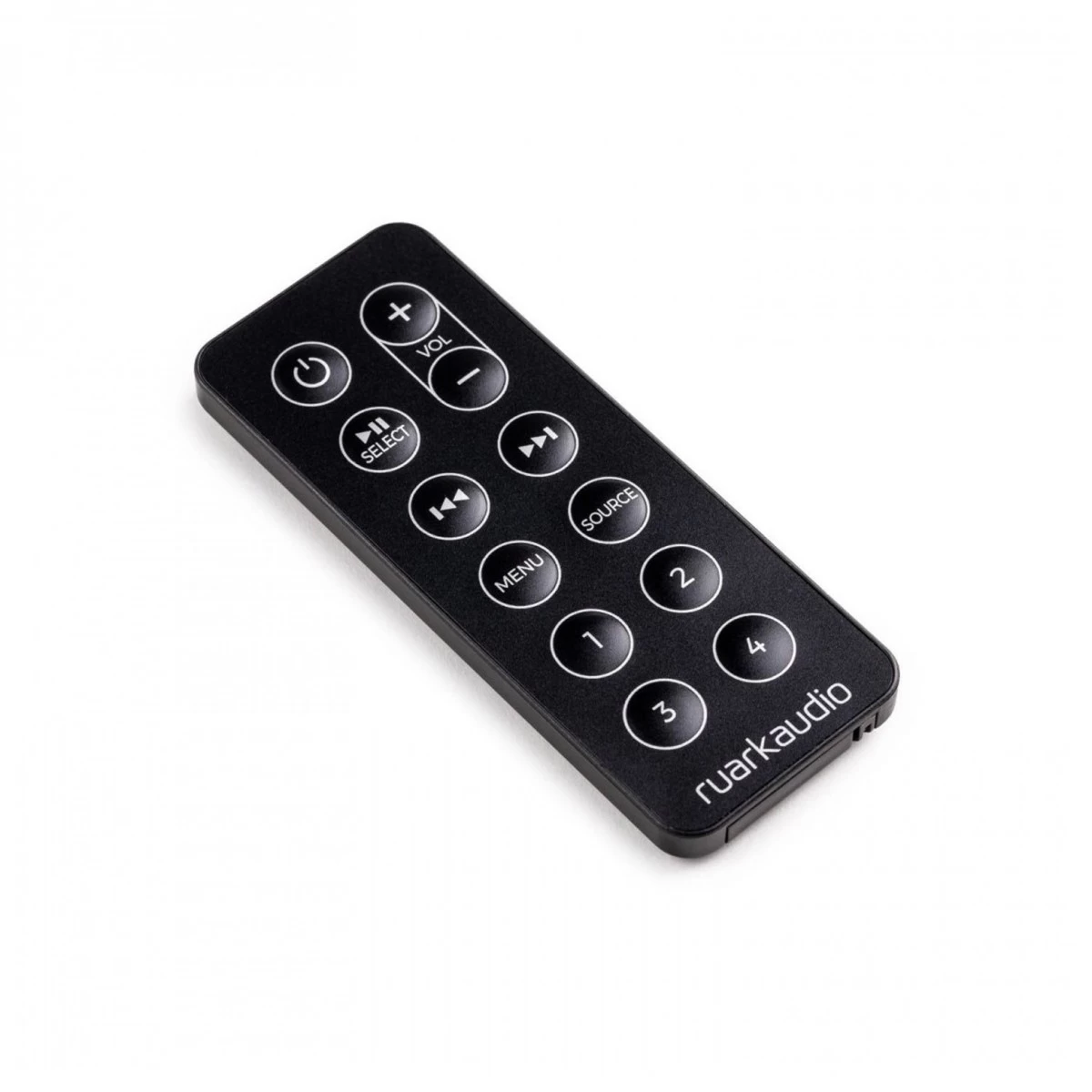

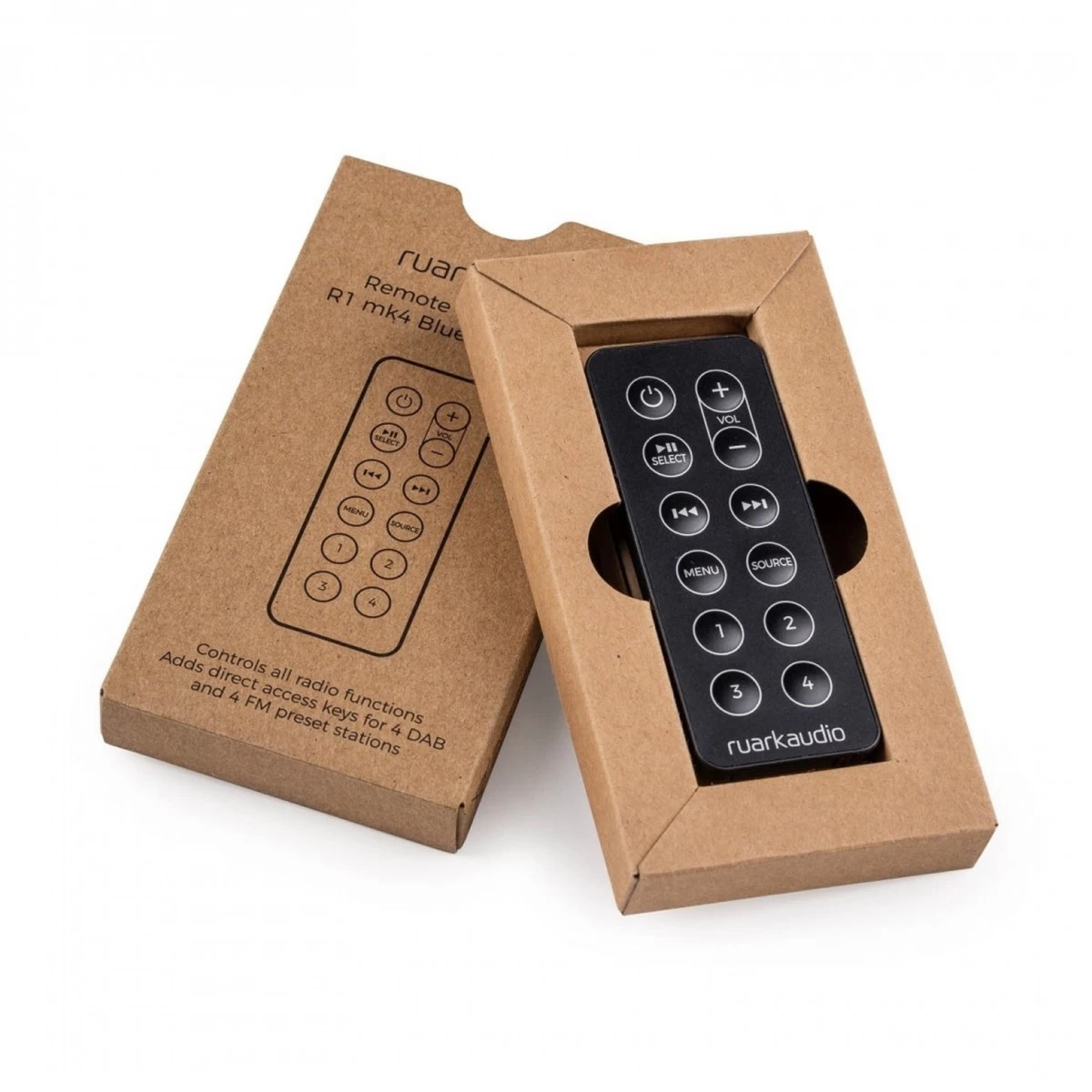

Ruark R1 MK4 Remote

The Ruark R1 Mk4 Remote Control is an optional accessory for the R1 Mk4 Bluetooth Radio and brings a whole new level of convenience to your premium home audio. This remote is also compatible with the Ruark R2 Mk4 and lets you enjoy intuitive management over multiple Ruark products. Small and easy to use, this remote keeps things simple, taking up no space at all on your coffee table, bedside table or even in your pocket.

Have instant access to your favourite radio stations with four configurable preset buttons along with the standard power, volume and music control, perfect for when your Ruark radio is high up or tucked away.

What’s in the Box?

• x1 Ruark R1 Mk4 Remote Control
• x1 Battery (CR2025, fitted in remote)

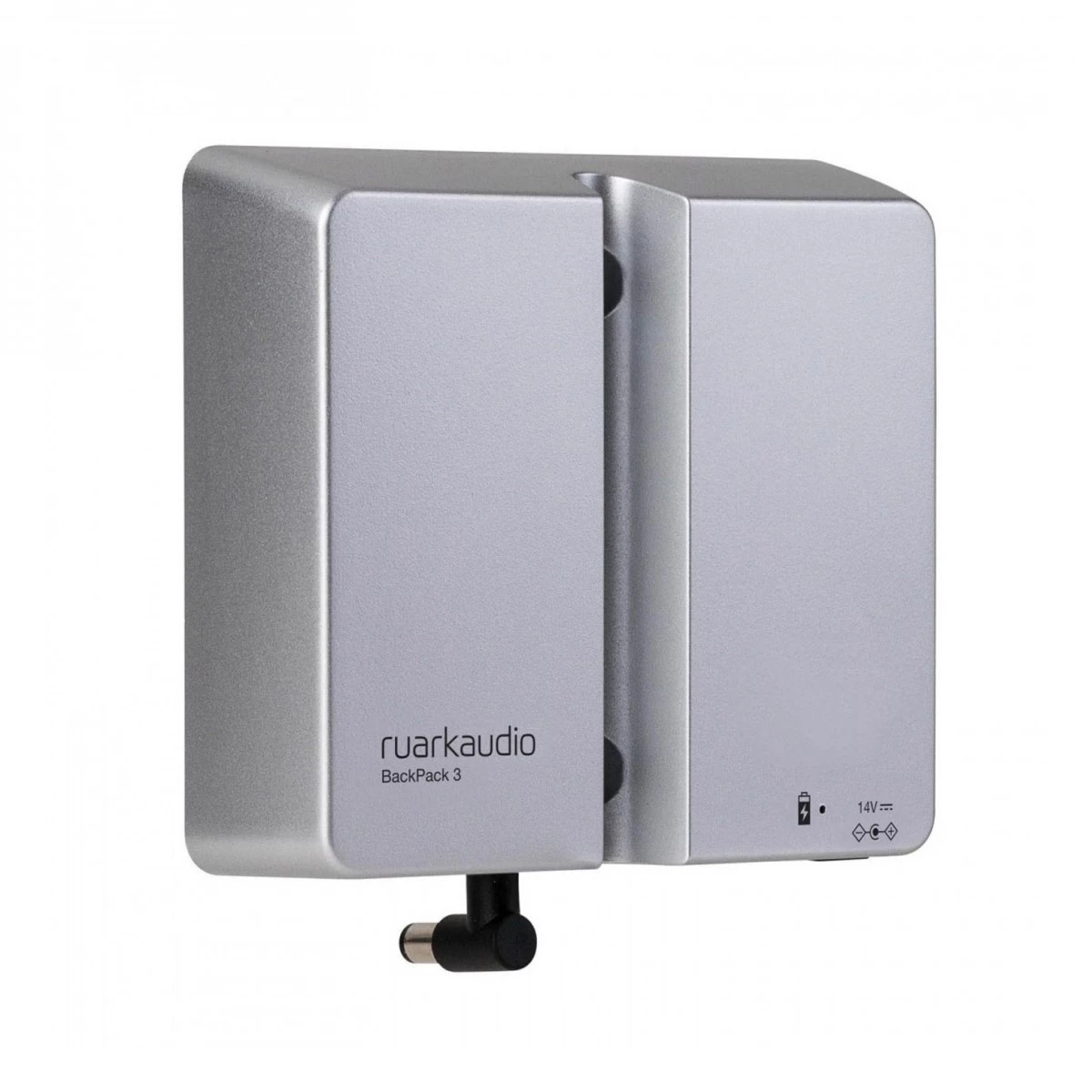

Ruark BackPack 3 Rechargeable Battery

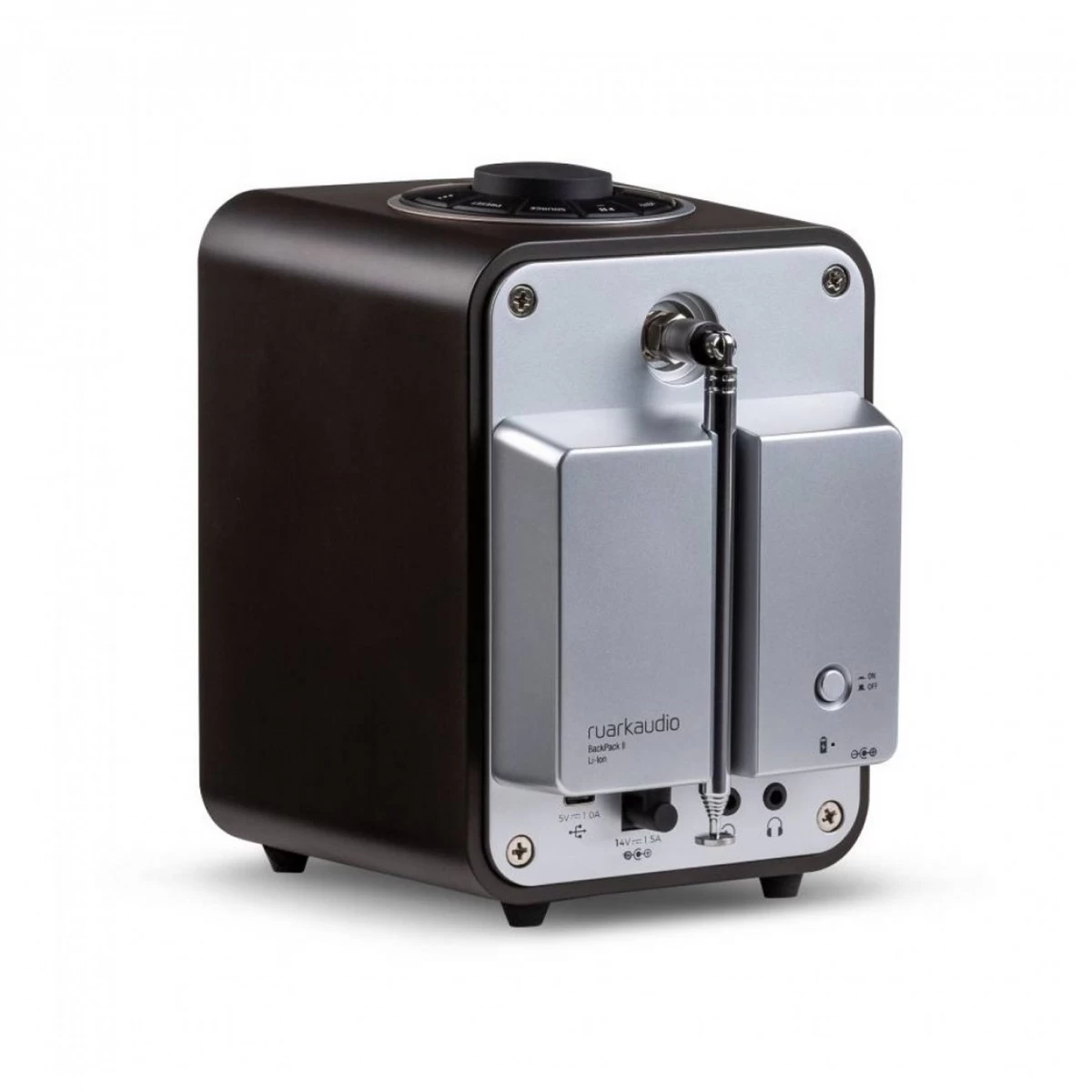

The Ruark BackPack 3 seamlessly fastens to the rear of your Ruark R1 or MR1 speakers, giving you complete freedom from the mains power for up to 12 hours. Adding no more than 2.5cm to the back panel, the BackPack 3 maintains complete portability without affecting the audio performance of your speaker system.

This battery pack has been ergonomically designed so that it can be permanently attached without hindering accessibility, automatically charging when attached to the mains. Don?t stop the music. Take it with you wherever you go with the BackPack 3.

What’s in the Box?

• x1 Ruark BackPack 3 battery pack
• x1 Allen key
• x2 M4 fixing screws
• x1 User guide

Package includes

Ruark Audio R1 MK4 Deluxe Bluetooth Radio Specifications

Audio

Frequency response	55Hz – 20kHz
Driver	75mm Ruark NS+
Amplifier	9W
Enhancements	Adjustable EQ, loudness
Cabinet type	Tuned reflex enclosure

Connectivity

Digital radio	DAB / DAB+
Multiregional FM	World USA Japan Korea
Bluetooth	V4.2 SBC AAC BLE A2DP
Line-in	3.5mm stereo jack (1.4Vrms max)
Headphone	3.5mm jack 25mW into 16-32 Ohm
USB	2.0 (5V 1A) MP3 AAC up to 48kHz 320kbps FLAC up to 24-bit 96kHz WAV up to 24-bit 96kHz WMA up to 44.1kHz 320kbps
External telescopic aerial	75? F-type connector

Features

Display	High-contrast OLED with auto dimming
Dual alarms	Daily custom weekends weekdays
Auto-standby	Automatic power saving mode
DST	Configurable daylight-saving settings
Real-time clock	internal battery backup
Security slot	Kensington compatible
User interface languages	EN DA DE ES FR IT JA KO NL NO PL RU ZH

General

Finishes	Espresso Light Cream Beach Hut Blue
Power adapter	100-240VAC 50-60Hz input 14VDC 1.5A output 1.8m cable 2.1 × 5.5mm DC plug
Power consumption	0.7W standby 4-8W typical
Product dimensions	H175 x W130 x D135mm
Product weight	1.4kg
Inner carton dimensions	W180 × H270 × D210mm
Packaged weight	2.2kg
Shipping carton dimensions	H290 x L565 x W430mm
Shipping carton weight	0.9kg
Gross carton weight	14.1kg (box of 6)

Ruark R1 MK4 Remote Specifications

Functions

Functions	Standby Volume Play / Pause / Select Skip back / forward Menu 4 direct select presets
Compatible Ruark Products	Ruark R1 Mk4 Bluetooth Radio Ruark R2 MK4 Wireless Music System

Specifications

Finish	Black
Battery	CR2025 (included, fitted in remote)
Product dimensions (W x H x D)	34 x 85 x 7mm
Product weight	25g
Packaged dimensions (W x H x D)	67 x 125 x 16mm
Packaged weight	40g

Ruark BackPack 3 Rechargeable Battery Specifications

Specifications

Battery type	Li-Ion
Capacity	3200mAh
Input	14.0VDC 1.5A
Nominal output	11.1VDC
Approx. charge time	5hrs
Approx. playback life	12hrs
Product dimensions (H x W x D)	105 × 110 × 25mm
Product weight	0.23kg
Carton dimensions (H x W x D)	145 × 160 × 55mm
Packaged weight	0.40kg

Compatibility

Ruark Speakers	Ruark R1 Bluetooth Radio Mk2 / Mk3 / Mk4 Ruark MR1 Bluetooth Speakers Mk1 / Mk2
