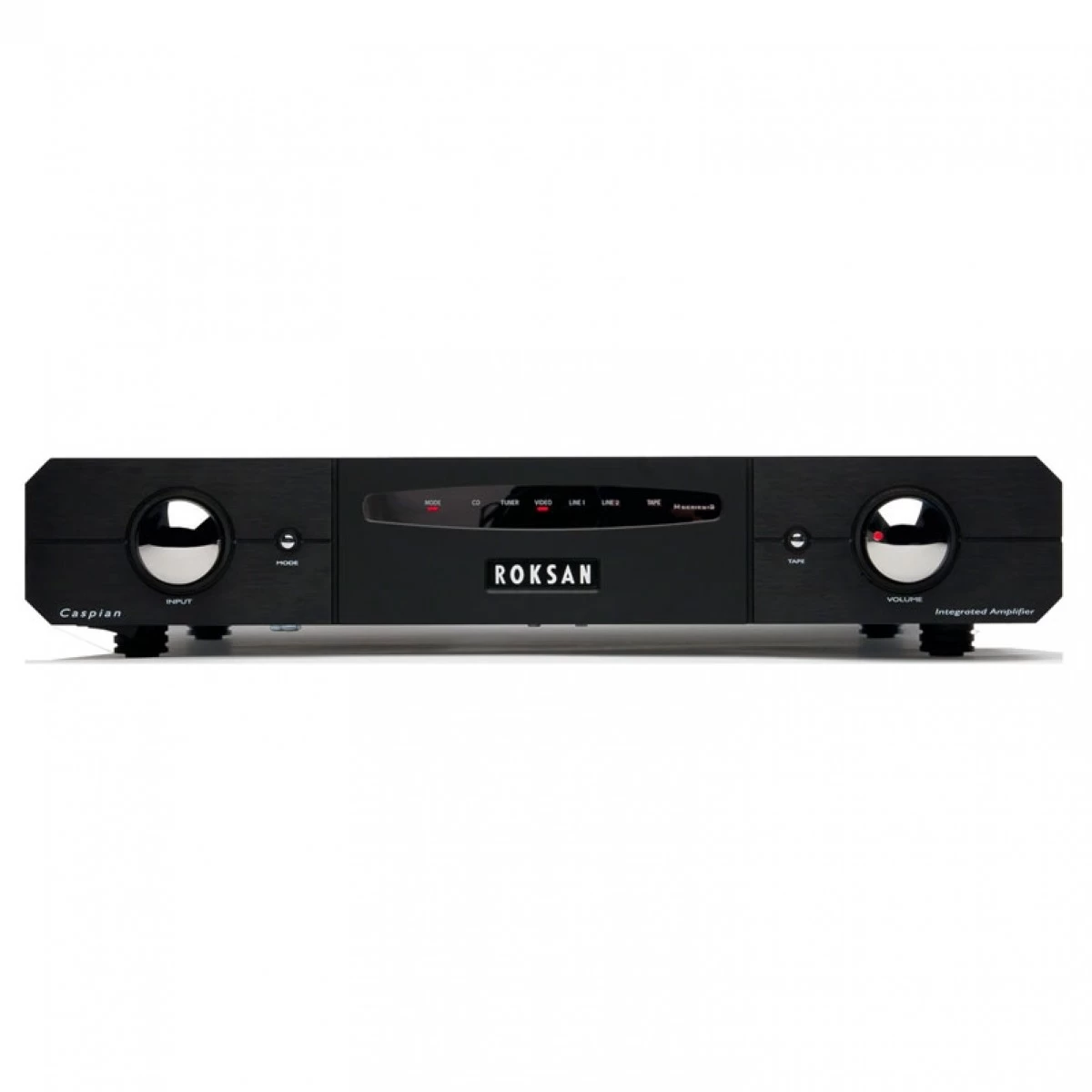

Roksan Caspian M2 Integrated Amplifier, Black

Full Description

The Roksan M2 Integrated Amplifier advances the performance of this class of amplifier to a new level. The ease with which the M2 negotiates the loudspeaker load through even the most delicate yet demanding musical passages is almost unbelievable from such an elegant pure looking amplifier. The M2 Integrated amplifiers independent power supplies combined with fully symmetrical complimentary circuit design ensure the amplifier uncovers even the most delicate detail and presents it majestically .

Its control and authority appears to be backed by a state of the art power house! Resolution of detail is so harmonic and full of emotion that is reminiscent of the world acclaimed Roksan L1.5 reference preamplifier. Of course pedigree has played an important role but the relentless refinements, tests and never ending demands Roksan has put into this amplifier have really made it come to life.



• Independent Analogue Output stage Power Supply
• Full functional Roksan LCD system remote control (RMX-108)
• Output protection with high current relays
• Independent Preamplifier stage Power Supply
• Thermally controlled fan assisted heat-sink cooling
• -20dB mute function
• 350VA ultra low noise, Power section Toroidal transformer
• 60VA ultra low noise, Pre section Toroidal transformer

Inputs	5 Line & Tape RCA Gold plated CD Input also switchable to XLR Balanced Gold plated
Input Impedance	47 Kohms
Input Sensitivity (85W)	Line 240mV
Outputs	Gold plated RCA Tape & 2 Preamplifier
Output Voltage	240mV (Tape Out) 700mV (Pre Out)
Power Outputs	Loudspeaker, L & R
Output Power	85 Watts, into 8 ohm both channels driven 125 Watts, into 4 ohm both channels driven
Power Supply	350VA Ultra Low Noise Toroidal Transformer 60VA Ultra Low Noise Transformer PreampSection Toroidal 5 Regulated Supply Rails
Current Output	60 Amps Peak to Peak
Damping Factor	160 (8)ohm
Frequency Response	-3dB,
Gain	40dB Overall (Pre & Power) 9.3dB Preamplifier 30.7dB Power Amplifier
Harmonic Distortion	0.002% 1kHz, 0.015% 20kHz 10W – 8ohm 0.0025% 1kHz, 0.03% 20kHz 50W – 8ohm
Signal to Noise Ratio	Line 108dBa (ref. 500mV) 85dBa (ref. 1W, 8ohm)
Power Source	100V – 120V 50Hz / 60Hz 220V – 240V 50Hz / 60Hz (via Mains inlet filter)
Power Consumption
Dimension	432 x 330 x 70 (W x D x H) mm 432 x 330 x 80 (including feet)
Weight	13 Kg
