Full Description
What’s in the Box?

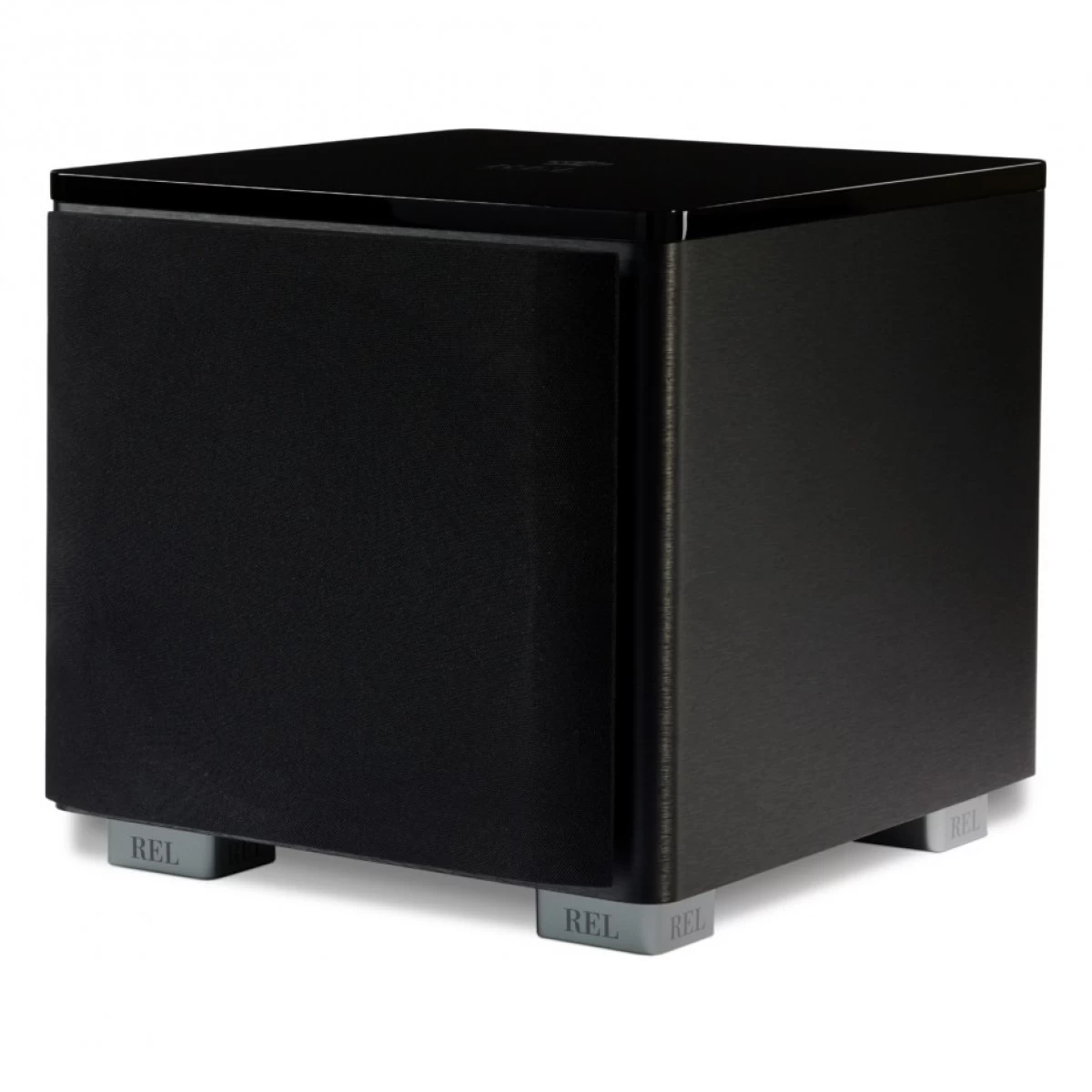

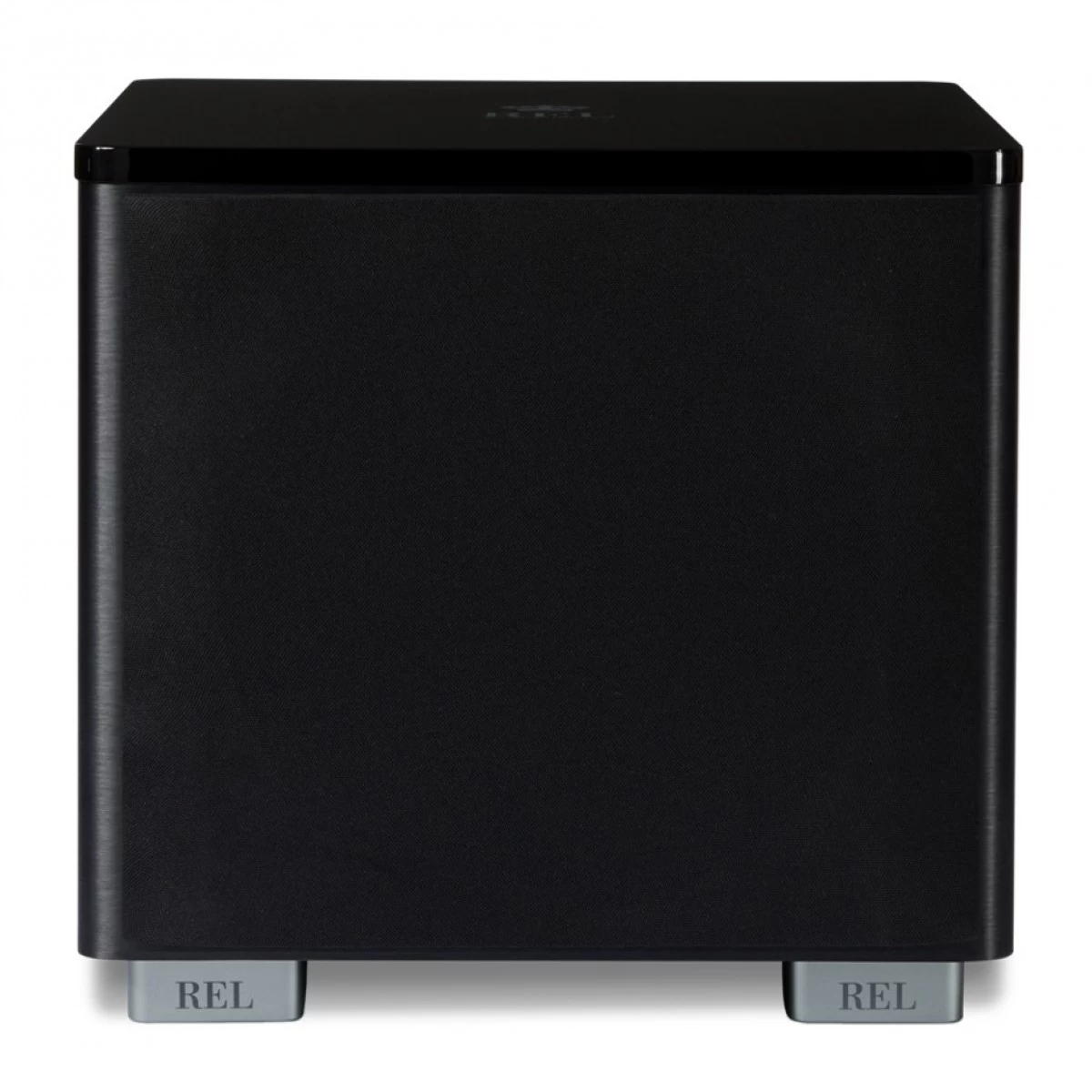

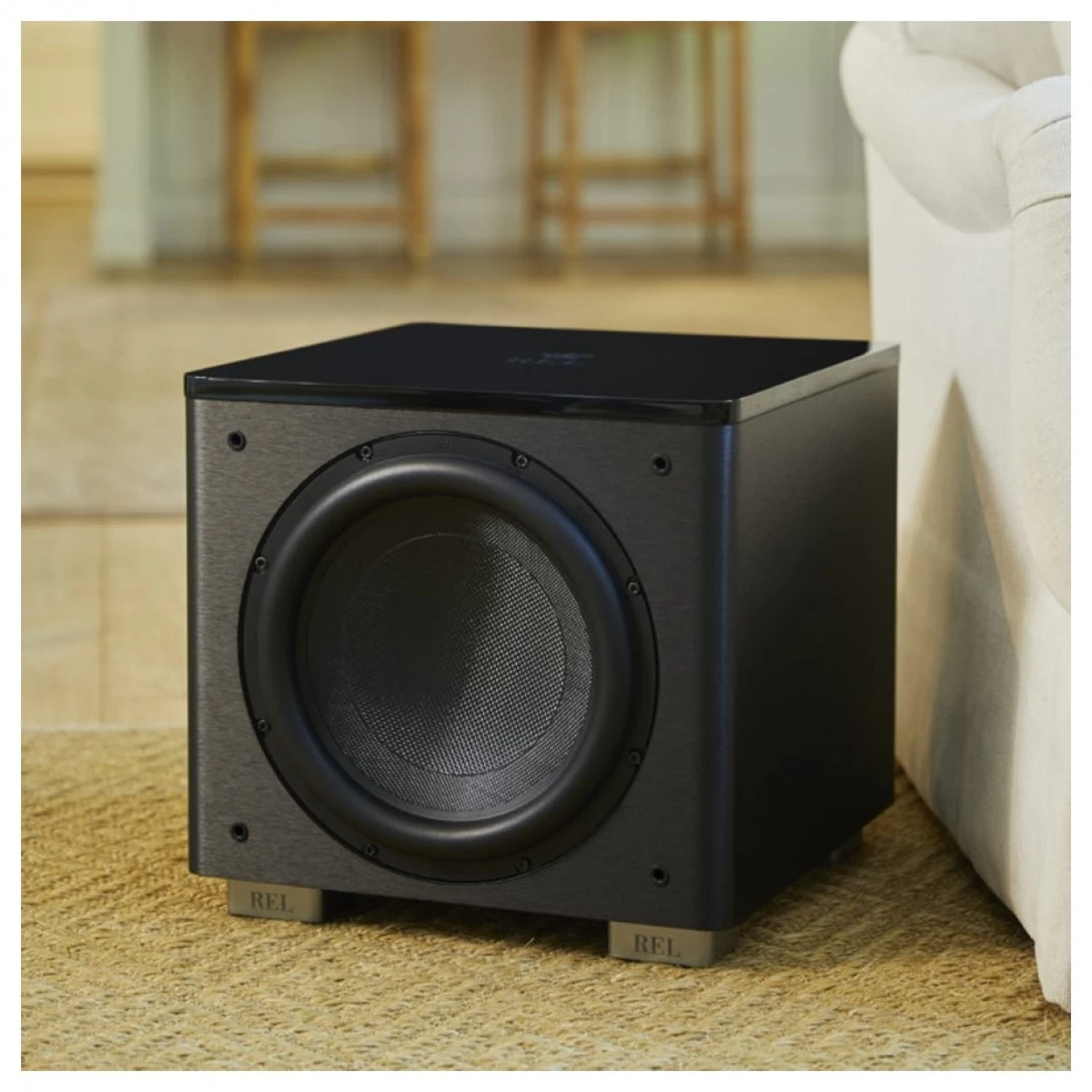

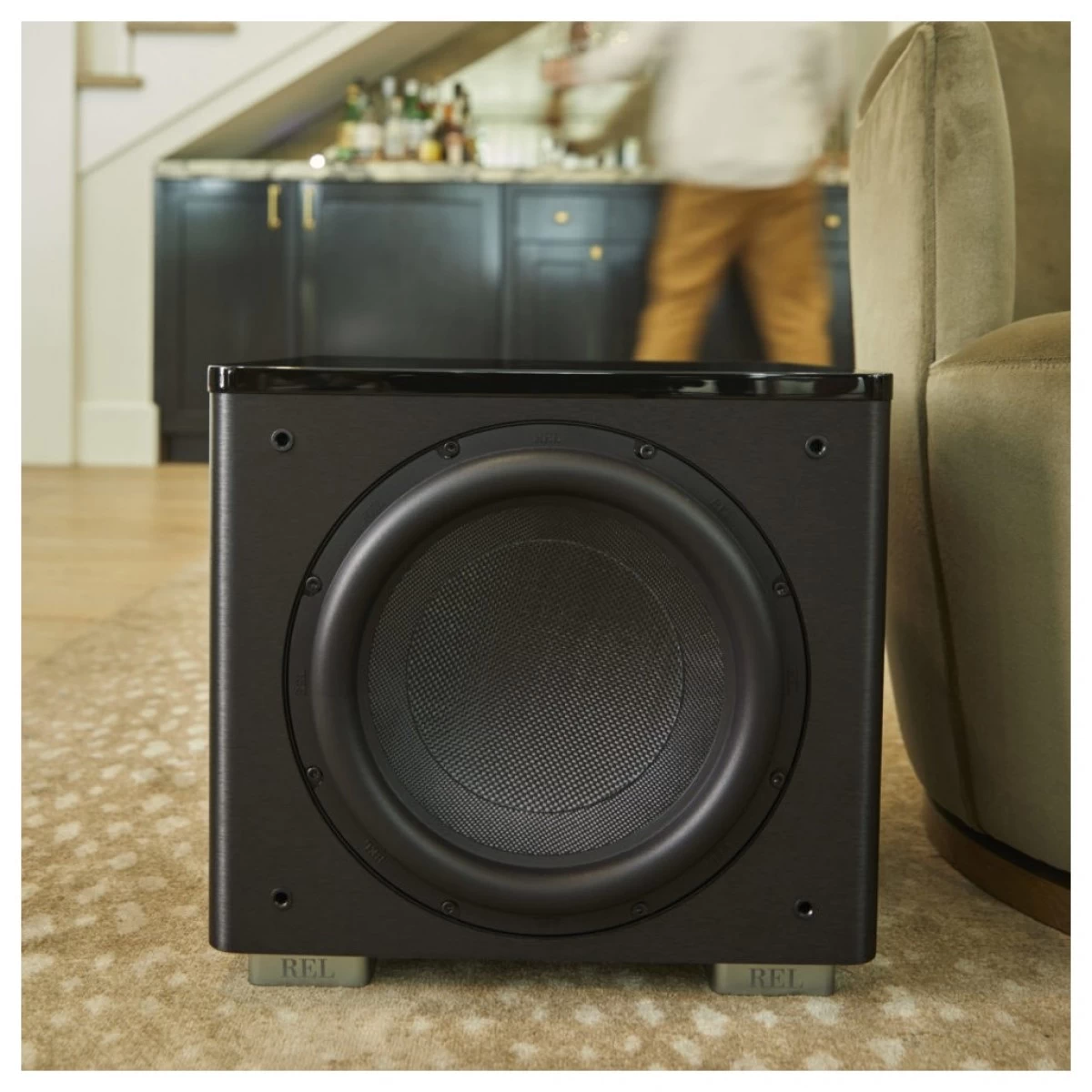

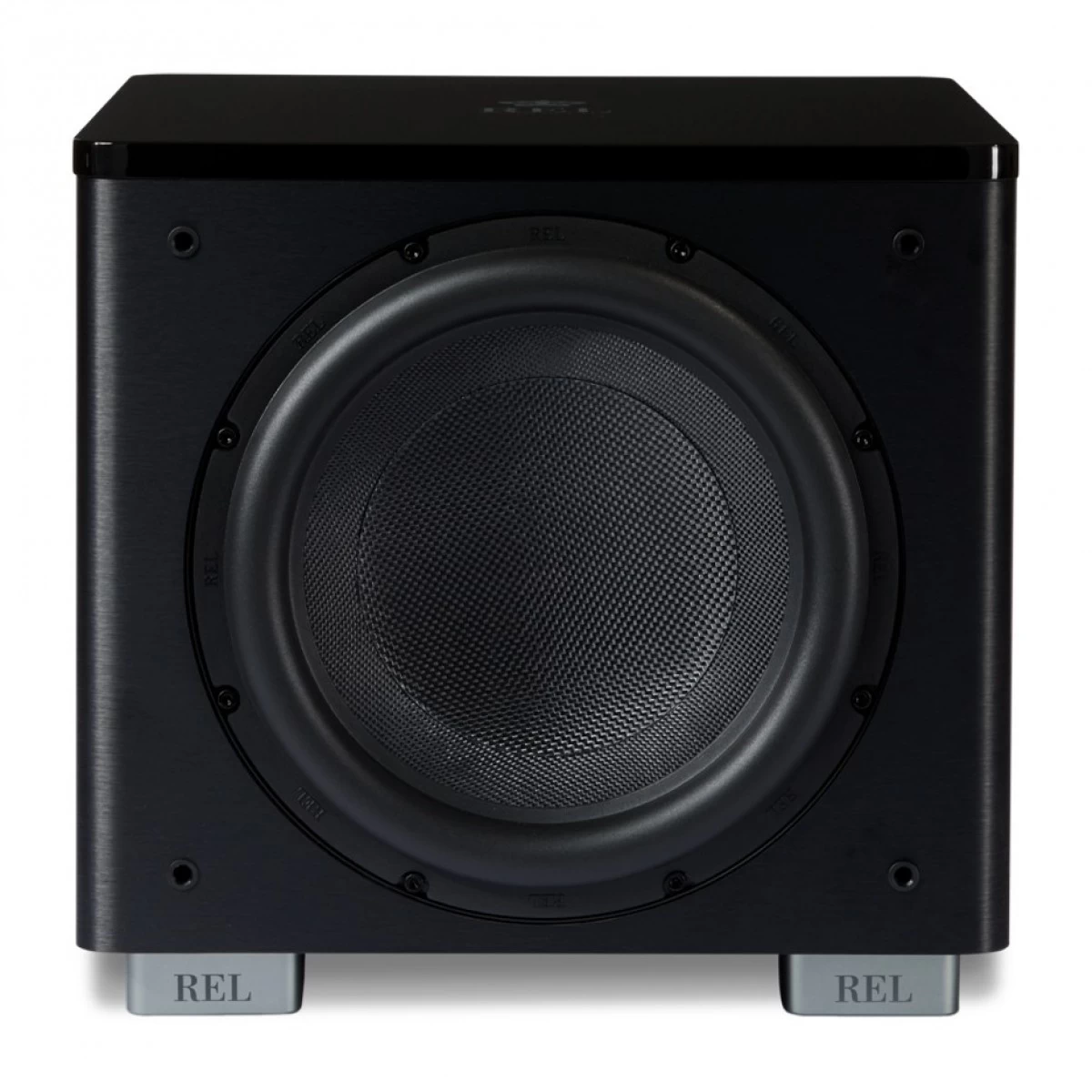

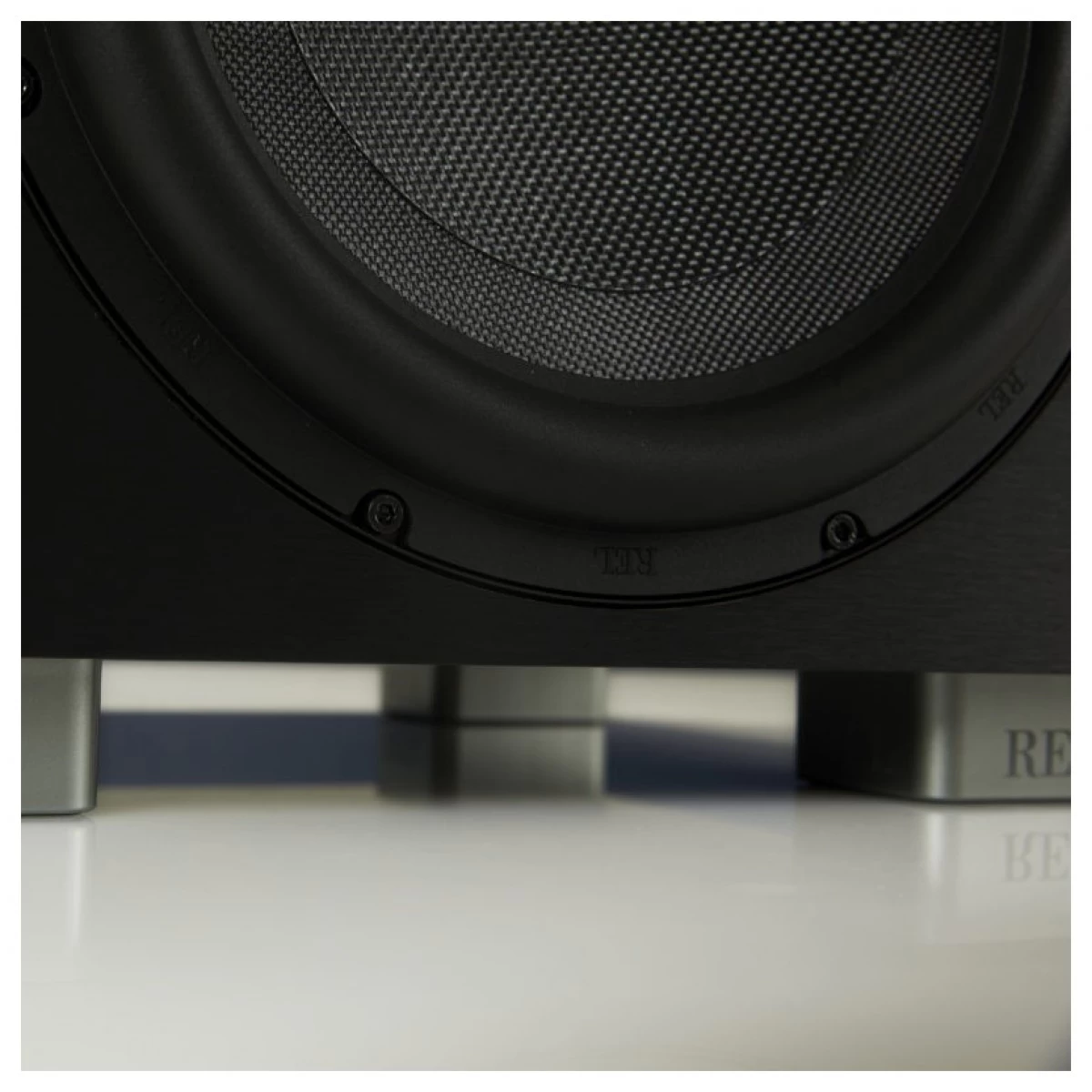

- REL HT/1205 MKII Subwoofer, Black
- Mains lead
- User manual
Specifications
| Type | Closed box, front-firing driver |
|---|---|
| Active driver size and material | 12 in., 300mm long-throw, CarbonGlasâ„¢ cone structure, inverted carbon fibre dust cap, steel chassis |
| Passive radiator size and material | N/A |
| Low frequency extension | -6dB at 22 Hz |
| Input connectors | Dual-purpose low-Level stereo RCA or LFE RCA |
| Output connectors | Daisy Chain low-Level stereo RCA or LFE RCA |
| Power output | 500 watts (RMS) |
| Amplifier type | NextGen5 Class D |
| Wireless capability | HT Air Wireless (Optional), Zero Compression Single Large Scale Integrated Chip |
| Dual parametric filter | N/A |
Protection System
| Fully electronic set safe | Yes |
|---|---|
| D.C. fault | Yes |
| Output short | Yes |
| Mains input voltage | 220-240 volts, 110-120 volts for certain markets |
| Fuses | 4 Amp semi delay 230b, 4 Amp semi delay 115b operation |
Appearance
| Dimensions (W x H x D) | 16.25 x 15.25 x 17.25 (413mm x 387mm x 438mm) |
|---|---|
| Net weight | 43.2 lbs. (19.6kg) |
| Finish | Horizontally Oriented Lined Grained Black Composite Cabinet, 15mm Top Plate, finished in 5 coats of Hand rubbed High Gloss Black Lacquer |
