Full Description
Flexible placement options
The E120 system is designed for use around the home and is able to suit a wide variety of applications. It serves up 2 x 25W of power at 6ohms suitable for a variety of passive speakers and thanks to an IP54-rating is capable of being situated in bathrooms and kitchens where humidity and splashes are frequent. What’s more, a waterproof remote control is included so you’re free to control your music from the bath or with wet hands.
Suitable for TVs
On top of Bluetooth 5.0 compatibility for streaming and an integrated radio system, a host of digital and analogue connections enable use with TV systems to enhance your audio for more immersive movie nights and enjoyable viewing experiences. Audio output is configurable so you can output to a subwoofer, external power supply or even a second E120 system.
Touch control display
A 3.2″ display offers sharp visual feedback of song information including artist and album name. Touch controls allow you to make quick manual adjustments and you can also manually change brightness levels. An internal light sensor allows automatic changing of levels making the E120 perfect for bedrooms so you can avoid background light whilst sleeping. The alarm function makes it possible for you to set alarms every single day, including 2 one-off alarm settings.
Features
- Easy wall-mounting installation in any room including bathrooms and kitchens
- High-quality built-in class D stereo amplifier serving up 25W of power per channel
- Features Bluetooth 5.0 for wireless streaming of music from compatible devices
- Built-in DAB+ and FM radio with one-touch presets
- 3.2-inch colour display with touch control, both a splashproof and full-size remote controls supplied
- Boasts digital and analogue inputs for the connection of audio sources such as TV audio
- Audio output suitable for a subwoofer for an immersive cinema experience
What’s in the box

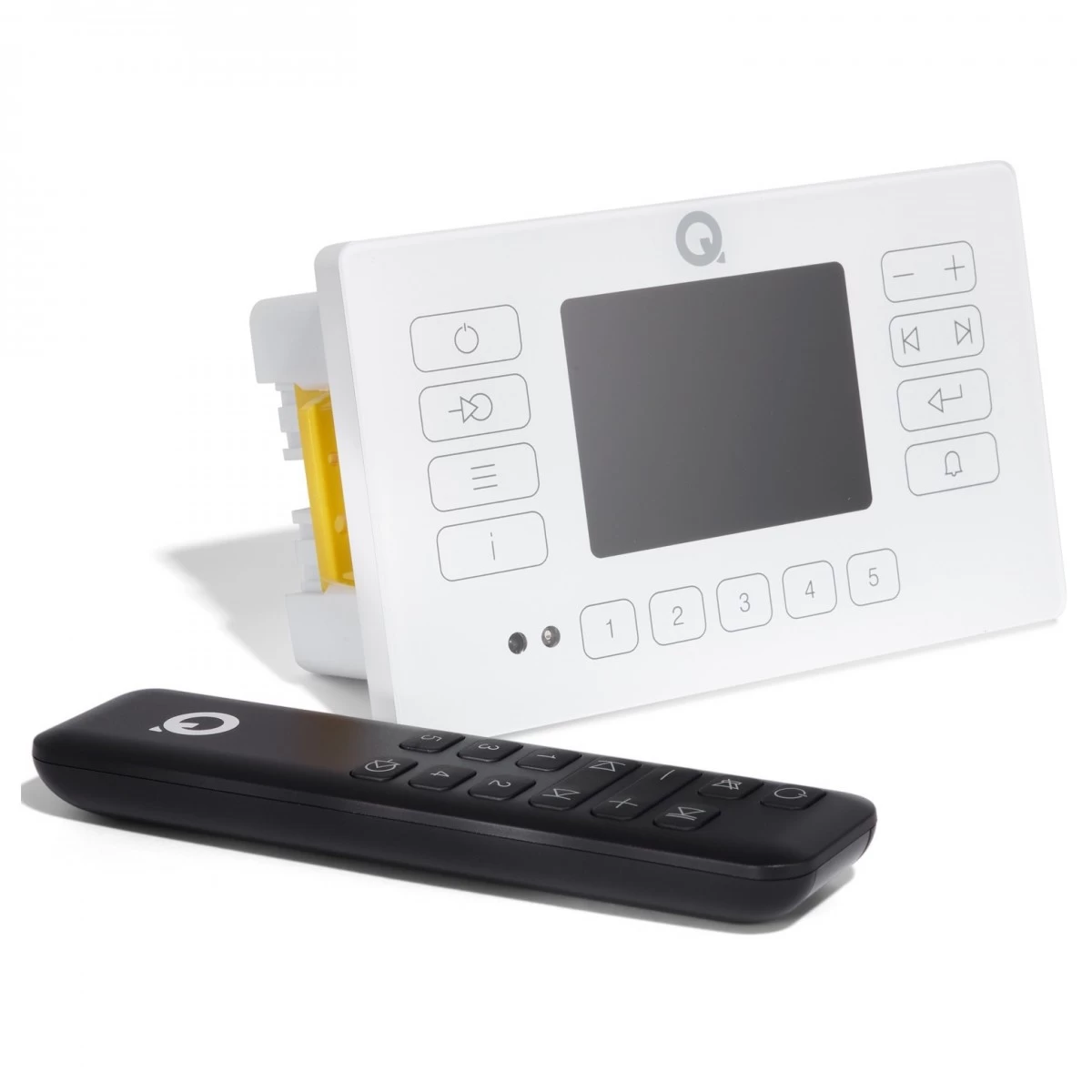

- 1x E120 control panel and system
- 2x 7M speaker cables
- 1x 5M power cable

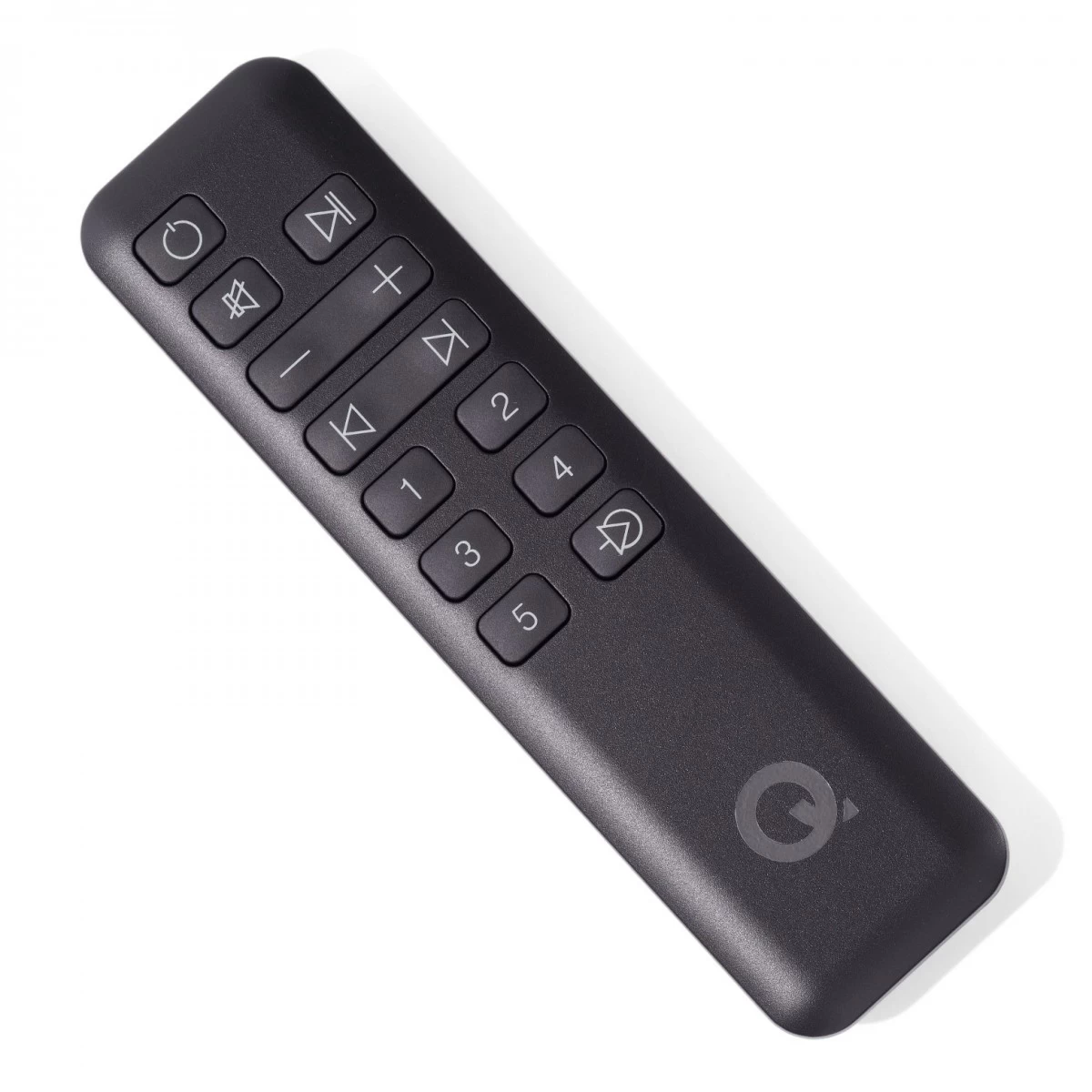

- 1x remote control

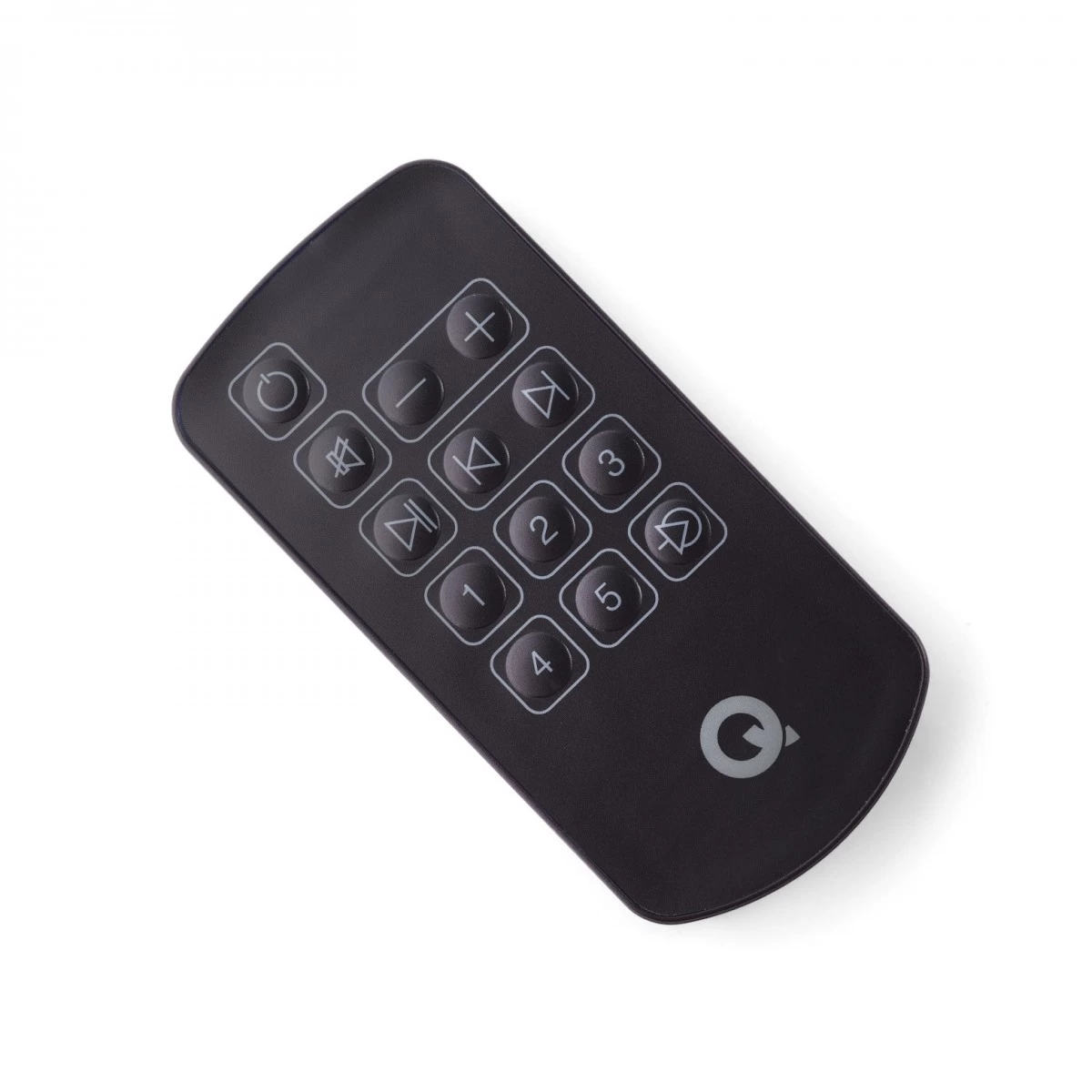

- 1x waterproof remote control
- 1x Power Supply (with EU and UK mains leads)
- 1x Indoor DAB/FM antenna
- 1x 3m antenna extension cable

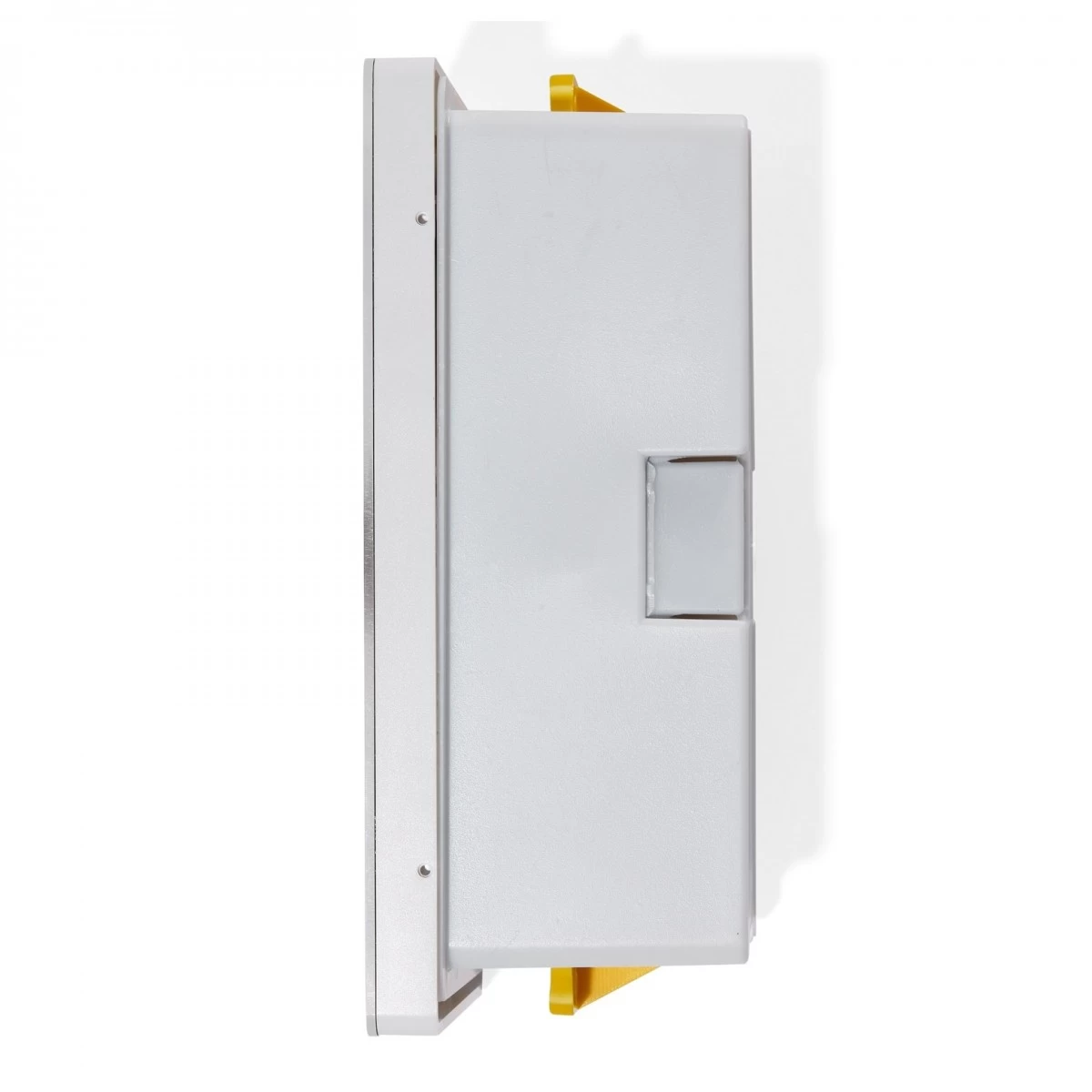

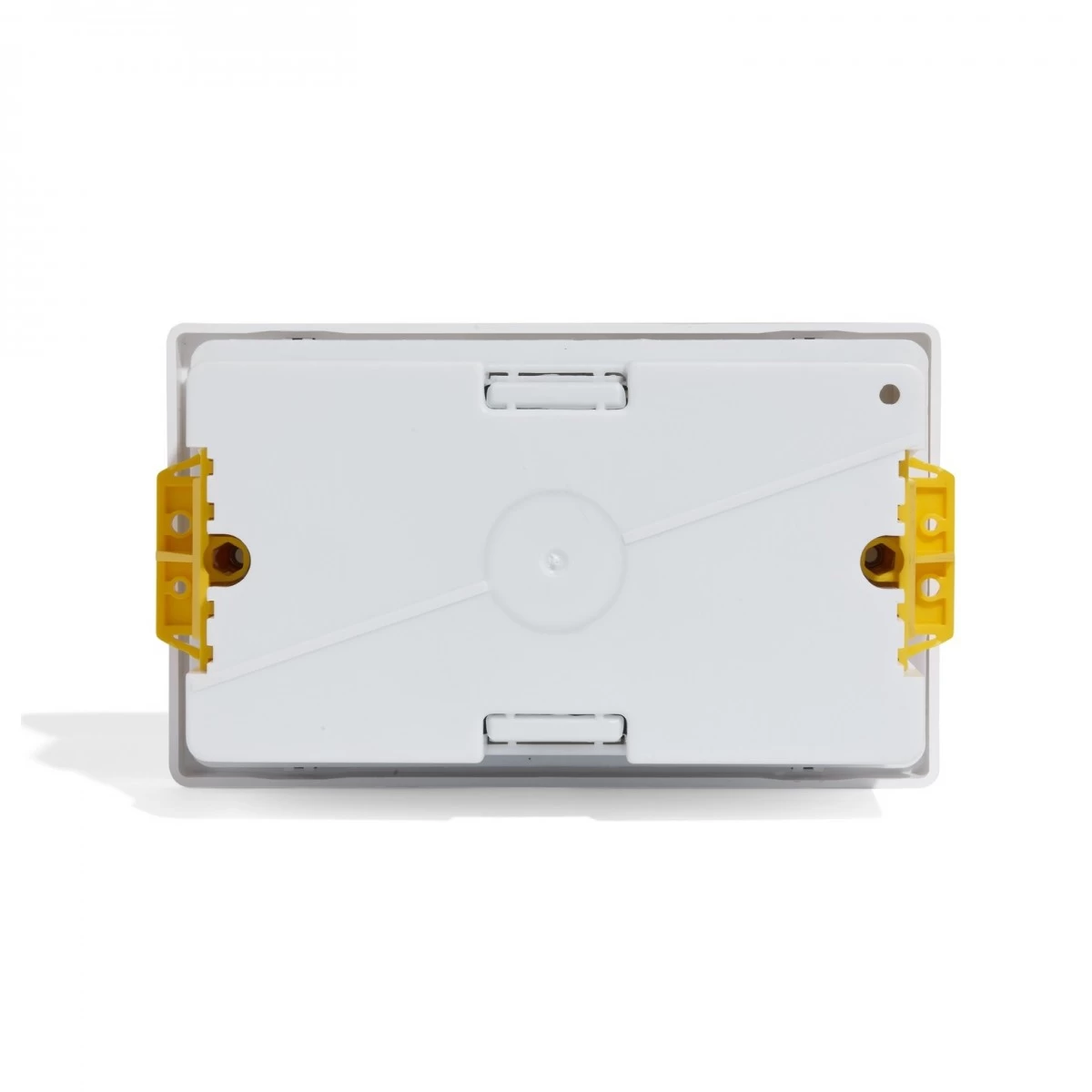

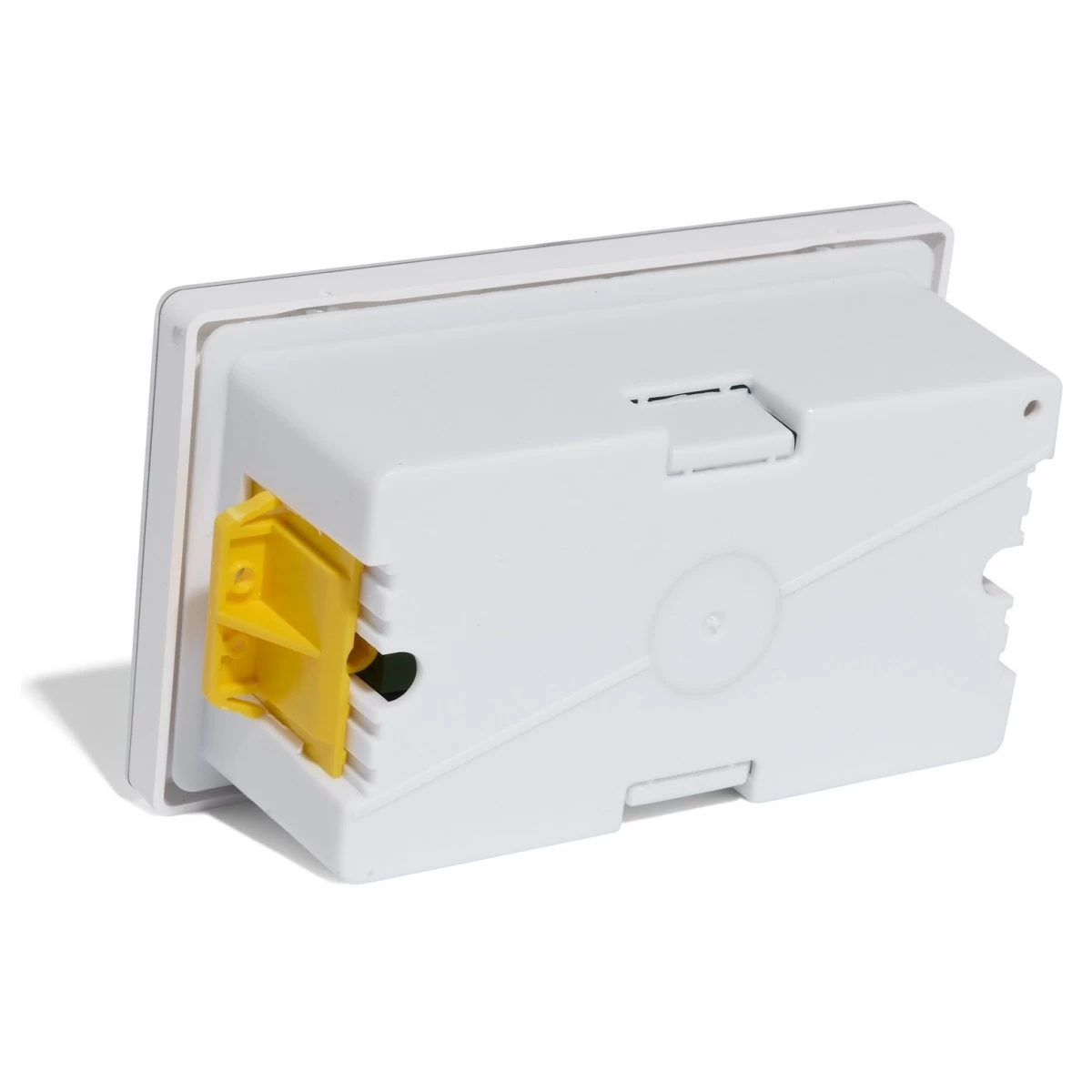

- 1x Backbox
- 1x quick start and installation manuals
| Audio Sources | DAB / DAB+ / FM with RDS |
|---|---|
| Bluetooth | Version 5.0, A2DP |
| Analogue input | Type: 3.5mm stereo
Sensitivity: 350mV
Max level: 1.5V
Impedence: 10k ohm |
| Optical input | Type: mini TOSLIN
Resolution: 16bit 48kHz |
| Speaker outputs | Left & right, stereo or dual mono |
| Analogue output | Type: 3.5mm stereo
Modes: Fixed or variable
Max level: 670mV |
| Amplifier | Type: Class D
Continuous power: 2 x 25W @ 6ohm
THD: 0.07 @ 1W / 0.2 @ rated power
SNR: >75dB @ Rated power
Frequency response: 20Hz – 20kHz +/- 1dB |
| IP ratings | E120 wall panel: IP54
Splash proof remote: IP67 |
| Control | Touch sensitive buttons
Infra-red remote control
Bluetooth AVRCP v1.6: Play, pause, skip, track, artist, album name |
| Menu languages | English, German, Dutch, French, Danish, Spanish, Italian, Norwegian, Polish, Finnish |
| Alarms | x2 once, daily, weekdays, weekends |
| Power supply | Input: 100 – 240V AC 50/60 Hz
Output : 22V DC 1.5amps
Dimensions (HxWxD): 30mm x 50mm x 115mm |
| Power consumption | Typical: 10W
Standby: <1W
Deep standby: |
| Wall panel | Net weight: 0.251kg
Dimensions (HxWxD): 91mm x 151mm x 33mm |
| Speaker cable supplied | Gauge 19 AWG
Lengths: 2 x 7m |
| Power cable supplied | Gauge: 16 AWG
Lengths: 5m
Connectors: 5.5mm x 2.5mm DC male / 5.5mm x 2.5mm DC female |
| Product code | QI0122 |
