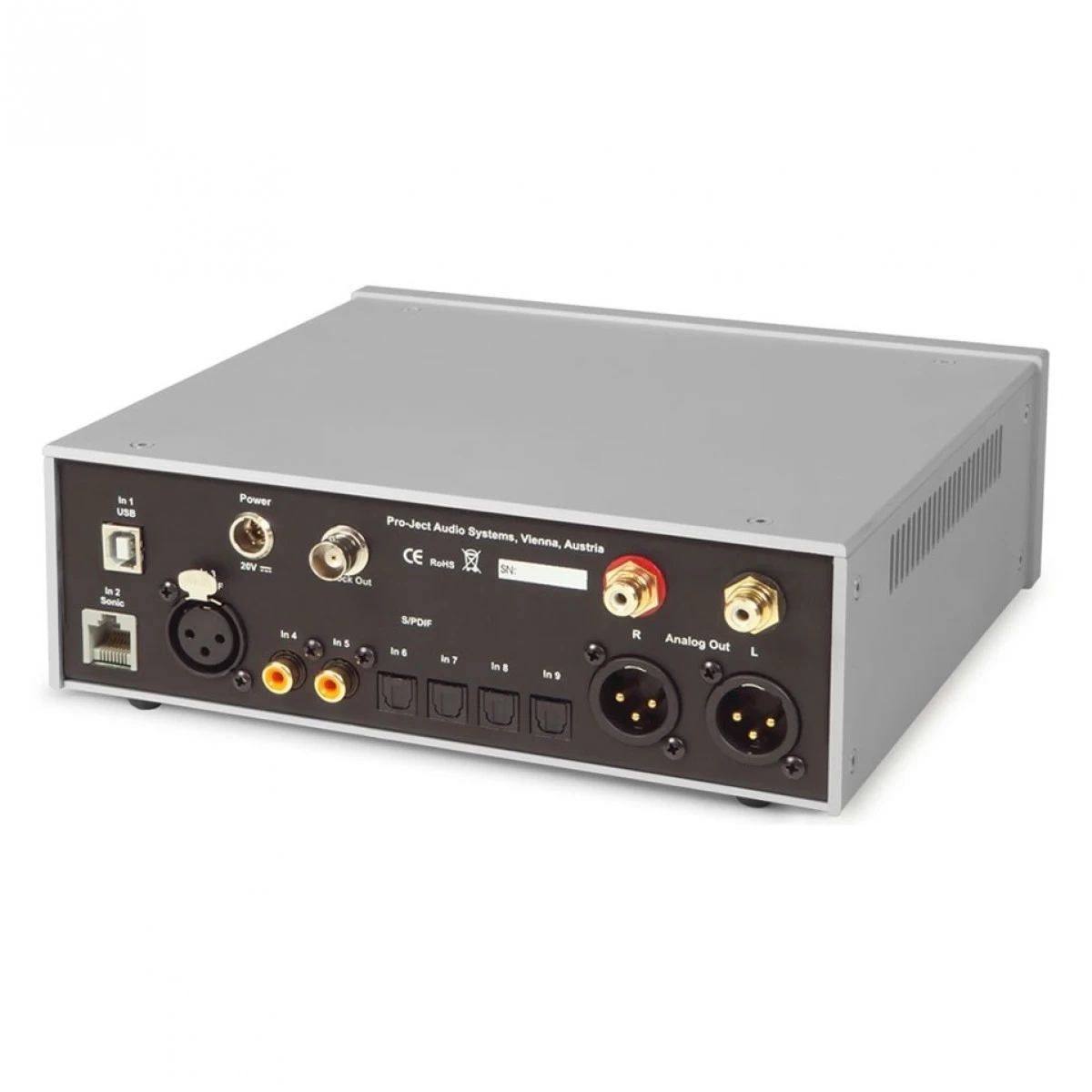

Pro-Ject Box-Design DAC Box RS Black Converter

Full Description

Packed with High-End Feature,this advanced hybrid DAC Box RS from Pro-Ject acts as a superior USB interface for the demanding computer audio applications. Featuring an AES/EBU input as well as an  I²S interface, pro-jects reference-class D/A converter for a wide range of digital audio stereo sources.  The DAC Box RS offers a high degree of flexibility in sound quality by offering both a tube and a solid state output stage, so that you can choose the audio ‘feel’ you want to suit the type of music and recording that you listen to.

The DAC Box RS provides full DSD capability (up to DSD128) over PCM. All inputs fully support 24-bit/192 kHz HD music data (optical inputs support 96/24) in fully asynchronous mode for outstandingly pure, low jitter, low distortion digital audio. In addition to the two outputs stages, a choice of two different digital filter settings allow you to tailor the sound to suit your preferences. The nine digital inputs consist of two coaxial (S/PDIF), four Toslink optical, one USB B, and one AES/EBU.

When you combine the DAC Box RS with the CD Box RS, you have an audio disc playback system rivaling components costing far more and due to its class-leading audio performance DAC Box RS is an ultimate high-end bargain.  Additionally, an I²S interface and clock output are provided for use with the Pro-Ject CD Box RS CD transport.

You will be sure of phenomenal build quality with high-end features promising that your music will come alive with reach-out-and-touch-it detail all at a giveaway price.

• Tube output stage & solid-state output stage (switchable)
• Ultra linear & ultra low noise circuitry
• IR remote control included
• XLR & RCA line level output sockets

Technical Data

D/A Converter	Texas Instruments PCM-17928 x Oversampling Design
Sampling Rates	32/44,1/48/88,2/96/176,2/192 kHz(Except Optical Up to 96kHz)
Selectable Filter Settings	“Steep” and “Optimum Phase”
Digital Inputs	2x Coax (S/PDIF)4x Optical (Toslink®)1x Type-B USB1x AES/EBU1x I²S
Output Stages	6922 Tube & Solid State (Switchable)
Analogue Output	1x RCA/Cinch & XLR
THD Solid State Out	0.005%
THD Tube Out	0.25%
Signal To Noise	100dB
Output Voltage	Max. 4/2V eff.
Power Consumption	Standby[-] Maximum: 800/300mA
Power Supply	20V / 3A DC
Dimensions (WxHxD)	206 x 72 x 200mm (220mm w/Sockets)
Weight	1010g (Excl. PSU)
