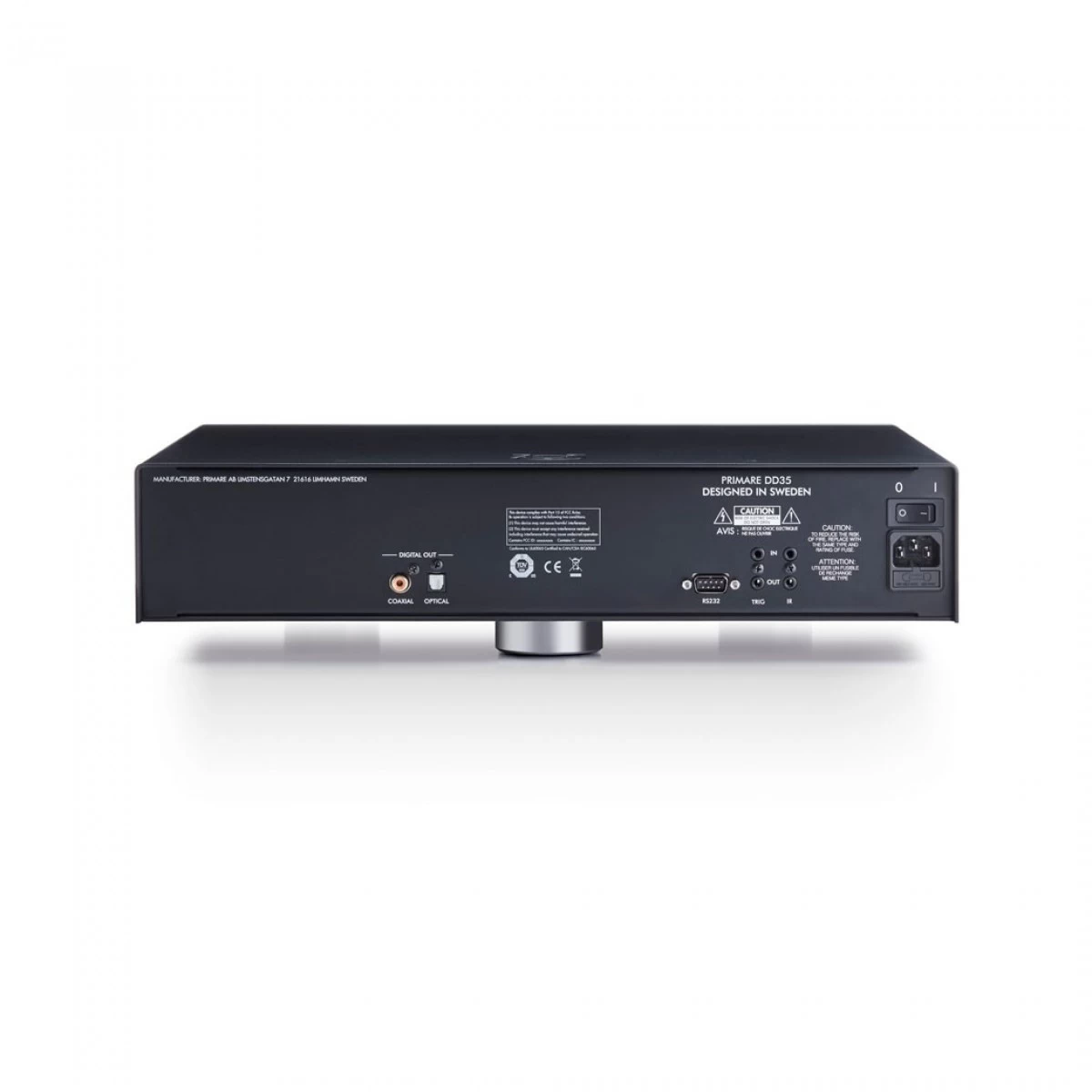

Primare DD35 CD Transport, Titanium

Full Description

DD35 is a CD transport, designed to partner any high performance digital to analog converter, and in particular the Primare I25 DAC, I25 Prisma, I35 DAC, I35 Prisma, PRE35 DAC, and PRE35 Prisma models of integrated amplifiers and preamplifiers.

Drive Technology

The TEAC CD 5020A-AT is an isolated transport that is adjustable for precise, smooth tray loading, and low clamp noise. An internal interphase I2S and SPDIF digital audio interface combined with buffered memory is utilized for improved performance.

Digital Output Technology

Key to assuring that the digital signal from the drive is delivered to any DAC connected to DD35 as precisely as possible, a dedicated isolated power supply feed is provided to the digital output stage to allow for extremely low noise output.

Power Supply Technology

A custom linear power supply, with an isolated dedicated direct supply for the digital output section, is combined with a switch mode standby supply (turned off when in playback mode to minimize noise) to deliver on demand the precise power needed.

System Building

DD35 is designed to provide the lowest noise digital signal from compact discs so any high performance digital to analog converters, like those found in the Primare I25 DAC, I25 Prisma, I35 DAC, I35 Prisma, PRE35 DAC, and PRE35 Prisma models of integrated amplifiers and preamplifiers.

• Jitter-free signal from the CD drive
• State-of-the-art CD drive
• Toslink and RCA digital outputs
• Black or Titanium finishes available

Freatures

Mechanism	TEAC CD-5020-AAT
D/A Converter	1x ESS Sabre ES9028PRO

Digital Outputs

Coaxial	RCA
Optical	TOSlink
PCM Sample Rate	44.1kHz

General

Control	C25 system remote control RS232 IR in/out Trigger in/out
Power Consumption	Standby: Operating:
Dimensions	W430mm x D385mm x H106mm with knobs and connectors W430mm x D382mm x H106mm without knobs and connectors
Weight	10kg
