Name: Novafidelity X35 Music Server System &amp; Amplifier, Silver
SKU: YXYUY 90815
Availability: InStock

Full Description

The X35 is the most innovative all-in-one audio system, which is featured by CD Ripper, Music Server, Network Streamer, Music Recorder, total 200 watts powerful amplifiers built-in, and more.

Equipped with qualified components like ESS SABRE³² Reference DAC ES9018K2M, two (2) high performance digital amplifiers, TCXO oscillator and high quality toroidal transformer including isolated power source circuit design technology and in-house R&D know-how for circuit designing, the X35 will deliver wonderful sound experience to you. Based on Dual Core ARM Cortex A9 processor running at 1.0GHz and custom-designed software, the X35 got everything ready for delivering powerful operation performance, plenty of features and functions powered by advanced software developed in-house. The X35 boasts excellent built quality, with a Rugged chassis construction using a 13mm thick aluminium front and knobs with CNC cutting.

The X35 has a well-organised Music Database built-in, which offers very simple & convenient functions like display by text or cover art, and sort. Making navigating your music collection a joy not a task. You can access tens of thousands of internet radio stations and online music services such as TIDAL, Deezer, Qobuz, Airable, Spotify and Roon. Connect the X35 to your network for streaming music to and from other devices, listen to cloud based music services and control remotely using mobile devices with our customised remote control app, NOVATRON Music ‘X’ or Web Interface.

Dual Core ARM Cortex A9 processor running at 1.0Ghz
ESS ES9018K2M Sabre Reference DAC built-in
2x Class D Amplifiers (200W total)
Isolated power source circuit design for digital and analogue parts
Toroidal transformer to minimise idle noise
High speed optical disk drive for quick CD ripping
7″ TFT LCD(1024 x 600 pixels) screen for intuitive GUI
Built-in DAB+/FM Tuner
Ethernet connectivity (10/100/1000Mbps)
Support up to 8TB storage via HD or SSD

High Quality Components And Circuit Design

CD Ripping With Gracenote CD Metadata And Album Cover Art

Load all your CDs onto the Music Database of X35 in FLAC, ALAC, WAV or MP3 file format with CD metadata and album cover art from ‘Gracenote’

7 Inch TFT LCD Screen For Intuitive GUI And HDMI Out For External Screen

7 inch big screen will let you control the X35 easily with intuitive GUI, and connect it to your TV or external screen to view bigger GUI or a slideshow of photos while listening to your music collection

Storage For Music Server

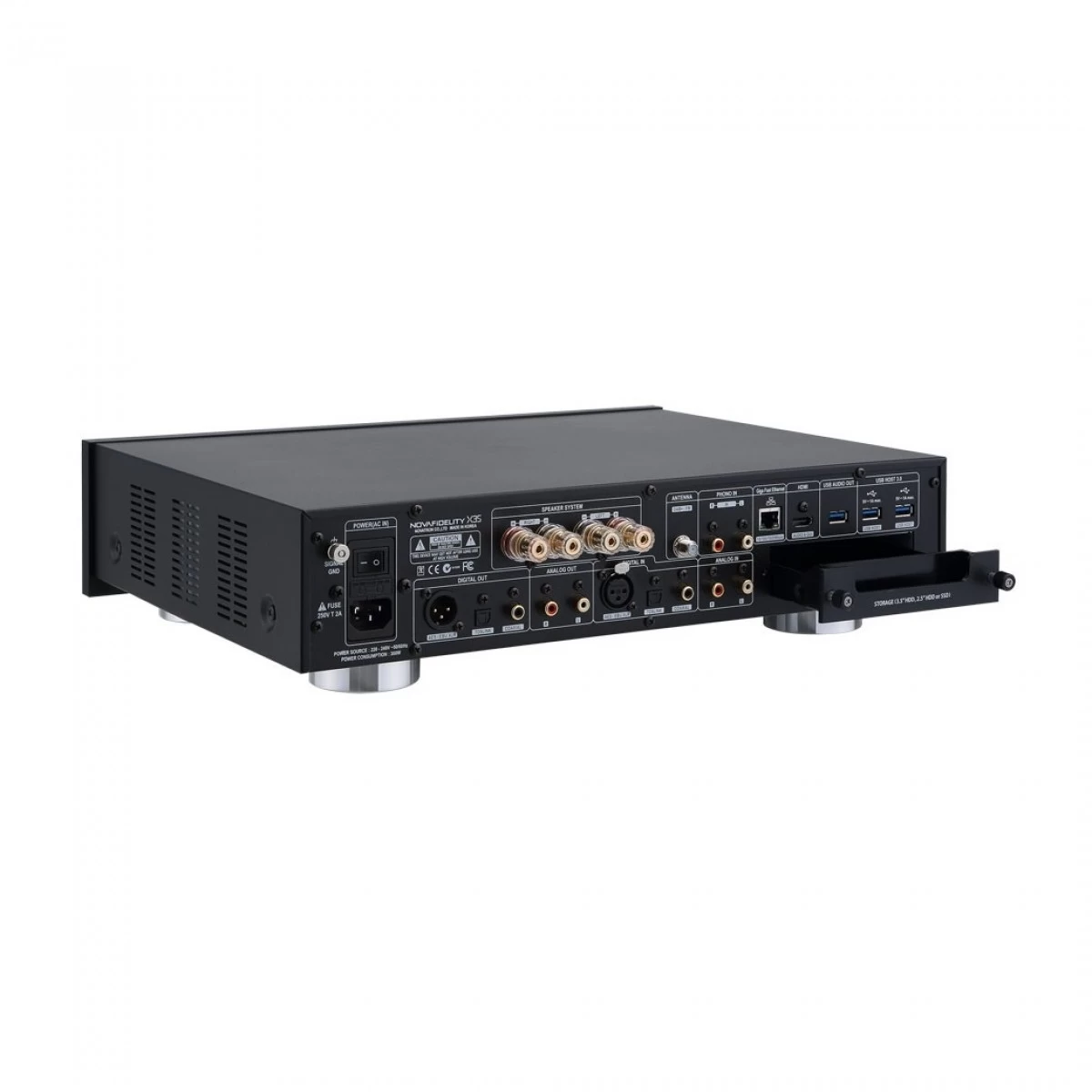

3.5″/2.5″ SATA hard disk and Solid State Drive (SSD) is accepted to the X35, which supports up to 8TB capacity. You can install a storage easily thanks to a customised storage drive bay(drawer)

CPU	Dual Core ARM Cortex A9 running at 1.0GHz
Main Memory	DDR-1066 1GByte
EMMC	8GByte
Display	7.0″ TFT LCD (1,024 x 600pixels) (* able to connect to ext. screen via HDMI out)
CD Player	Type: High Speed, Slot-Loading Supported Media CD, CD-DA, CD-R, CD-RW, DVD-R/RW
Interface	Key & Jog (Volume/Scroll) IR Remote Control Customised Remote App for iOS
Amplifier (Speaker Out)	Rated Output 100W + 100W @ 1Khz, 8ohm, 0.1% THD(Total 200 Watts)
Analogue Out (Sabre³² ES9018K2M DAC)	Pre-Out (L&R RCA) [-] L&R RCA, Dynamic Range: 127dB (Max 2Vrms, Stereo) THD+N: 0.0004%
Headphone Out	6.35mm Jack, 100mW + 100mW @1Khz, 600ohm, 0.1% THD
Digital Out (Variable/Fixed)	Coaxial x1 S/PDIF 75ohm RCA, Sample Rate: Up To 24bit/192KHz Toslink x1 S/PDIF, Sample Rate: Up To 24bit/192KHz AES/EBU/XRL x1 S/PDIF, Sample Rate: Up To 24bit/192KHz USB Audio x1 USB Audio Class 2.0 Output HDMI Out x1 HDMI Audio Out (*Shared With HDMI Out For External Screen)
Analogue Input (Sensitivity)	Line In x1 L&R RCA At The Rear, Default 2Vrms (Controllable 1~4Vrms) AUX In x1 3.5mm Phone Jack On The Front, Default 1Vrms (Controllable 0.5~2Vrms) Phono In x1 MM Input, Default 7.5mVrms (Controllable 3.75~15mVrms)
Digital Input	Coaxial x1 Sample Rate: Up To 24bit/192Khz
Toslink x1	Sample Rate: Up To 24bit/192Khz
AES/EBU/XLR x1	Sample Rate: Up To 24bit/192Khz
Supported Storage	Hard Disk: 2.5″ SATA, Up To 2TB: 3.5″ SATA, up to 8TB SSD: 2.5″ SATA, up to 2TB DAB+/FM Radio Selectable for DAB/DAB+ or FM Radio
Connectivity	USB Host: USB3.0(5V/1A) x3 at rear (One is shared for USB Audio Out) USB2.0(5V/1A) x1 At Front HDMI Out: Connect To External Screen (* Shared With HDMI Audio Out)
Network	Wired: Giga Fast Ethernet(10/100/1000Mbs) Wireless (Option): * 802.11b/g/n WiFi USB Dongle (Option)
Internet Services	Internet Radio: Airable
Online Music Services	TIDAL, Deezer, Qobuz, Spotify Connect
Codec & Format Supported	DSD (DSD64, DSD128, DSD256), DXD (24Bit/352.8KHz), HD WAV(24Bit/192KHz), HD FLAC (24Bit/192KHz), APE/CUE, WAV, FLAC, ALAC, AIFF, AIF, AAC, M4A, MP3, WMA, Ogg Vorbis, PCM, M3U, PLS
Network Protocols Supported	UPnP (DLNA) Server/Client/Media Renderer, Samba Server/Client, FTP Server, Web Server
Internet Services	Toroidal Transformer For Audio Signal Management 500W Internal SMPS For Digital CPU Management
Power Source	220V Area: AC 220V – 240V, 50/60Hz 110V Area: AC 110V – 120V, 50/60Hz
Certification	CE, FFC, EMI, etc
Dimensions	441 x 330 x 100mm
