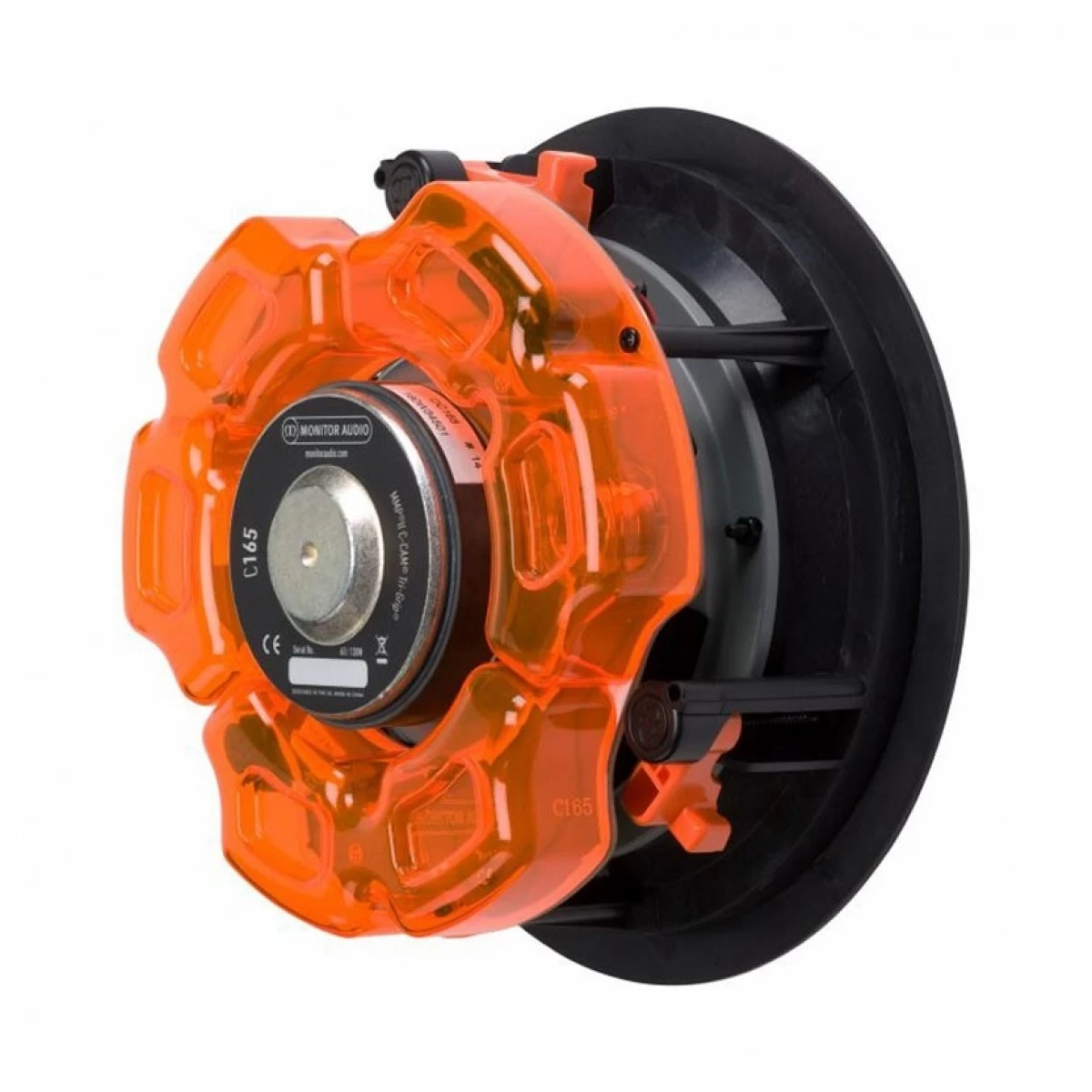

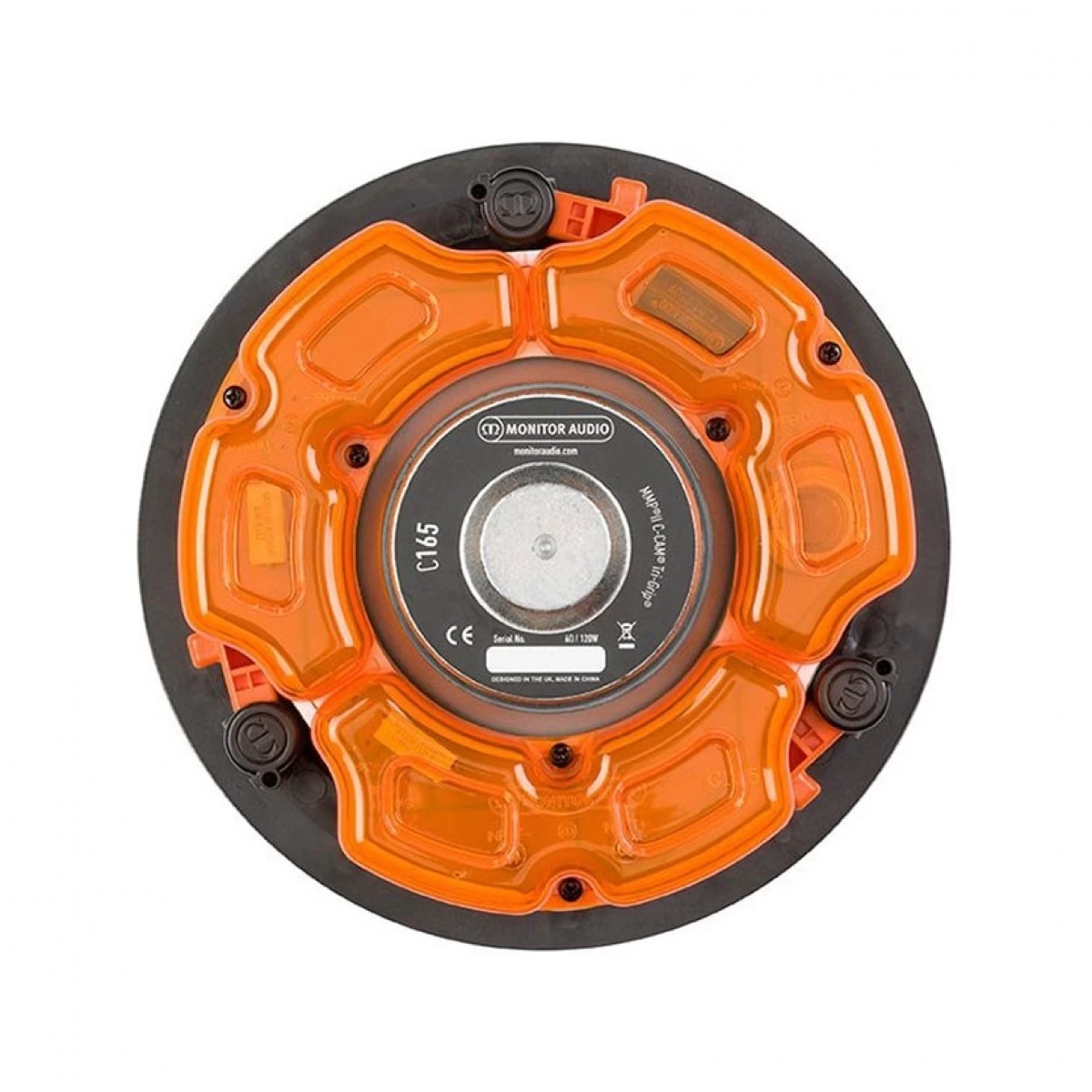

Monitor Audio C165 In Ceiling Speaker (Single)

Full Description

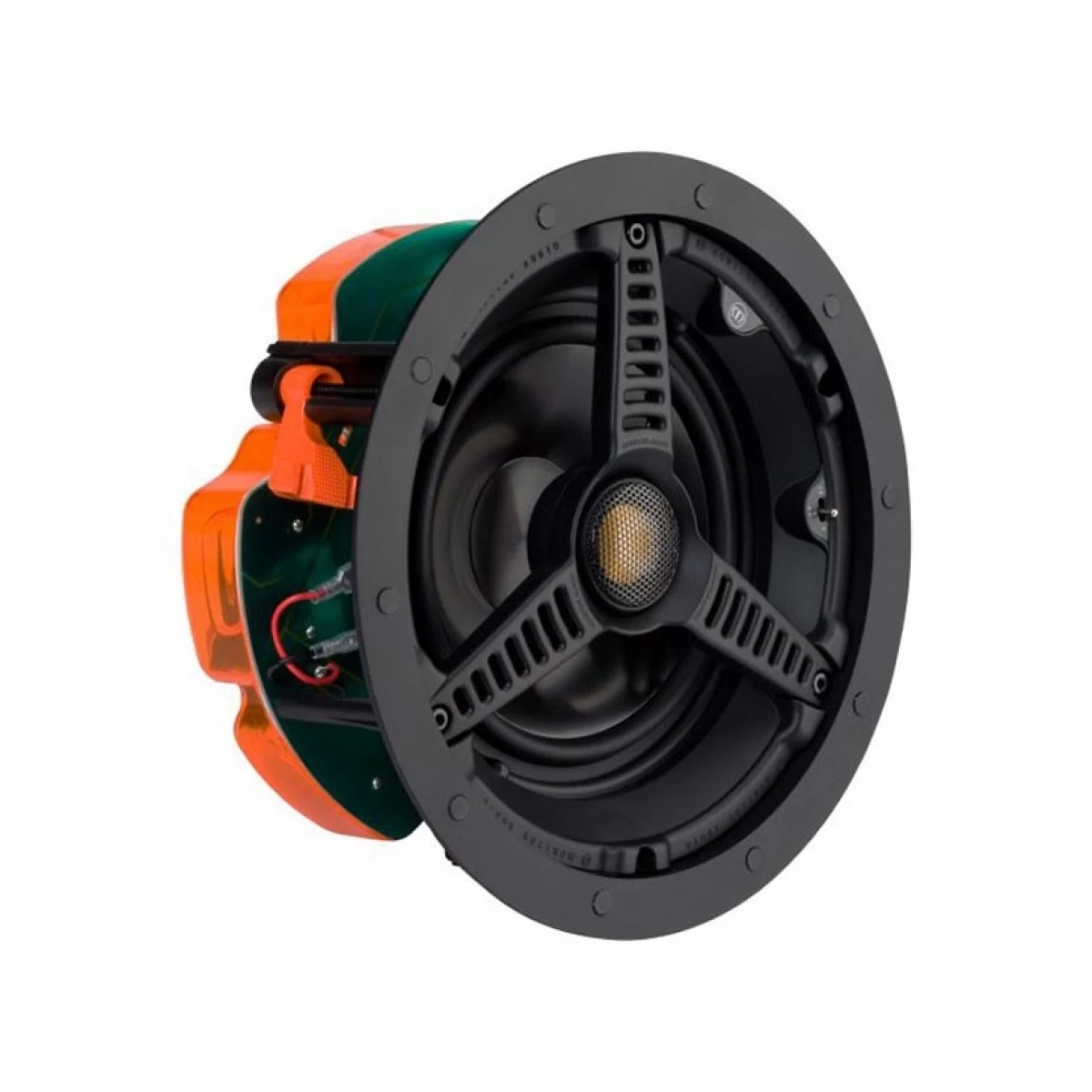

The C165 incorporates an 6 1/2 inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion. Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

The acoustic systems of Monitor Audio’s trademark bass drivers and pivoting C-CAM gold dome tweeters have been optimised by FEA analysis to deliver high efficiency combined with a broad frequency range of demanding residential and commercial installations.

Wherever Monitor Audio’s speakers are installed, their innate versatility, ‘stealthy’ appearance and high performance will deliver great sound and easy, discreet, décor-friendly installation.

Frequency Response	60 Hz – 25 kHz
Nominal Impedance	6 ohms
Sensitivity (1W@1M)	88.5 dB
Maximum SPL (single unit in free space)	107.4 dBA
Power Handling (RMS)	65 W
Recommended Amp Requirements	20 – 65 W
Drive Unit Complement	1 x 6 1/2” MMP II cone bass driver 1 x 1” C-CAM pivoting Gold Dome tweeter
Adjustment Controls	HF Level Switch (+3 dB / 0 dB / -3 dB)
Overall Diameter: (including grille)	250 mm (9 13/16″)
Overall Depth: (including grille)	118 mm (4 5/8″)
Mounting Depth	211 mm (8 1/4″)
Cut-Out Hole Diameter	211 mm (8 1/4″)
Fixing Type	3 position Tri-Grip dog fixings
Cable Connection	Gold plated ‘push’ type terminals

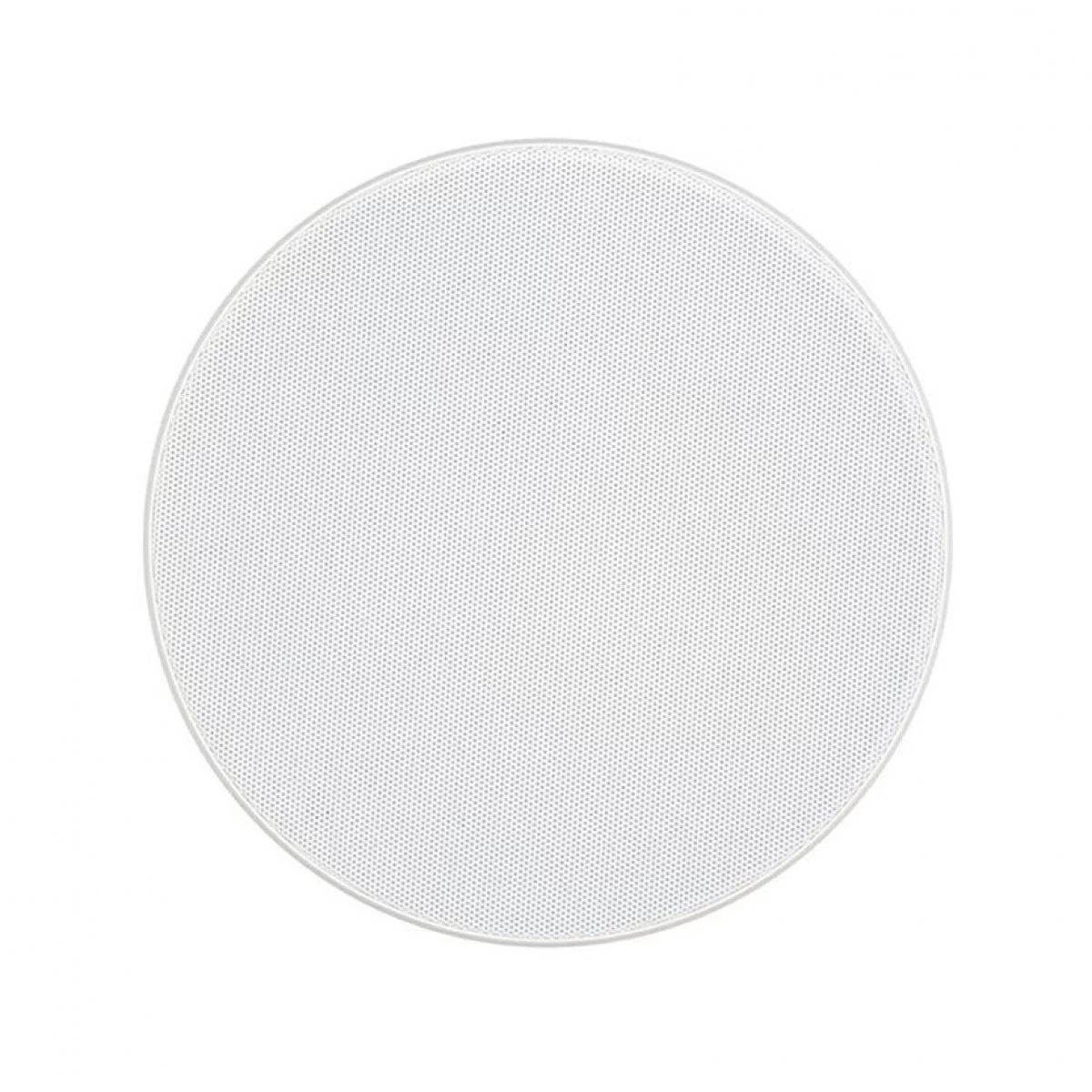

Grille Attachment	Magnetic
Construction Material	Mineral filled ABS, RoHS compliant
Weight	1.92 kg (4 lb 4 oz)
Pre-Construction Bracket	CB6 (Purple)
