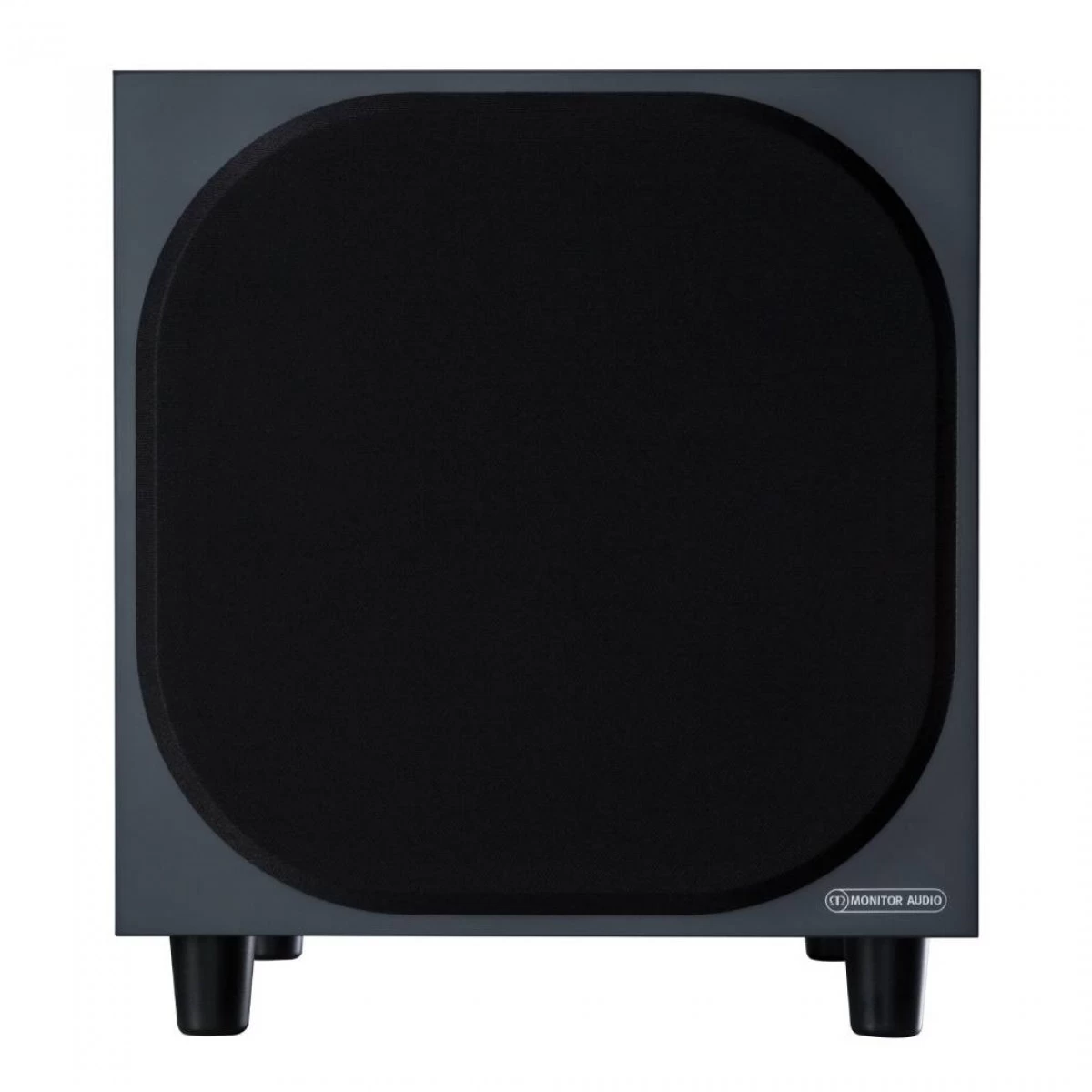

Name: Monitor Audio Bronze W10 6G Subwoofer, Walnut Wood
SKU: YXYUY 15101
Availability: InStock

Full Description

The Monitor Audio Bronze W10 is a meticulously designed reinforcement for your home cinema, living room, or complete AV setup. Achieving that same precise, powerful low-end often associated with cinemas and hi-fi listening, this subwoofer is a fantastic way to enhance your listening.

The Bronze subwoofer is a fantastic fit for being put to use with the rest of Monitor Audio’s Bronze speaker series, both floorstanding and bookshelf. Tuned to combine with them harmoniously and articulately, the W10 can be a part of a 5.1 surround setup, an ultra-immersive Dolby Atmos surround system, or to add extra bass to a standard stereo combination – whatever suits your needs.

Redesigned Finish

The new Bronze Series has undergone a complete redesign, featuring four contemporary finishes (White, Walnut, Urban Grey and Black) with a sleek contrasting baffle and matching magnetic grille

ABR System

The Bronze W10 subwoofers feature a completely enclosed cabinet to help enhance low-frequency response and output power even further. As such, instead of a bass reflex port, Monitor Audio have designed an Auxiliary Bass Radiator, which moves back and forth with the air pushing the driver.

C-CAM Drivers

Monitor Audio’s Bronze series also features their unique C-CAM drivers. Built from ceramic-coated aluminium and magnesium typically found in aerospace engineering for jet engines, this material is rigid yet lightweight. The result is a driver that reacts quickly to the movement of air without being too heavy to do so accurately. This helps to provide excellent transient response with no audible distortion, a key element for any great subwoofer.

Key Features

Sixth generation subwoofer for Hi-Fi and home cinema listening
Deep, well-defined low-end helps to reinforce full-range speakers
10-inch C-CAM driver provides excellent, crisp transient response
Auxiliary Bass Radiator (ABR) enhances bass without creating an opening in the cabinet
Fully sealed cabinet enhances low-frequencies without creating unwanted resonances
Improved rubber feet prevent vibrations from transferring through floors and walls

Specifications

External Dimensions, incl. Amp, Drivers & Terminals (HxWxD)	321 x 321 x 364 mm
External Dimensions, incl. Amp, Drivers, Terminals & Feet (HxWxD)	366.5 x 321 x 364 mm
Weight (unpacked)	13.4 kg
System Format	Long-throw 10” Driver featuring ‘Dished’ C-CAM Cone 10” Flat Panel ABR (Auxiliary Bass Radiator) 18mm MDF Internally Braced Construction
Lower Frequency Limit	-3 dB @ 33 Hz / -10 dB @ 28Hx (Free Field) Default Preset: Music, -3 dB @ 29 Hz / -10 dB @ 25 Hz (In Room)
Upper Frequency Limit	-6 dB @ 150 Hz
Drive Unit Complement	1 x 250mm (10″) C-CAM Subwoofer Driver featuring a 2″ Long Throw Voice Coil
Linear Driver Excursion	17 mm Peak to Peak
Amplifier Output	220 W
Amplifier Classification	Class D with High Current Switch Mode Power Supply (SMPSU)
Phase Control	0 Degrees & 180 Degree Pure Invert
Low Pass Filter Alignment	2nd Order (12 dB/Octave), from 40 Hz to 120 Hz
Equalisation DSP	3 Pre-set Modes: Music, Movie, Impact
Auto Sensing	Line Level &GT; 3 mV. Auto Standby Feature after 20 mins
Audio Inputs	LFE Unbalanced Input RCA Stereo Unbalanced Inputs RCA
Input Impedance	20 kOhms
12 V Trigger	3.5 mm Mono Mini-jack. 6 V Threshold
Electrical Certifications	CE / CB/ ETL / Fcc / CCC / ErP (Energy Saving Compliant)
Mains Input Voltage	100 – 120 V AC, 50 – 60 Hz / 220 – 240 V AC, 50 – 60 Hz (Manually Selected)
Power Consumption	Maximum 300 W, Standby &LT; 0.5 W (ErP Compliance)
Fuse Type	20mm T4AL 250 V AC
Finishes	Black, White, Walnut, Urban Grey
