Full Description
Advanced Drivers
Using hard-wearing acrylic fibre to build its dual bass drivers and ring dome tweeter, the QX-4 MkII has excellent transient response. The ring dome itself extends the treble by preventing phase cancellation from the centre of the diaphragm.
Aluminium Plating
These floorstanding speakers feature an aluminium top plate which adds rigidity and reliability to their housing. It also helps reduce distortion and standing waves for a consistent, clear sound.
Inverted Driver Geometry

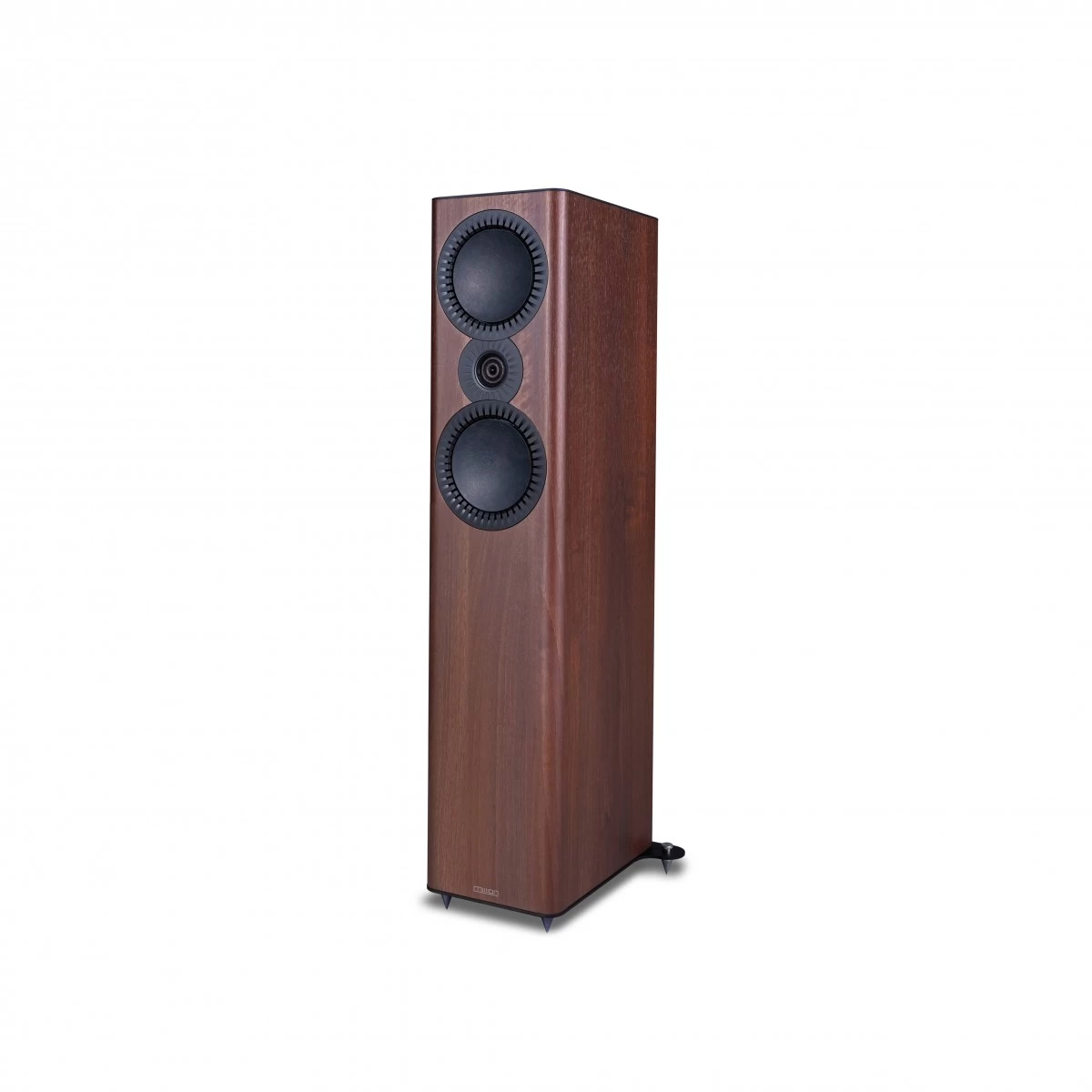

The QX MkII series features the classic inverted driver geometry of their speaker design, placing the treble unit between the two bass drivers. This improves time alignment of the sound propagation, for consistent sound and zero phase distortion.
Key Features
- Pair of floorstanding speakers for home audio

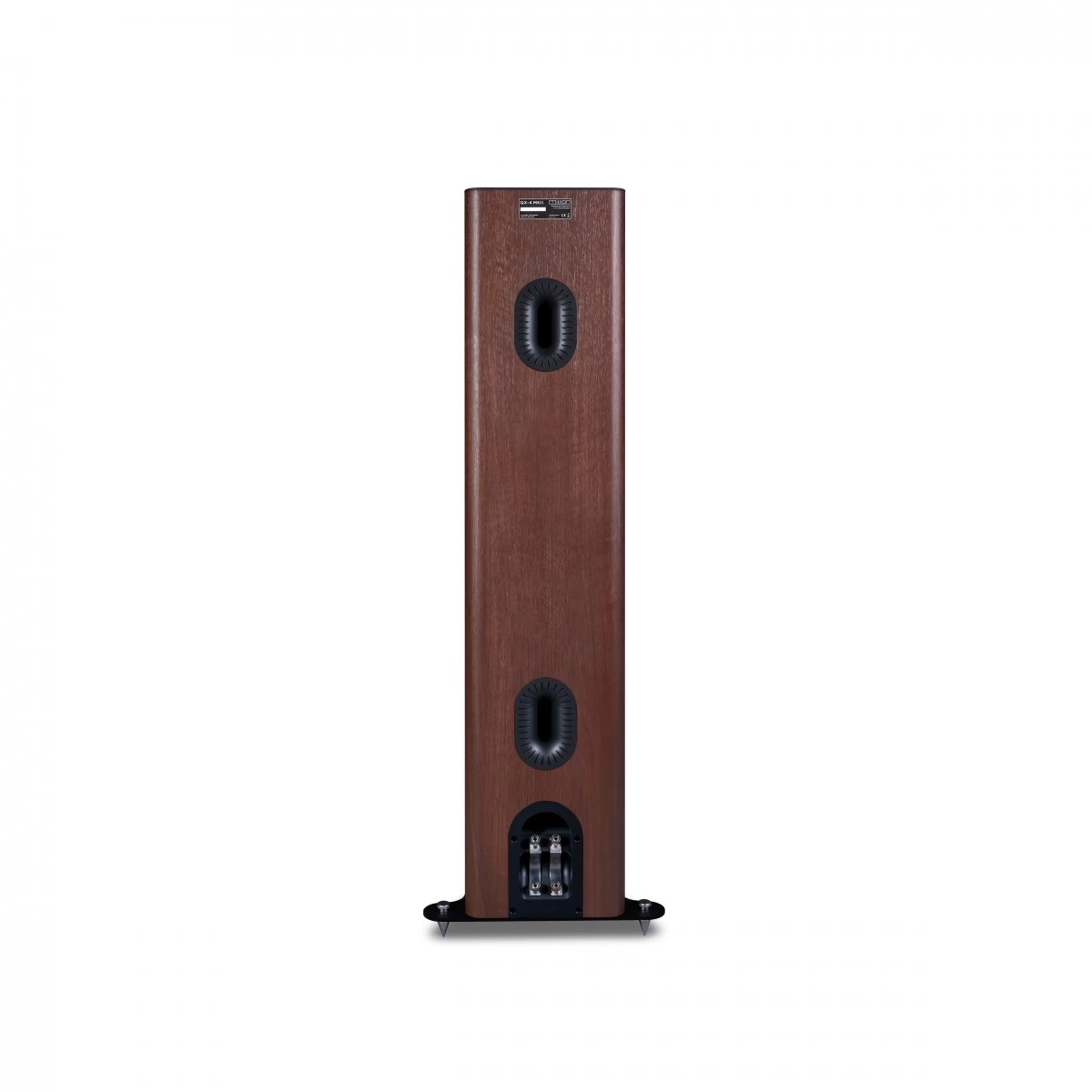

- Bass reflex enclosure for powerful, rich bass
- Ring dome treble unit prevents phase distortion and produces detailed high-frequencies
- Acrylic fibre cone design improves transient response for more dynamic sound
- Aluminium top plate provides rigidity, support, prevents cabinet rumble and reduces distortion
- Clear, detailed harmonics perfect for music listening or home cinema use
- Inverted Driver Geometry places treble unit between bass drivers for a consistent sound field
- Improved air-flow and fuller stereo or surround sound imaging
| Dimensions (H x W x D) | 980 x 220 x 335 mm |
|---|---|
| Weight | 23.8 kg per speaker |
| Speaker Type | 2-way floorstanding speaker |
| Enclosure Type | Bass reflex |
| Transducer Complement | 2-way |
| Bass Driver | 6.5″ (165 mm) Long Fiber Composite Cone x2 |
| Treble Driver | 1.5″ (38 mm) Textile Ring Dome |
| AV Shield | No |
| Sensitivity (2.0 V @ 1 m) | 88dB |
| Recommended Amplifier Power | 25 – 150 W |
| Peak SPL | 95 dB |
| Nominal Impedance | 4Ω (compatible 8Ω) |
| Minimum Impedance | 3.8Ω |
| Frequency Response (± 3 dB) | 36 Hz – 24 kHz |
| Bass Extension (-6 dB) | 32 Hz |
| Crossover Frequency | 2.2 kHz |
| Cabinet Volume (in litres) | 48 L |
