Full Description
Varied Inputs
The Mission LX Connect DAC is equipped with an AUX input so you can connect conventional devices and enjoy great audio through the analogue stage. Connection options to all of your digital devices are also available through the coaxial and optical inputs. Go one step further and transmit through ARC HDMI for enhanced TV audio.
Bluetooth and Roon
The Mission LX Connect DAC lets you to pair with smart devices and enjoy your favourite music and playlists wirelessly. The Connect DAC is also Roon tested, meaning you store all of your music in one place across multiple devices and can enjoy easy and instant access to your audio and even establish multi-room listening.
Great Outputs
Connect your external power amplifier and experience robust audio signals thanks to the pre-amplifier output, which is a perfect starting block to establish your very own HiFi system, delivering low-distortion, accurate and high-quality signals. The built-in headphone amplifier will also optimise the sound of your headphones.
High-Quality DAC
The ESS Sabre 9018 32-bit audio lets you listen to your digital sources in lively, realistic analogue quality. With the 5.8GHz Wireless technology, the Mission LX Connect DAC renders your sound and engrosses you in your favourite music.
Pre-Amplifier Stage
The Mission LX Connect DAC uses a built-in pre-amplifier that offers 100Ω output impedance and 20Hz-20kHz frequency response. The low THD rating ensures low distortion, with high-quality sampling rates also allowing for incredible audio.
Brilliant Design and Control

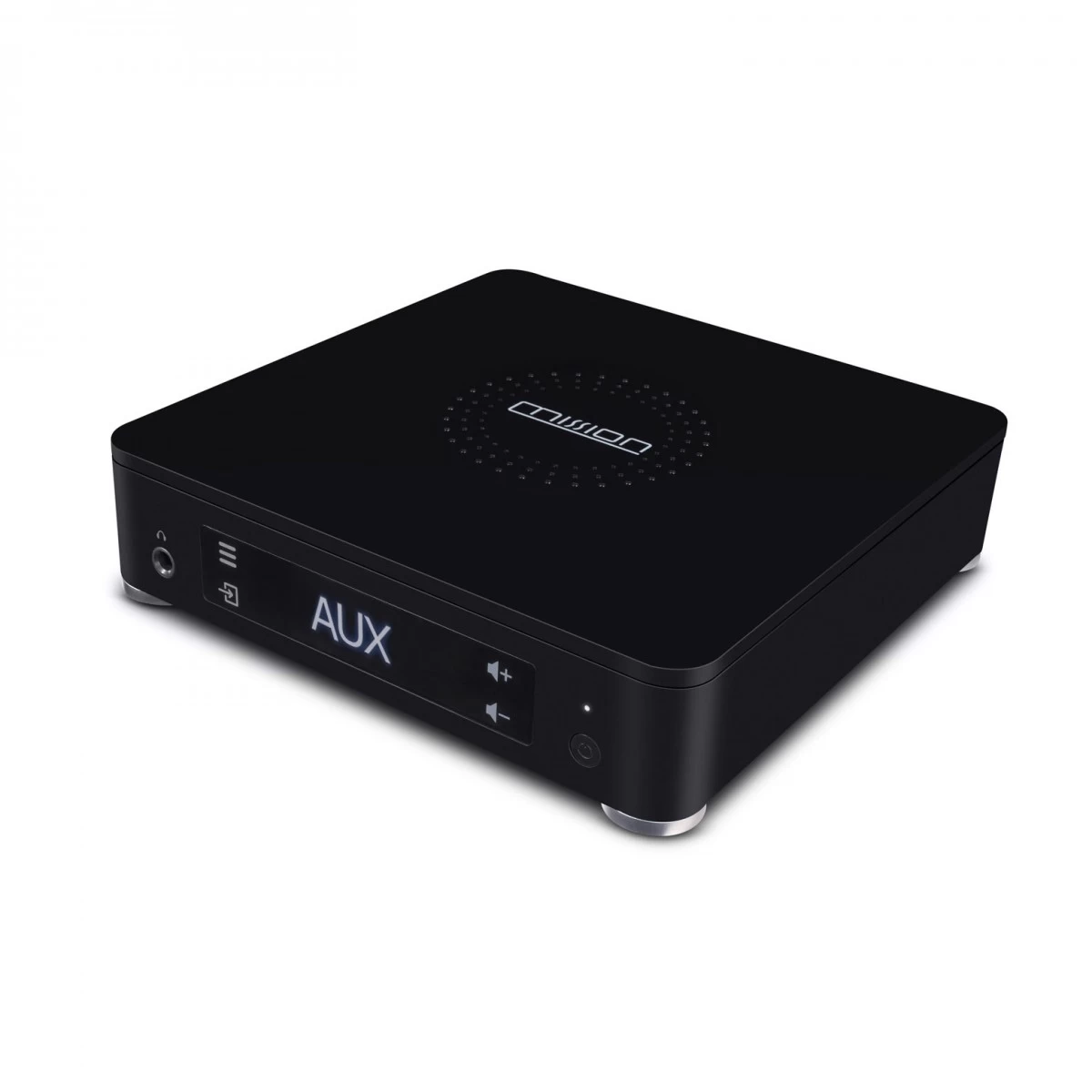

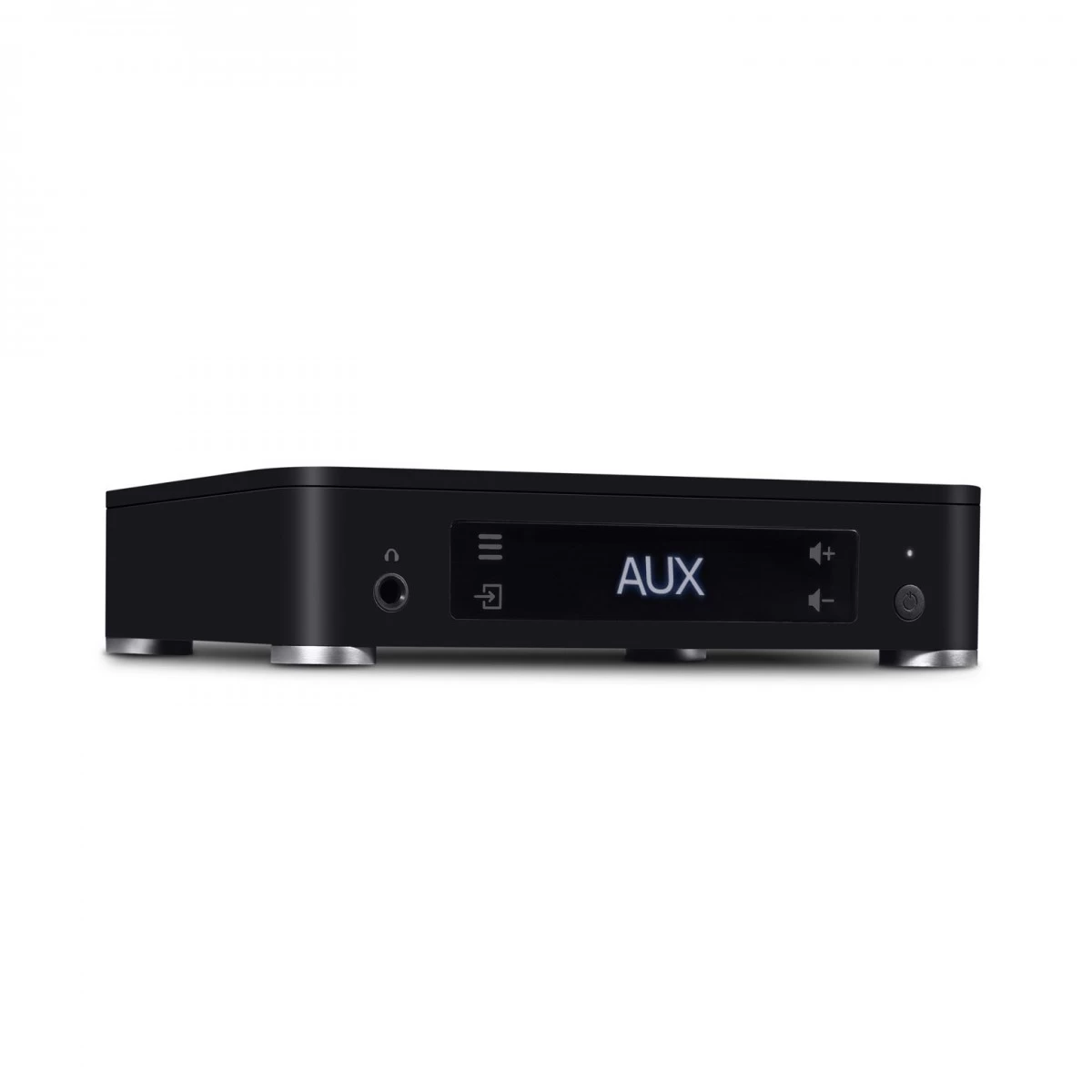

Engineered to perfection, the LX Connect DAC is small in size, allowing it to fit in HiFi cabinets, on your desktop or anywhere you choose. A remote control is on hand to ensure complete management of your audio.
Key Features
- ESS Sabre 9018 32-bit technology ensures great audio
- Headphone amplifier enables immersive and independent listening
- RCA input let you connect your analogue devices for streamlined, all-in-one audio system
- Pair smart devices via the wireless Bluetooth receiver
- Optical, Coaxial, and USB inputs let you connect to digital devices
- The preamplifier stage ensures amazing consistent sounds
- Compact design allows for versatile positioning

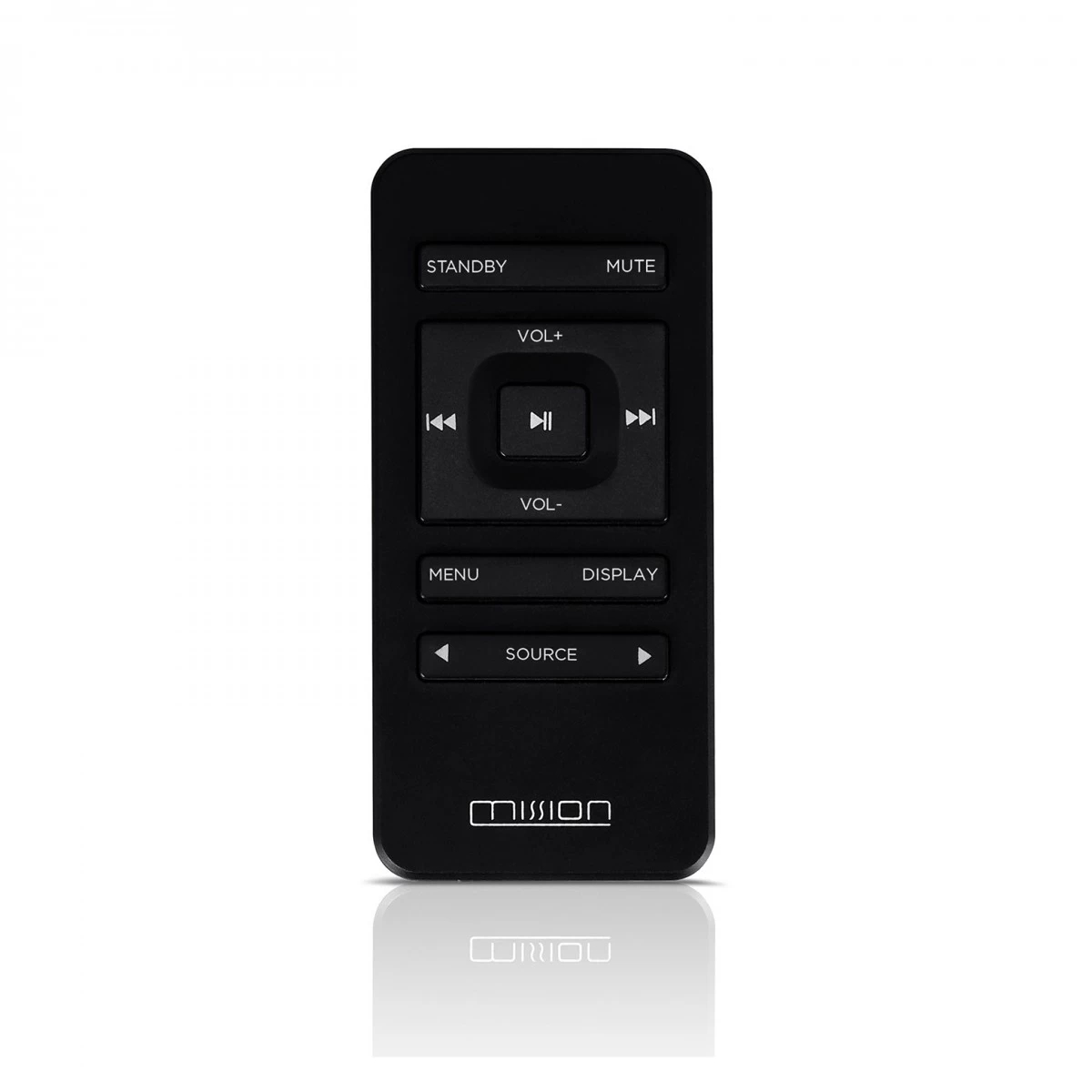

- Remote control offers excellent sound management
What’s in the box?
- The Mission LX Connect DAC
- 1 x Power adaptor
- 1 x Plug for the adaptor suitable for your area
- 1 x Remote control
- User manuals and quick start guides
Specifications

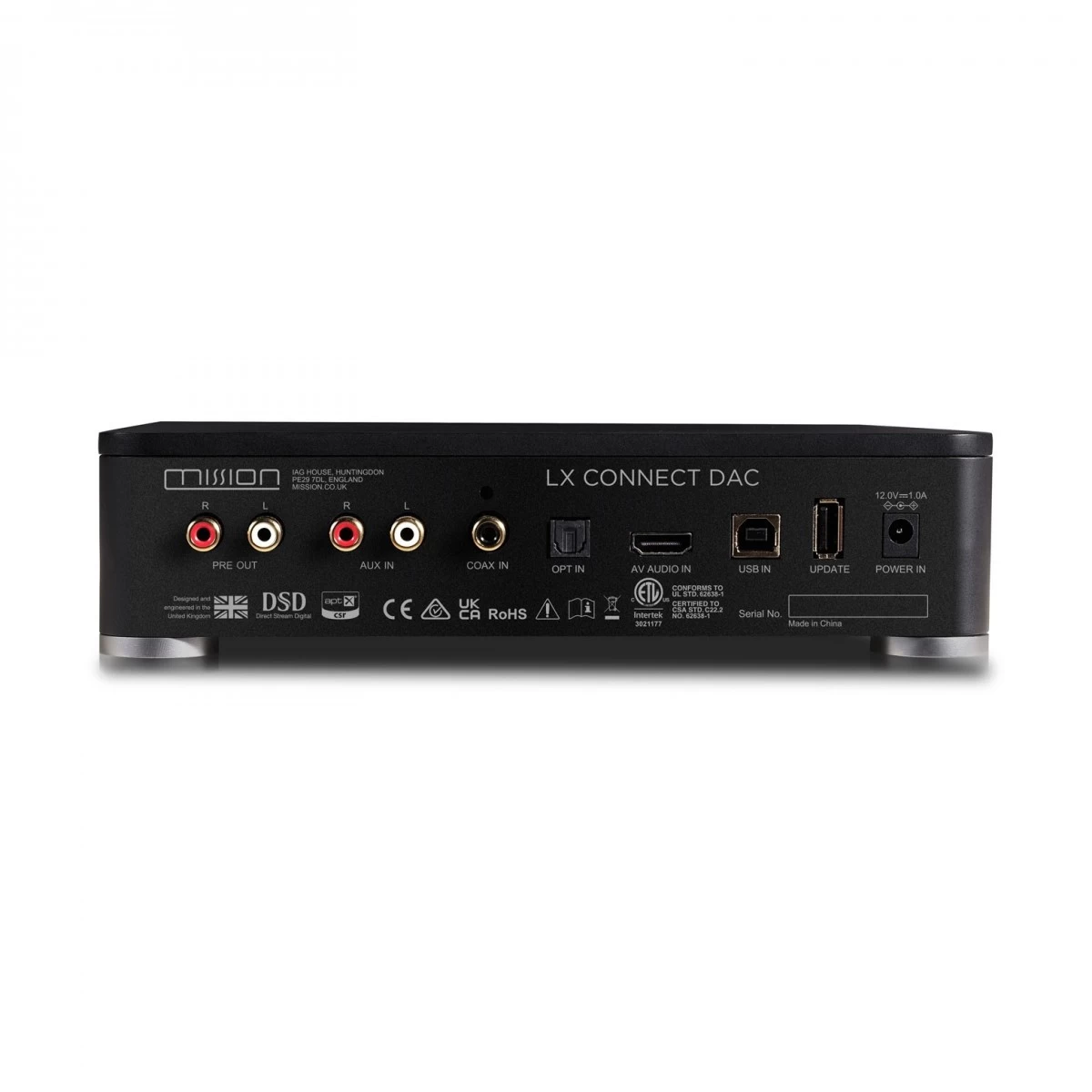

Connectivity
| Analogue Input | RCA (AUX) |
|---|---|
| Digital Input | OPT, COAX, PC USB, Bluetooth, AV Audio |
| Analogue Output | RCA Pre Out |
Pre-Amplifier
| Input Sensitivity | 300mV (AUX IN, volume = MAX) |
|---|---|
| Input Impedance | 13K (AUX IN) |
| Variable Output Voltage | 0 – 3.2V |
| Output Impedance | 100 ohm |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Signal-to-noise Ratio | > 100dB (AUX IN, A-weighted) |
| (S/N) | > 110dB (digital Inputs, A-weighted) |
| Total Harmonic Distortion | |
| Sampling Rate (OPT, COAX) | 24bit – 192kHz |
| Sampling Rate (USB, PCM) | 32bit – 384kHz |
| Sampling Rate (DSD64) | 2.8M |
| Sampling Rate (DSD128) | 5.6M |
| Sampling Rate (USB, DSD256) | 11.2M |
| Digital Filters | Fast Roll-off, Slow Roll-off, Minimum Phase |
Dimensions
| Dimensions (including feet) (H x W x D) (mm) | 55 x 225 x 231 |
|---|
Weight
| Weight (kg) | 1.65 |
|---|---|
| Package Weight (kg) | 1.75 |
Design
| Colour | Black |
|---|
