Marantz PM6007 Stereo Amp & CD6007 CD Player Hi-Fi Package, Black
Original price was: £366.00.£96.99Current price is: £96.99.
- Free Shipping Worldwide
- fast shipping
- Safe Payments, the Smart Choice
- Enjoy top quality items for less
Full Description
Award
Hall Of Fame Winner 2021
“Marantz refines its Award-winning budget amp recipe”
Award
2022-2023 Best stereo amplifier under £500
“Marantz’s affordable amp retains its lead for yet another year”
“The clearest evidence of the line’s evolution lies in the PM6007’s performance. Its sonic character is as familiar as its casework: smooth, full-bodied and balanced, with a pleasing spaciousness. Like its predecessor, it’s about as agreeable a performer as you could ask for at this price.”
Award
2023 Best CD player under £500
“Once again, this Marantz player is the one to beat”
“The new machine responds with a more cohesive way with rhythms and slightly better sense of drive. We can hear leading edges of the bass notes more clearly and there’s a greater feeling of space between the instrumental strands.”

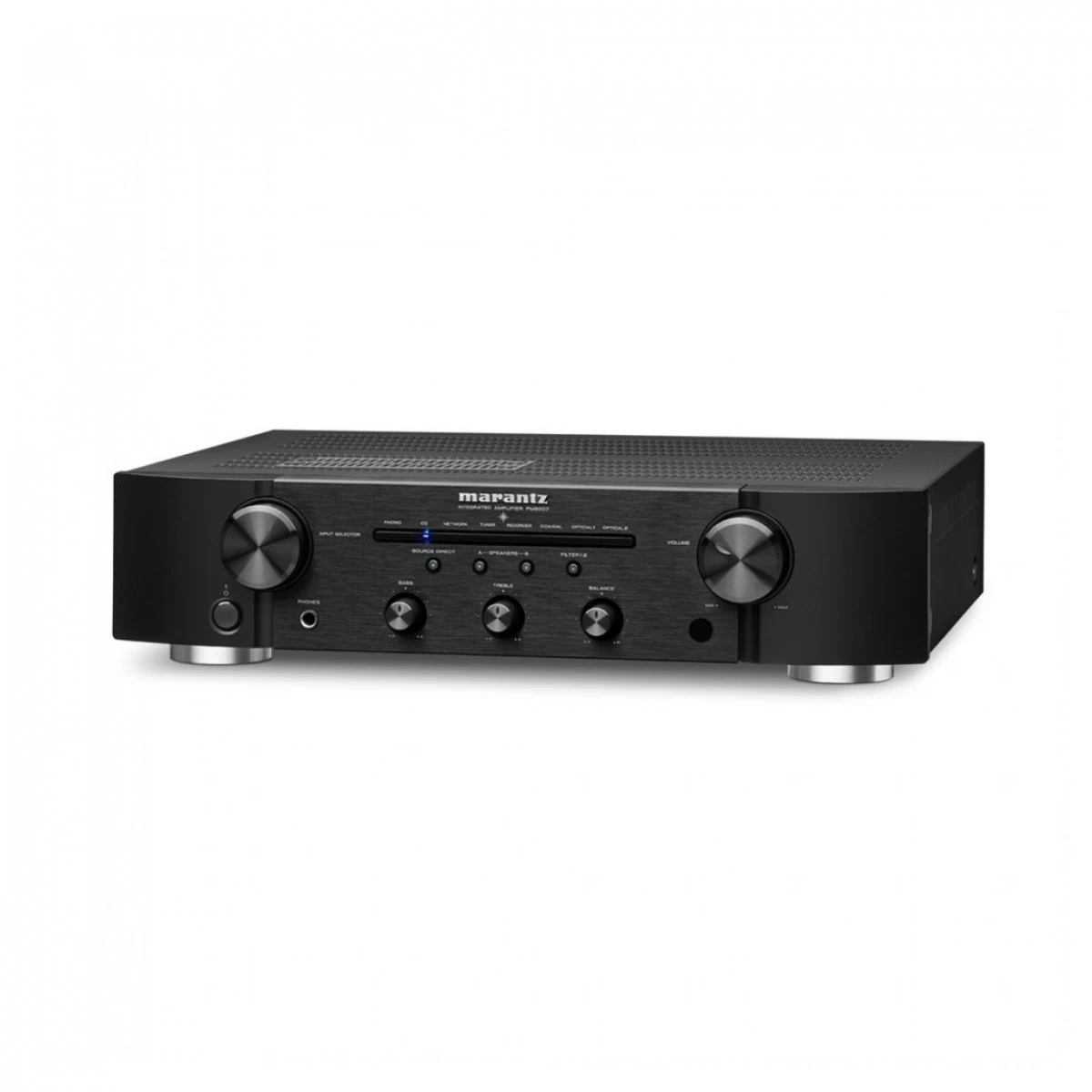

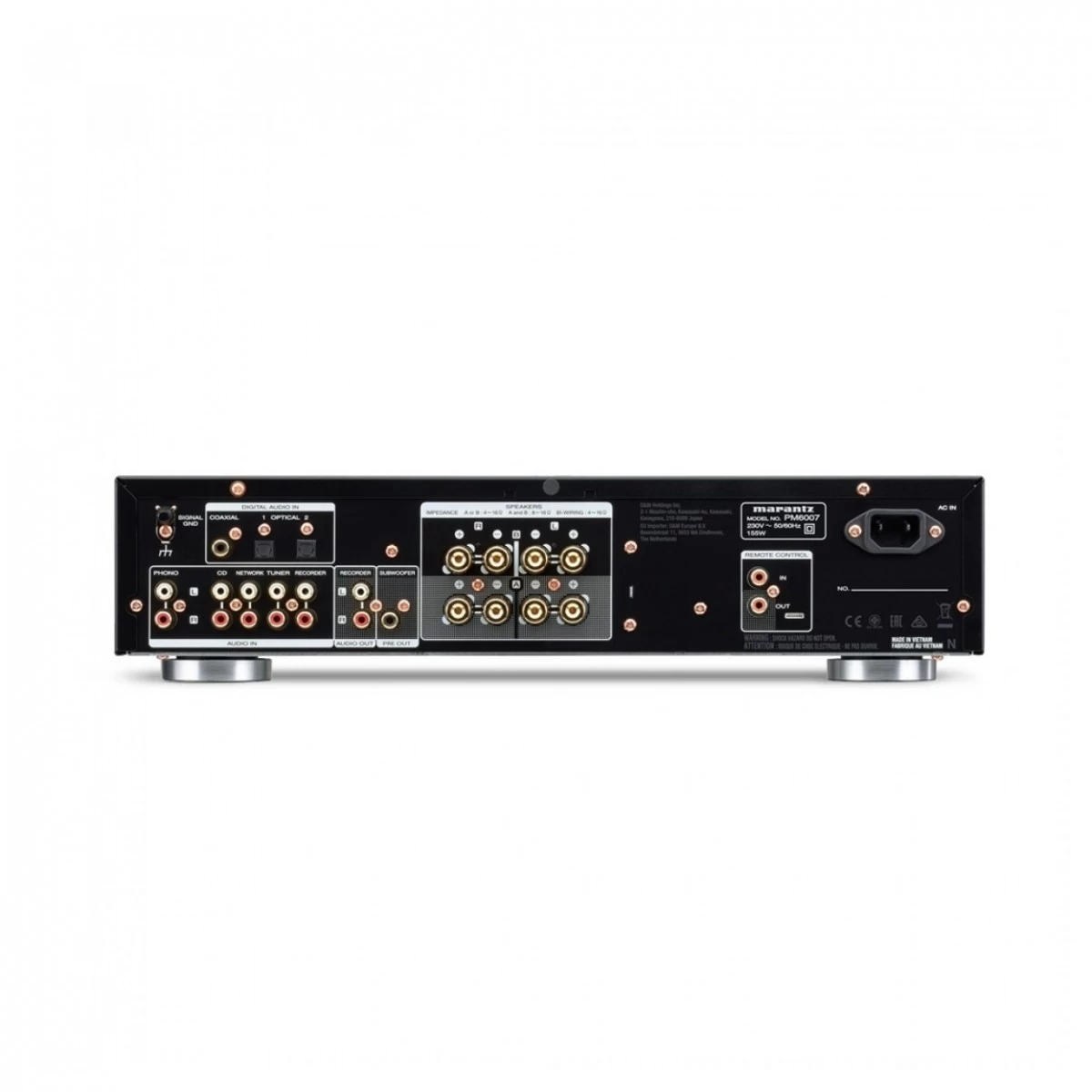

Marantz PM6007 Integrated Amplifier
Marantz maintains a steadfast reputation for choosing the best possible components for its Hi-Fi products, and the PM6007 is built with that same performance-first Hi-Fi approach. Marantz engineers selected and improved the PM6007 versus the previous PM6006 through extensive listening in dedicated Marantz facilities in Europe and Japan using Hi-Fi tuned sound parts. For example, increasing the size of the power supply capacitors by 20 improved stability during high demand listening sessions.
- The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz)
- Wide range of connectivity including five analogue inputs, one coaxial input and two optical digital inputs
- Digital filter modes for optical and coaxial inputs
- The newly updated, high-quality DAC AK4490 offers a richer sound for your enjoyment
- No memory distortion for clean and precise audio reproduction even after powerful bass attacks
- A high-quality MM phono pre-amp with FET input to enjoy the signal purity from your vinyl
- Enjoy deeper bass using an optional external subwoofer with a fixed low pass cut off frequency at 150Hz
- In addition to high-quality speaker terminals with A/B switching capability, a fully-shielded DAC unit, and copper screws, the rigid feet provide a true-to-performance sound
Current Feedback Amplifier
The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007’s amplifier section holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.
The Hyper Dynamic Amplifier Module consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-amps, but outperform these solutions dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound.
In the PM6007, the HDAM-SA3 circuit improves on its previous module and the idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.
Reference D/A Conversion
The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types.
High Current Power Supply
The power supply supports high current, high speed Shottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.
Toroidal Transformer
The highly efficient design of the Toroidal Transformer delivers more power compared to the same size EI core transformer. The shape lowers electromagnetic radiation and mechanical vibration for better sound quality.

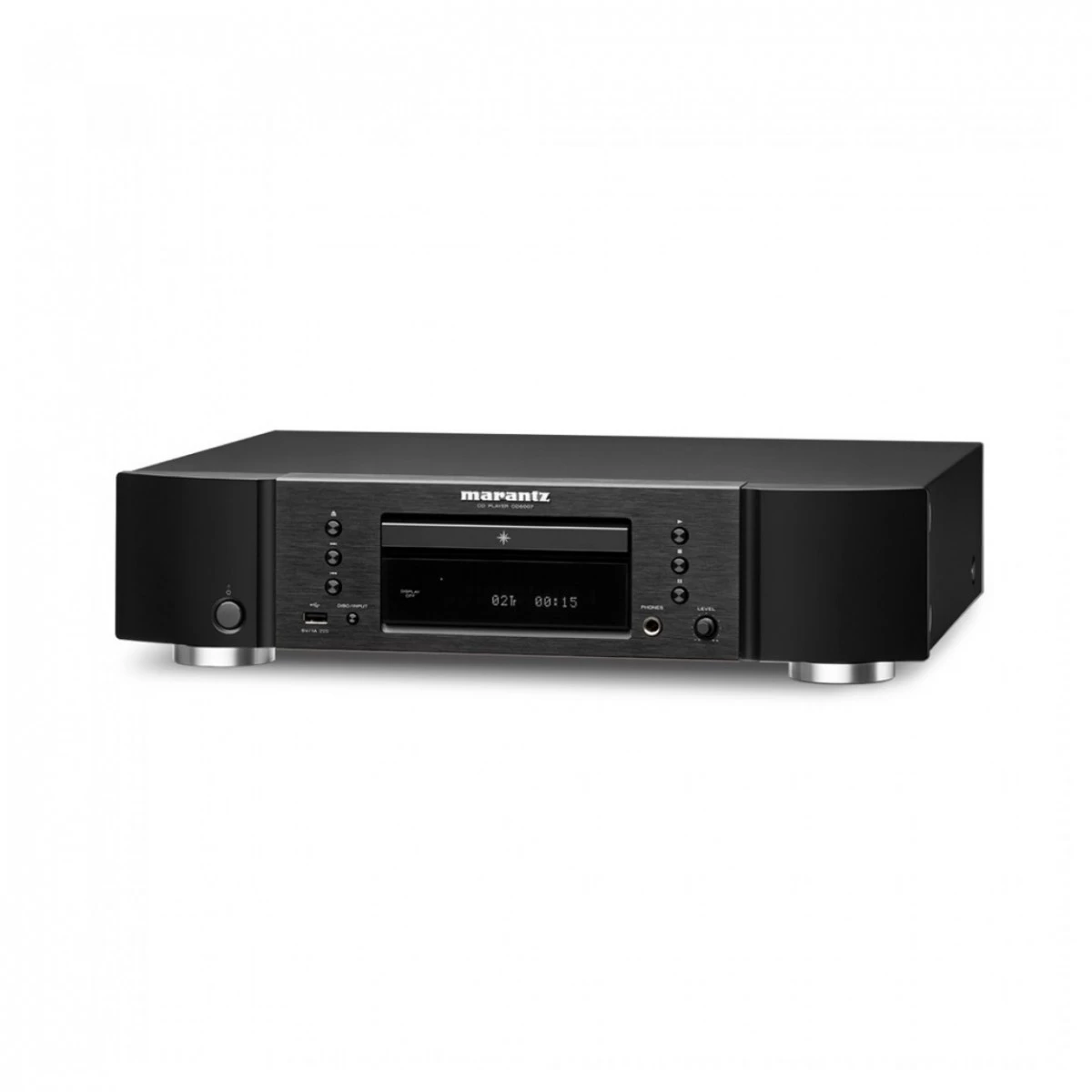

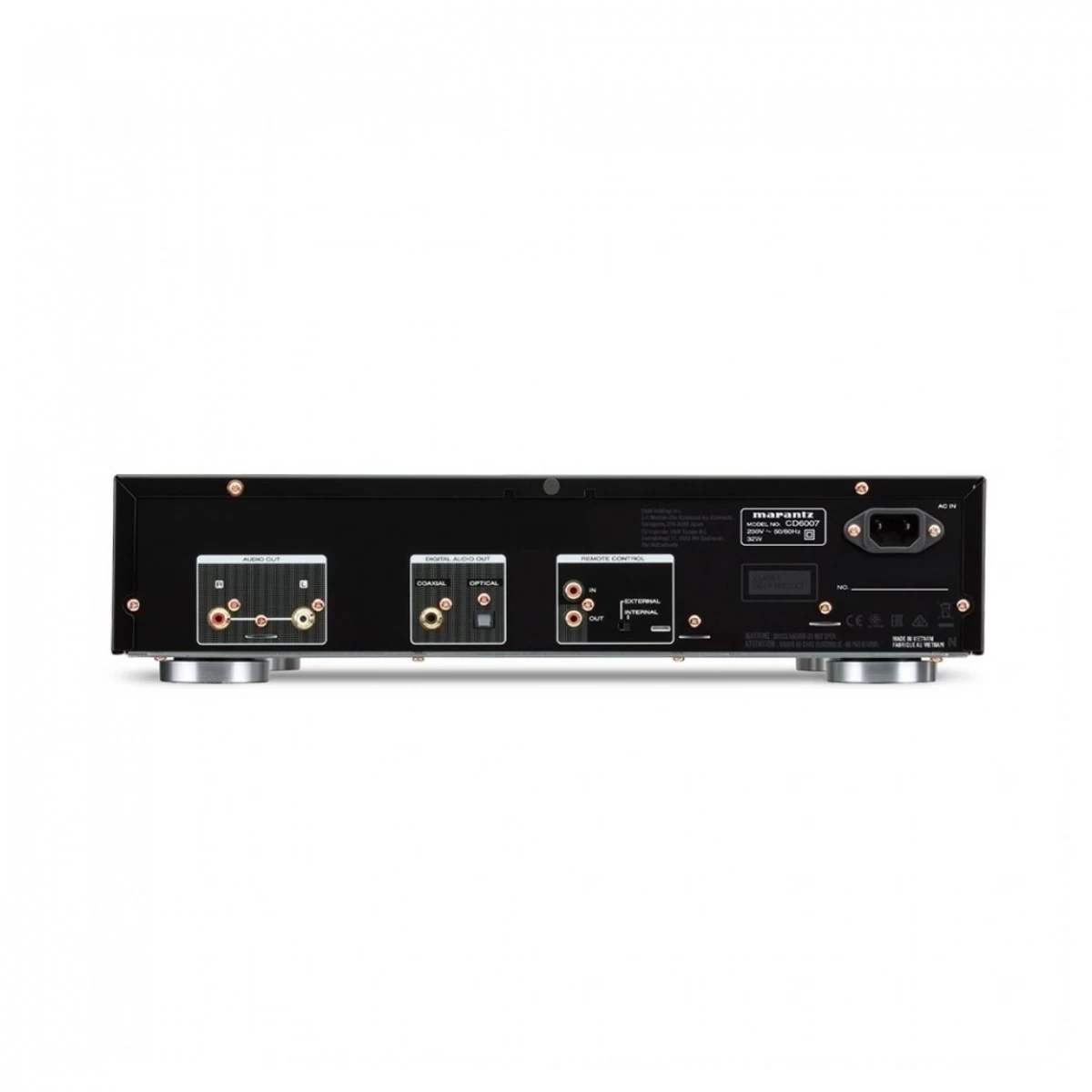

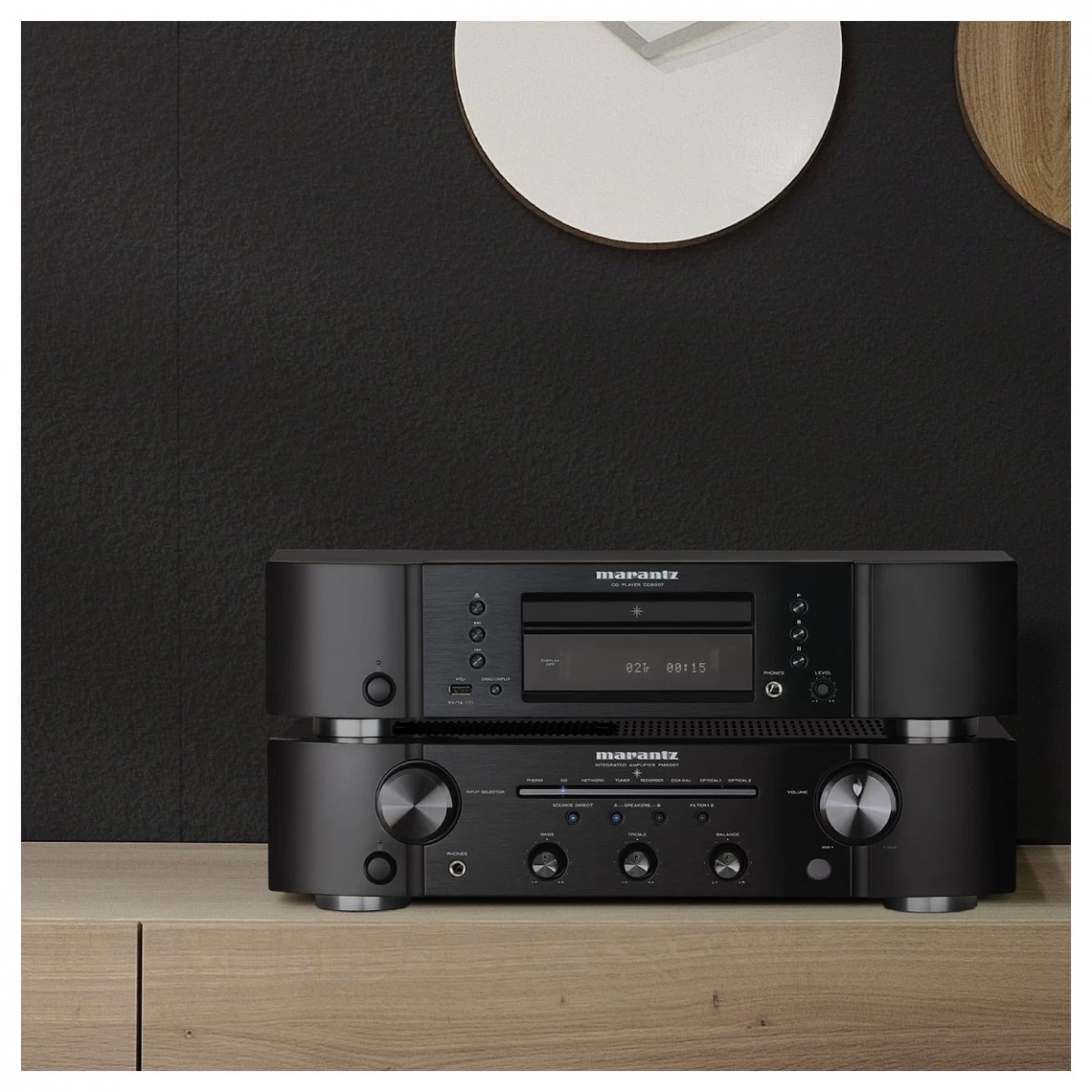

Marantz PM6007 Integrated Amp & CD6007 CD Player, Black Hi-Fi Package
Marantz have included a new remote that also controls the fitting PM6007 amplifier. The CD6007 features a newly-developed, sophisticated headphone amplifier with a headphone amp gain setting to accommodate a wide range of headphones.
Marantz HDAM Technology
Marantz developed its own discrete circuit boards to replace standard ICs. These HDAMs consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the widely used Op-Amps but outperform these designs dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound. In the CD6007, the proprietary HDAM-SA2 circuit improves on its previous HDAM module for an even more stable power supply. The idling current stability is less influenced by power transistor temperatures to maintain sound performance even at the high-level output.
HDAM-SA2 and Headphone Amp Gain
The CD6007 offers an improved headphone amplifier section. The CD6007 inherits the exclusive Marantz HDAM-SA2 circuit with three gain settings (Low/Mid/High) for a perfect match with almost any brand of headphones for an optimal solo listening experience. The headphone amp will also automatically turns off the headphone amplifier when headphones are not connected to the unit to minimise unwanted noise.
Reference Quality D/A Conversion
The CD6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, offering two selectable filter options, and provides up to 192-kHz/24-bit and DSD 5.6MHz resolution for optimum musical fidelity with tight bass, pleasant mids and smooth extended highs for CD playback and Hi-Res formats from USB memory devices.
High Current Power Supply
The audio power supply employs high speed, high current Shottky Barrier Diodes and new higher value current storage capacitors compared to the previous model. The size of the power supply capacitors has been increased by 120 for improved current stability and reduced AC noise during high demanding listening sessions.
- Versatile playback for your CD and CD-R/RW collection
- Play all your music files through the front USB port including WAV, MP3, AAC, WMA, FLAC HD, ALAC, AIFF and DSD
- High-quality AK4490 D/A conversion, ideal for high-resolution files
- Two selectable digital filters to optimise digital music content
- Engineered for pristine quality, sound tuned with carefully selected components
- Full discrete headphone amplifier with HDAM-SA2, gain control and auto-off function
- Double-layered bottom plate and rigid feet eliminate interference for cleaner sound purity
- Gold Plated L/R/Coax output for a strong continuous connection to your amplifier
- System remote controls Marantz CD Player, amplifier, and network player
Package includes
Features
| Channels | 2 |
|---|---|
| Current Feedback Topology | Yes |
| Phono EQ | Standard |
| Sample Rate Digital In | 192kHz / 24-bit |
| DAC Chip | AK4490 |
| HDAM Version | SA3 |
| Power Transformer | Toroidal |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetrical PCB Layout | No |
| Aluminium Extrusion Heat Shrink | Yes |
| Copper Plated Chassis | No |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Other
| Marantz Musical Digital Filtering | Yes |
|---|---|
| Linear Drive Power Supply | Yes |
| Linear Volume Control | Yes |
| BI-AMP And Multichannel Option | No |
| Shottky Diodes | Yes |
| Source Direct | Yes |
| Power Amp Direct | No |
Inputs / Outputs
| Audio Inputs | 5 |
|---|---|
| Digital In | 2 Optical
1 Coaxial |
| Phono Input | MM |
| Audio Outputs | 1 |
| Pre-Out | Subwoofer |
| Power Amp Direct IN | No |
| Gold Plated Cinch | Yes |
| Speaker A/B | Yes |
| Speaker Terminals | Metal (Gold) Screw |
| Number Of Terminals | 4 |
| D-Bus | Yes |
| Headphone Out | Yes |
| Power Output (8 / 4 Ohms RMS) | 45 W / 60 W |
|---|---|
| Frequency Response | 10 Hz – 70 kHz |
| Total Harmonic Distortion | 0.08 |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2.2 mV / 47 kOhm |
| Signal To Noise Ratio: MM | 83 dB |
| Input Sensitivity: High Level | 200 mV / 20 kOhm |
| Signal To Noise Ratio: High Level | 102 dB (2V Input) |
General
| Available Colours | Black / Silver-Gold |
|---|---|
| Metal Front Panel | Yes |
| Power Consumption | 155 W |
| Standby Consumption | 0.3 W |
| Auto Power Off | Yes |
| Detachable Power Cable | RC004MCD |
| System Remote Function | Yes |
| Dimensions (W x D x H) | 440 x 370 x 105cm |
| Carton Dimensions (W x D x H) | 517 x 468 x 189cm |
| Weight | 7.8kg |
| Carton Weight (Incl. Product) | 9.7 kg |
| CD Compatibility CD / CD-R / SA-CD / WMA / MP3 / AAC | Yes / Yes / No / Yes / Yes / Yes |
|---|---|
| CD-Text / SA-CD Text / ID3 Tag / WMA Meta Tag / AAC Meta Data | No / No / Yes / Yes / Yes |
| HDAM Version | HDAM + HDAM SA2 |
| Power Transformer: Toroidal / El | No / Yes |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetric Circuit Layout | Yes |
| Copper Plated Chassis | No |
| Extra Metal Plate For Chassis Strengthening | Yes |
| Digital Out Off / Audio EX Mode | Yes / No |
| Headphone: Standard / Buffer / Current Feedback | No / Yes (HDAM-SA2) / No |
Other
| Selectable Filter: CD / SA-CD / DAC-Mode | Yes / No / No |
|---|---|
| Marantz Musical Mastering | Yes |
| Separated Rectifier Circuit For Analogue And Digital Circuitry | Yes |
| Display: Dimmer / Off | Yes / Yes |
Playback
| Program Play (CD) | 25 |
|---|---|
| Repeat | Yes |
| Random Play | Yes |
Inputs / Outputs
| Analogue Out (Cinch) | 2ch |
|---|---|
| Balanced Output | No |
| Digital Optical In / Out | 0 / 1 |
| Digital Coaxial In / Out | 0 / 1 |
| Gold Plated Cinch | Yes |
| USB Audio (Front) / Made for iPod / Made for iPhone | Yes / No / No |
| USB-A | FLAC / WAV / AIFF / ALAC / DSD |
| D-Bus | Yes |
| Headphone Out | Yes |
| Headphone Volume Control | Yes |
| Mechanism | JTL-101Y |
|---|---|
| D/A Conversion | Multi-Bit, Delta-Sigma |
| DAC IC | AK4490 |
| Digital Filter | AK4490 |
| Noise Shaper | AK4490 |
| Low Pass Filter Stage | HDAM |
| Output Buffer | HDAM SA2 |
| Headphone Amp | HDAM-SA2buffer-OPAMP |
| Frequency Response | 2 Hz – 20kHz |
| Dynamic Range | 100 dB |
| Signal To Noise Ratio | 110 dB |
| Total Harmonic Distortion | 0.002 |
| Channel Separation | 98 dB |
General
| Available Colours | Black / Silver-Gold |
|---|---|
| Metal Front Panel | Yes |
| Remote Control | RC004PMCD |
| Power Consumption | 32W |
| Standby Consumption | 0.3W |
| Auto Power Off | Yes |
| Detachable Power Cable | Yes |
| Maximum Dimensions (W x D x H) | 440 x 340 x 105cm |
| Carton Maximum Dimensions (W x D x H) | 517 x 468 x 189cm |
| Weight | 6.5kg |
| Carton Weight (Incl. Product) | 8.8kg |
