Full Description
Award
Hall Of Fame Winner 2021
“Marantz refines its Award-winning budget amp recipe”
2022-2023 Best stereo amplifier under £500
“Marantz’s affordable amp retains its lead for yet another year”
2020-2021 Best stereo amplifier £400-£600
“The clearest evidence of the line’s evolution lies in the PM6007’s performance. Its sonic character is as familiar as its casework: smooth, full-bodied and balanced, with a pleasing spaciousness. Like its predecessor, it’s about as agreeable a performer as you could ask for at this price.”
“The extra ‘i’ appears to have brought extra sonic maturity with it, making its predecessor sound comparatively crude and less detailed by comparison. The 3010is demonstrate greater clarity and refinement, and prise open the soundstage that bit wider so instruments can site themselves more securely on it.”

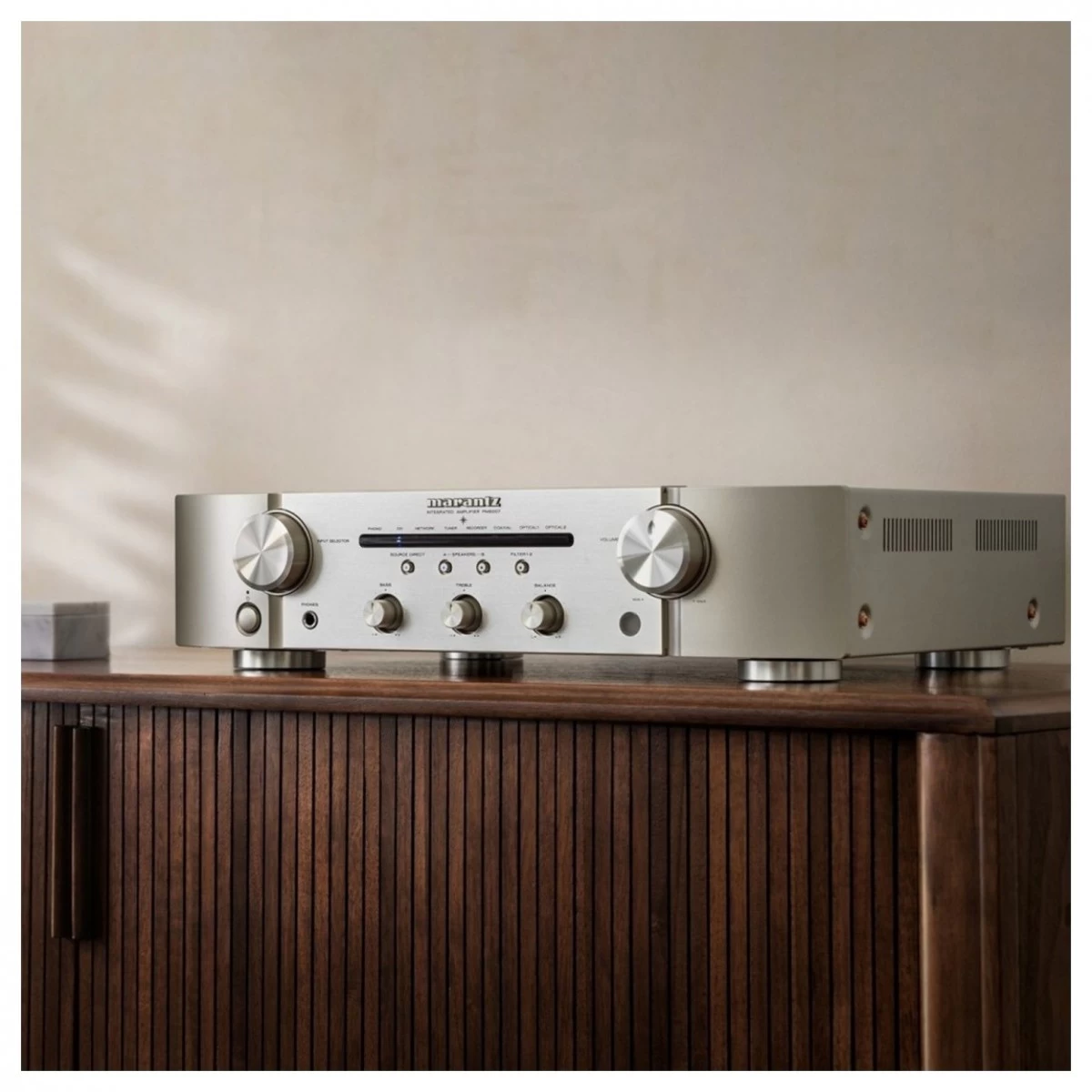

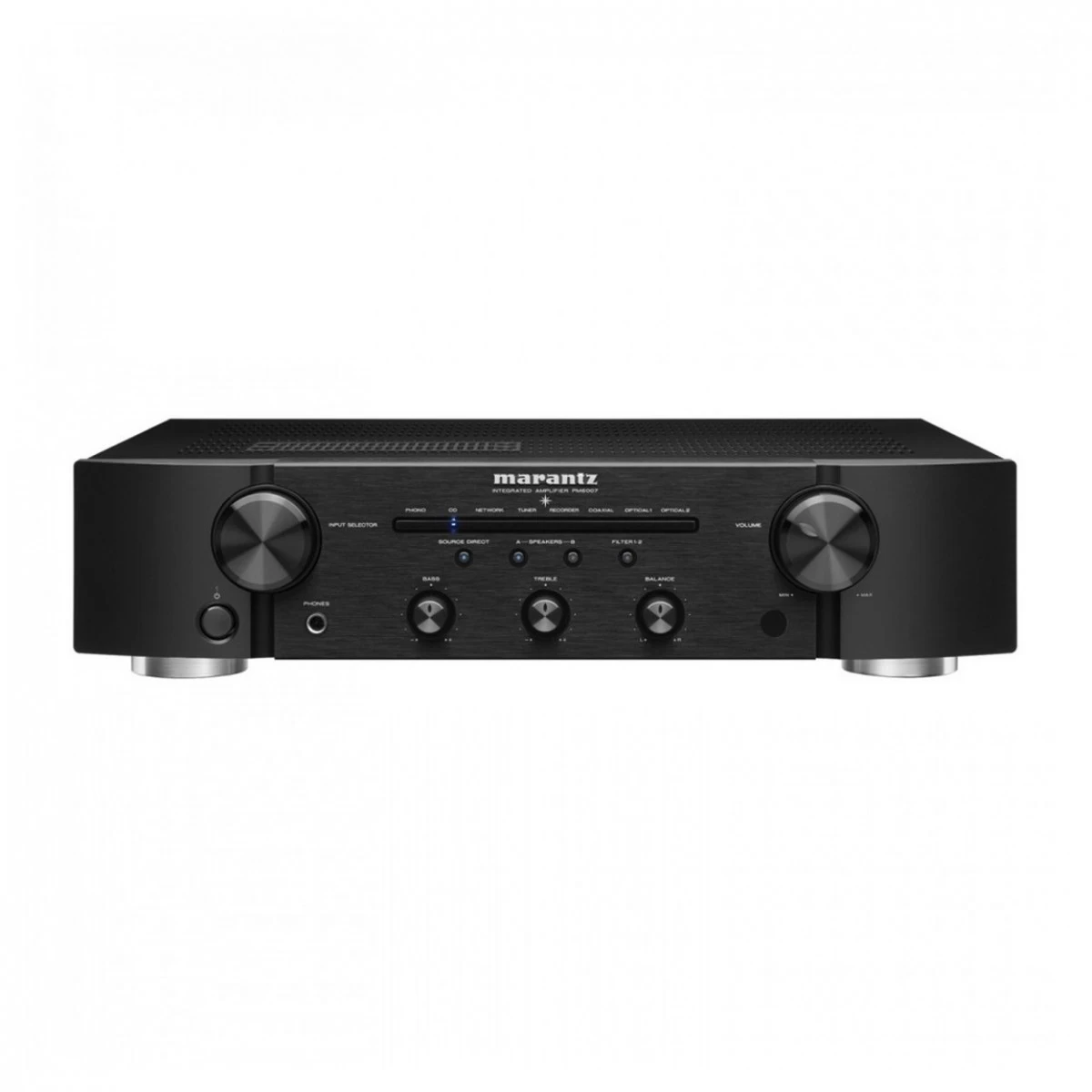

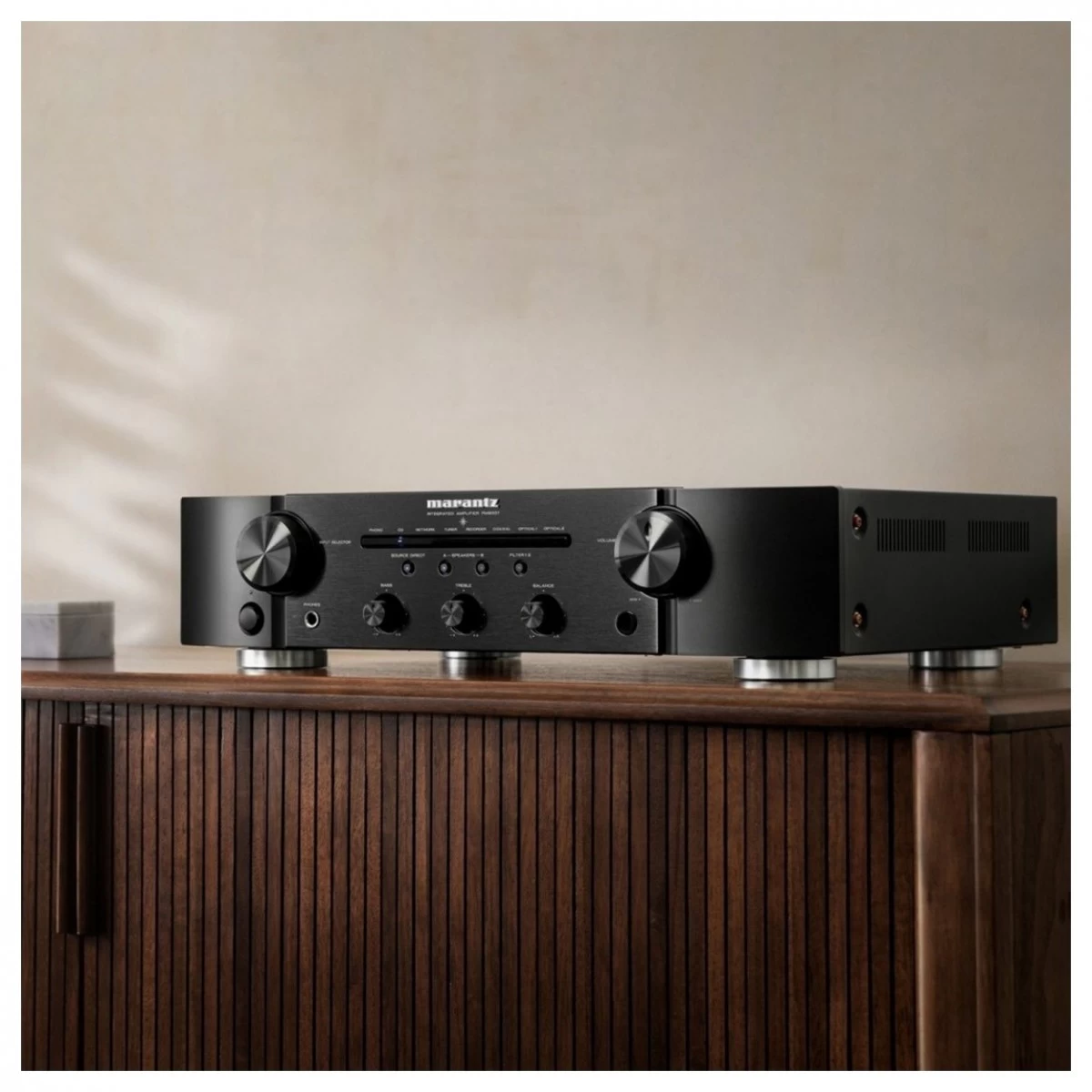

Marantz PM6007 Integrated Amplifier
Toroidal Transformer
The technology at the core of this amplifier is a toroidal transformer, a component which delivers power more efficiently than standard EI core transformers. The toroidal shape offers greater power in a smaller form so your PM6007 amplifier can do more without taking up extra space in your home. With low levels of electromagnetic radiation and mechanical vibration, the sound is never restricted.
Low Impedance; High Dynamic Range
Power from the PM6007’s toroidal transformer is supported by high-current storage capacitors and Schottky Barrier Diodes. These quality components, specially selected for their electrical benefits by experts at Marantz, contribute to a broad dynamic range and low-impedance drive.
Current Feedback Amplification
Wide bandwidth and high slew rate deliver sound without delay in the PM6007. This is thanks to the current feedback amplifier type adopted for this model. Moreover, advanced thermal compensation prevents memory distortion while power is stored in a substantial energy reserve. This ensures sound clarity remains high.
Brilliant D/A Conversion
The PM6007 is equipped with a reference class D/A converter that creates stunning audio quality. It will provide 192-kHz/24-bit resolution so you can get immersed in your favourite music. With a built-in MM phono pre-amp with FET input, you can seamlessly connect to your turntable and optimise your favourite vinyl records.
Thundering Bass
Offering a subwoofer output, you can take the sound of the bass to another level by connecting the PM6007 to a high-quality subwoofer. The Advanced Thermal Compensation provides minimal memory distortion so you can clean audio.
Features
- Built-in phono pre-amplifier for true-to-performance sound through your turntable
- High-quality digital-to-analogue converter (AK4490) processes digital signals fast
- Two 45W channels with an efficient power transformer and power reserve
- Range of inputs including five analogue, one coaxial, and two digital optical inputs
- Digital filter modes for optical and coaxial inputs
- No memory distortion even with powerful bass
- A fixed low pass cut-off frequency of 150Hz with an external subwoofer allows you to enjoy deeper bass
- Fully shielded DAC unit with copper screws and rigid feet providing true-to-performance sound
What’s in the box?
- Marantz PM6007 Integrated Amplifier
- Remote Control (RC004MCD)
- Two AAA batteries
- Power Cable
- Quick Start Guide
Free Gift!
Get the for free with every purchase of this amplifier! Connect to your speakers and HiFi equipment or record players straight away and get engrossed in a world of great sound.
Q Acoustics Q 3010i Bookshelf Speakers
The 3000i Series
The Q Acoustics 3000i range improves upon its predecessor, the 3000 range. New features of the 3000i range include an expanded colour selection (you can now choose from Arctic White, Carbon Black, Graphite Grey, and English Walnut), a smaller terminal mounting panel, extra-low-profile binding posts, and larger cabinet volume. Such changes provide both cosmetic and sonic enhancements to the new and improved 3000i speaker series. Expect authentic Hi-Fi experiences with the 3000i speakers, whether you’re enjoying music, cinema, or games.
Mounting Options
The Q Acoustics Q 3020i speaker pair can be mounted on a bookshelf, cabinet or another flat surface with the supplied rubber feet for added support and stability. If you would rather raise your speakers to ear level with dedicated Q Acoustics speaker stands, these can be purchased separately. Alternatively, purchase dedicated wall brackets which will both tilt and turn for flexible positioning on your wall. Stand mounts and wall brackets are available in sizes custom-made for the 3020i bookshelf speakers.
Point-to-Point Bracing
Q Acoustics Point to Point (P2Pâ„¢) bracing concerns the placement of supportive bracing within the speaker enclosure. This bracing helps keep the internal resonance to a minimum for distraction-free listening. P2P bracing in the 3000i series has been added with the help of computers. This ultra-accurate method eliminates human error and therefore, reduces inconsistencies between speakers. Place your speakers on their rubber feet and enjoy bass without disruptive distortion or cabinet vibration.
Mid/Bass Driver
Within the 3000i range, each speaker features a precision-formed mid/bass driver comprising a coated paper cone, fabric suspension, ultra-stiff pressed steel bracket, voice coil, and motor system. These parts work together to achieve an ideal combination of stiffness, self-damping, and low hysteresis. These are constructed to further eliminate resonance between any components.
High-Frequency Driver
Tweeters within the 3000i series are similarly constructed for limited interference. They comprise an efficient motor system, 22 mm soft ring dome, silicone suspension system, steel stabilising rim, horn profile, and outer rim. The suspension system keeps vibration minimal and isolated for optimal performance.
What’s in the Box?
- 2 x 3010i Bookshelf Speakers
- 2 x foam bungs
- 2 x speaker grilles
- User manual
- Handling gloves
- 8 x rubber speaker grips
Marantz PM6007 Integrated Amplifier Specifications
Dimensions
| Maximum dimensions (W x D x H) | 440 x 370 x 105 mm |
|---|---|
| Packaged Dimensions (W x D x H) | 517 x 189 x 468 mm |
| Weight | 7.6 kg |
| Packaged weight | 9.7 kg |
General
| Channels | 2 |
|---|---|
| Current feedback technology | Yes |
| Phono EQ | Standard |
| Sample rate digital ln | 192 kHz / 24-bit |
| DAC chip | AK4490 |
| HDAM version | SA3, SA2 |
| Power transformer | Toroidal |
| High grade audio components | Yes |
| Customised components | Yes |
| Aluminium extrusion heat sink | Yes |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Power
| Power output (8/4 Ohm RMS) | 45 W / 60 W |
|---|---|
| Frequency response | 10 Hz – 70 kHz |
| Total harmonic distortion | 0.08 |
| Damping factor | 100 |
| Input sensitivity: MM | 2.2 mV / 47 kOhm |
| Input sensitivity: MC | No |
| Signal-to-noise ratio: MM/MC | 83dB / No |
| Input sensitivity: high level | 200 mV / 20 kOhm |
| Input sensitivity: balanced high level | No |
| Signal-to-noise ratio: high level | 102dB (2V input) |
| Input sensitivity: power amp direct IN | No |
| Signal-to-noise ratio: power amp direct IN | No |
| Power consumption | 155 W |
| Standby consumption | 0.3 W |
| Auto power off | Yes |

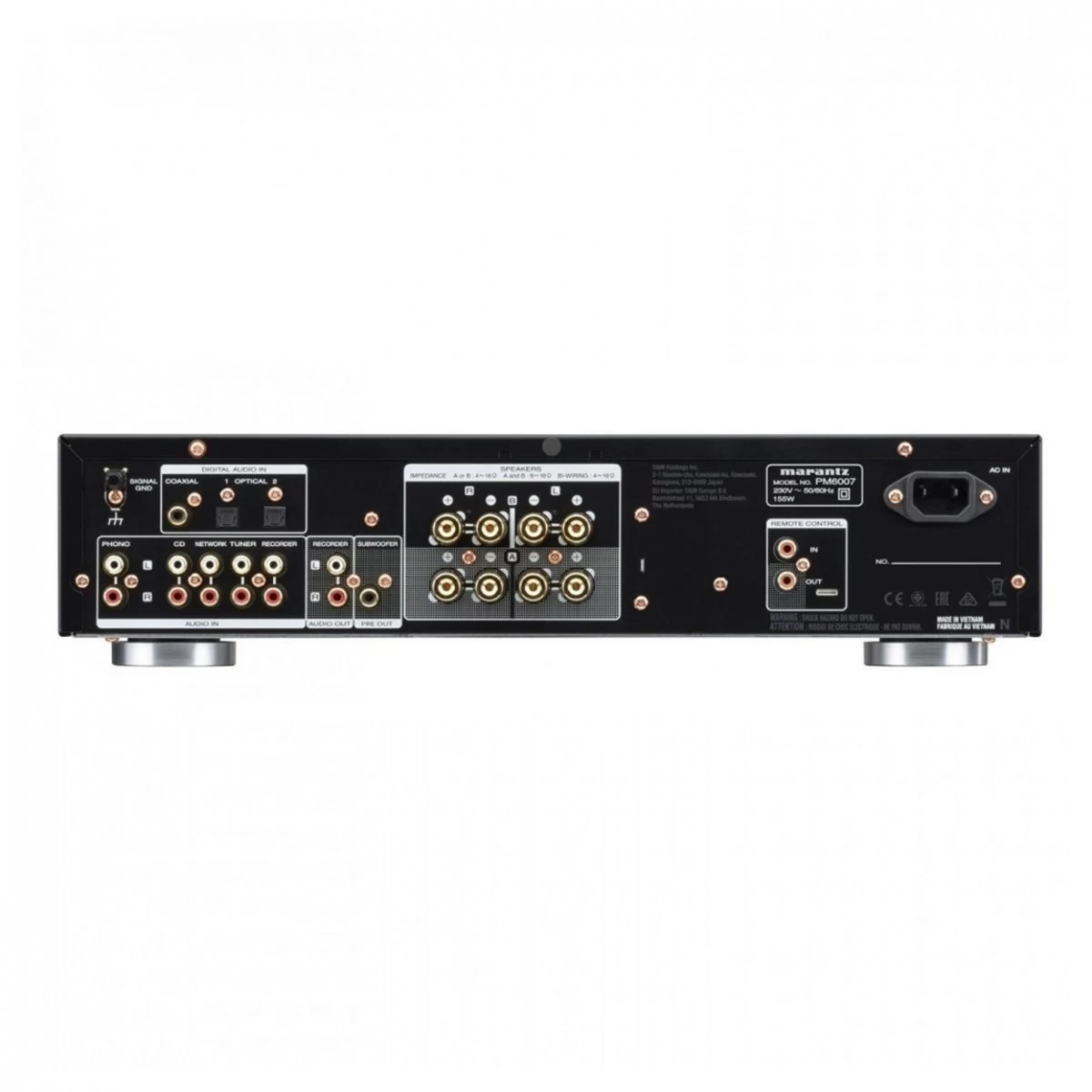

Inputs/outputs
| Audio inputs | 5 |
|---|---|
| Digital in | 2 optical, 1 coaxial |
| Phono input | MM |
| Audio outputs | 1 |
| Pre-out | Subwoofer |
| Gold plated cinch | Yes |
| Speaker A / B | Yes |
| Speaker terminals | Metal (gold) screw |
| Number of terminals | 4 |
| D-bus | Yes |
| Headphone out | Yes |
Other
| Marantz Musical Digital Filtering | Yes |
|---|---|
| Linear drive power supply | Yes |
| Linear volume control | Yes |
| Shottky diodes | Yes |
| System block shielding | None |
| Source direct | Yes |
Â
Q Acoustics Q 3010i Bookshelf Speaker Specifications
Dimensions
| Dimensions (W x H x D) | 150 x 253 x 252 mm |
|---|---|
| Weight Each | 4.1 kg |
General
| Enclosure type | 2-way reflex |
|---|---|
| Bass unit | 100 mm (4″) |
| Treble unit | 22 mm (0.88″) |
| Frequency response (+3 dB, -6 dB) | 65 Hz – 30 kHz |
| Average impedance | 6 Ω |
| Minimum impedance | 4 Ω |
| Sensitivity (2.83 V @ 1 m) | 86 dB |
| Stereo amplifier power | 15 – 75 Watts |
| AV receiver (2 ch. driven) | 50 – 125 Watts |
| Cross-over frequency | 2.6 kHz |
| Effective volume | 4.0 l (244 cu. inch) |
