Marantz PM6007 Amp, Black & KEF Q150 Speakers, Black Hi-Fi Package
Original price was: £350.00.£97.99Current price is: £97.99.
- Free Shipping Worldwide
- fast shipping
- Safe Payments, the Smart Choice
- Enjoy top quality items for less
Full Description
2022-2023 Best stereo amplifier under £500
“Marantz’s affordable amp retains its lead for yet another year”
2020-2021 Best stereo amplifier £400-£600
“Marantz refines its budget amp recipe with great success”
EISA Best Product 2018-2019
“A robust, stylish cabinet design is matched by an impressive performance bolstered by the latest version of KEF’s Uni-Q concentric driver.”

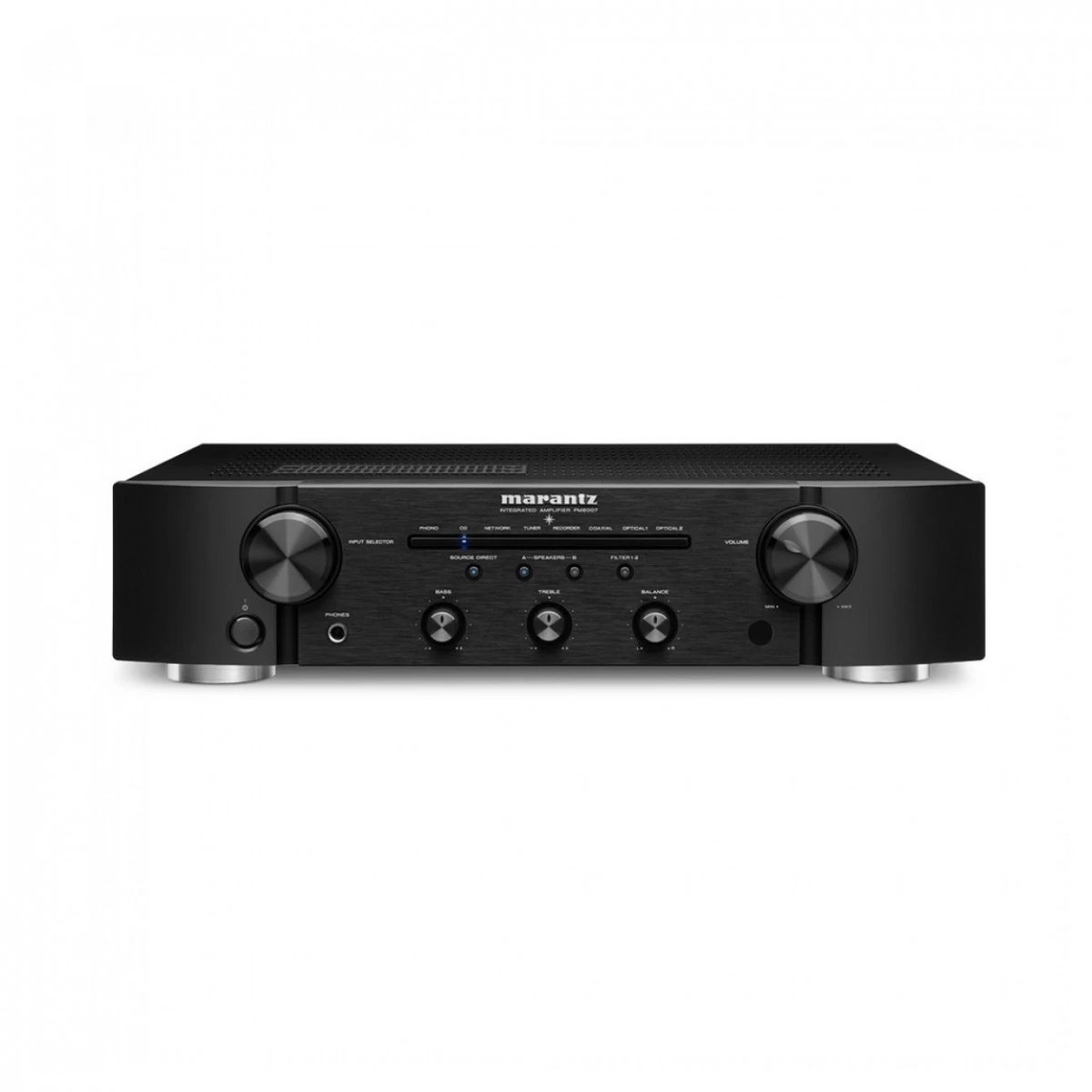

Marantz PM6007 Integrated Amplifier
Marantz maintains a steadfast reputation for choosing the best possible components for its Hi-Fi products, and the PM6007 is built with that same performance-first Hi-Fi approach. Marantz engineers selected and improved the PM6007 versus the previous PM6006 through extensive listening in dedicated Marantz facilities in Europe and Japan using Hi-Fi tuned sound parts. For example, increasing the size of the power supply capacitors by 20 improved stability during high demand listening sessions.
- The PM6007 integrated current feedback amplifier powers 2x 45W (8 ohms RMS, 20Hz – 20kHz)
- Wide range of connectivity including five analogue inputs, one coaxial input and two optical digital inputs
- Digital filter modes for optical and coaxial inputs
- The newly updated, high-quality DAC AK4490 offers a richer sound for your enjoyment
- No memory distortion for clean and precise audio reproduction even after powerful bass attacks
- A high-quality MM phono pre-amp with FET input to enjoy the signal purity from your vinyl
- Enjoy deeper bass using an optional external subwoofer with a fixed low pass cut off frequency at 150Hz
- In addition to high-quality speaker terminals with A/B switching capability, a fully-shielded DAC unit, and copper screws, the rigid feet provide a true-to-performance sound
Current Feedback Amplifier
The Current Feedback Amplifier technology provides wide-bandwidth and high-speed sound reproduction. In combination with the high current power supply, the PM6007’s amplifier section holds a large energy reserve to easily drive even the most demanding speakers. An advanced thermal compensation avoids memory distortion for clean amplification under any circumstances.
The Hyper Dynamic Amplifier Module consist of discrete surface mount components with short mirror image L/R signal paths. These devices do exactly the same thing as the Op-amps, but outperform these solutions dramatically in terms of the Slew Rate and reduced noise level, resulting in more dynamic, accurate and detailed sound.
In the PM6007, the HDAM-SA3 circuit improves on its previous module and the idling current stability is less influenced by power transistor temperatures to maintain sound performance even at high level output.
Reference D/A Conversion
The PM6007 features a new Hi-Res D/A conversion. It is equipped with a reference class AK4490 D/A converter, which provides up to 192-kHz/24-bit resolution for optimum fidelity with your Hi-Res audio file types.
High Current Power Supply
The power supply supports high current, high speed Shottky Barrier Diodes and high current storage capacitors fed by a Toroidal Transformer that together provide wide dynamic range and low impedance drive capability.
Toroidal Transformer
The highly efficient design of the Toroidal Transformer delivers more power compared to the same size EI core transformer. The shape lowers electromagnetic radiation and mechanical vibration for better sound quality.

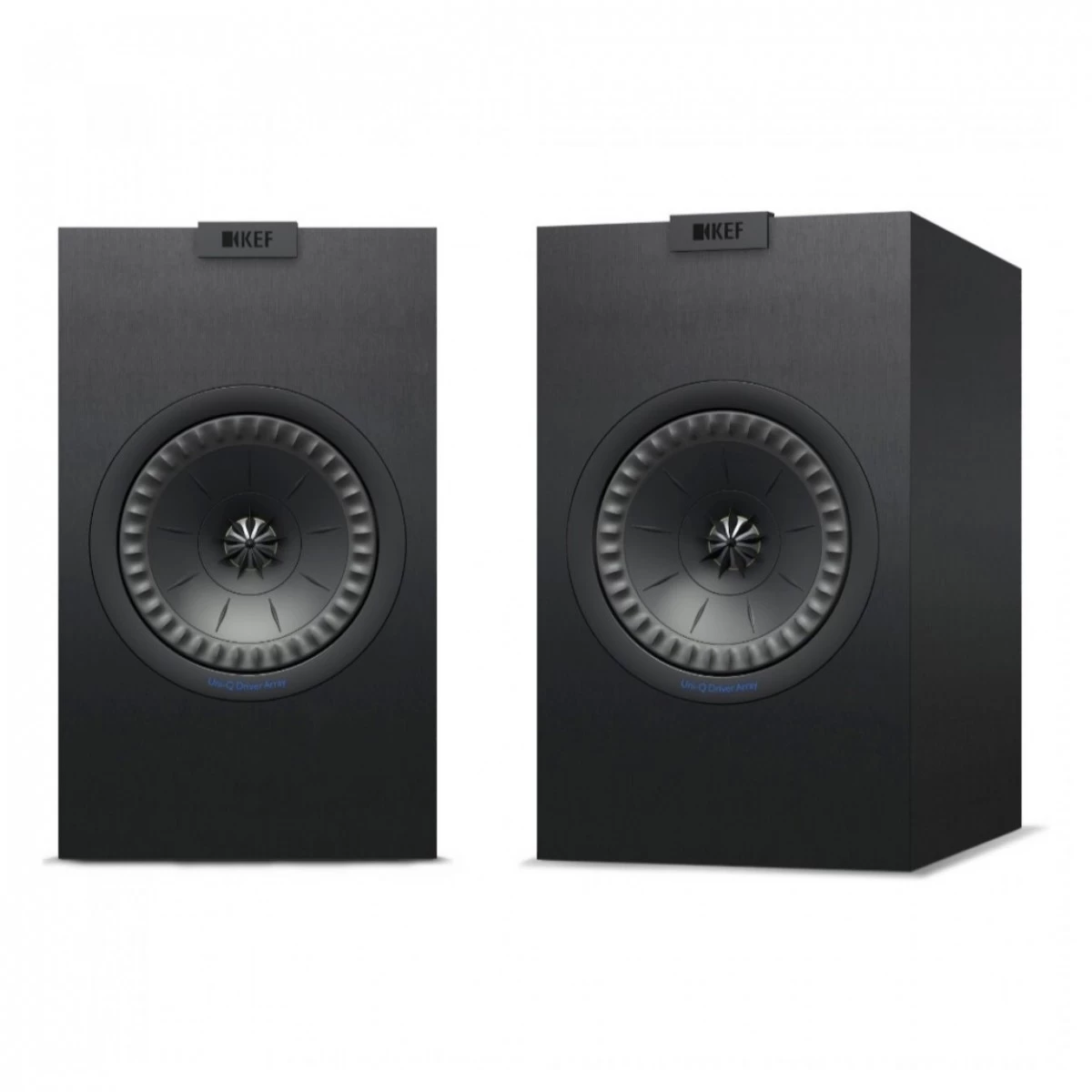

KEF Q150 Bookshelf Speakers
The Pleasure Of Sonic Perfection
Q Series speakers by KEF bring you the intensity of a musical performance in natural, accurate high-resolution sound. Since 1991 the award-winning Q Series has delighted music lovers with outstanding sound quality and innovative design. Its 8th iteration brings more depth and clarity for greater realism.
Uni-Q Sound
The Uni-Q driver array places the tweeter in the centre of the midrange and bass cone, bringing the acoustic ideal of a single point source closer than ever. The result, enhanced by KEF’s ‘tangerine’ waveguide over the tweeter, is a more accurate three-dimensional sound that’s dispersed evenly throughout the room.
New System Design
Putting the Uni-Q driver in its own sealed cabinet reduces the load on the cone and increases clarity and detail while delivering cleaner bass. Midrange clarity is enhanced by driver improvements that mean the DC blocking capacitor to be eliminated from the crossover, allowing a more natural roll-off between drivers.
Tweaking The Tweeter
With the addition of the damped tweeter loading tube providing a gentle termination of sound produced from the back of the tweeter, lower treble performance is improved dramatically and a new low-distortion inductor on the crossover provides cleaner bass. The Q Series reproduces the nuances of bass instruments with ease. With a larger roll surround and new suspension KEF drivers produce cleaner bass at high volumes. A new cone structure improves midrange clarity and an enhanced Auxiliary Bass Radiator (ABR) with a new surround and rear suspension enhances bass quality.
CFD-Designed Port
Featuring a Computational Fluid Dynamics (CFD) port design with the port repositioned to the rear of the speaker, clarity is improved by reducing the audibility of the midrange leakage through the port. Low-frequency (LF) drivers now have a larger roll surround, along with a new suspension to produce cleaner bass at high volumes. A new cone structure improves midrange clarity, and an enhanced Auxiliary Bass Radiator (ABR) with a new surround and rear suspension delivers better controlled and more impressive bass.

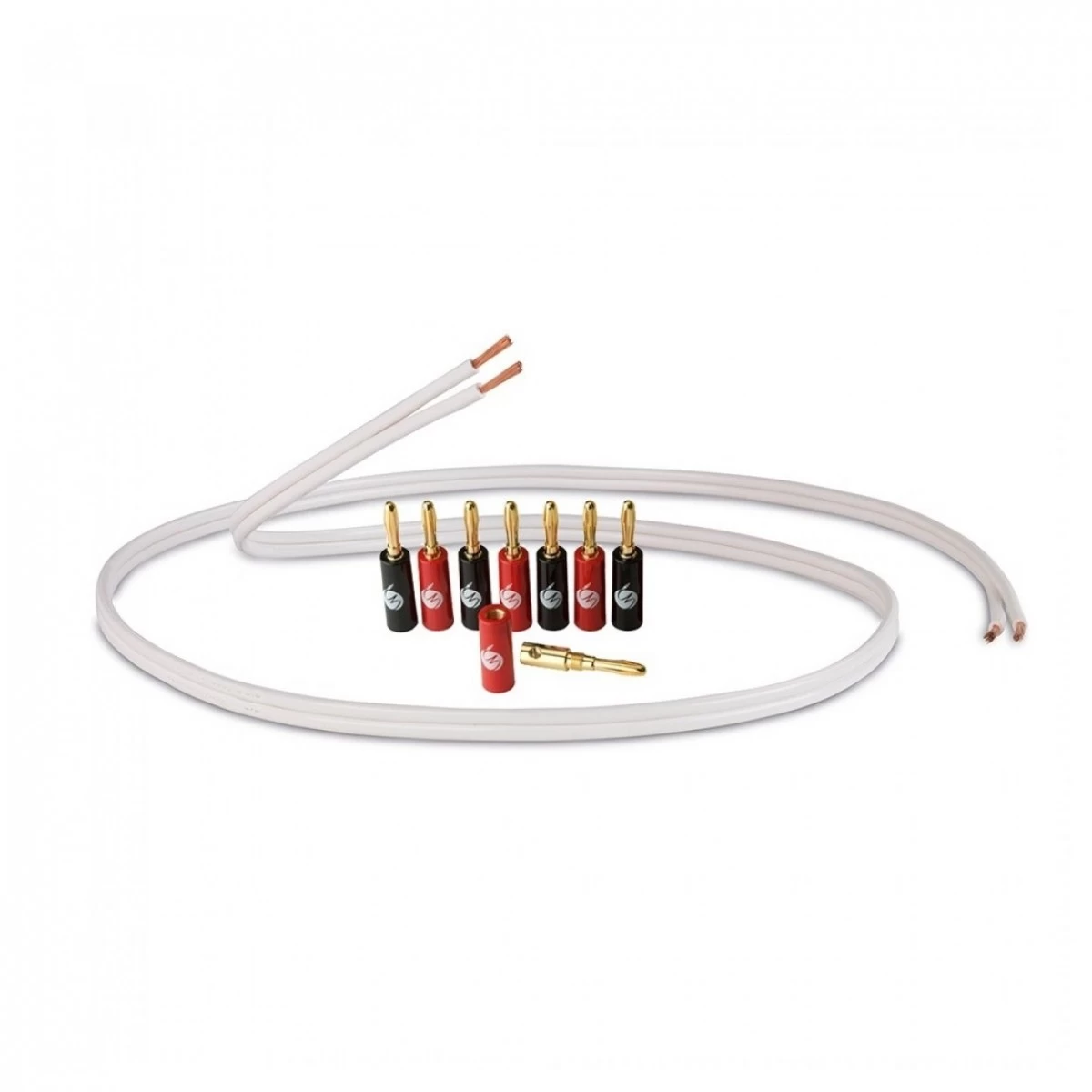

Package includes
Features
| Channels | 2 |
|---|---|
| Current Feedback Topology | Yes |
| Phono EQ | Standard |
| Sample Rate Digital In | 192kHz / 24-bit |
| DAC Chip | AK4490 |
| HDAM Version | SA3 |
| Power Transformer | Toroidal |
| High Grade Audio Components | Yes |
| Customised Components | Yes |
| Symmetrical PCB Layout | No |
| Aluminium Extrusion Heat Shrink | Yes |
| Copper Plated Chassis | No |
| Balance / Bass / Treble / Loudness | Yes / Yes / Yes / No |
Other
| Marantz Musical Digital Filtering | Yes |
|---|---|
| Linear Drive Power Supply | Yes |
| Linear Volume Control | Yes |
| BI-AMP And Multichannel Option | No |
| Shottky Diodes | Yes |
| Source Direct | Yes |
| Power Amp Direct | No |
Inputs / Outputs
| Audio Inputs | 5 |
|---|---|
| Digital In | 2 Optical
1 Coaxial |
| Phono Input | MM |
| Audio Outputs | 1 |
| Pre-Out | Subwoofer |
| Power Amp Direct IN | No |
| Gold Plated Cinch | Yes |
| Speaker A/B | Yes |
| Speaker Terminals | Metal (Gold) Screw |
| Number Of Terminals | 4 |
| D-Bus | Yes |
| Headphone Out | Yes |
| Power Output (8 / 4 Ohms RMS) | 45 W / 60 W |
|---|---|
| Frequency Response | 10 Hz – 70 kHz |
| Total Harmonic Distortion | 0.08 |
| Damping Factor | 100 |
| Input Sensitivity: MM | 2.2 mV / 47 kOhm |
| Signal To Noise Ratio: MM | 83 dB |
| Input Sensitivity: High Level | 200 mV / 20 kOhm |
| Signal To Noise Ratio: High Level | 102 dB (2V Input) |
General
| Available Colours | Black / Silver-Gold |
|---|---|
| Metal Front Panel | Yes |
| Power Consumption | 155 W |
| Standby Consumption | 0.3 W |
| Auto Power Off | Yes |
| Detachable Power Cable | RC004MCD |
| System Remote Function | Yes |
| Dimensions (W x D x H) | 440 x 370 x 105cm |
| Carton Dimensions (W x D x H) | 517 x 468 x 189cm |
| Weight | 7.8kg |
| Carton Weight (Incl. Product) | 9.7 kg |
| Design | 2-way bass reflex |
|---|---|
| Unit Measurement | Pair |
| Sensitivity | 86dB (2.83V/1m) |
| Frequency Range Free Field | 47Hz (-6dB) |
| Frequency Response | 51Hz-28kHz (±3dB) |
| Crossover Frequencies | 2.5kHz |
| Maximum Output | 108dB |
| Amplifier Requirements | 10-100W |
| Nominal Impedance | 8 Ohms (min.3.7 Ohms) |
| Drive Units | 130mm (5.25in.) 130mm (5.25in.) aluminium Uni-Q
25mm (1in.)vented aluminium dome HF |
| Crossover Frequencies | 2.5kHz |
| Finishes | Satin Black / Satin White |
| Weight | 5.6kg (12.3lbs) |
| Dimensions (H X W X D) | 303 x 180 x 278 mm
307 x 180 x 278 mm (with Rubber Feet) |
