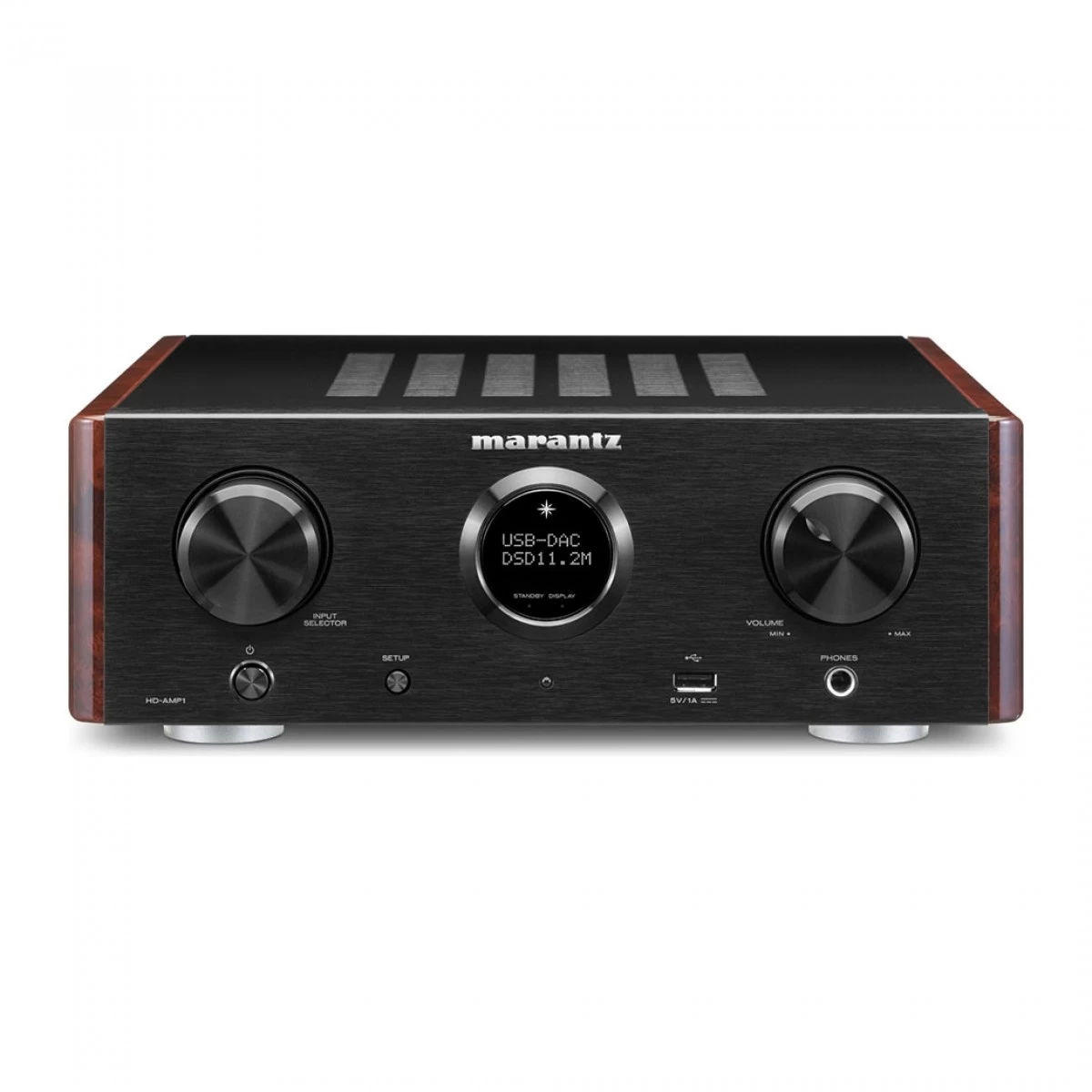

Marantz HD-AMP1 Compact Amplifier, Black

Full Description

The Marantz HD-AMP1 is a high class compact amplifier an elegant, classic look. But don’t let that misguide you, the advanced switching amplifier technology blasts out 70W at 4ohms, while its dual crystal clock and discrete DAC post filter with Marantz HDAM-SA2 modules make standard counted sound feel as incredible as high-resolution audio.

This new amp also gives you the unique Marantz Musical Digital Filtering (MMDF), with two selectable filter characteristics to cater for different tastes and music. Each handles even the minutest of detail with loving care within the digital audio signal. As today’s new media not only comes in 44.1kHz/16 bit resolution similar to the CD format, Marantz developed the digital section to handle signals of up to 384kHz/32bit resolution and DSD 2.8MHz / 5.6MHz / 11.2MHz.

Optical and coaxial digital inputs are ready to connect a TV or set-top box, and there is a USB-B port to stream music directly from your PC or MAC. iDevices can also be connected via the USB port on the front. To safeguard quality when connected to a computer, we built extended isolation around the USB-B input to eliminate the chance of high frequency noise generated by the computer entering the HD-AMP1.

Information on volume, input, resolution, and more is shown on the stylish Marantz Porthole Display. While the solid aluminum front is supported by a double layer bottom plate and retro-style side panels. Welcome to the world of compact ecstasy.

• Compact size Integrated Amplifier with digital inputs
• Current Feedback amplifier for pre-amplifier stage
• HDAM-SA2 for detailed audio reproduction
• Marantz Musical Digital Filtering

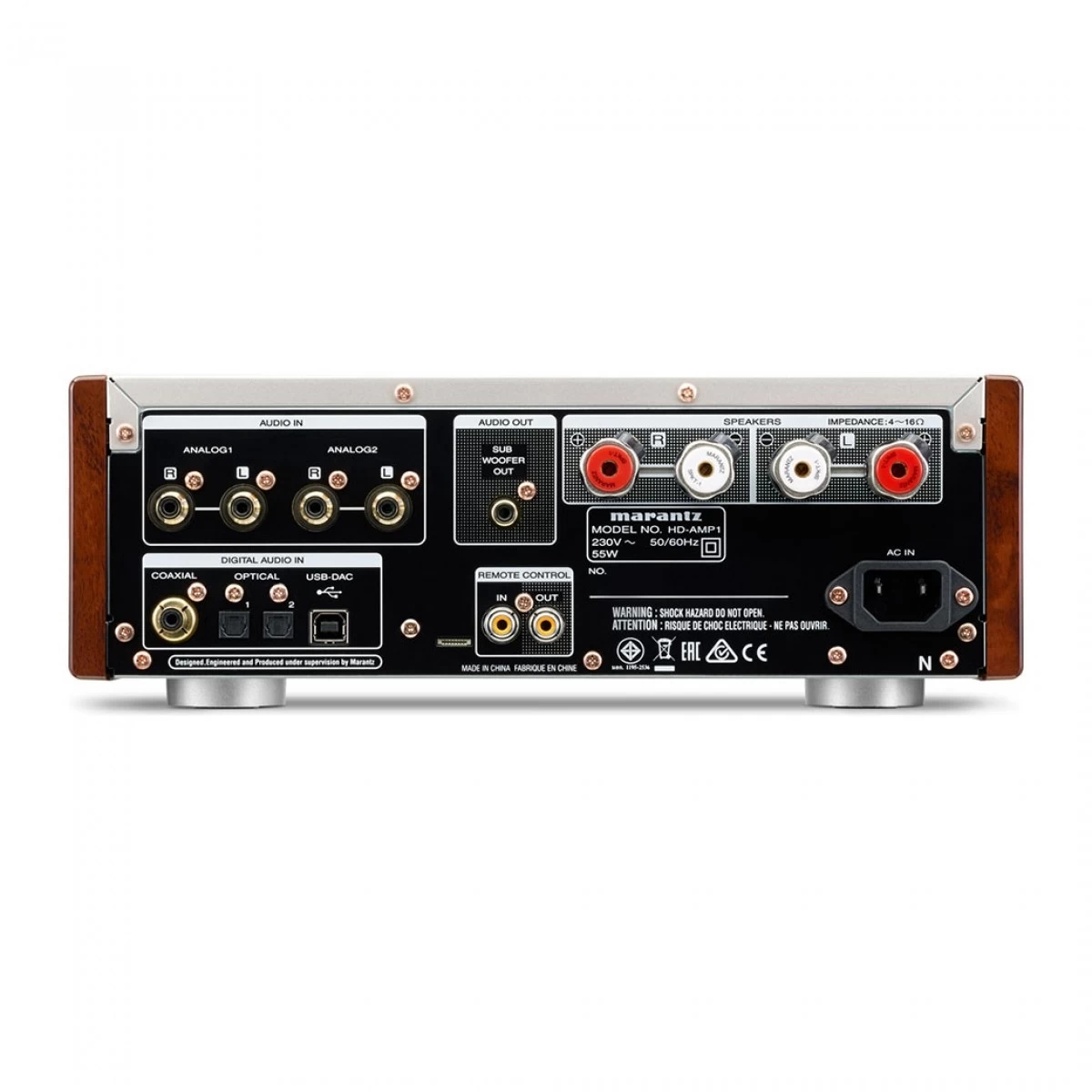

• 2x optical, coaxial and USB type B digital inputs
• High quality SABRE D/A converter
• Dual Clock for high digital accuracy
• Extended isolation for USB-B input to avoid computer noise distortion
• Gain control to support wide range of headphones
• Extended connectivity by 2 analogue inputs
• iDevice capable front USB input
• Marantz original speaker terminal SPKT-1

Power Output (8 / 4 Ohm RMS)	35W / 70W
Frequency Response	20 Hz-50 kHz
Total Harmonic Distortion	0.05%
Input Sensitivity: High level	200 mV / 22 kOhm
Signal to Noise Ratio: High level	105dB(2V input)

Features

Channels	2
HDAM version	SA2
USB-A: DSD / WAV / FLAC / AIFF / ALAC
USB-B DSD Audio Streaming (DoP)
Sample Rate Digital In	192 kHz / 24-bit
DAC Chip	Sabre ES9010KM2

General

Power Consumption	55W
Standby Consumption	0.3W

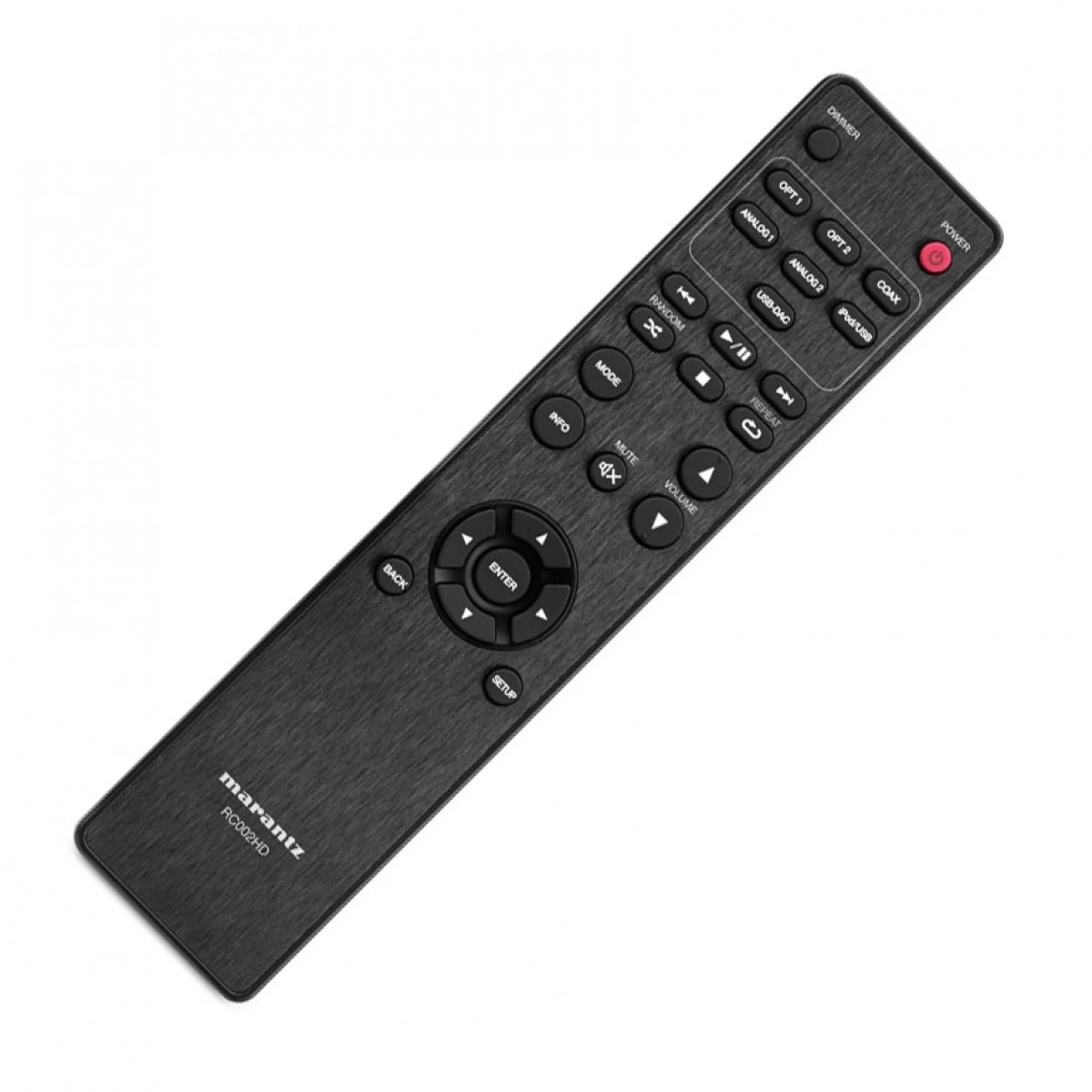

Remote Control	RC002HD
Maximum Dimensions (W x H x D)	304 x 107 x 352
Weight	5.8kg
