Full Description
Rich, high-resolution audio
Capable of playback up to 192-kHz/ 24-bit, this system has been tuned by the prestigious Marantz Sound Master for the highest resolution sound. This makes for an immersive, rich soundstage with true-to-life dynamics.
Luxury design
Crafted to produce a modern, architectural design with a classic feel. This amplifier will fit in perfectly with your listening space, bringing a sophisticated look and feel.
Selectable digital filter
Choose how you want to hear your audio. The CD 60 comes with a selectable digital filter which can be used to customise the audio to suit your space and taste.
Free Gift!

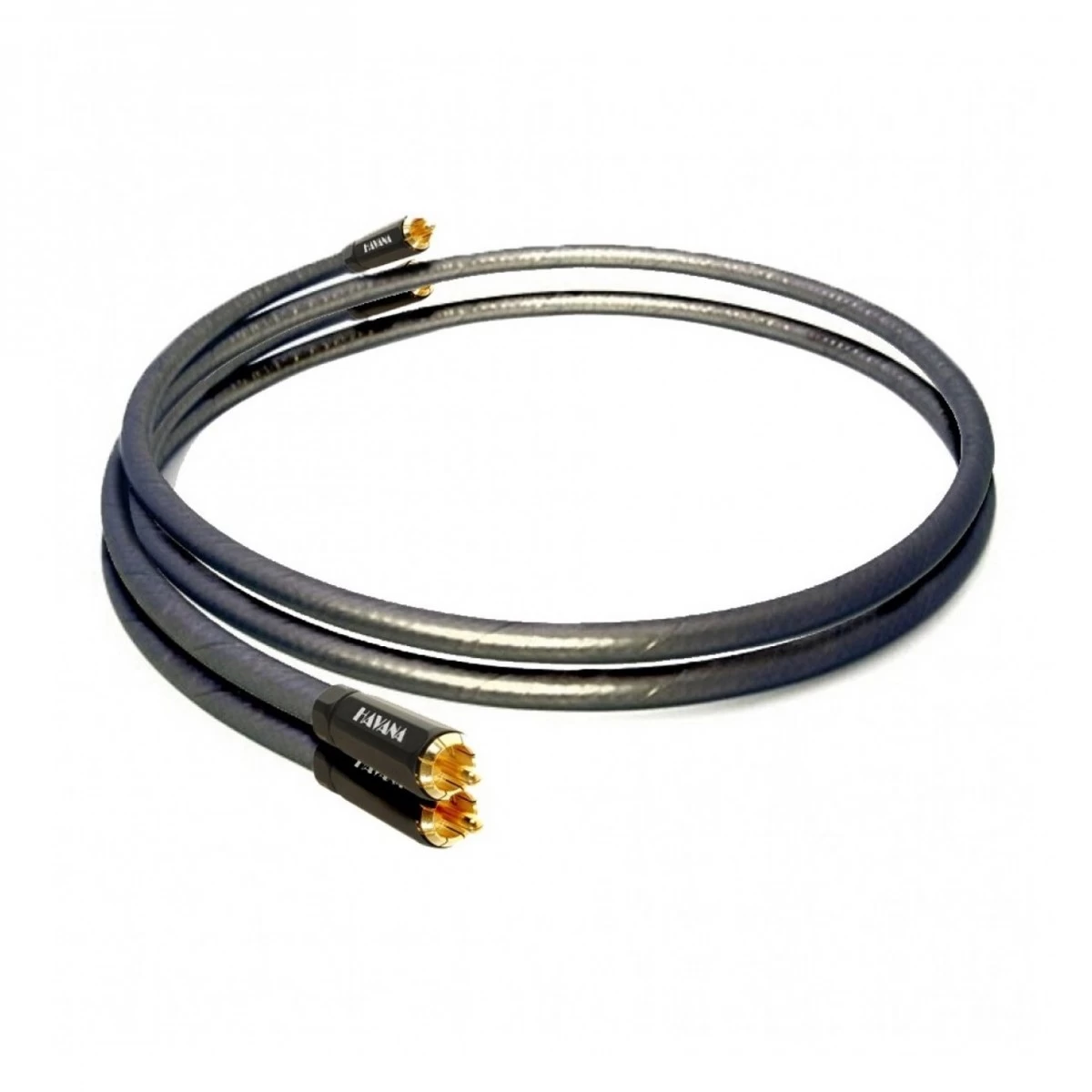

You can now enjoy the Marantz CD60 CD Player with a , which is totally free! You will now be able to effortlessly connect to your record player and immerse yourself in great records.
Optimised design
Engineered with a high-current and low-noise power supply. The refined design includes high-speed, high-current Schottky barrier diodes, higher value current storage capacitors and improved voltage regulators. This enhances your listening experience and allows you to hear all of the detail in your favourite songs.
Give a new life to your CDs
The CD60 is ideal for those listeners who enjoy the pleasures of CD listening but want to add another dimension to their listening experience. It offers the rich, warm audio that your collection demands.
Pair with Marantz amplifiers
The high-quality audio and complimentary visuals of Marantz amplifiers such as the MODEL 40n make them the ideal companion to the CD 60.
Features
- Hyperdynamic amplifier modules that bring out even the most subtle details in your CD collection
- Optimised HDAM Circuit gives the audio a more direct signal path
- High-current power supply with more stability and reduced noise, perfect for demanding listening sessions
- Playback from USB sources as well as CDs, allowing you to get the most out of your home listening system
- Reference-quality digital-to-analogue conversion – hear music how it is intended to be heard
- Customisable digital filter, allowing you to customise the sound to suit your taste and your space
- High-performance headphone amplifier – no quality compromise should be necessary when you can’t listen using your speakers
- Full-system remote control for maximum listening pleasure
- Expert tuning for maximum audio quality by the Marantz sound master
Power
| Power Consumption | 38W, 0.3W (Standby) |
|---|
Audio (USB DSD)
| Frequency Response | 2Hz – 50kHz (-3dB) |
|---|---|
| Harmonic Distortion | 0.0006 |
| S/N | 110dB |
| Dynamic Range | 110dB |
Audio (USB PCM 24-bit)
| Frequency Response | 2Hz – 50kHz (-1.5dB) |
|---|---|
| Harmonic Distortion | 0.0005 |
| S/N | 118dB |
| Dynamic Range | 118dB |
Audio (CD)
| Frequency Response | 2Hz – 20kHz |
|---|---|
| Harmonic Distortion | 0.0015 |
| S/N | 118dB |
| Dynamic Range | 101dB |
Audio (General)
| Line Output Level | 2.2Vrms |
|---|---|
| Variable Output Level | No |
| Headphone Output Level | 28mW / 32 ohms |
Features
| Output Circuit | New HDAM + HDAM-SA2 |
|---|---|
| Power Transformer | EI |
| Headphone Circuit | High slew rate op-amp + HDAM-SA2 |
| H/P Amp Gain Setting | Yes (Low / Mid / High) |
| Audio Options | Digital Out On/Off + Dimmer |
| DAC Circuit | ES9016K2M |
| Digital Filter | Filter 1, 2 Selectable |

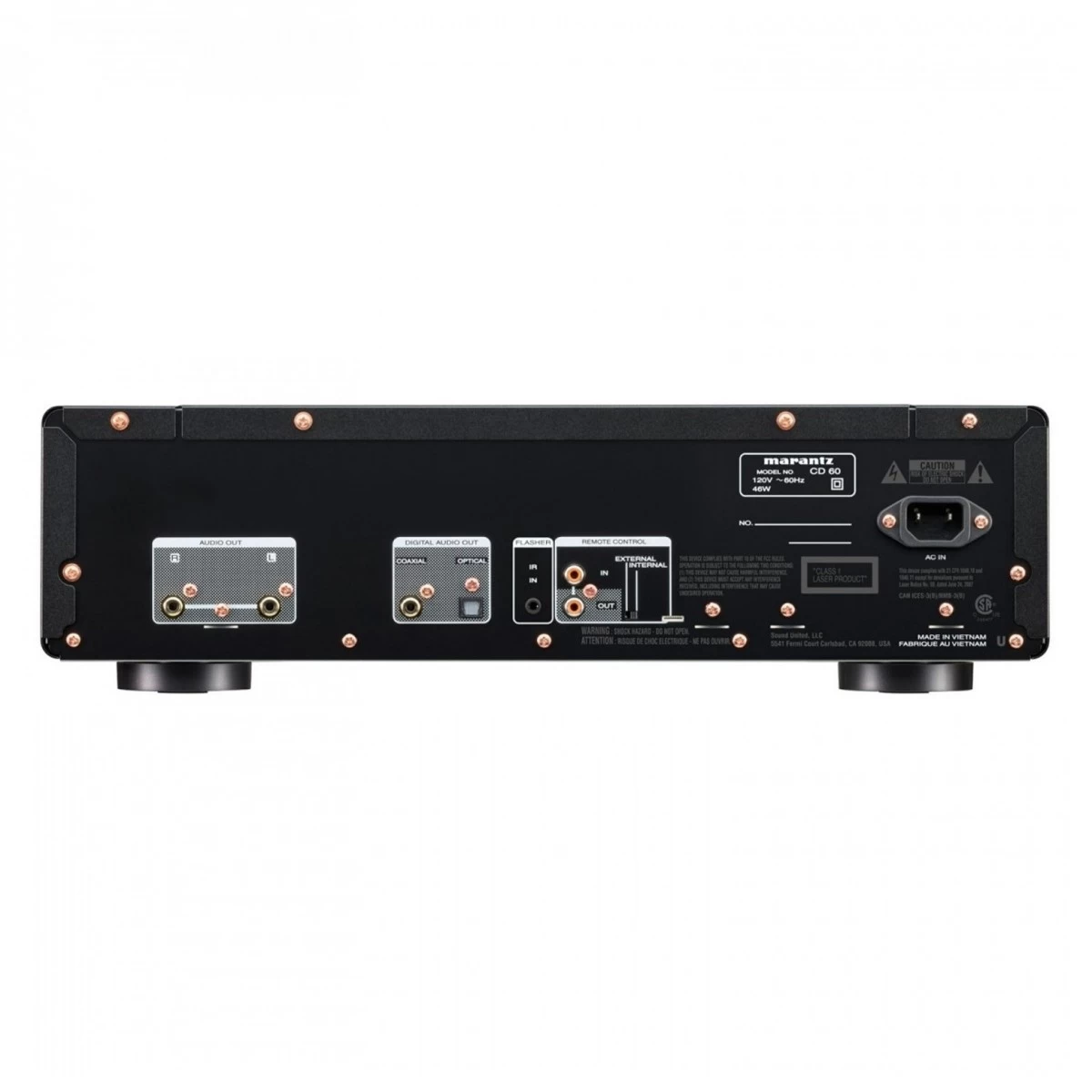

Connectivity
| Disc | CD / CD-R / CD-RW |
|---|---|
| Playability of Files Recorded on CD-R/RW | MP3, WMA |
| USB-A | 1 (Front); Mass Storage Class; 5V/1A |
| USB Drive Format | FAT16, FAT32 |
| Supported Audio File Format | MP3, WMA, AAC, WAV, FLAC, ALAC, AIFF, DSD (DISF / DSF) |
Control
| Remote Control Bus Terminal | Yes (RC-5 In / Out) with External / Internal Select Switch |
|---|---|
| RS232C | No |
| Flasher Input | Yes (U ver) |
Cosmetic
| Panel Color | Silver Gold / Black |
|---|---|
| Front Center | Panel Aluminum |
| Back Shell | Molded |
| Side Cover / Top Cover | SECC |
| Edge Lighting | No |
| Chassis Material | SECC |
Dimensions
| Dimensions (H x W x D) (mm) | 129 x 442 x 396 |
|---|---|
| Package Dimensions (H x W x D) (mm) | 249 x 525 x 511 |
Weight
| Weight (kg) | 7.5 |
|---|---|
| Package Weight (kg) | 10.2 |
Design
| Colour | Black |
|---|
