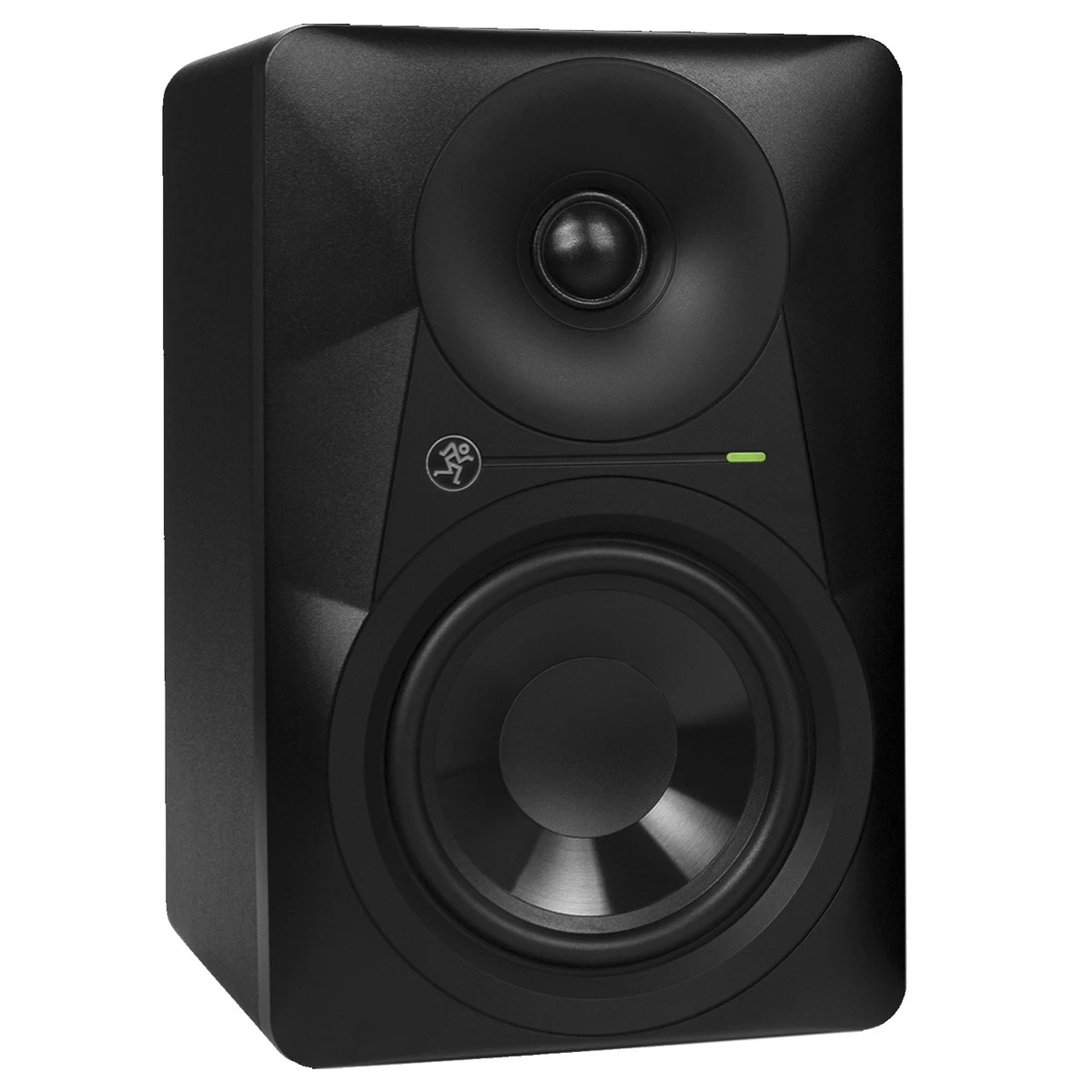

Mackie MR624 6.5” Powered Studio Monitor

Full Description

Logarithmic waveguide – wide dispersion and optimised stereo image

What sets the Mackie MR624 apart from standard studio monitors is Mackie’s custom logarithmic waveguide and ultra-flat frequency response, providing superior sound reproduction and optimised acoustic performance. The unique waveguide design provides ultra-wide dispersion which results in improved stereo imagining and a wider ‘sweet spot’, capturing every nuance of your source audio with extreme sonic precision. The accurate acoustic alignment ensures a balanced sound across the full frequency range, allowing you to make informed decisions when it comes to mixing and mastering.

Not only is the MR624 ideal for music production and audio engineering but it is also suited for a range of audio applications including podcasting, DJ’ing and multimedia work. Powered by a 65-watt Class A/B amplifier, the bi-amplified design provides all the power you need for exceptional audio fidelity. Comprised of a 1-inch silk dome tweeter and a 6.5-inch polypropylene woofer, the MR624 delivers a detailed high-end for vocal clarity and a powerful low-end.

Adjustable acoustic space filters and attenuation

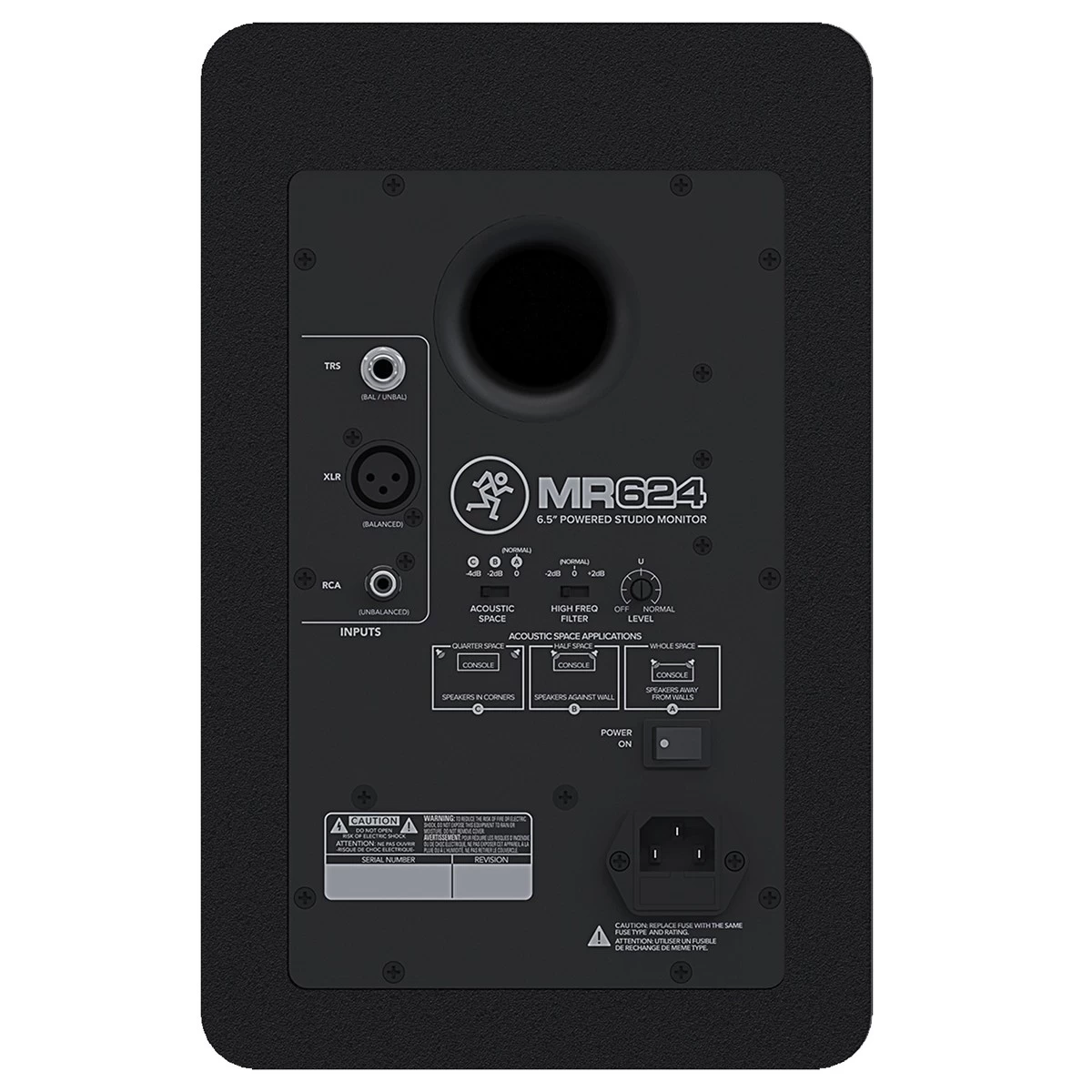

Another innovative feature of the MR624 is the adjustable acoustic plate filters, which are designed to maintain a flat frequency response in different workspaces. The rear panel features a three-position switch with handy annotated diagrams, allowing you to select which setting you require designed on your speaker placement. It also features a built-in high-frequency filter which allows you to boost/cut the tweeter to optimise your high-end response depending on your listening position. The rear panel also features a bass-reflex port for added low-end power as well as TRS, XLR and RCA connections.

Features

• Designed for superior mix translation & accuracy
• Logarithmic waveguide design
• Ultra-wide dispersion
• Precise acoustic alignment
• 1-inch silk dome tweeter
• 6.5-inch polypropylene woofer
• 65-watts bi-amplified Class A/B amplification
• Adjustable acoustic space filters
• HF filter with boost or cut
• Professional MDF cabinet design
• Custom designed internal bracing
• Flexible inputs
• Sound-tightening acoustic absorption material

Specifications

• Frequency Response (-3 dB): 45Hz – 20kHz
• Frequency Response (-10 dB): 38Hz – 20kHz
• Maximum SPL Peak: 105 dB SPL @ 1m
• Maximum SPL Per Pair: 111 dB SPL @ 1m
• Low Frequency Transducer: 6.5” Polypropylene Woofer
• High Frequency Transducer: 1” Neodymium Magnet Driven Silk Dome Tweeter
• Low Frequency Power: 40W RMS, 80W Peak, 4Ω Load
• High Frequency Power: 25W RMS, 50W Peak, 6Ω Load
• Type: Monolithic IC, Class AB With DMOS Power Stage
• Crossover Type: 24 dB/Octave
• Crossover Frequency: 3kHz
• Sensitivity: +4 dBu at 300Hz For Full Output
• Input Impedance: 20kΩ Balanced Bridging, 10kΩ Unbalanced
• High Frequency Equalisation: ±2 dB @ 3kHz and Above
• Inputs: 1 x TRS Balanced/Unbalanced, 1 x XLR Balanced, 1 x RCA Unbalanced
• Power Requirements
  • 120V: 60Hz
  • 220V – 240V: 50/60Hz
  • 100V: 50/60Hz
• Power Consumption: 120W With Music, Loud Mix, 11W Idle
• Enclosure: 12 mm Thick MDF With 24 mm MDF Front Panel
• Damping: Adiabatic Batting
• Weight: 7.5 kg
• Dimensions
  • Height: 328 mm
  • Width: 210 mm
  • Depth: 284 mm
• Product Code: 2048420-03
