Name: Lithe Audio Pro Series Ceiling Speaker (Single) W/ PoE Module
SKU: YXYUY 86839
Availability: InStock

Full Description

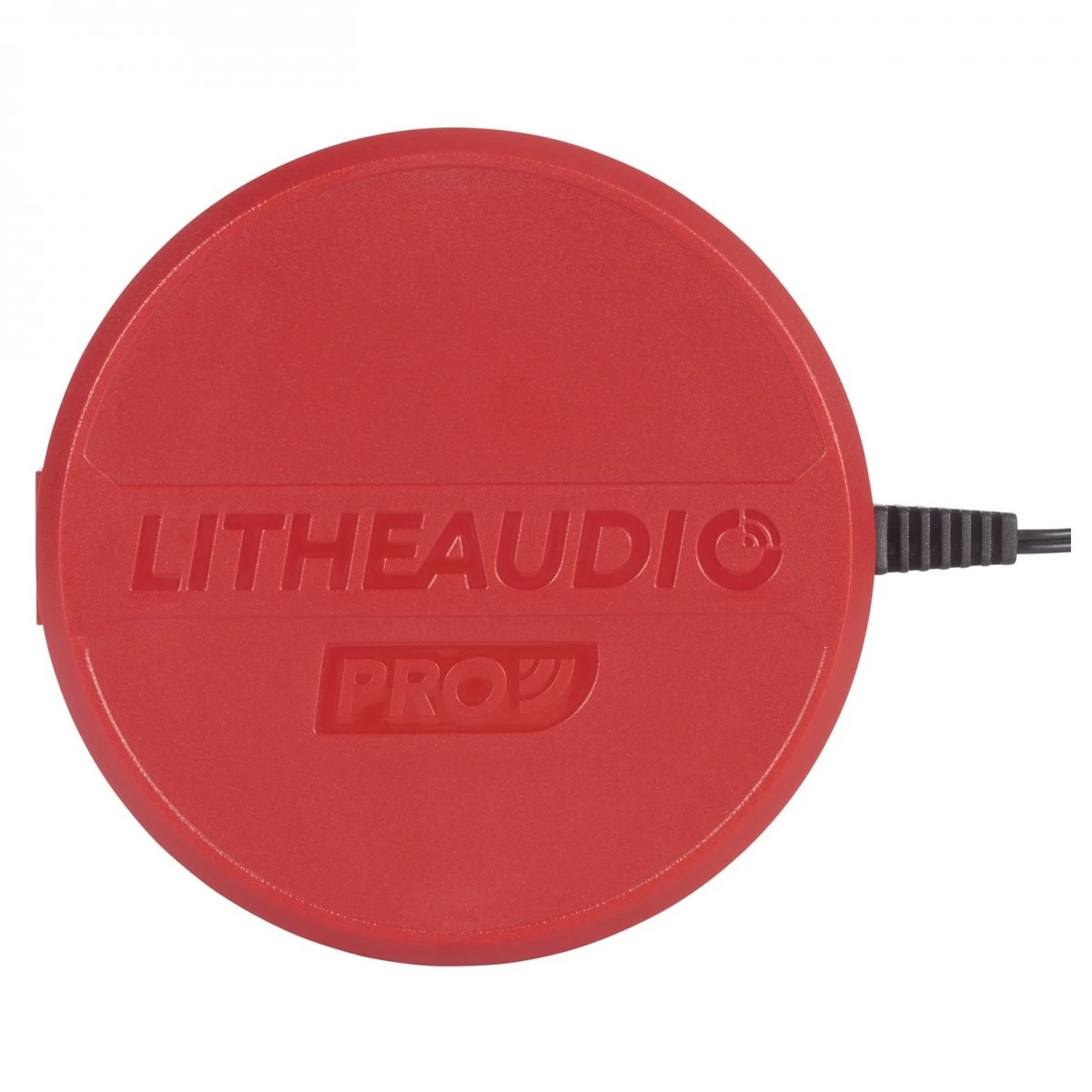

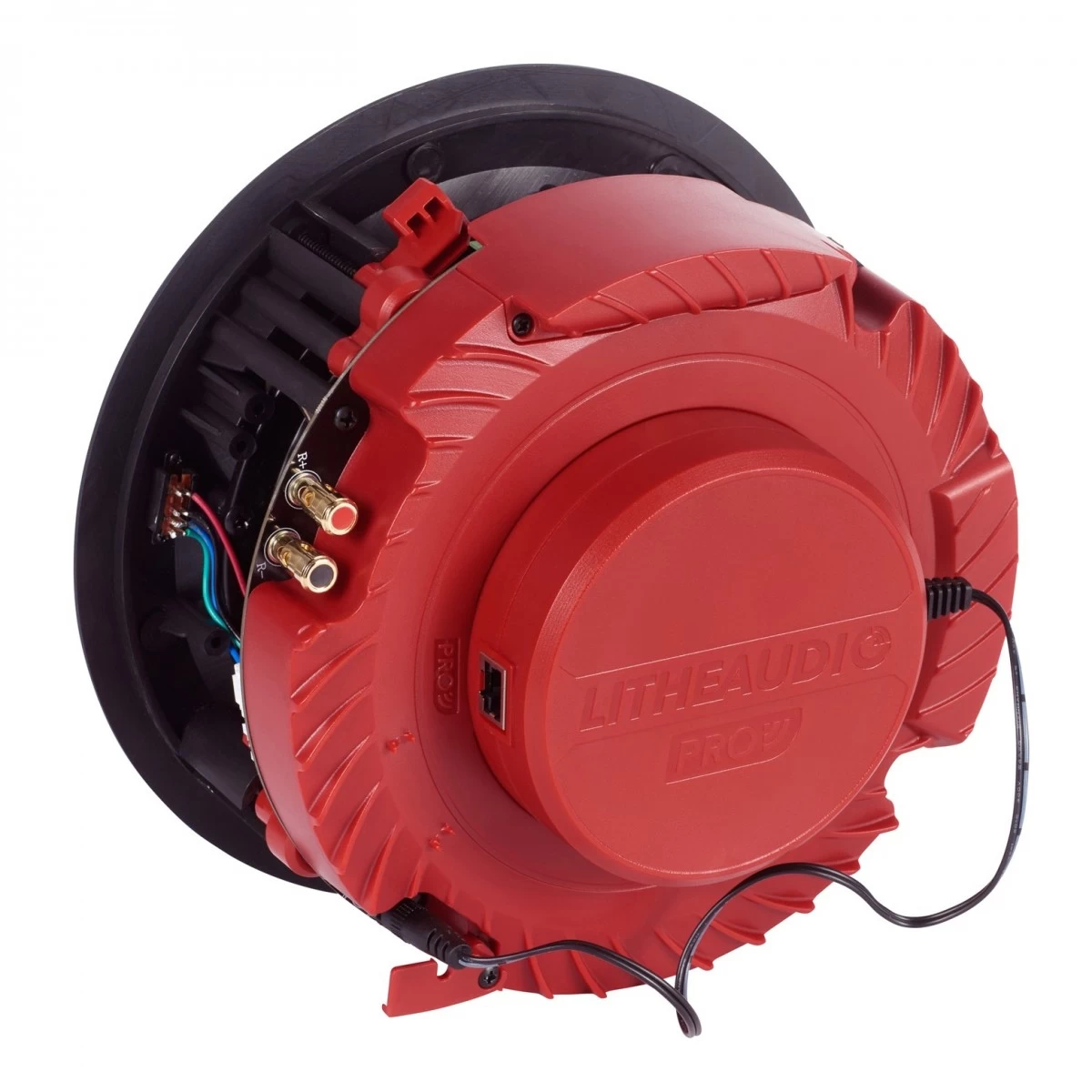

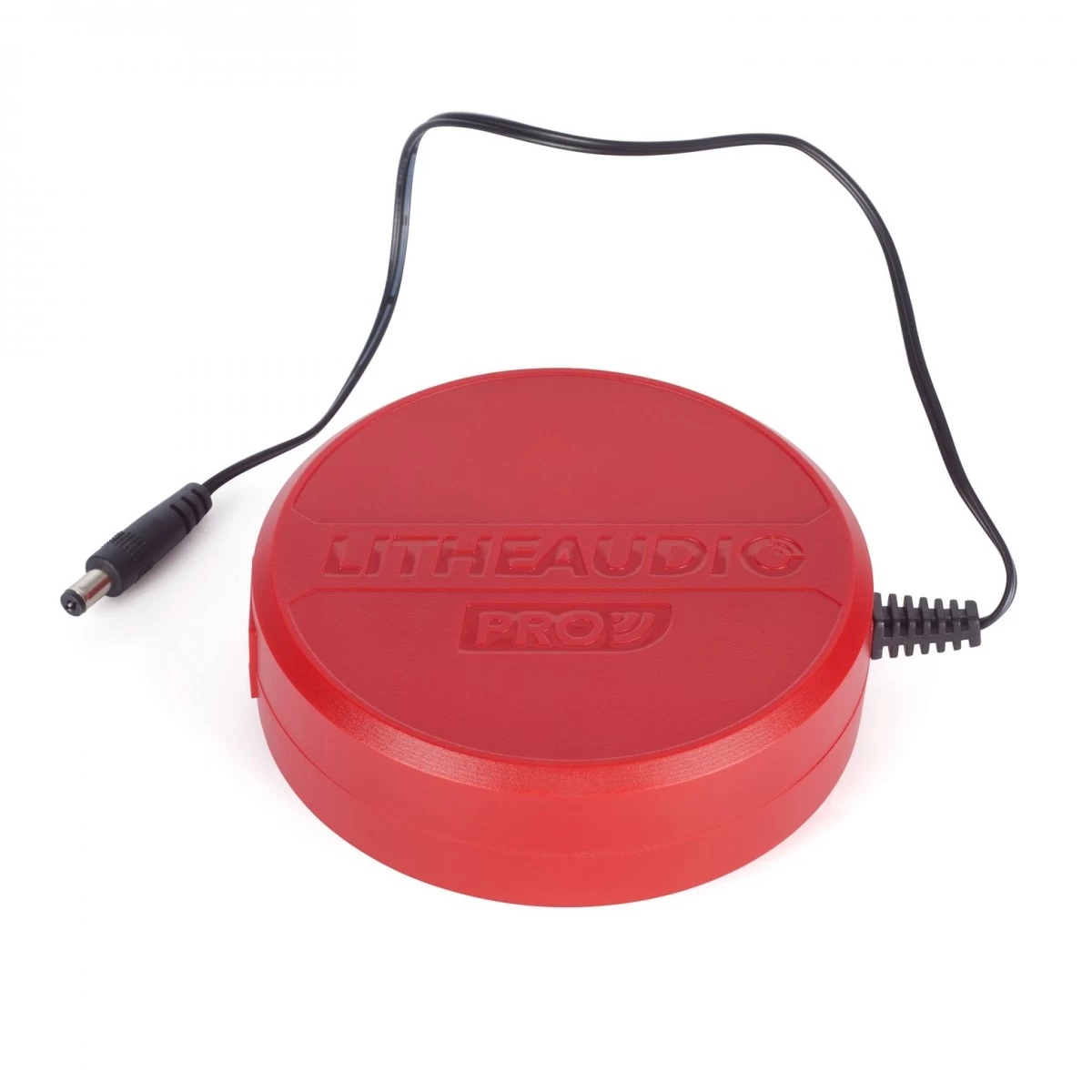

PoE Bolt-on

The Lithe Audio Pro Series PoE Bolt-On module is an optional extra device which enables your Pro Series ceiling speaker to take advantage of Power over Ethernet technology. The Pro Series uses the latest standard of PoE to provide up to 60W of power to each speaker, and with low voltage CAT6 cables you can do this safely and efficiently.

Wireless and Wi-Fi features

With Wi-Fi built into the speaker unit, the Pro Series offers many features that will greatly improve your listening experience. You can use the app for DSP features such as controlling the Treble, Mid and Bass levels all from your phone. You can apply presets to quickly recall the best settings for whatever you are listening to. Grouping speakers into zones for multi-room audio is also possible, and you can stream straight from your phone or tablet with Apple AirPlay or Google Chromecast.

Connectivity

A comprehensive home audio system requires versatility in connections. Fortunately, the Pro Series has just that. There is a high-quality digital optical input for your high-end AV equipment such as a TV. You can connect via Wi-Fi on either 2.4GHz or 5 GHz networks and you can also plug directly into your router with an ethernet cable. Daisy-chain your speakers together for a tidy and efficient cable run. Connecting a second passive speaker to your Pro Series is easy, simply attach via the right audio channel.

Expandable

These speakers are designed for the fast-moving world of audio technology. With the optional or included bolt-on modules, you can further improve the use of your speakers. The PoE module allows you to power your speaker system entirely with Power over Ethernet for a low voltage and efficient power solution. Further expand your speaker with the WiSA module and unlock the power of Dolby Atmos as well as interfacing with other WiSA-enabled devices.

Features

Multi-room Ceiling Speaker
All-in-one solution – Amplifier and Wi-Fi all built in, just add power.
Easily connect to plug socket or existing lighting circuit
Built-In AirPlay 2 and Google Chromecast
DLNA and UPnP
Connect up to 30 master speakers (30 zones)
App control via IOS or Android, full control with easy drag and drop zoning
Wireless and Wired Connection
High Res Audio
Expandable Hardware
WiSA Certified

PoE Specifications

PoE Standard	IEEE 802.3 af/at/bt powered device (PD)
Power Level	upto 71.3W
Max ethernet cable distance	100m / 3287ft
Equipment required	PoE Injector with 60w+ output CAT5 or CAT6 Cable Type 3

Speaker Specifications

Woofer	6.5″ Woven Glass Fiber Cone
Tweeter	0.75″ Titanium Cone
Mono/Stereo	Switch
RMS Power	60W RMS (2x 30W)
Impedance	8 Ohms nominal
Sound Quality THD+N 0.009	55Hz-20kHz (+/- 3dB)
Sensitivity (1W/1m)	90dB
Line In (Optical)	auto-detecting
Type	Class D (Digital)
Audio Compression	192Khz/24bits
Woofer	6.5” Woven Glass Fiber cone
Tweeter	0.75” Titanium Cone
Cut-out diameter	210mm
Weight	3.7kg
Dimensions (W x D)	230 x 110 mm
Power Input Supply	100 – 240V, 50/60Hz / 2A
Transformer Output Supply	DC24V / 2.5A
Standby power	1.3W / 0.02A
Connected power	1.5W / 0.03A
Playing Music	2.8W – 10.5W / 0.03A – 0.09A
Operating Temperature	0º to 40ºC (32º to 104ºF)
Storage Temperature	-20º to 70ºC (4º to 158ºF)
Connectivity	Wi-Fi certified 2.4Ghz / 5Ghz (802.11a/b/g/n/ac) Apple AirPlay 2 certified Google ChromeCast built-in certified Spotify connect certified Bluetooth Optical Ethernet Connection In / Out DLNA/uPnP connections Works with Alexa Works with OK Google WiSA with optional bolt-on Control4, Fibaro & Loxone Drivers Recommended Routers: Archer MR600 (TP-Link), UDM (Ubiquiti) and 2866AC-K (Draytek)
What’s in the box	Pro Series WiFi Ceiling Speaker Power Supply (13A) Cutting template Instruction manual
