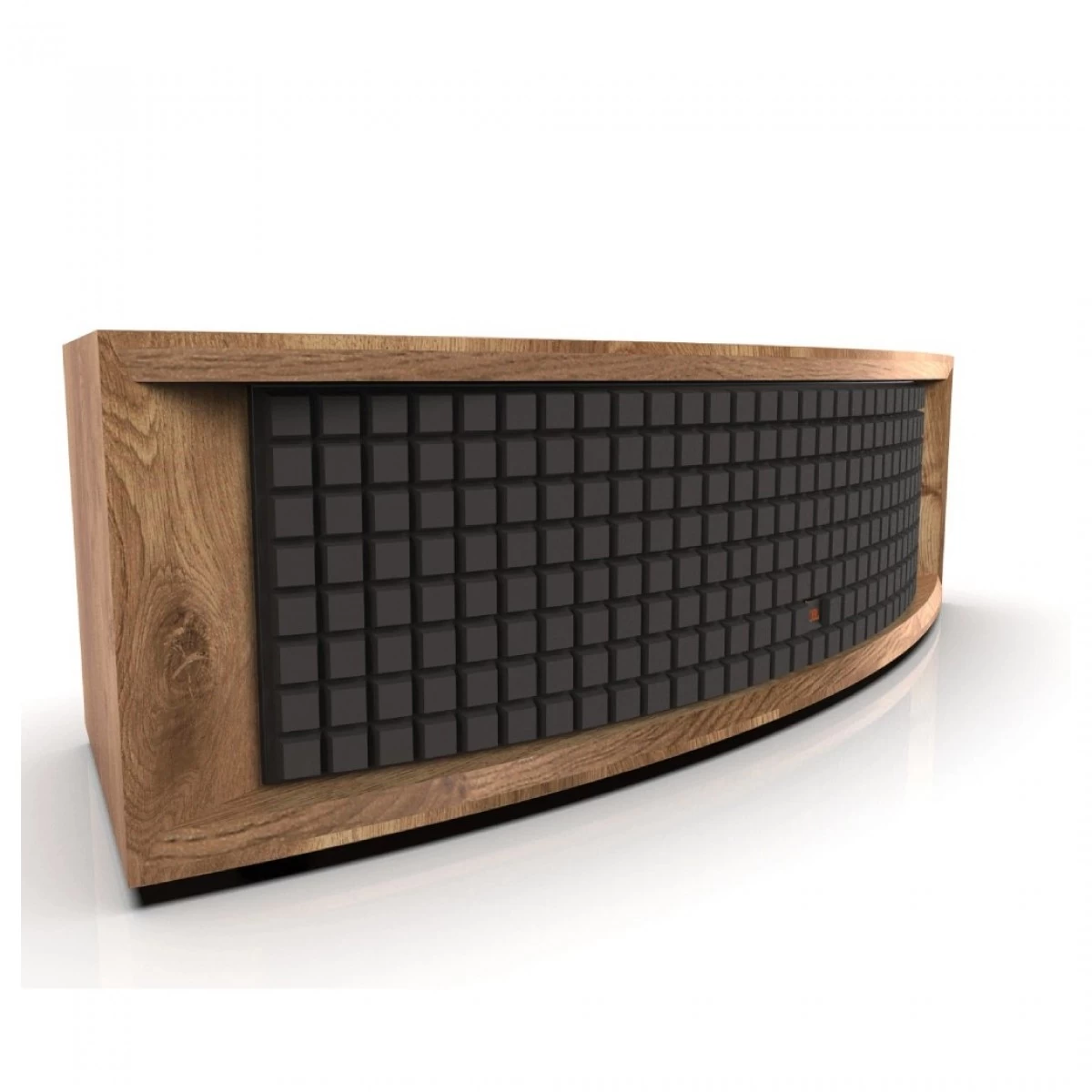

JBL L75MS Music System

Full Description

The JBL L75ms Music System caters to the enthusiast who seeks an easier way to listen to their music collection without sacrificing acoustic performance. As a modern re-imagining of the traditional Hi-Fi system, the L75ms finds its design inspiration from the JBL Classic Series with which it shares its walnut wood veneer cabinet finish and black Quadrex foam grille. Behind that retro appearance lies thoroughly modern acoustic technology including high-res audio capability and a wealth of wired and wireless connectivity.

Style

Designed and Engineered at the Harman Centre of Acoustics Excellence in Northridge, California, the L75ms leverages JBL’s past 75 years of loudspeaker designs to deliver truly outstanding sound while outperforming most traditional component hi-fi systems in the process. With its incredible combination of style, size, and performance, there is simply nothing like the L75ms Music System.

Streaming and Connectivity

The integrated streaming engine provides both wired and wireless network audio capabilities via Ethernet, Google Chromecast Built-in, Apple AirPlay 2, and Bluetooth audio. A 32-bit/192kHz high-resolution DAC ensures your favourite music comes across with the highest fidelity. In addition to premium wireless audio, the L75ms provides a number of connections for physical sources including a moving magnet (MM) phono stage, an HDMI ARC input, and a 3.5mm analogue input.

• High-Performance Integrated Music System

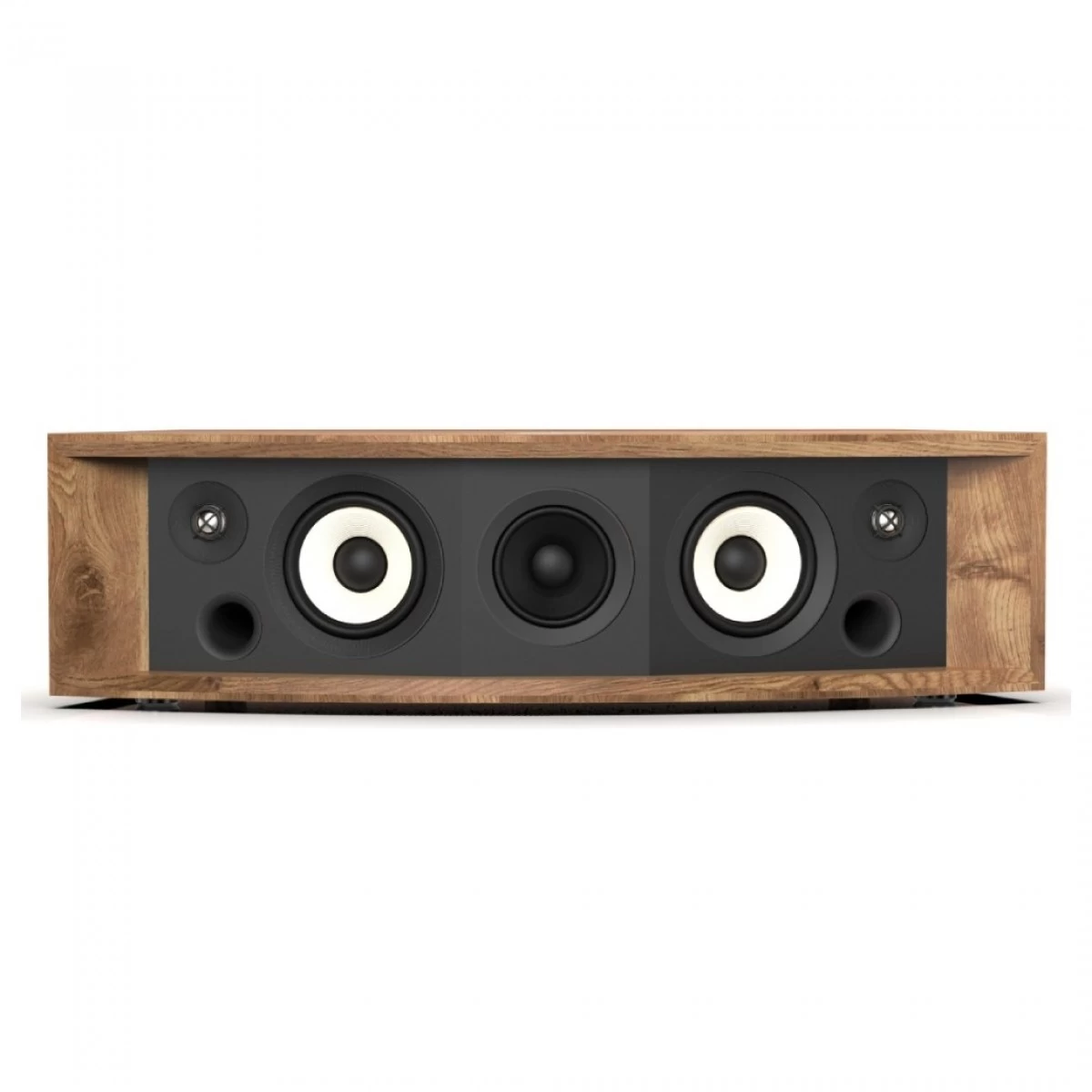

• 5 Driver Design: Dual 5.25-Inch Woofers, Dual 1-Inch Aluminium Tweeters, and a Central 4-Inch Midrange Driver
• 350W Total System Power
• Google Chromecast Built-in, Apple AirPlay 2, and Bluetooth Wireless Audio
• HDMI ARC, Moving Magnet Phono, and 3.5mm Auxiliary Inputs
• Selectable Soundfield Expander and Bass Contour Controls
• Satin Walnut Furniture-Grade Wood Veneer Finish
• Black Quadrex Foam Grille
• Wireless Remote and MusicLife App Control

Type	Streaming Table-top Loudspeaker System
Low Frequency Drivers	Dual 5.25″ (130mm) Pure Pulp Cone Woofers
High Frequency Drivers	Dual 1” (25mm) Aluminium Dome Tweeters With Waveguides
Midrange Driver	4” (100mm) Pure Pulp Cone Midrange
Amplifier Power	125W RMS Per Woofer, 25W RMS Per Tweeter, 50W RMS for Centre (350W RMS total)
Sound Controls	Speaker Placement Compensation, Selectable Sound-Field Expander
Wireless Inputs	WiFi Streaming, Bluetooth 4.2

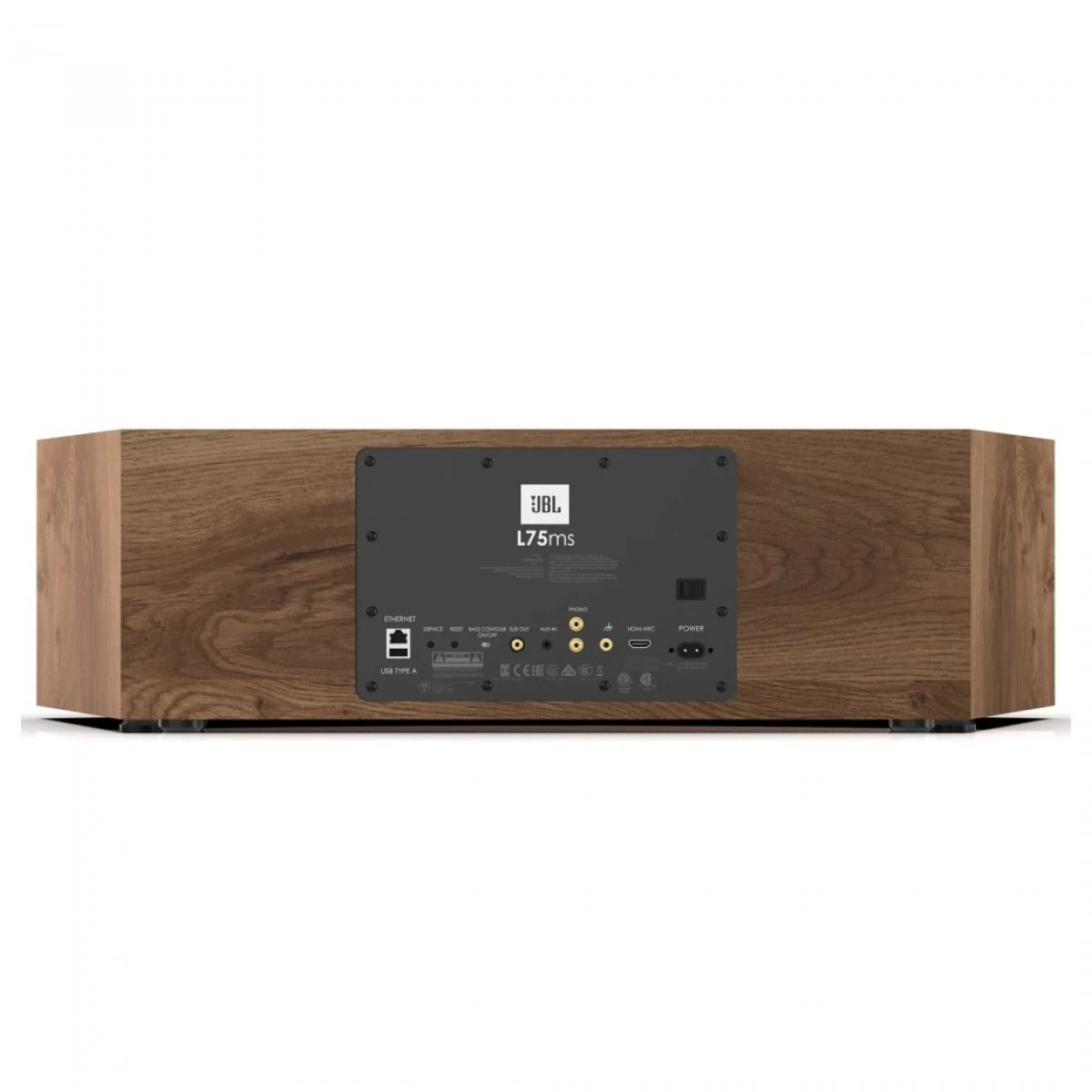

Wired Inputs	HDMI ARC, Ethernet, Phono (MM), 3.5mm AUX
Resolution	Up to 32-bit, 192 kHz
Frequency Response	45 Hz – 25 kHz (-6 dB)
Maximum SPL	106 dB @ 1m
Subwoofer Output	2V RMS With Auto-Sense/Engage HPF
Enclosure	Front-Ported Table-top in Satin Walnut Furniture-Grade Wood Veneer
Dimensions with Grille	8.5” H x 31.1” W x 11.3” D (216mm x 790mm x 287mm)
Product Weight (Each)	35 lbs. (15.9 kg)
Shipping Weight	44 lbs. (20.0 kg)
