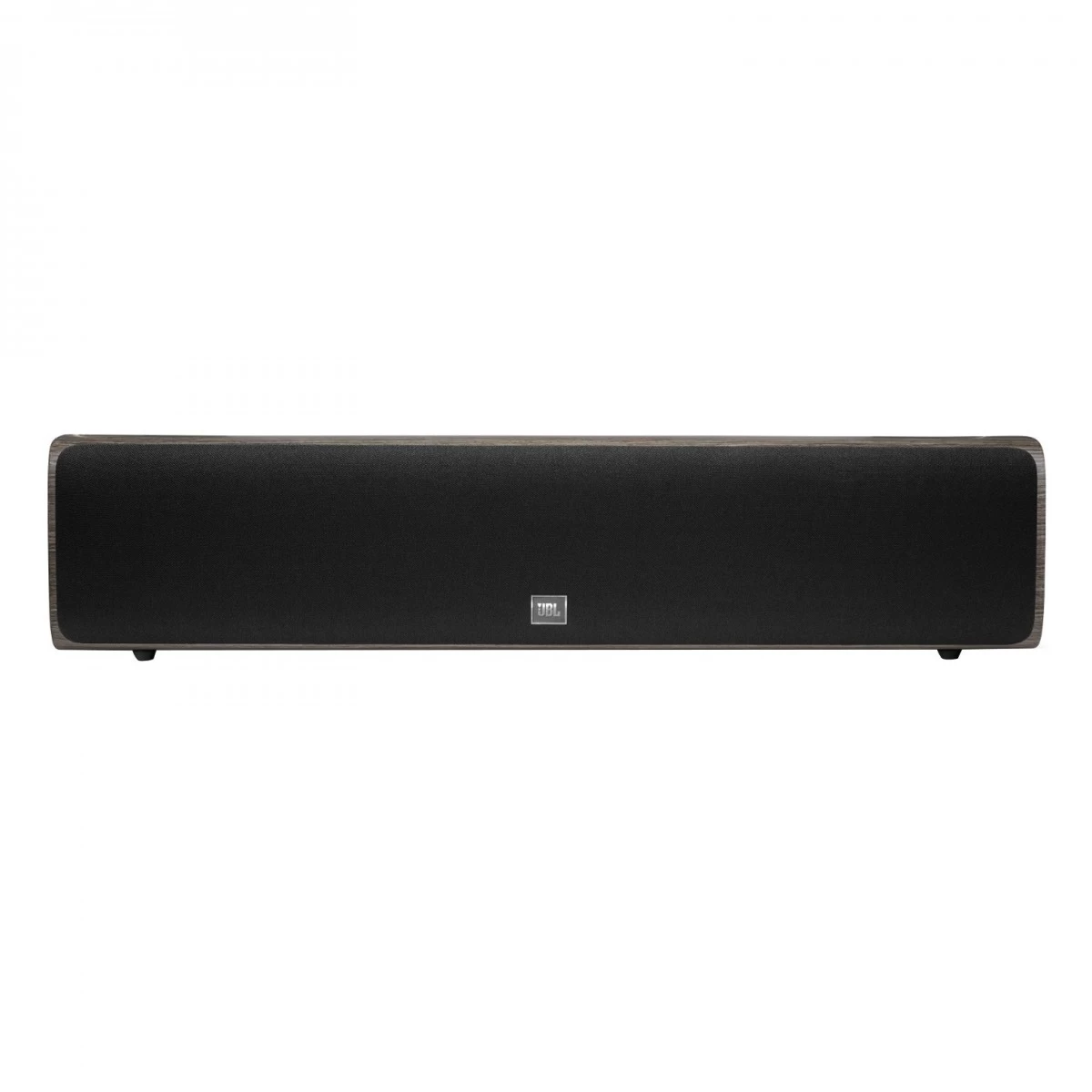

JBL HDI 4500 Grey Oak Satin Veneer Centre Speaker (Single)

Full Description

The HDI-4500 is the anchor of a complete HDI Series surround system. This centre channel loudspeaker features a 2½ way design with patented High-Definition Imaging (HD) waveguide technology, the patented 2410H-2 1 inch (25mm) compression driver and quadruple 5.25 inch (130mm) Advanced Aluminum Matrix cone woofers, for powerful dynamics and incredibly accurate sound reproduction.  JBL’s revolutionary HDI waveguide geometry is the result of intense research into the nuances of waveguide design. In search of exceptional high-frequency detail and uniform directivity for smooth in-room response, JBL engineers pioneered a design that delivers neutral frequency response both on- and off-axis, and provides a seamless transition between the high and low frequency drivers.

The JBL 2410H-2 compression driver benefits from the advanced research and applications derived from JBL Professional’s ‘D2’ range of transducers. At the core of the new 2410H-2 device is a lightweight, polymer, annular diaphragm that improves high-frequency extension by reducing diaphragm mass. The V-shaped geometry of the annular diaphragm reduces breakup modes, eliminating time smear and reducing distortion. The result is incredible dynamics with accurate reproduction and a lack of power compression.

HDI woofers take advantage of core JBL engineering techniques to ensure very high output with low distortion. The long-throw voice coil in conjunction with the symmetrical field motor design, flux stabilisation ring and copper shorting ring guarantee maximum output with significantly reduced distortion. Advanced Aluminum Matrix cones provide a lightweight, rigid diaphragm and eliminate breakup modes, ensuring proper pistonic motion throughout the operating band.

The HDI-4500 enclosure is heavily braced to provide a solid acoustic foundation and incorporates a bass reflex design with dual rear-firing, computer-optimised flared ports. The sophisticated curved cabinet features a modern design, finished in a choice of automotive-grade painted High Gloss Black, or furniture-grade satin Walnut or Grey Oak wood veneers. A black cloth, magnetically attached grille completes the elegant appearance.



• Patented HDI (High-Definition Imaging) Waveguide Technology
• Patented 2410H-2 High-frequency Compression Driver
• Quad 5.25 inch (130mm) Cast Frame, Advanced Aluminum Matrix Cone Woofers with 1.5-inch Voice Coils
• Contemporary Design with 3 Premium Finishes

General Specifications

Enclosure Type	Bass-reflex Design with Rear-firing Port
High Frequency Transducer	1 inch (25mm) Teonex Compression Driver
Low/Mid Frequency Transducers	Four 5.25-inch (130mm) Black Advanced Aluminum Matrix Cone, Cast Frame Woofers
Crossover Frequency	600Hz, 2200Hz
Sensitivity (2.83V @ 1M)	90dB
Nominal Impedance	4 Ohm
Recommended Amplifier Power	20W – 250W
Frequency Response	50Hz – 30kHz (-6dB)
Dimensions (H x W x D)	190 x 841.4 x 312.5mm
Net Weight	20.11kg
