Name: IFi Audio ZEN One Signature
SKU: YXYUY 99094
Availability: InStock

Comments from customers who bought this item:

Full Description

Crystal clear analogue

Often when converting a signal from digital to analogue there is often the risk of signal degradation or noise from external sources tarnishing the quality of the original source. iFi tackles this by using a balanced circuit design and premium circuit components and chipsets such as the Burr-Brown True Native to negate distortion and remove any noise so your audio remains clear and natural, as the artist intended on its conversions journey.

Universal DAC

The ZEN One is designed as a pure DAC with no headphone amp and no volume control bogging it down. This defined purpose allows you to utilise it as a home audio hub for your digital devices such as smartphones, PCs, TVs, games consoles and so much more. Connections include a S/PDIF in/output, optical input, USB input, Bluetooth antenna, 4.4mm output and an RCA output. ZEN One’s versatile connections portfolio means it will easily integrate into your setup but also keeps you covered for any future additions you can’t plan for.

Intuitive design

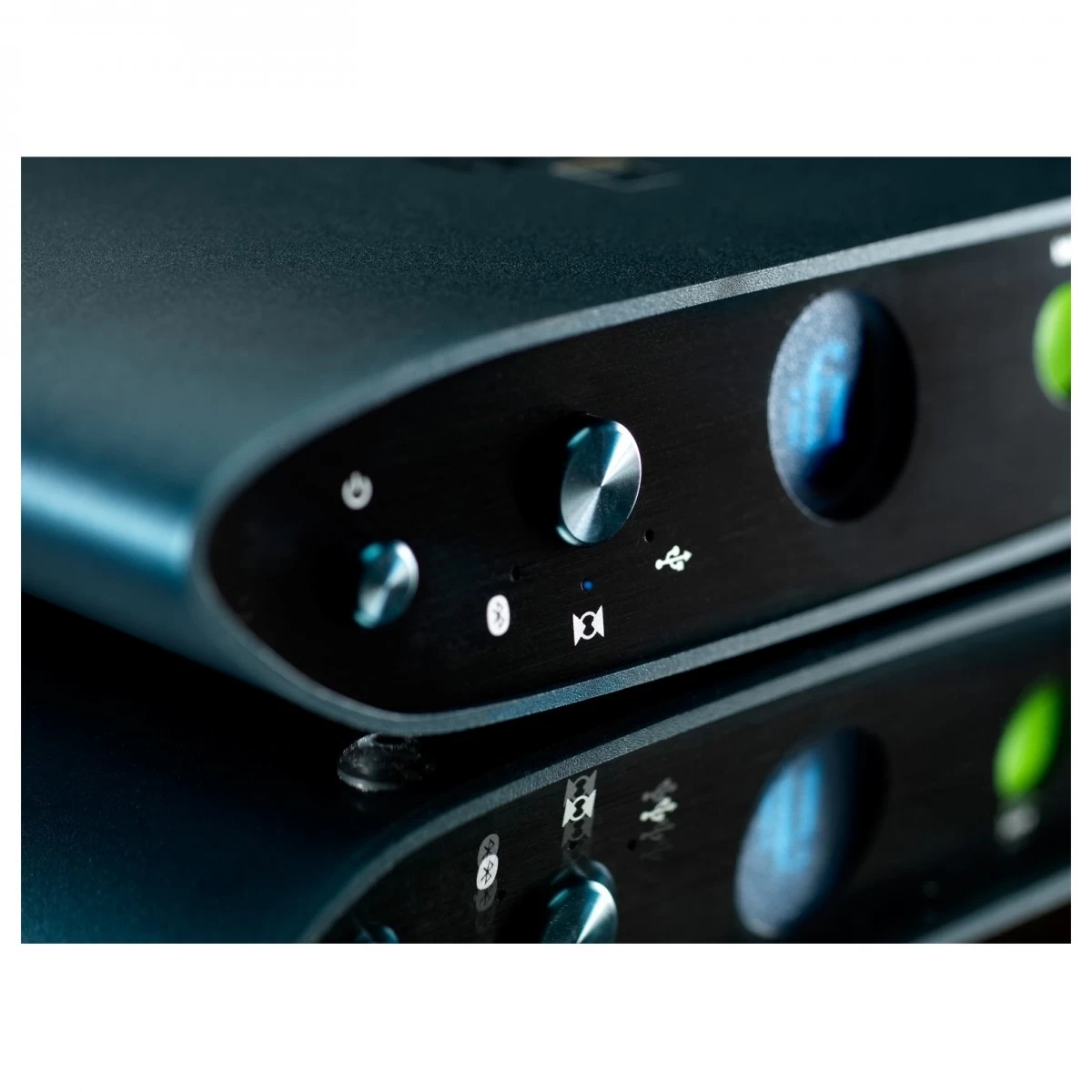

When switching sources you want the process to be as smooth as possible, without any complications of diving through on-screen menus or having to hold down every button on the unit in mysterious combinations to operate. iFi keeps it simple. Its vivid LEDs let you know exactly what mode you’re in so in no time at all you’ll know exactly what you’re looking for when switching sources and when using the input switch button you’ll be surprised how quick and seamless the process can be, ideal for both beginners and seasoned audiophiles.

Features

Universal DAC with versatile input source options
Ideal as a home hub for all your digital source devices including TVs, PCs and audio servers
Connections include a S/PDIF in/output, optical input, USB input, Bluetooth antenna, 4.4mm output and an RCA output
Supports all hi-res audio formats: DSD256, PCM384, MQA384kHz, Bluetooth 96KHz
True Native hi-res DAC – supports 32-bit/384kHz PCM and fully native DSD
16-core XMOS processor performs full MQA decoding (to 384kHz)
Low-jitter Femto clock crystal provides >20dB performance
Optical and coaxial S/PDIF digital outputs support 32-bit/192kHz PCM and MQA

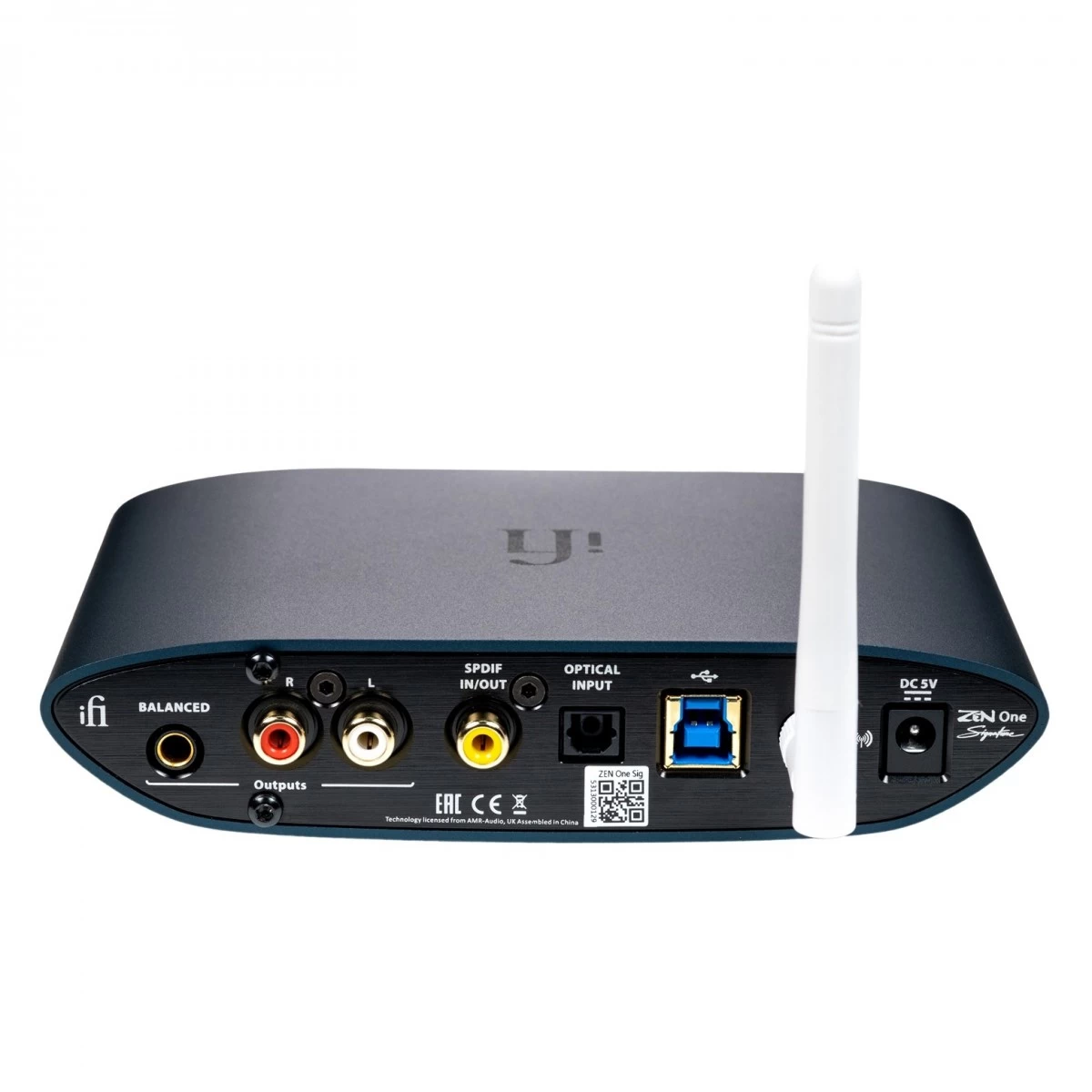

High-gain antenna included for improved Bluetooth range
Power, coaxial and USB-B cable included

Power	DC 5V (centre pin +ve)
Digital inputs	USB3.0 Type B (USB2.0 compatible) S/PDIF (coaxial, TOSLINK optical) TM Bluetooth 5.1 (aptX, aptX HD, aptX Adaptive, aptX LL, LDAC, LHDC/HWA, AAC and SBC codec)
Formats	PCM 44.1/48/88.2/96/176.4/192kHz DSD 2.8/3.1/5.6/6.1/11.3/12.3MHz DXD 352.8/384kHz MQA Decoder Bluetooth 96kHz
Chipset	Bit-Perfect DSD & DXD DAC by Burr Brown Qualcomm QCC 5100 Series

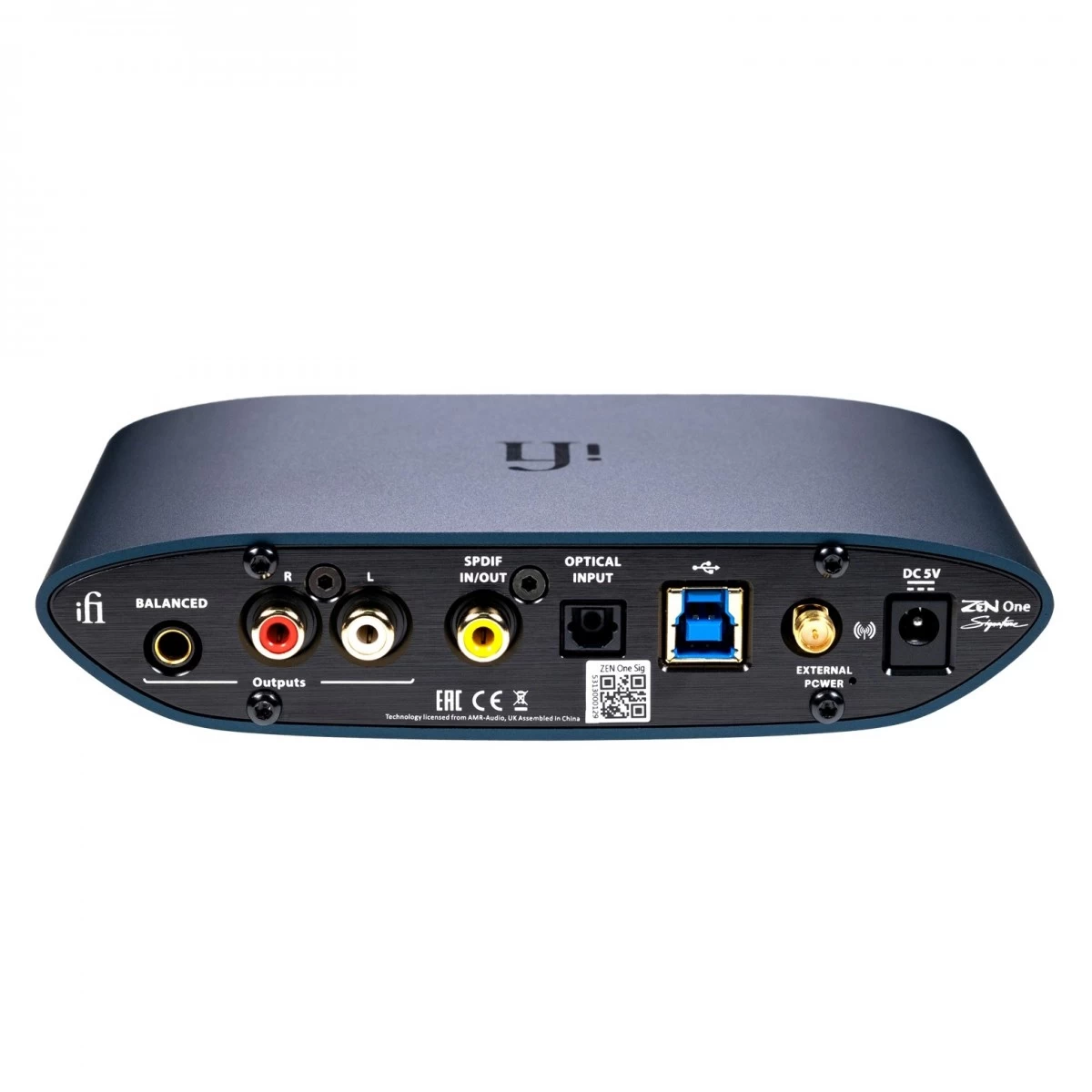

Analogue outputs	Coaxial, Audio RCA L/R 4.4mm Balanced line out
Frequency Response	5Hz – 80kHz ±3dB
Outputs	4V / 2V max. (BAL/UnBAL)
Output Impedance	≤72Ω/36Ω (BAL/UnBAL)
SNR	-105dB(A) @ 0dBFS (BAL/UnBAL)
THD + N	&LT; 0.002 @ 0dBFS(BAL/UnBAL)
Power consumption	No Signal 0.7W / Max Signal 1.0W
Dimensions	158 x 100 x 35 mm (6.2″ x 3.9″ x 1.4″)
Net weight	485g (1.1 lbs)
Product code	IF1644
