Genelec 8040BRW, Raw Finish

Full Description

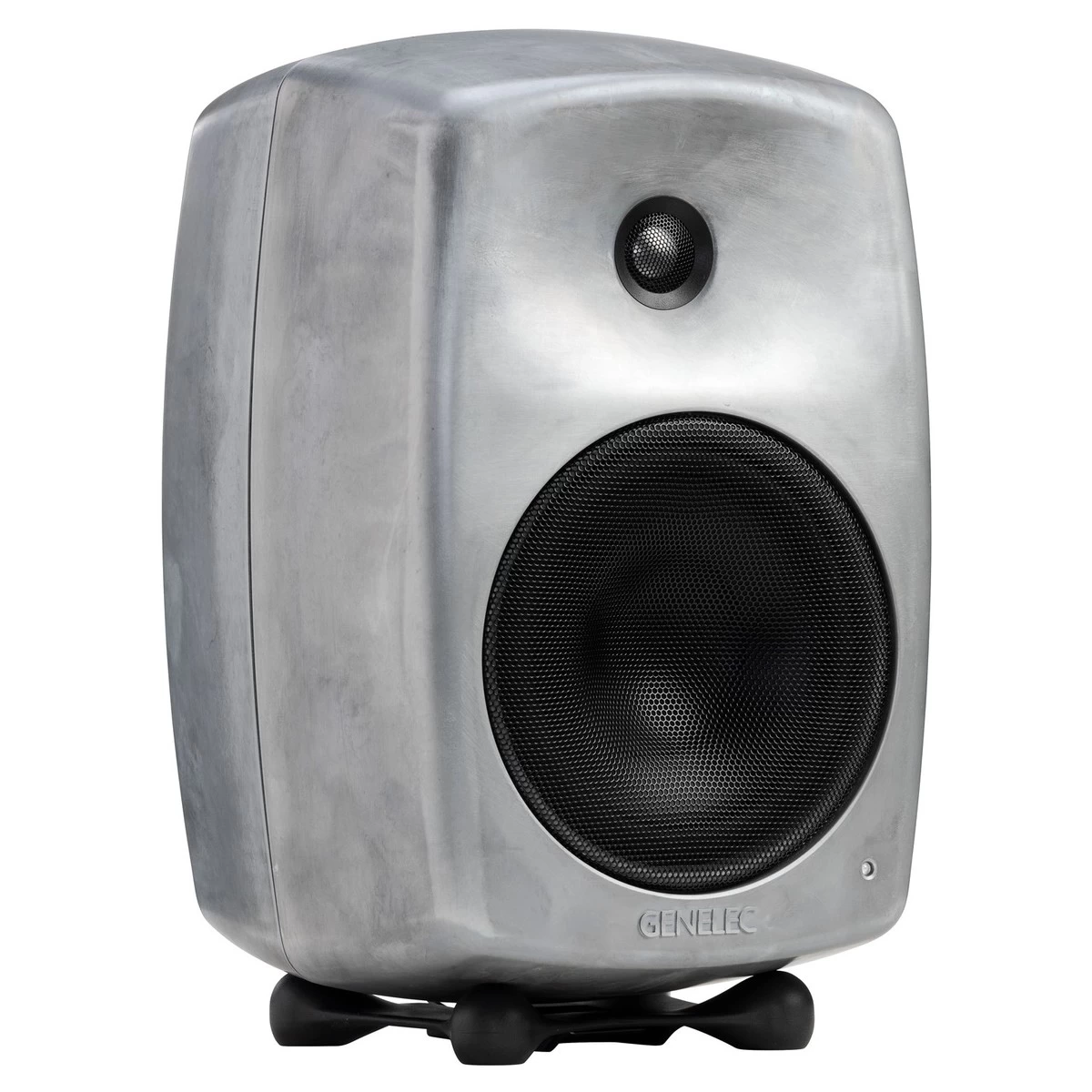

Raw aluminium finish – special edition

This special edition version of the 8040B marks a return back to Genelec’s classic designs. The raw aluminium finish was designed in close collaboration with acclaimed industrial designer – Harri Koskinen. The eye-catching design is fashioned from recycled aluminium. The fact the monitor’s do not require painting also makes them friendlier for the environment. The raw aluminium finish features distinct patterns from the design process. These will be unique to you, with every monitor featuring varying pattern aberrations.

Bi-amplified design for optimised audio performance

The Genelec 8040B features two powered amplifiers for optimised performance value. The bi-amplified design ensures optimal audio performance and fidelity, by assigning each of the two frequency bands with their own individual amplifier. This helps to optimise the audio fidelity and performance, ensuring you hear every nuance of the audio as it was intended. The amplifiers are designed to power both the woofer and tweeter individually.

Ideal for mixing and mastering – hear every detail

The exceptional audio quality and wide frequency range ensures you hear every nuance of the original audio as it was intended, this is paramount when it comes to mixing and mastering as you are able to hear every subtlety that other studio monitors may miss. The bi-amplified design is designed to optimise each of the driver with their individual power amplifiers on the tweeter and woofer. This ensures maximum audio fidelity and performance value.

The included Iso-Pod base helps to decouple the speaker form its mounting surface, minimising colourations caused by vibrations and reflections. Additionally on the rear of the monitor is a ‘Tone Control’ function which allows you optimise the speaker’s sound to match the space and environment you are using the speaker in, optimising audio quality and performance.

ISS circuitry

ICC (Intelligent Signal Sensing) Technology was developed by Genelec in early 2013, designed to track the signal input of the loudspeaker and detect if it is in use. If the ISS circuitry finds that the speaker is not in use for a certain period of time it will automatically switch to a low-power sleep state, consuming less than 0.5 watts. This is highly useful when it comes to studios and home studios as it minimises power usage while optimising performance value.

The loudspeaker will immediately turn itself back on again once it detects an input signal, saving you power and money in the long run. If you wish to disable this feature you can simply turn on the ‘ISS Disable’ switch located on the rear panel of the monitor.

Versatile mounting options

The most versatile feature of the 8040B is the wide range of mounting options, allowing you to place the monitor virtually anywhere. The 3/8’’ threaded hole on the base allows you to attach to a range of speaker stands, plus the threaded holes are ideal for mounting to omnimount brackets. This lets you place the monitors in the optimal positioning ensuring maximum stability and audio performance. The included Iso-Pod table can also be attached to the base or side of the monitor for vertical and horizontal positioning.

Sleek, rugged construction with versatile connectivity

The Genelec 8040B features a range of design and construction aspects that helps to achieve the optimal audio quality and sleek aesthetic the Genelec 8040Bs produce. One of the most unique design aspects of the studio monitors is the advanced reflex port design which helps to extend the low frequency response for added depth in the lower range. This is ideal for mixing and mastering applications as it gives you more of a feel for the bottom end, allowing you to hear the subtle nuances of the lower range. The monitor’s enclosure utilises MDE (Minimum Diffraction Enclosure) technology for uncoloured sound reproduction.

The curved cabinet surface is designed to maximise the internal volume for improved low-frequency efficiency as well as providing EMC shielding and excellent heat sink for the amplifiers. The Genelec 8040B also features a range of digital and analog connectivity for optimal flexibility. Connect the speakers to a range of external devices including mixers and more using the XLR female analog input. Also included are an XLR AES/EBU digital Input and an XLR AES/EBU Digital Thru Connector allowing you to connect the monitors to a range of external digital devices.

Features

• Special edition raw aluminium finish
• 6.5’’ bi-amplified studio monitor
• 90W bass amplifier and 90W treble amplifier
• Auto switching to standby saves power
• Curved edged enclosures reduces distortion
• Bass reflex port optimises low-end response
• Iso-Pod stand reduces vibration and colouration
• Versatile mounting capabilities
• Active crossover filters
• Tone controls on the rear panel for room correction
• Front-facing volume knob
• Fully magnetically shielded

Specifications

• Maximum sound pressure level: (SPL) 105 dB
• Frequency response (lower & upper limits) with input gain set to + 3db: 48 Hz – 20 kHz (± 2 dB)
• Frequency response (lower & upper limits) with input gain set to – 2db: 45 Hz – 21 kHz (-3 dB)
• Crossover frequency between high & lower frequency bands: 3.0 kHz
• Diameter of low/mid frequency: Bass 6.5″
• Diameter of high frequency driver: Treble 0.7″, Metal dome + DCW
• Low/mid frequency power: 90 Watts
• High frequency power: + 90 Watts
• Dimensions: H x W x D, 365 x 237 x 223 mm, (with iso-pod rubberised mounting/isolation system)
• Unboxed Weight: 8.6 Kg (18.9 lb)
• Inputs: One balanced XLR line level input
