Eversolo DAC-Z8 DAC & Headphone Amplifier

Eversolo DAC-Z8 DAC & Headphone Amplifier - Image 2

Eversolo DAC-Z8 DAC & Headphone Amplifier - Image 3

Eversolo DAC-Z8 DAC & Headphone Amplifier - Image 4

Eversolo DAC-Z8 DAC & Headphone Amplifier - Image 5

Eversolo DAC-Z8 DAC & Headphone Amplifier

Original price was: £382.00.Current price is: £97.99.

SKU: YXYUY 45070 Categories: DACs, HiFi Separates

Free Shipping Worldwide
fast shipping
Safe Payments, the Smart Choice
Enjoy top quality items for less

Description
Reviews (0)

Comments from customers who bought this item:

Full Description

What’s in the box?

1 x Remote control
1 x Power cable
1 x USB cable
1 x Product manual

Specifications

General

Model	EverSolo DAC-Z8
Display Screen	3-inch LCD Screen
Chassis	Aviation aluminium alloy
DAC	ES 9038Pro
Audio Processor	XMOS XU316
OPA Chip	OPA1612*10
Power Supply	Low noise switching power supply
Bluetooth Audio Input	Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
USB-B DAC Input	Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit and MQA
USB-C DAC Input	Compatible with Windows (7, 10), Mac, Android and IOS Up to stereo DSD512, PCM 768KHz 32Bit, MQA
Optical Audio Input	Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA
Coaxial Audio Input	Up to stereo PCM 192KHz 24Bit, DSD64 Dop and MQA

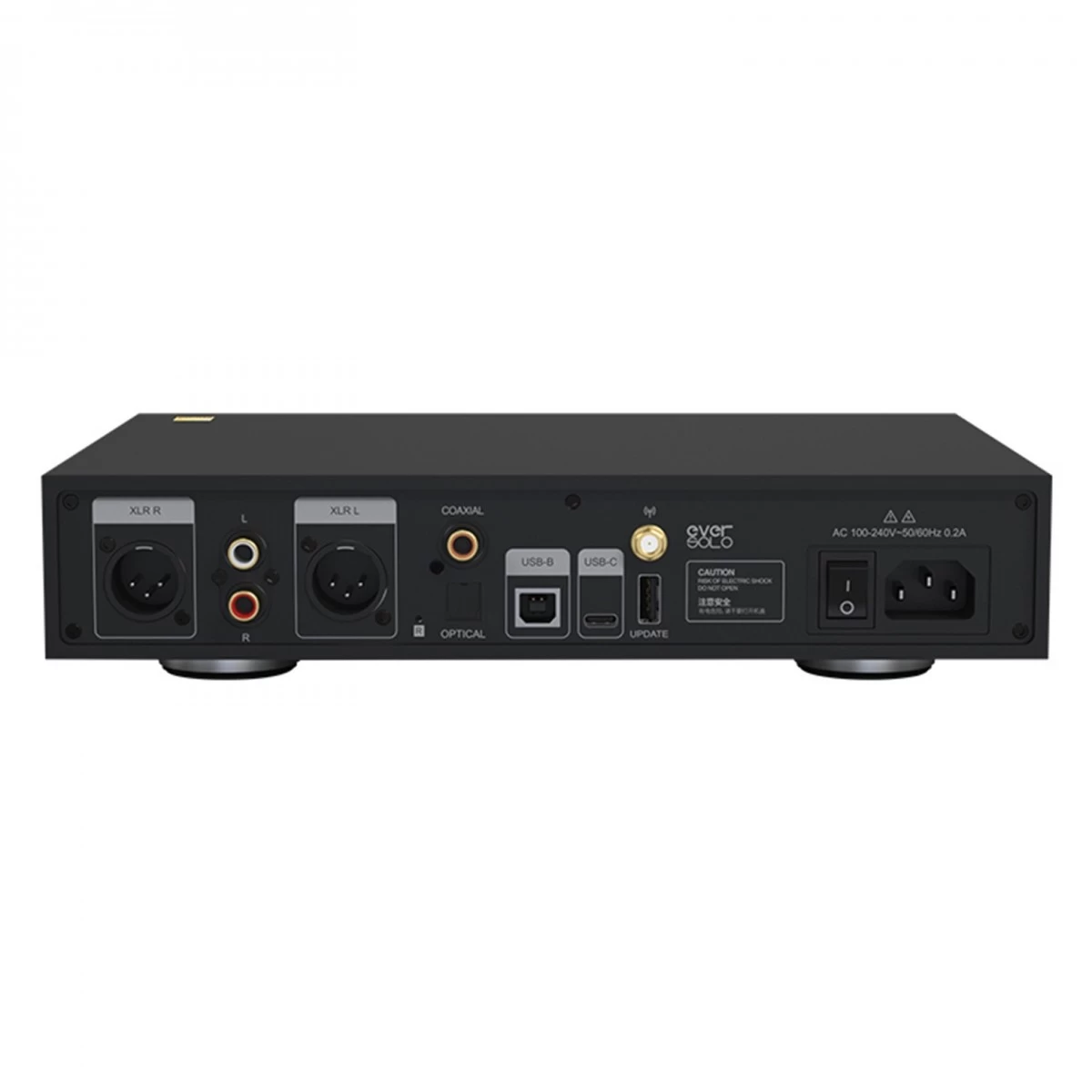

Analog Audio Output	Preamp output: XLR (balanced), RCA; Headphone amp output: 6.35mm single-ended
USB Port	USB2.0*1（only for firmware upgrade）
Control Methods	Remote control, mobile APP control and knob control
Headphone Impedance	16-300Ω （low gain mode:16-32Ω/high gain mode: 32-300Ω）
XLR Audio Characteristics	Output level(Vrms): 4.1Vrms@0dBFS THD+N@A-wt: 0.000062%@1kHz (-124dB@1kHz) THD+N@No-wt：0.000069%@1kHz (-123dB@1kHz) Noise@No-wt: <1.2uVrms SNR @No-wt: 133dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) Crosstalk: -130dB@1kHz DNR @No-wt: 133dB@1kHz
RCA Audio Characteristics	Output level (Vrms): 2.3Vrms@0dBFS THD+N@A-wt: 0.000086%@1kHz(-121dB@1kHz) THD+)@No-wt: 0.000097%@1kHz(-120dB@1kHz) Noise @No-wt: <1.5uVrms SNR @No-wt: 126dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) Crosstalk: -123dB@1kHz DNR@No-wt: 126dB@1kHz
Headphone (low gain mode)	Output level(Vrms): 1.2Vrms@0dBFS Maximum undistorted power: 45 mW@32Ω THD+N@A-wt: 0.00015%@1kHz(-116dB@1kHz) THD+N@No-wt: 0.00018%@1kHz(-115dB@1kHz) Noise @No-wt: <2uVrms SNR@No-wt: 124dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) DNR @No-wt: 119dB@1kHz
Headphone (high gain mode)	Output level(Vrms): 2.8Vrms@0dBFS Maximum undistorted power: 26 mW@300Ω THD+N@A-wt: 0.00016%@1kHz(-116dB@1kHz) THD+N@No-wt: 0.00016%@1kHz(-116dB@1kHz) Noise@No-wt: <2uVrms SNR@No-wt: 124dB@1kHz Frequency response: 20Hz-20kHz(±0.1dB) DNR @No-wt: 124dB@1kHz
Power Input	AC 110~240V 50/60Hz
Rated Power	9W
Dimensions	270mm(W) x 187mm(D) x 50mm(H)
