Sale!

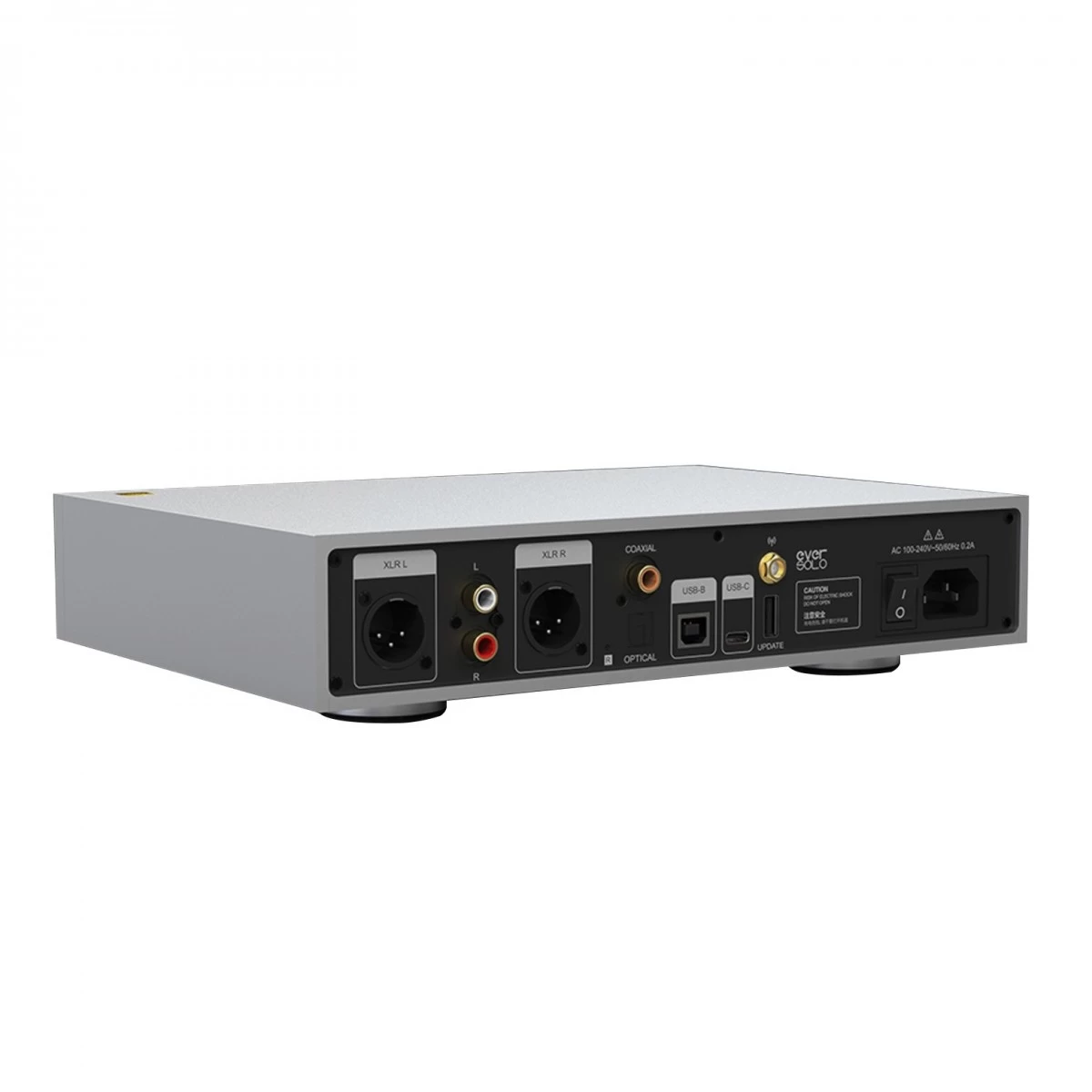

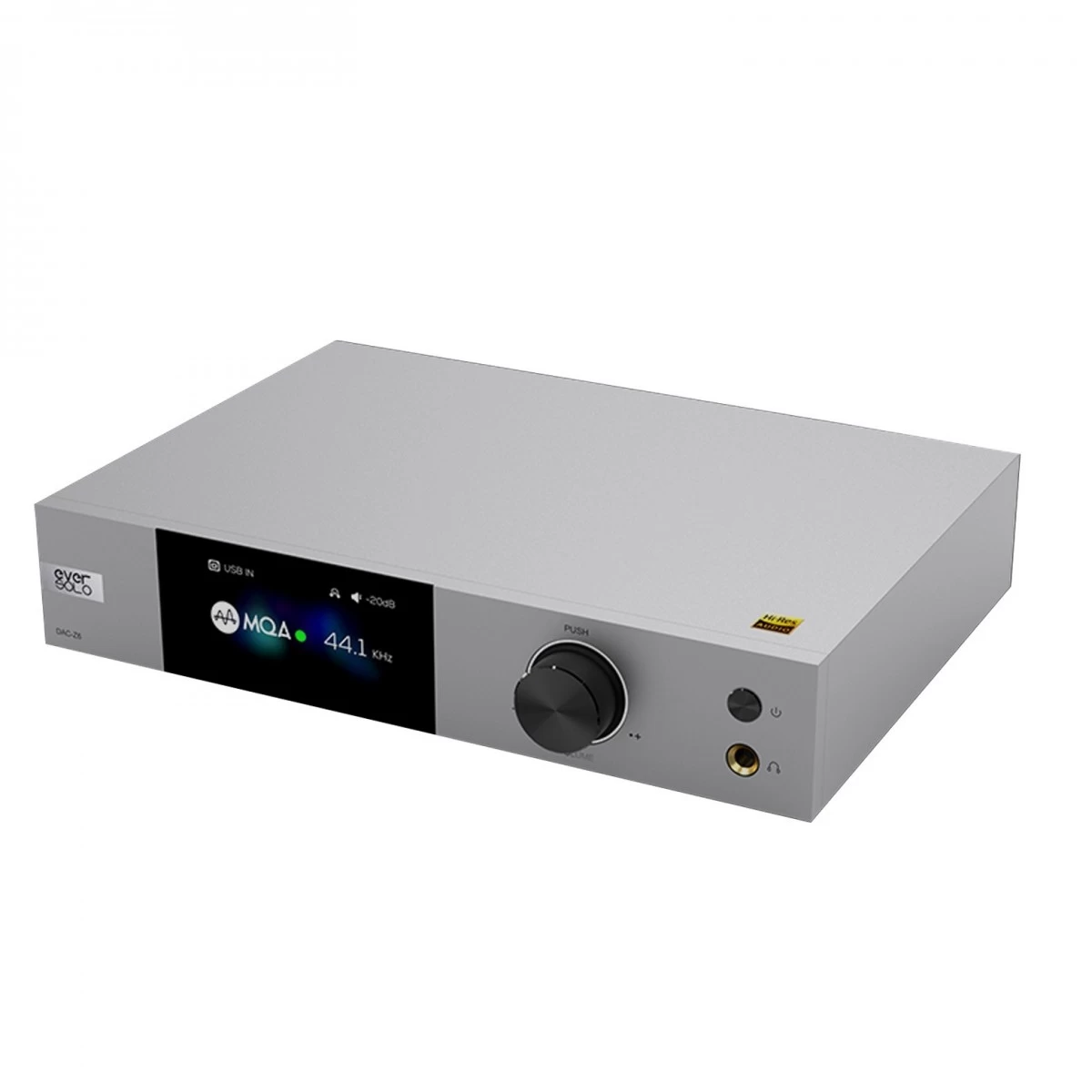

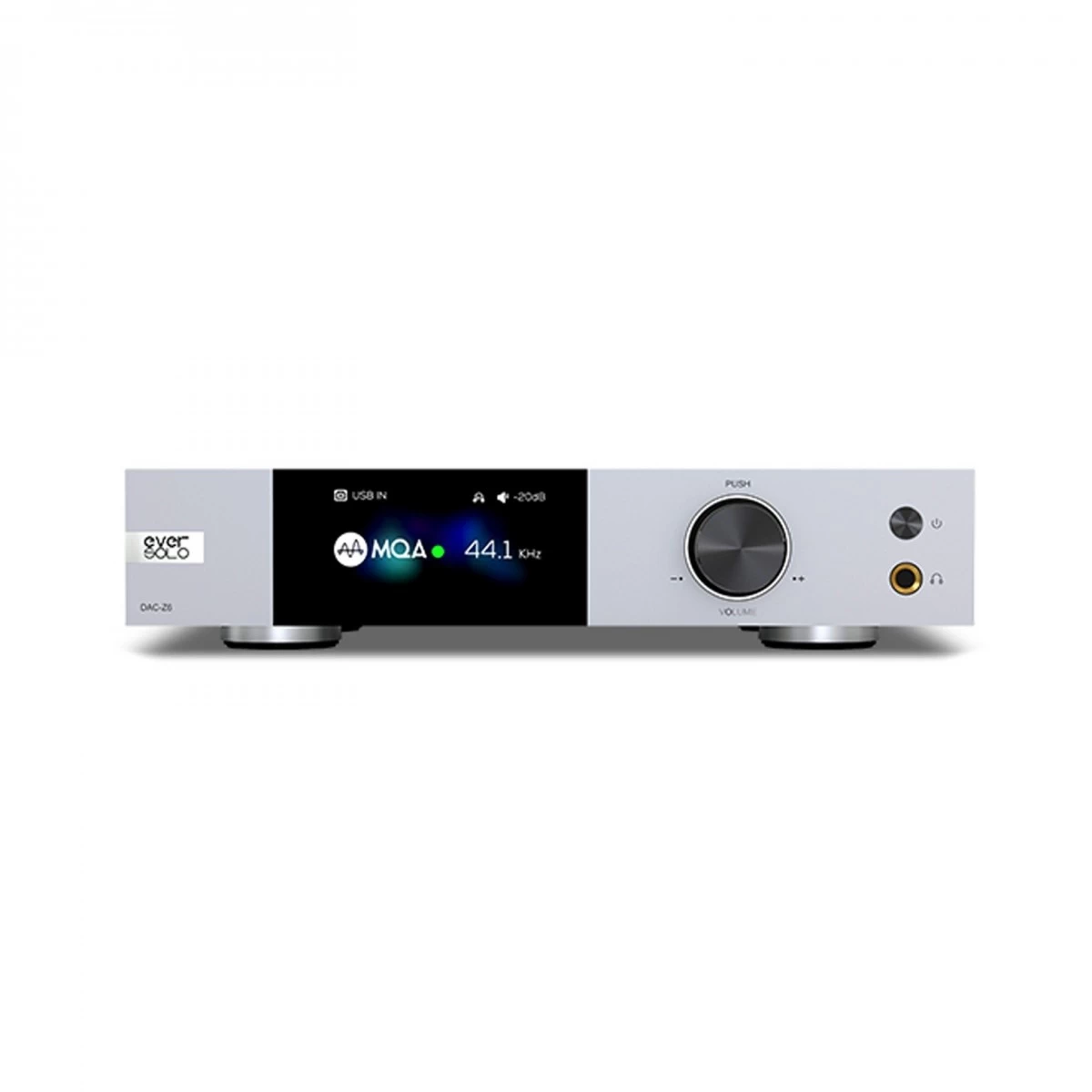

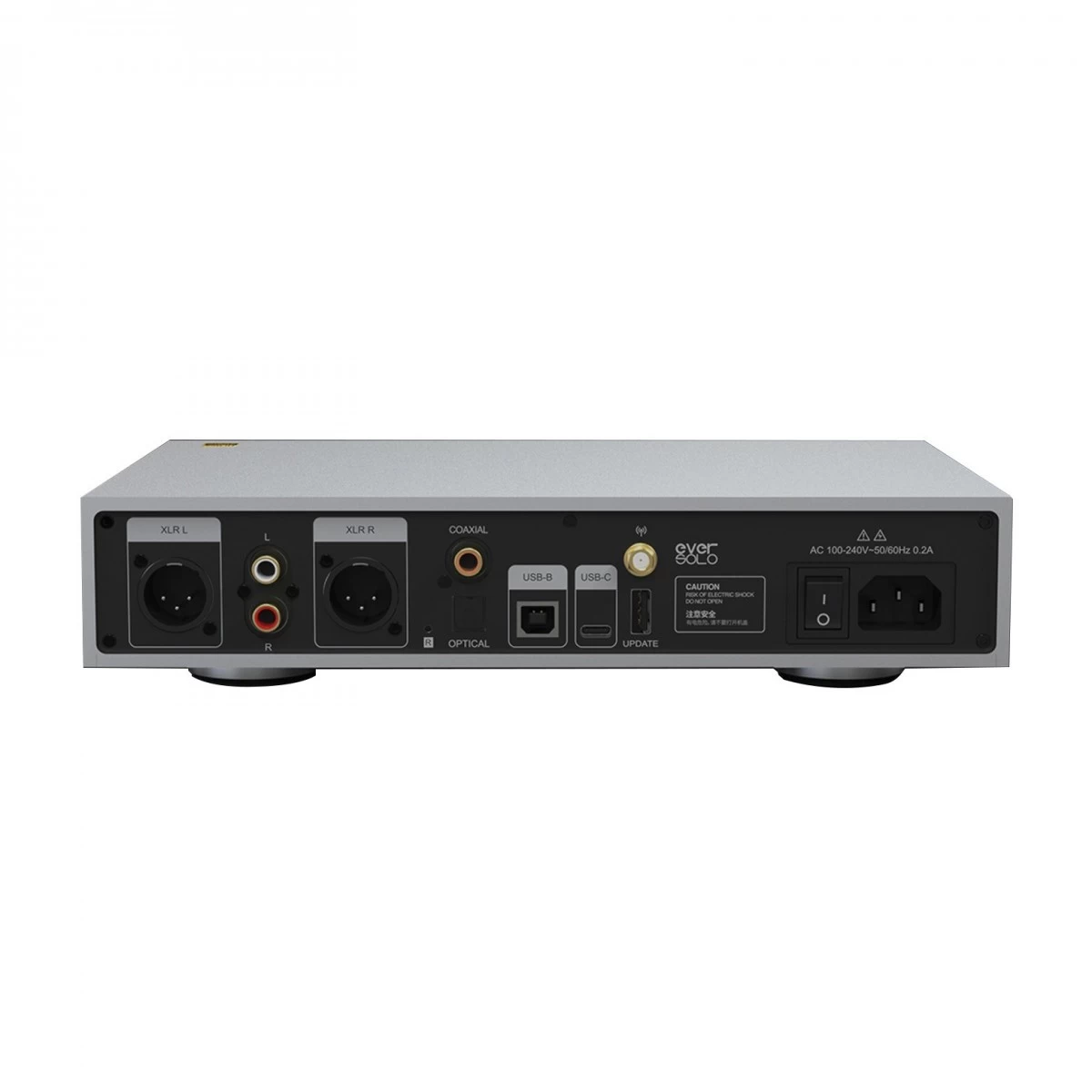

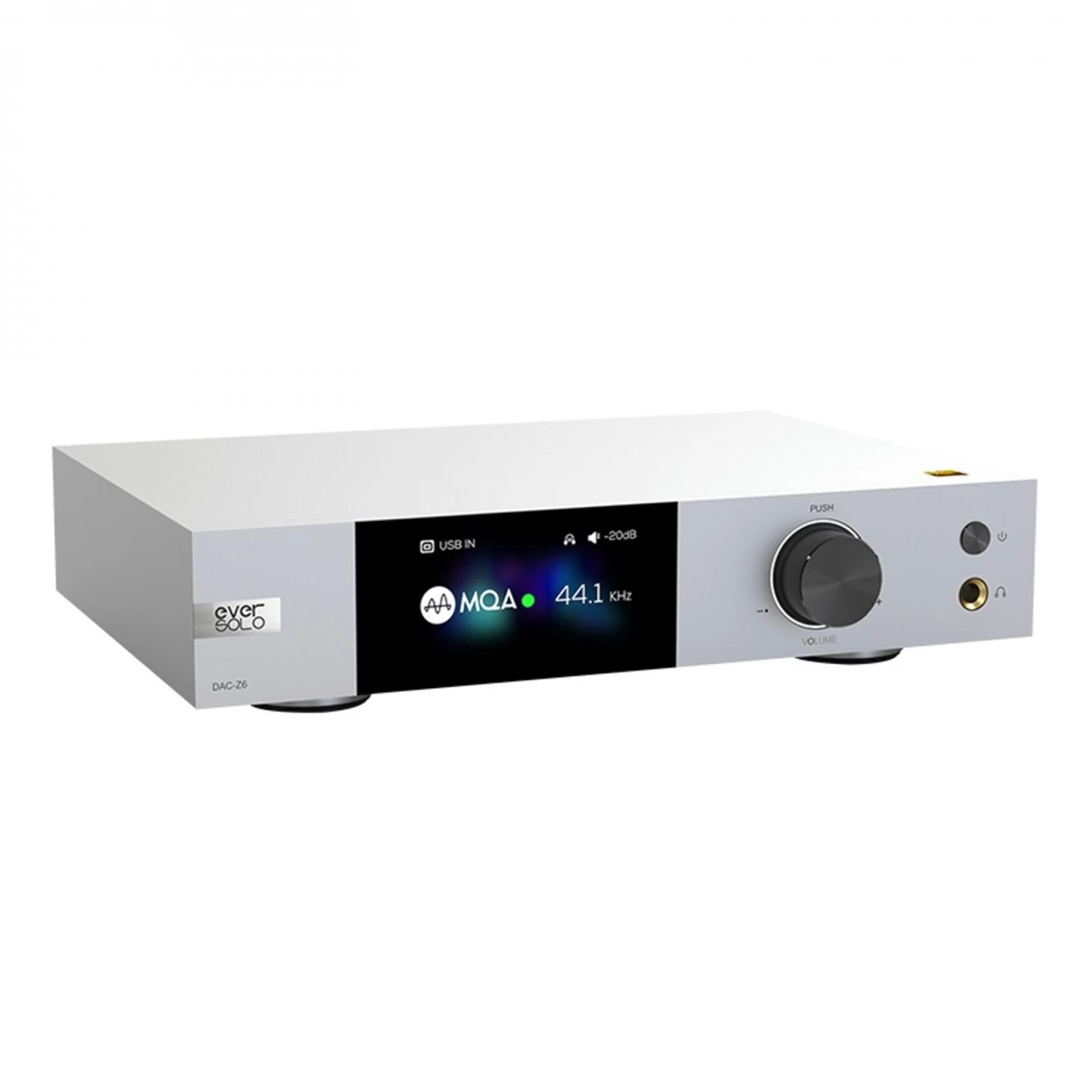

Eversolo DAC-Z6 DAC & Headphone Amplifier

Eversolo DAC-Z6 DAC & Headphone Amplifier - Image 2

Eversolo DAC-Z6 DAC & Headphone Amplifier - Image 3

Eversolo DAC-Z6 DAC & Headphone Amplifier - Image 4

Eversolo DAC-Z6 DAC & Headphone Amplifier - Image 5

Eversolo DAC-Z6 DAC & Headphone Amplifier - Image 6

Eversolo DAC-Z6 DAC & Headphone Amplifier

Original price was: £399.00.Current price is: £99.99.

SKU: YXYUY 5964 Categories: DACs, HiFi Separates

Free Shipping Worldwide
fast shipping
Safe Payments, the Smart Choice
Enjoy top quality items for less

Description
Reviews (0)

Full Description

What’s in the box?

1 x Remote control
1 x Power cable
1 x User manual

Specifications

General

Model	EverSolo DAC-Z6
Display Screen	3-inch LCD screen
Chassis	Aluminum Alloy
DAC Audio	ES 9068*2
Audio Processor	XMOS XU316
OPA Chip	RT 6863*6
Power Supply	High quality switching power supply with low noise
Bluetooth Audio Input	Qualcomm QCC5125 Bluetooth module, BT5.0 Support SBC/AAC/aptX/aptX LL/aptX HD/LDAC Bluetooth protocol
USB-B DAC Input	Compatible with Windows (7, 10) Mac Android and IOS Up to stereo DSD512 PCM 768KHz 32Bit MQA
USB-C DAC Input	Compatible with Windows (7, 10) Mac Android and IOS Up to stereo DSD512 PCM 768KHz 32Bit MQA
OPTICAL Audio Input	Up to stereo PCM 192Khz 24Bit DSD64 Do MQA
COAXIAL Audio Input	Up to stereo PCM 192Khz 24Bit DSD64 Dop MQA
Analog Audio Output	Preamp output: XLR(balanced)+RCA Headphone output: 6.3mm single-ended
USB Port	USB2.0*1?only for firmware upgrade
Control Methods	Remote control Mobile APP control Knob control
Headphone Impedance	16-300Ω (low gain mode:16-32Ω/high gain mode:32-300Ω)
XLR Audio Output	Output Level(Vrms): 4.1Vrms@0dBFS THD+N@A-wt: 0.000094 @1kHz?-120dB@1kHz THD+N@No-wt: 0.000117 @1kHz?-118dB@1kHz Noise@No-wt: <3uVrms SNR)@No-wt:125@1kHz Frequency response: 20Hz-20kHz(±0.15dB) CROSSTALK: -123dB@1kHz DNR)@No-wt:125dB@1kHz
RCA Audio Output	Output Level(Vrms): 2.1Vrms@0dBFS THD+N@A-wt: 0.000116 @1kHz(-118dB@1kHz) THD+N@No-wt: 0.000138 @1kHz(-117dB@1kHz) Noise@No-wt <2.5uVrms SNR)@No-wt: 21dB@1kHz Frequency response: 20Hz-20kHz(±0.15dB CROSSTALK: -118dB@1kHz DNR)@No-wt: 121dB@1kHz
Headphone (low gain mode)	Output Level(Vrms)?1.2Vrms@0dBFS Max Power: 45 mW@32Ω THD+N@A-wt: 0.00028 @1kHz(-111dB@1kHz) THD+N@No-wt: 0.00031 @1kHz(-110dB@1kHz) Noise@No-wt: <3.5uVrms SNR)@No-wt: 114dB@1kHz Frequency response: 20Hz-20kHz(±0.15dB) DNR)@No-wt: 114dB@1kHz
Headphone (high gain mode)	Output Level(Vrms): 2.8Vrms@0dBFS Max Power: 26 mW@300Ω THD+N@A-wt: 0.00014 @1kHz(-117dB@1kHz) THD+N@No-wt: 0.00016 @1kHz(-116dB@1kHz) Noise@No-wt: <3.5uVrms SNR)@No-wt: 121dB@1kHz Frequency response: 20Hz-20kHz(±0.15dB) DNR)@No-wt: 121dB@1kHz
Power Input	AC 110 240V 50/60Hz
Rated power	9W
Product Dimensions	270mm(W) x 187mm(D) x 50mm(H)
