Full Description

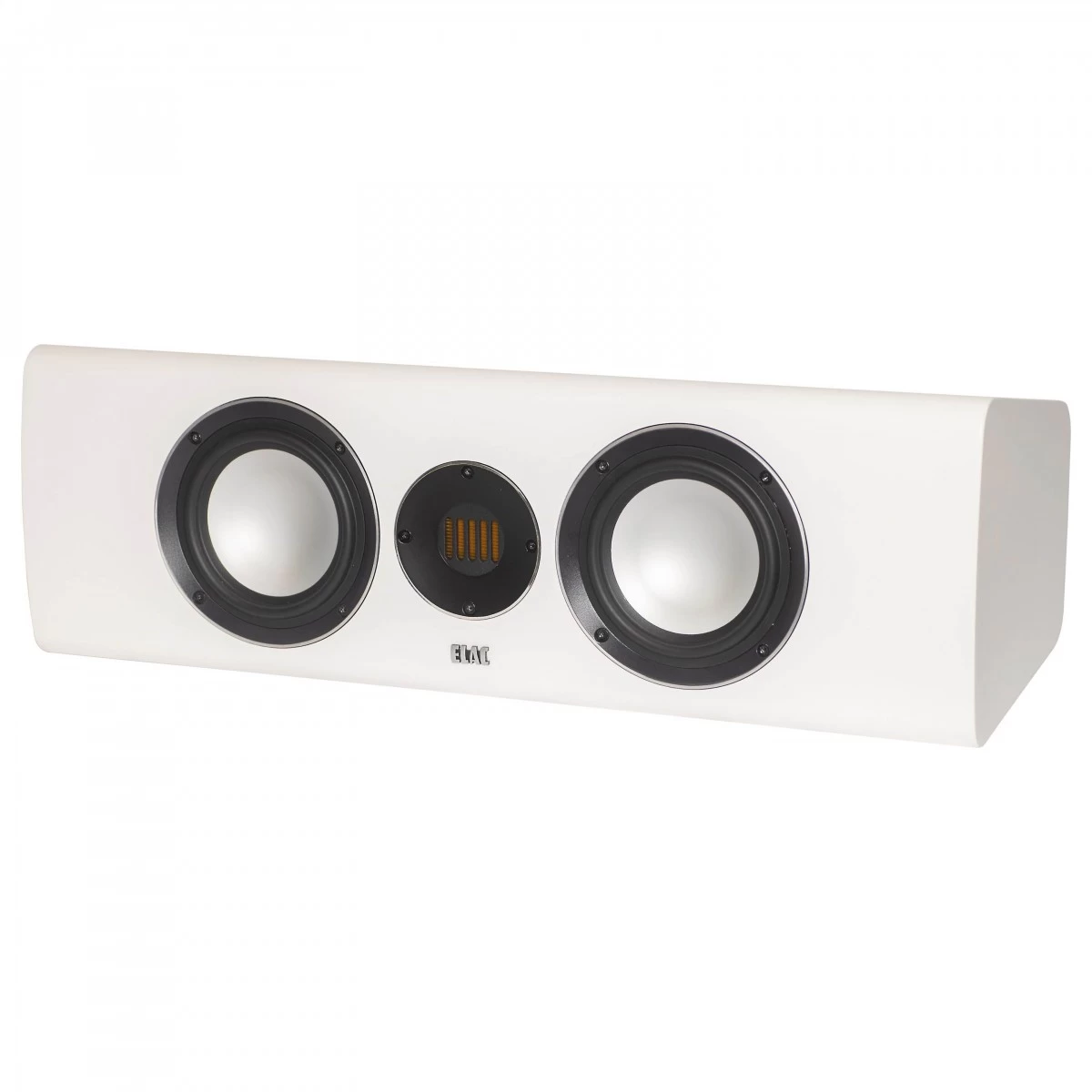

The Carina Centre Channel Speaker
Developed from the renowned award winning 240 series. Every speaker in the Carina line-up is timbre matched for the best home theatre experience. The Carina bookshelf speaker was designed first, and the rest of the speakers followed with one condition: they needed to sound the same.
Building upon its performance, Carina continues ELAC’s tradition of utilizing the JET tweeter, chosen for its amazing clarity, dynamics and attack. To match this capability, a new in-house developed proprietary compound curvature aluminium coned woofer is seamlessly blended via a sophisticated multi-element crossover to produce an organic life like sound experience. Fresh looks, fresh sound; the new Carina is destined to further enhance ELACs class leading reputation.
- Type: 3-way Vented box
- Woofer: 1 x Aluminium cone 5-1/4″
- Midrange: 1 x Aluminium Cone 5-1/4″
- Frequency range (IEC 268-5): 50Hz – 30kHz
Compound Curvature Aluminium Woofer
To match the capabilities of the JET tweeter and guarantee a seamless transition from the woofer to the JET tweeter, the compound curvature cone has been developed to control the cone breakup and move it well beyond the operating range of the woofer. A large diameter voice coil and over-sized vented pole piece magnet combine to give remarkable bass dynamics and a rich powerful performance.
JET Folded Air-Motion-Transformer
Delivering true high-definition sound, ELAC’s JET tweeters enthral with its lightning-fast response and wide dynamic range, offering minimal distortion, lots of headroom and a wider frequency range. The ELAC JET tweeter is one of the most legendary tweeters in the industry and has won international praise with its transparent and effortless sound image.
Downward Firing Port
For a more flexible speaker placement and to minimize ventilation noise, the bass reflex port on the Carina series is directed to the floor, exiting the bottom of the speaker cabinet in a down-firing configuration.
Product Specifications
| Type | 3-Way Vented Box |
|---|---|
| Woofer | 1 x Aluminium Cone 5-1/4″ |
| Midrange | 1 x Aluminium Cone 5-1/4″ |
| Tweeter | JET Folded Ribbon |
| Crossover Frequency | 100Hz / 3kHz |
| Frequency Range (IEC 268-5 | 50Hz – 30kHz |
| Sensitivity | 87dB/2.83V/1m |
| Recommended Amplifier Power | 30 to 200 wpc |
| Peak Power Handling | 120W |
| Nominal | Minimum Impedance | 6 Ohm / 4.8 Ohm |
| Finishes | Satin Black, Satin White |
| Net Weight (each) | 11kg |
| Dimensions (HxWxD) | 21.2cm x 62.1cm x 19.8cm |
