Name: EarMen Tradutto Ultra Hi-Res Fully Balanced DAC
SKU: YXYUY 61235
Availability: InStock

Full Description

EarMen Tradutto

Ultra Hi-Res Fully Balanced DAC

EarMen has come up with a new sophisticated DAC with a wide range of abilities to offer. Introducing, EarMen Tradutto, a state of the art device packed with the power to enhance the sonic performance of your system.

The ES9038Q2M DAC allows outstanding sound performance and easily handles digital audio files up to 32bit/768kHz or DSD512. Furthermore, the whole circuit is optimized to draw less current and improve power filtering, resulting in low interferences from Wi-Fi, cellular, and Bluetooth signals.
MQA Supported: FSR (MQB/MQA Core, decoded file), MQA (MQA file that is hardware decoded in our device and then rendered), MQA Studio (the same as MQA, just with the consent of an author or production company)
Digital optical, digital coaxial and USB inputs – connect CD players, phones, tablets, games consoles, laptops or other digital audio sources – just play it!
Built in Qualcomm HD Bluetooth 5.1 (AAC/SBC/aptX/aptx LL/aptx HD/LDAC)
Gold Plated PCB – Not only does it give a good clean low resistance contact, but the perfect flat surface.
XMOS 16-Core chip (XU216) – has enabled us with its excellent performance a hardware decoding MQA, as well as other necessary functions for listening to music (delivers double the clock speed (2000MIPS) and four times the memory (512KB).
TRADUTTO is fully balanced, which means that the balanced outputs from the DAC go to the output intact, only amplified.

The Finest DAC Circuitry

· We used XMOS with 16 cores (XU216), which with its excellent performance enabled us to hardware decode MQA as well as other necessary functions for listening to music.

· The clock is carefully adjusted and has minimal jitter.

· The digital and analog part of the circuit is also carefully separated by the power supply.

· We used Wima Capacitors to obtain the lowest THD, as well as audio electrolytes in combination with MELF low noise resistors and SoundPlus OPA1642 operational amplifiers which proved to be great for getting neutral sound.

Qualcomm’s Flagship Chip

BlueTooth QCC5124 is a part of the QCC5100 Low Power Bluetooth Audio SoC Series. It is designed to meet demand for robust, high quality, wireless Bluetooth listening experiences in small devices with low power consumption for longer audio playback. Qualcomm® aptX audio, aptX HD, and Qualcomm aptX Adaptive audio technologies are designed to deliver consistent, high quality audio streaming over Bluetooth

All The Sources

Tradutto lets you enjoy music from any source, such as Coaxial, USB, TOS Link connections or HD Bluetooth. Wherever songs are played from, TRADUTTO stays true to the character of every instrument and uncovers a musicality you’ve never heard before. It offers a variety of options and freedom of choice that you can customize to your own sensibilities and possibilities

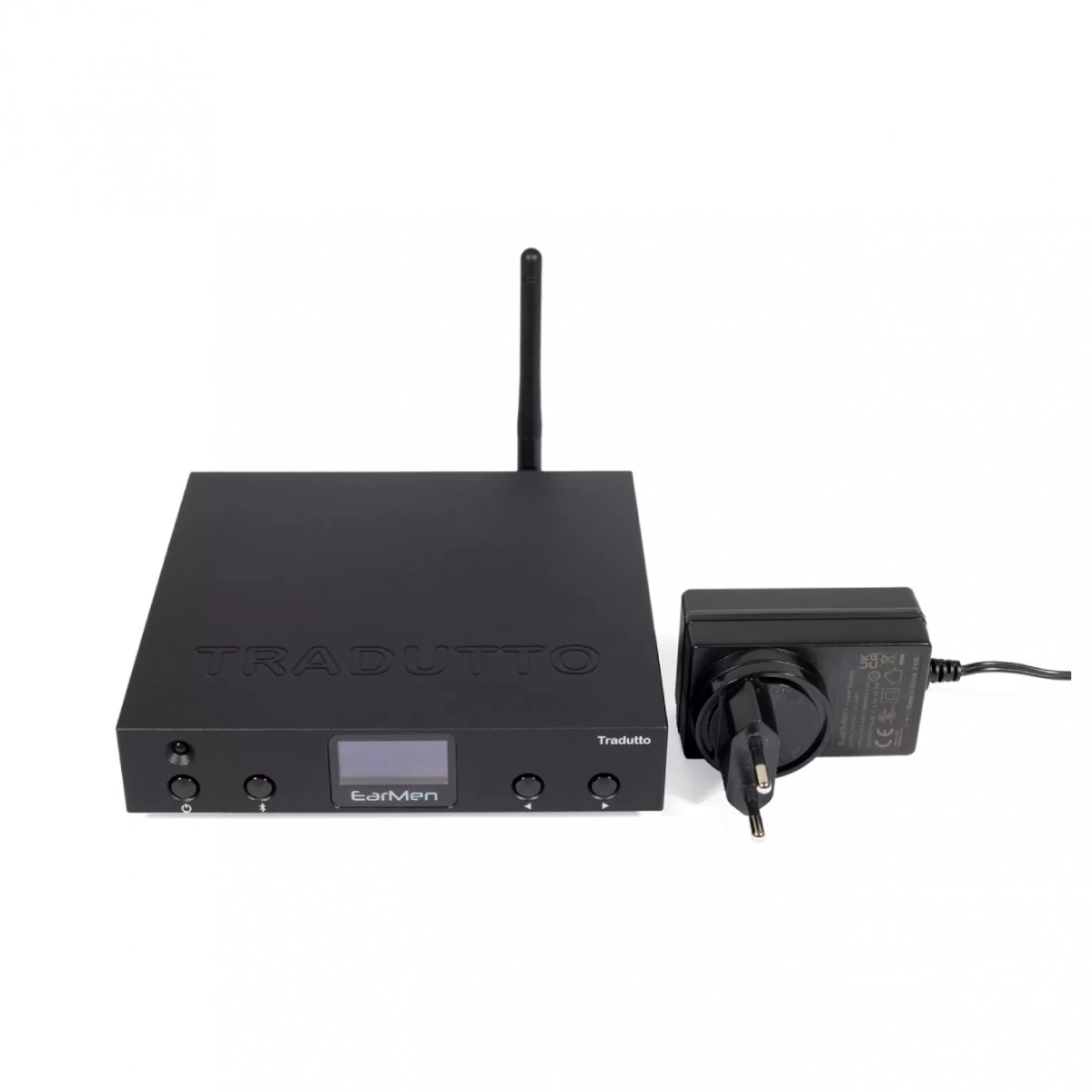

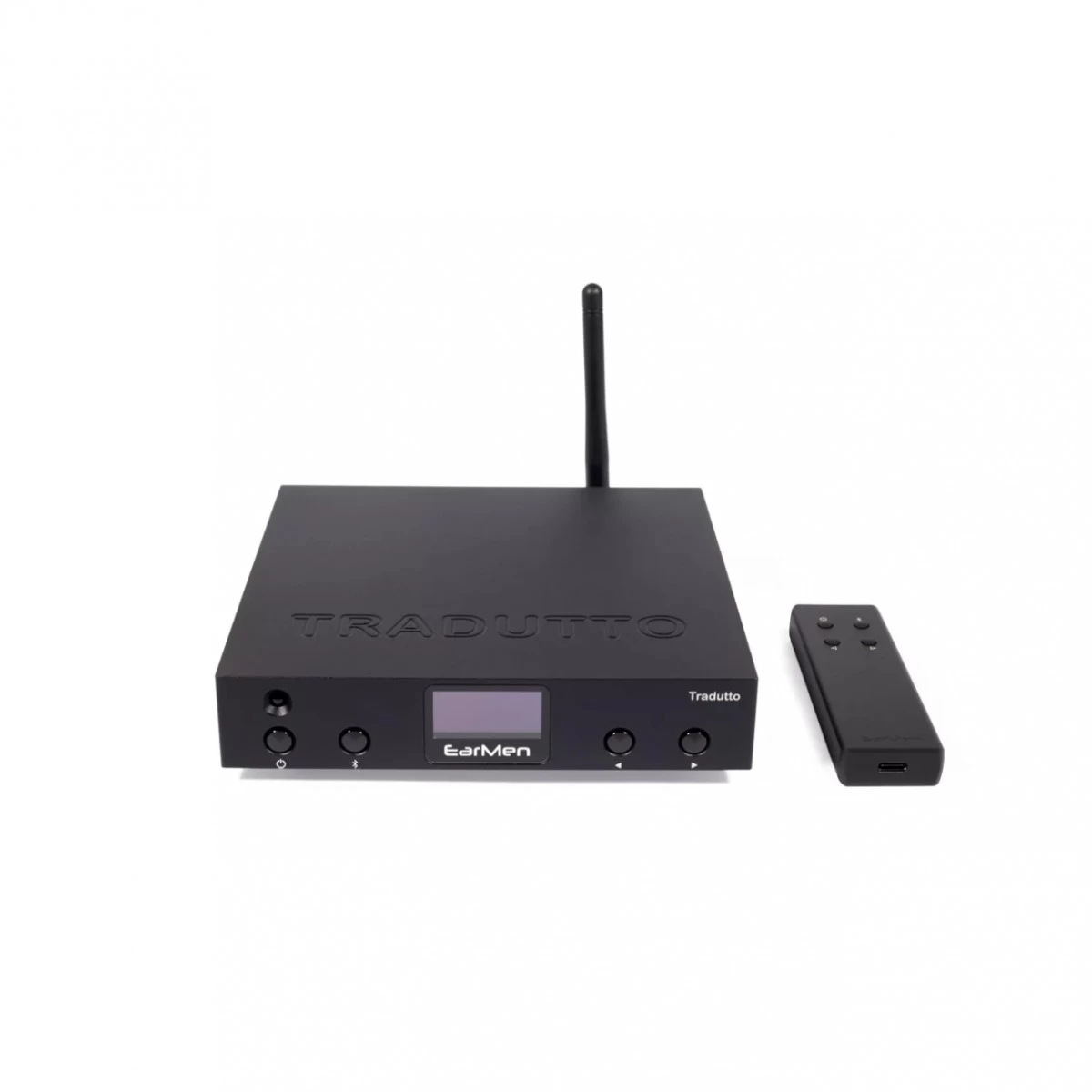

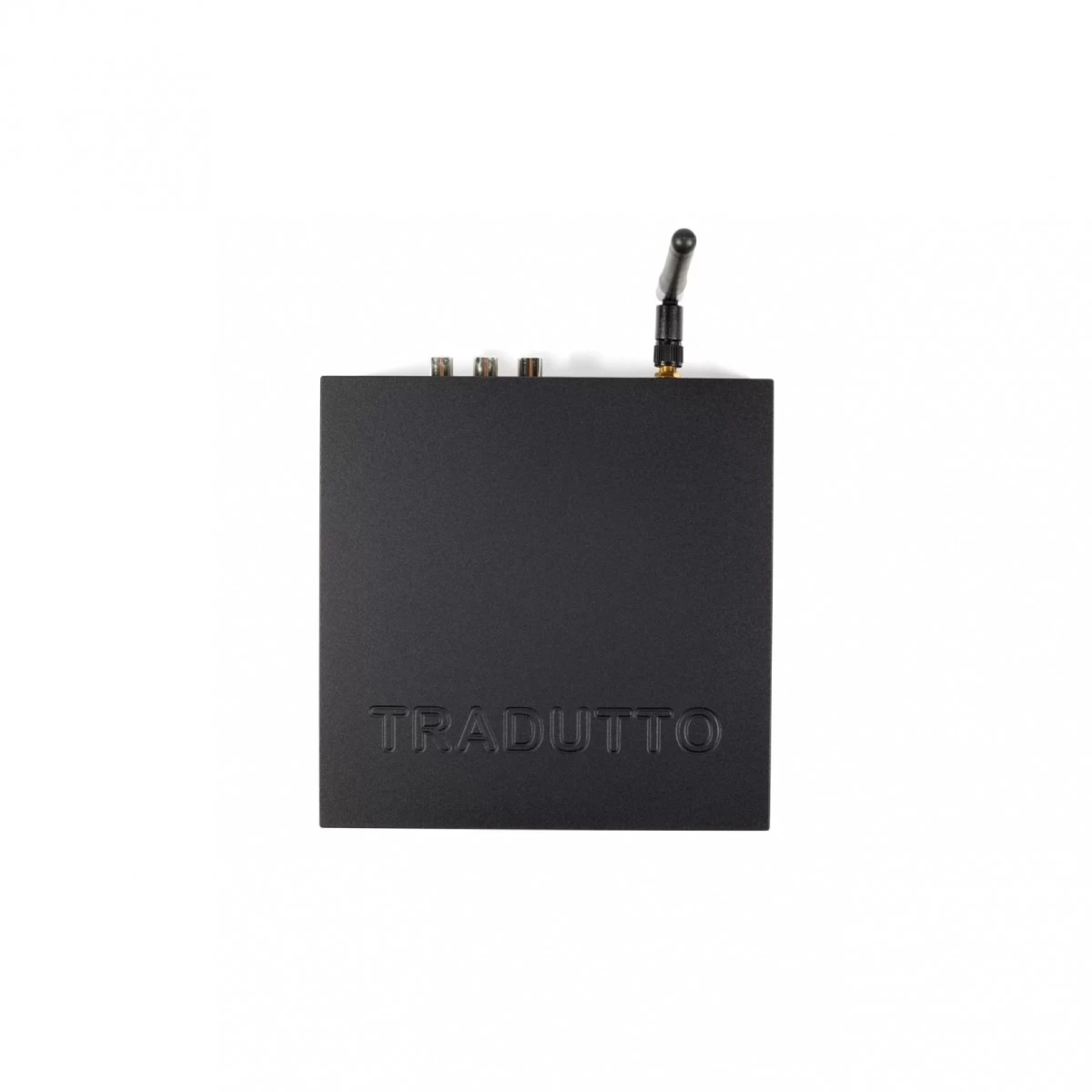

External Workmanship

Tradutto is born from a full block aluminium chassis, which makes it extremely durable and robust. Compact design makes it fitting to any environment, any system or home. The PCB is embedded in a solid aluminium housing, giving the board greater protection inside the housing and additional insulation from external influences

Outstanding Performance

At the heart of Tradutto is the extremely high-quality ESS Saber digital-to-analog converter ES9038K2M that delivers outstanding sound performance that can process digital audio files up to 32bit/768kHz or DSD512, so you can enjoy high-resolution music in every detail. EarMen Tradutto is designed for true audiophiles.

MQA Studio Quality Audio

Tradutto supports Tidal Masters (MQA) – MQA (Master Quality Authenticated) is an award-winning British technology that delivers the sound of the original master recording. The master MQA file is fully authenticated and is small enough to stream or download. Visit mqa.co.uk for more information

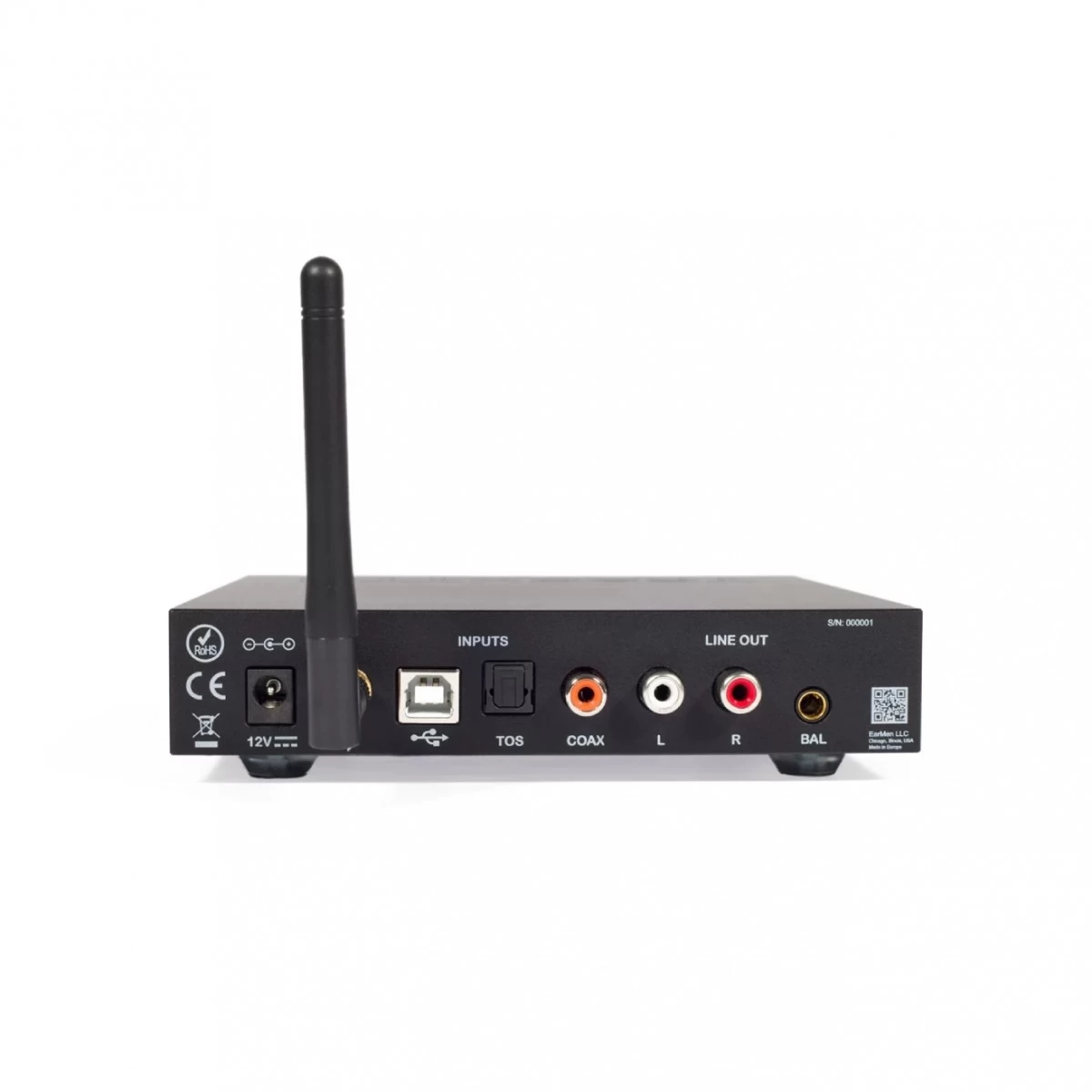

Inputs

Bluetooth	Bluetooth 5.1 (AAC,SBC, aptx, aptx HD, aptx LL, LDAC)
USB	Content
TOS Link	S/PDIF optical
COAX	S/PDIF

Outputs

RCA	output impedance = 300Ω
Balanced 4.4mm	output impedance = 600Ω

Audio Formats

PCM	Up to 768 kHz
DSD	DoP64, DoP128, DoP256, native DSD512
DXD	Up to 768 kHz
MQA Rendering	FSR (MQB/MQA Core), MQA, MQA Studio
Bluetooth/SPDIF	44.1kHz – 192kHz/16bit – 24bit
