Full Description
Advanced AL32 Processing Plus
Denon constantly pursues innovative technologies to bring you the natural sound reproduction that your favourite music deserves. With this in mind, Denon’s Advanced AL32 Processing Plus will deliver music that is accurate in the way the artist intended by utilising data interpolation algorithms, up-sampling, and bit-extension, the latest in analogue waveform reproduction technology to support hi-res audio. The DCD-900NE plays back CD, CD- R/RW, MP3, and WMA formats. Or plug in a USB stick to add playback of FLAC up to 192kHz/24bits or DSD 2.8 MHz/5.6 MHz.
Vibration-Resistant design

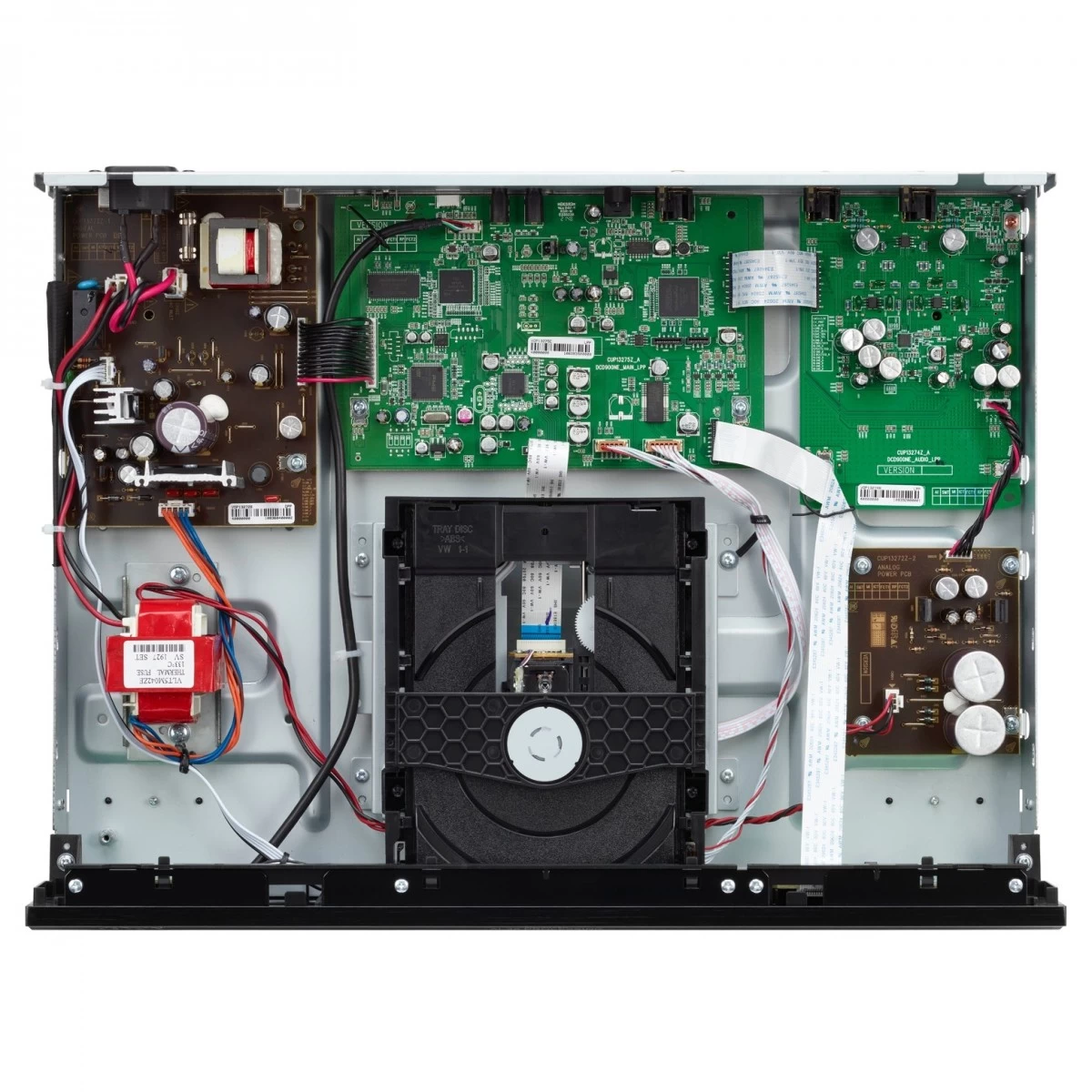

Adverse audio effects are commonly linked with vibration caused by heavy components within certain products. To negate this and ensure pristine audio, Denon goes the distance by placing power transformers near the bottom of the unit directly above the insulators. This significantly reduces vibration around the chassis so you’re listening experience is immersive and uninterrupted.
DAC Master Clock design
Master Clock design and placement are vital to achieving clarity in CD players. It is usual to find the master clock on the CD servo-decoder board in the CD player. This solution results in high jitter due to signal noise caused by other circuit components. To get around this the master clock in the DCD900NE is placed immediately adjacent to the DAC suppressing jitter making for prime D/A conversion.
What’s in the box
- Quick Start Guide
- Safety Instructions
- CD Player
- Power Cord
- Remote Control
- 2 x AAA batteries
- Audio Cable
Features
- Extended disc, format, and USB support including CD, CD- R/RW, MP3, and WMA formats.
- USB port adds playback of FLAC up to 192kHz/24bits or DSD 2.8 MHz/5.6 MHz.
- Advanced AL32 Processing Plus offers natural sound reproduction
- Designed to reduce vibration and interference with specifically fitted power transformers and increased physical separation or internal components
- DAC Master Clock design suppresses unwanted jitter
- Shortened internal signal paths optimise noise reduction to produce pristine sound
- Pure Direct mode minimises interference from displays and digital outputs
- Features one optical and one coaxial digital output to connect to the digital input of an amplifier or AV receiver.
- A heritage of audio technology leadership ensures longevity and trouble-free service
Specifications
| Signal to Noise Ratio | 115 dB (CD/USB) |
|---|---|
| Frequency Response | USB (PCM/DSD): 2Hz – 50kHz (-3dB)
CD: 2Hz – 20kHz |
| Total Harmonic Distortion | USB DSD: 0.0015
USB PCM 24-bit: 0.0020
CD: 0.0025 |
| Line Level Output | 2.2Vms |
| DAC IC | ES9018K2M |
| Digital Filter | AL32 Processing Plus |
| Dynamic Range | 101 dB (CD) |
Features
| Advanced AL32 Plus | Yes |
|---|---|
| Customized Components | Yes |
| CD Compatibility | CD / CD-R/RW / WMA / MP3 / AAC |
Playback
| Program Play (CD) | Yes |
|---|---|
| Repeat | Yes |
| Random Play | Yes |
| USB-A File support | MP3 / WMA / AAC Yes / Yes / Yes
WAV Yes ( 192kHz/24bit)
FLAC Yes ( 192kHz/24bit)
ALAC Yes ( 96kHz/24bit)
AIFF Yes ( 196kHz/24bit)
DSD (DIFF / DSF) Yes ( 5.6MHz) |
Others
| Separated rectifier circuit for analogue and digital circuitry | Yes |
|---|---|
| Display: Dimmer / Off | Yes / Yes |

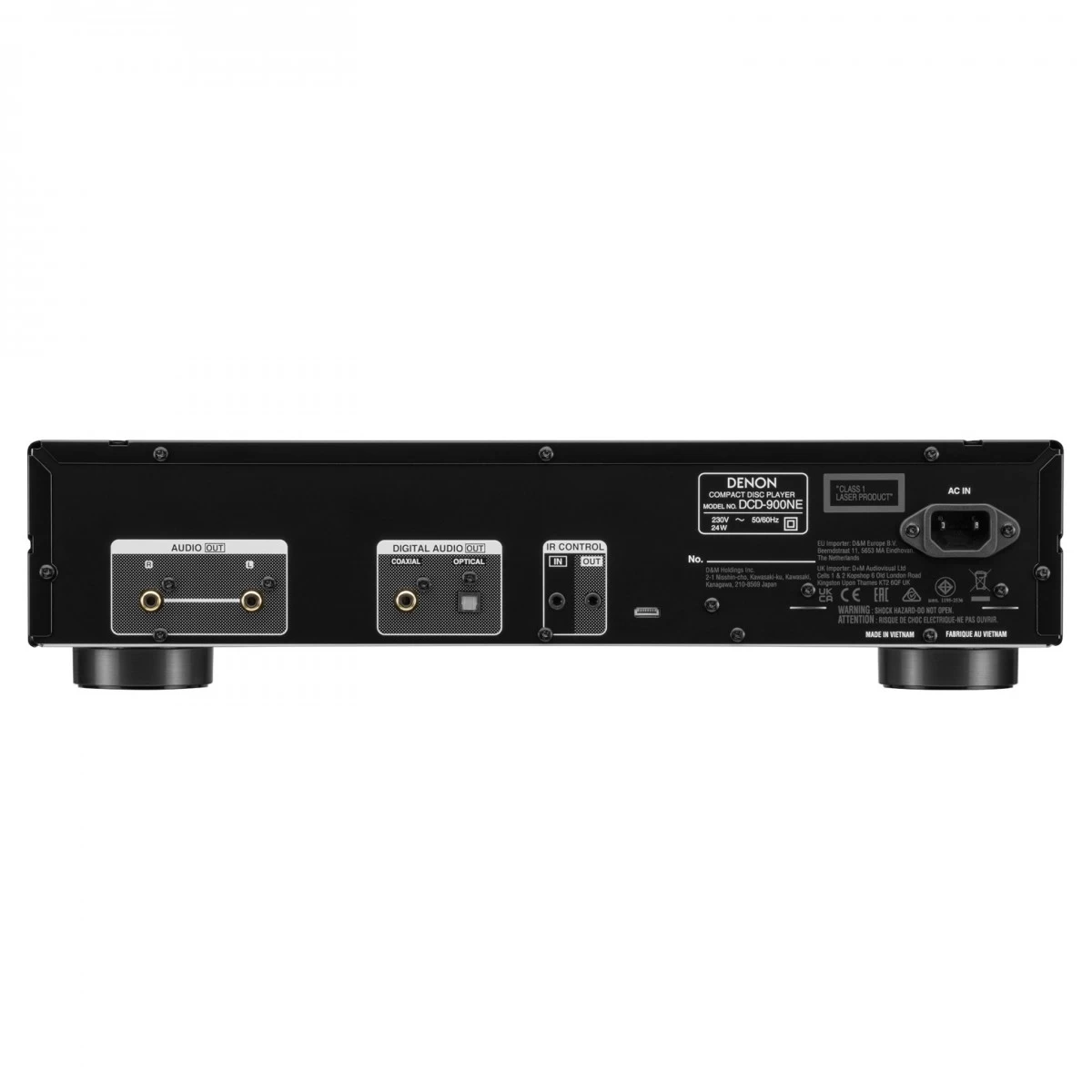

Ports
| Digital Optical In / Out | No / Yes |
|---|---|
| Digital Coaxial In / Out | No / Yes |
| Gold-plated Cinch | Yes |
| Remote Control Bus In / Out | Yes |
| Analogue Out (Cinch) | 2Ch |
| USB Audio (Front) | Yes |
General
| Metal Front Panel | Aluminium |
|---|---|
| Power Consumption | 24W |
| Standby Consumption | 0.3W |
| Auto Power Off | Yes |
| Remote Control | RC-1246 |
| Weight | 4.9kg |
| Maximum Dimensions (W × D × H) | 434 × 328 x 107mm |
| Product code | DCD900NEBKE2GB |
