Name: DALI SUB M-10D Subwoofer, Gloss White
SKU: YXYUY 95319
Availability: InStock

Full Description

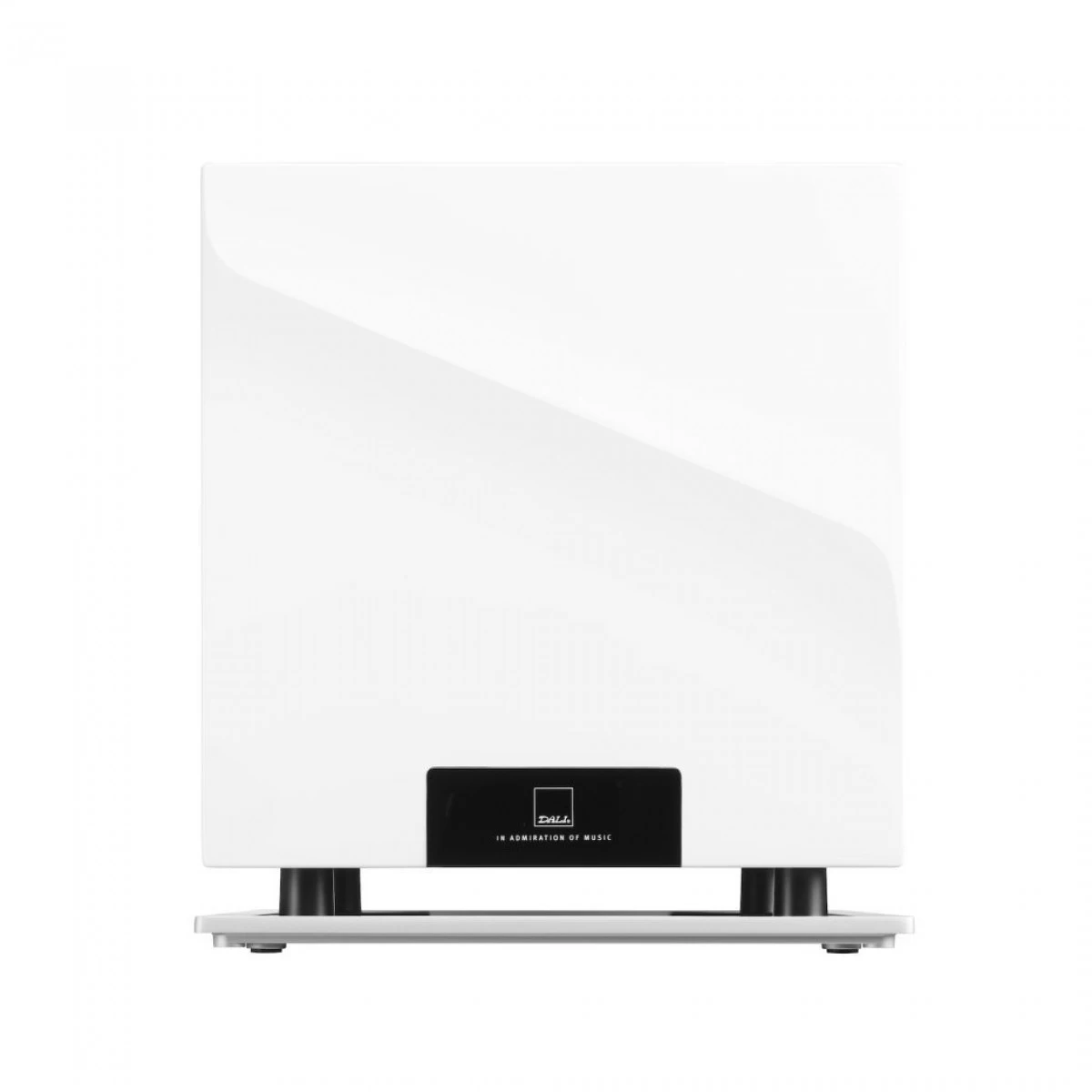

Combining a down firing 10 inch long stroke woofer and a 500 watt amplifier, the Dali M-10D is a subwoofer will bring loads of punch into any movie experience. DALI recommends using the subwoofer with EPICON, RUBICON and FAZON F5 systems. Customers with speakers from other brands will also find what they need in this subwoofer. The design, technology, and construction of this subwoofer make it a perfect upgrade of any mid to high end loudspeaker system.

The remote controlled subwoofer, with individual settings and memory for stereo and theater, will be the competent upgrade to high-end stereo and home cinema systems.

ELEGANT AND SIMPLE DESIGN

The cabinet is designed to fit perfectly to the size of the woofer, but without forgoing the inner volume that is needed to produce a powerful bass performance.

FLEXIBLE CONNECTIVITY

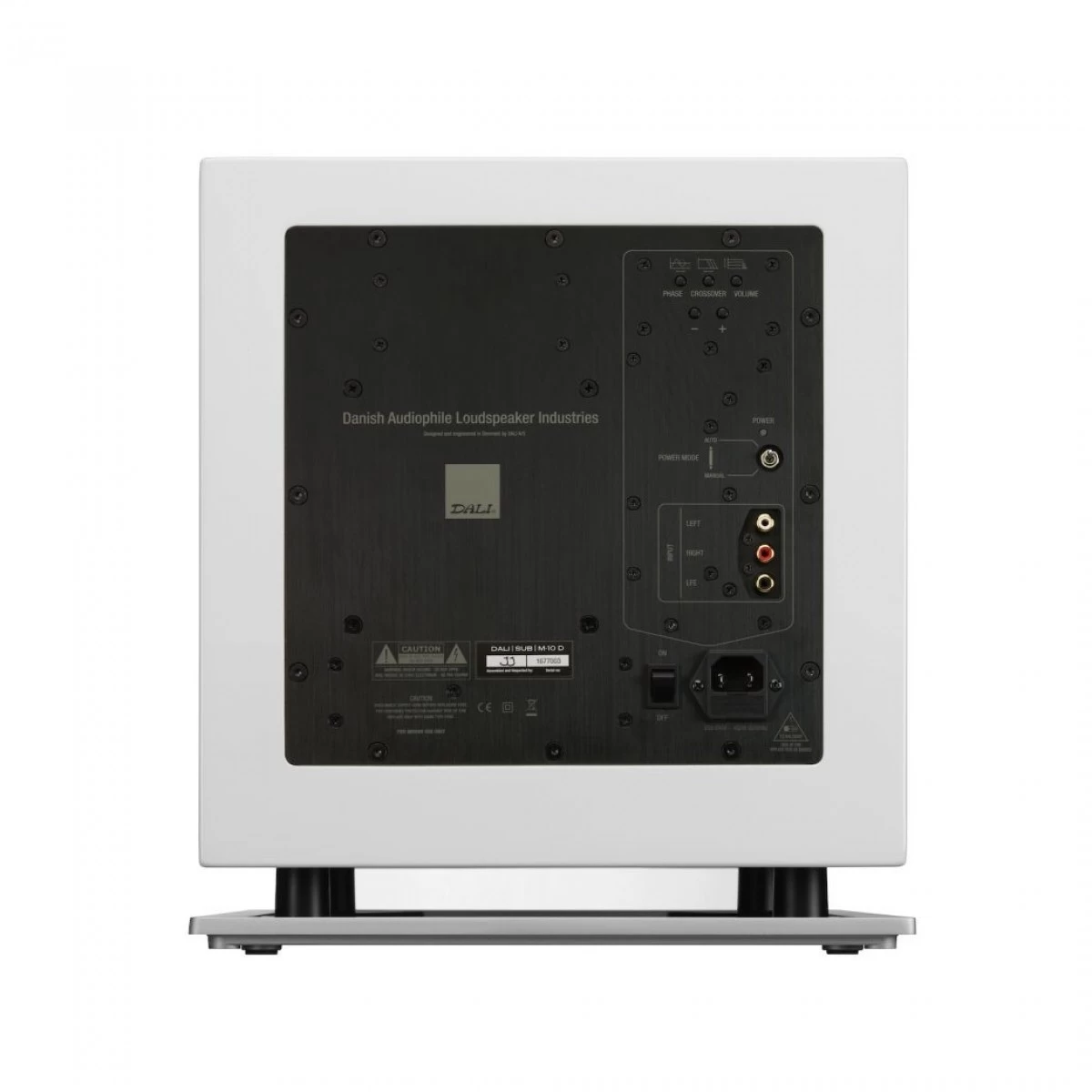

All DALI subwoofers are compatible with almost any amplifier, receiver or processor due to the choice of LFE or LINE inputs.

HIGH-YIELD AMPLIFIER

All the amplifiers in the DALI subwoofers have the stamina to keep a high-yield performance and the headroom to draw out that little extra when needed.

ALUMINIUM BASE

Giving the illusion that the subwoofer is floating on air, the elegant aluminium base decouples the subwoofer from the floor and integrate seamlessly to the room.

Active Woofer

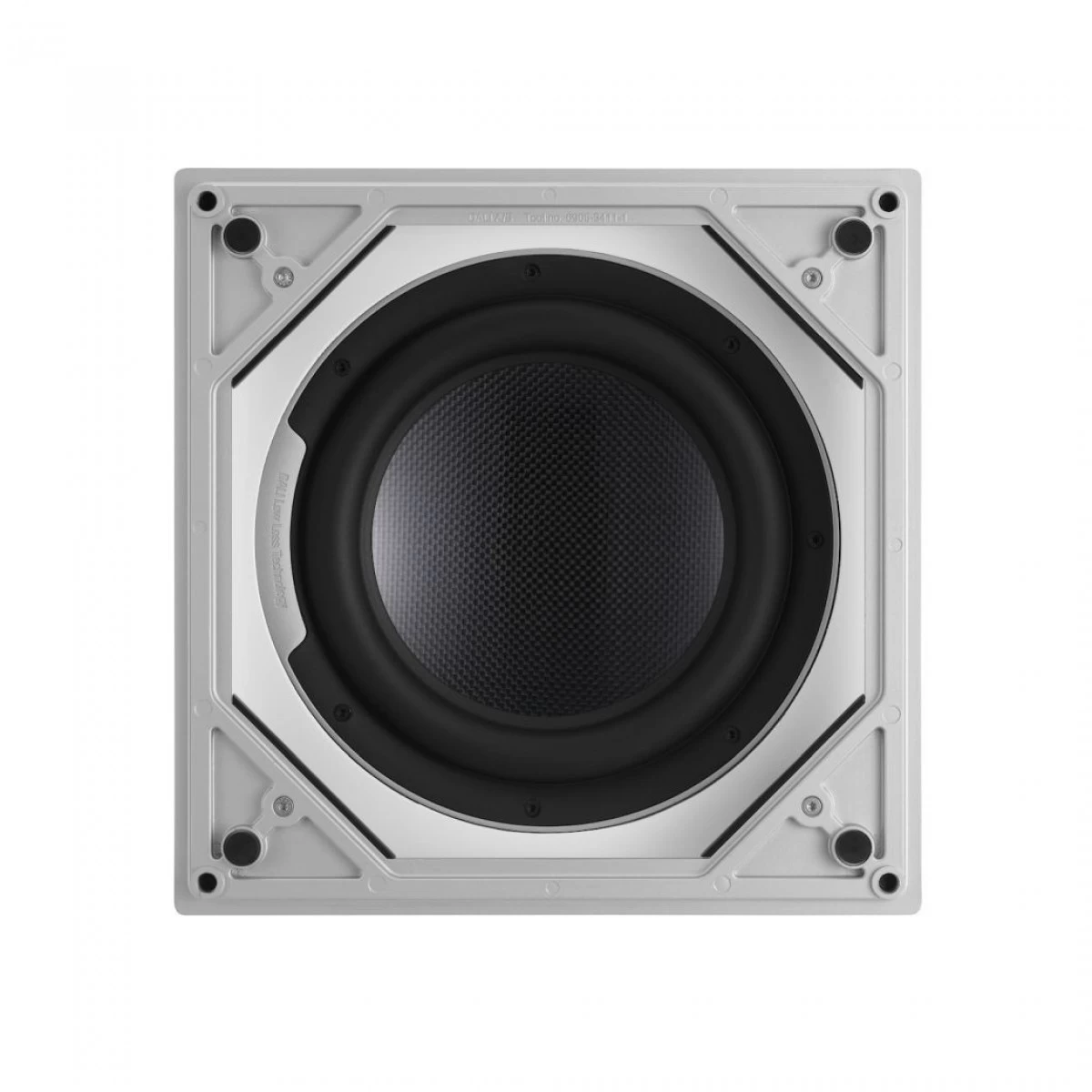

DALI SUB M-10 D is equipped with an active 10” down-firing woofer. The cone is a sandwich construction with carbon fibre at the front paired with paper pulp at the back. The result is a rigid cone with superior breakup characteristics while at the same time being very lightweight and agile. The 4-layer voice coil is mounted on an aluminium paper-pulp lined former to reduce potential micro-resonance. A 63.5 mm voice coil ensures maximum power handling and is controlled by a 2-piece ferrite magnet with a vented pole piece.

For optimum control of the cone excursion, the woofer features dual spiders, ensuring 100% piston-like behaviour, even at high volumes. The surround is made from wide, natural rubber, guaranteeing linearity across the entire 25 mm cone excursion. Even the oversized litz wires are made from solid silver coated OFC copper for optimum signal feed. The chassis is made from aluminium to prevent any magnetic loss. Llots of research has gone into optimizing the entire construction for lowest possible mechanical and magnetic loss, and to ensure a free airflow.

CABINET

DALI SUB M-10 D features a solid, down-firing woofer, able to move lots of air. To ensure a stable working environment for this woofer the base of the cabinet is made from 25 mm plywood. This guarantees a powerful grip on the driver, eliminating any loss related to the fixation of the woofer itself.

Applying a sleek aluminium base and spacers made from solid aluminium, the entire cabinet is effectively decoupled from the floor. Almost appearing to hover above the floor the distance of 45 mm eliminates any potential turbulence from the space between the cabinet and the floor itself. At the same time the proximity to the floor ensures that the benefit of having a down-firing woofer is maintained; a higher efficiency and a seamless acoustic coupling to the room. It features 10 layers of PE lacquer. And in between, each layer is hand polished to ensure a deep, high gloss and elegant surface.

Product series	SUBWOOFERS
Frequency Range (+/-3 dB) [Hz]	25 – 240
Maximum SPL [dB]	111
Crossover Frequency [Hz]	40 – 120
Low frequency driver, Quantity	1 x 10″ long stroke
Enclosure type	Closed Box
Max. Amplifier Power Output [RMS watt]	500
Continous IEC Power Output [RMS watt]	300
Input Impedance [ohms]	26k
Connection Input	Mono (LFE) RCA Stereo (low-pass filtered)
Magnetic Shielding	No
Recommended Placement	Floor
Recommended Distance From Wall [cm]	> 5
Functions	Cinema/Hifi Switch Crossover Frequency Standby (Auto Power) On/Off Switch Standby (Auto Power) On/Off Variable Phase Control Volume (Gain)
Max. Power Consumption [W]	550
Dimensions With Base (HxWxD) [mm]	370 x 340 x 340
Weight [kg]	20.5
Accessories Included	Manual Remote Control Spikes M10
