Full Description

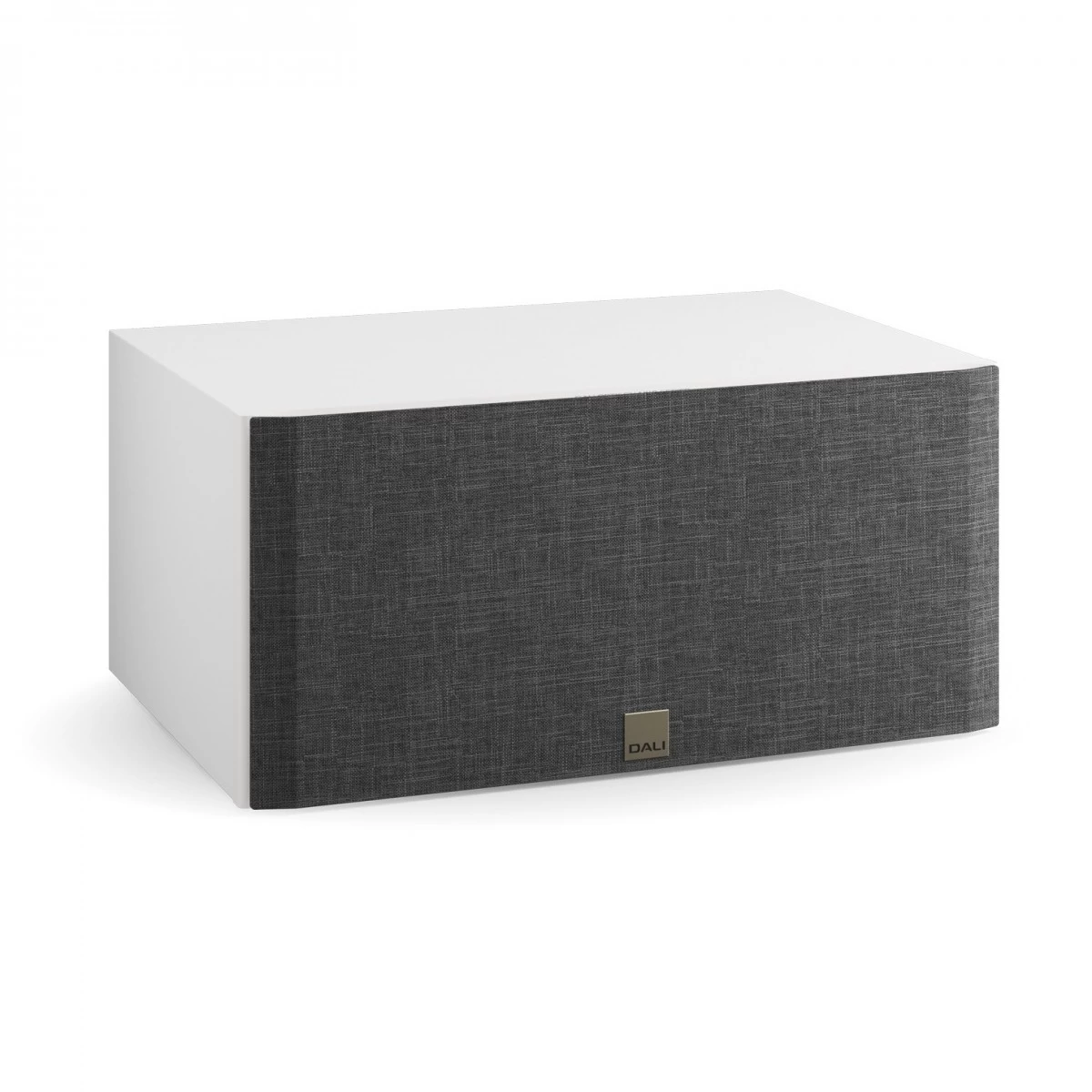

Designed as the ideal centre speaker for your Dali Opticon system, the Opticon Vokal seamlessly integrates with all Opticon models, be it the Opticon 1 or the flagship Opticon 8. Thanks to the patented SMC driver and hybrid module casing from the Opticon 8’s mid-range driver, you can expect vocals to be nothing short of pin-point accurate. The dual front-facing bass reflex port design ensures that the Opticon Vokal centre speaker maximizes its frequencies from the mid-range and downwards to a remarkable 47Hz. This means it will perform impressively, whether it’s placed within a cabinet or snugly tucked against the wall in a spacious home theatre.

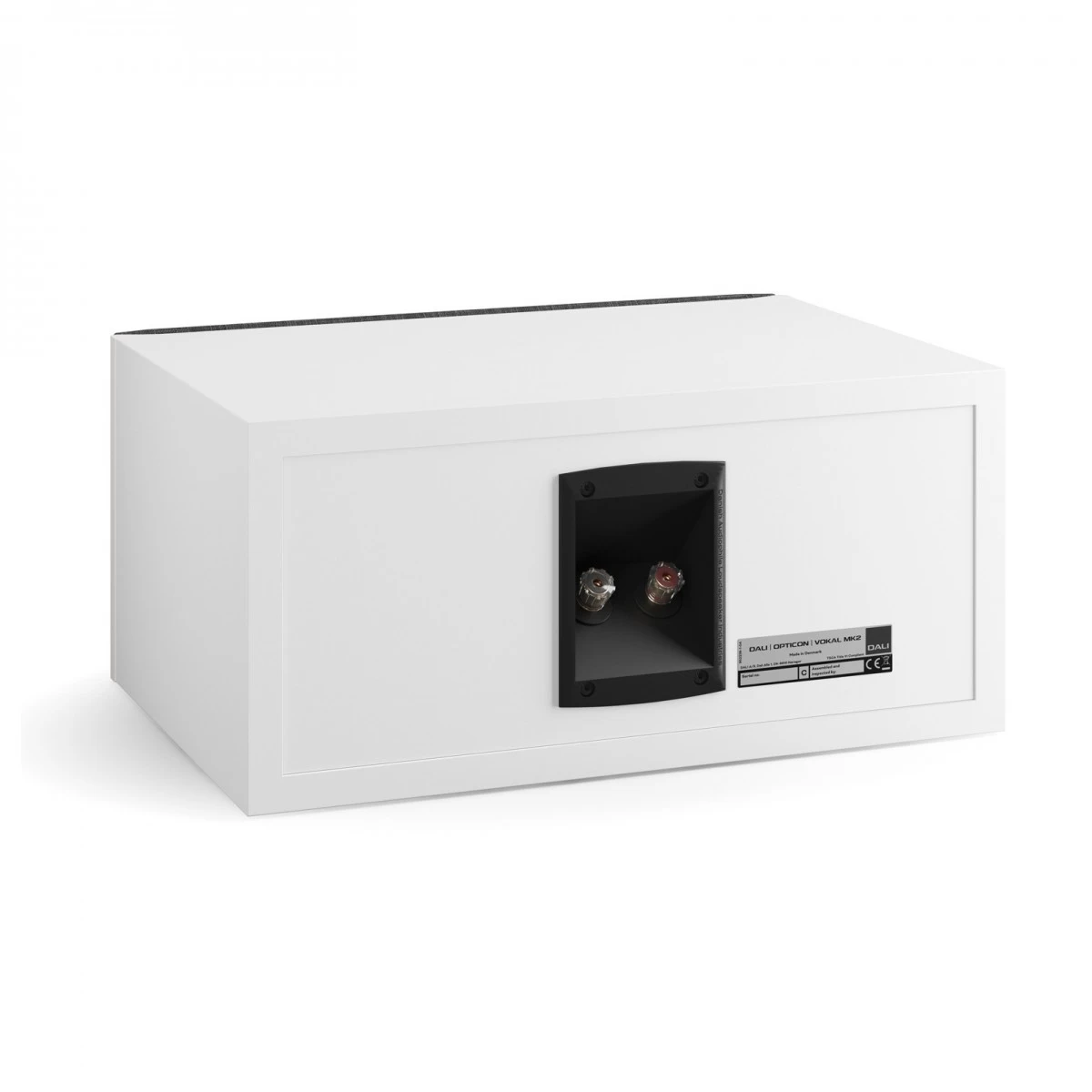

The Dali Opticon Vokal Centre Speaker boasts an array of remarkable features that contribute to its outstanding performance and aesthetics. Its newly constructed aluminium cast tweeter housing, drawing inspiration from the Rubicon Range, is a testament to its commitment to quality. This housing not only enhances the speaker’s structural integrity but also adds a touch of sophistication to its design. In the realm of connectivity and convenience, the Opticon Vokal doesn’t disappoint. It features high-quality single-ended speaker termination with a grippy feel coating, ensuring secure and reliable connections. This attention to detail simplifies the setup process and ensures a stable audio connection.
The speaker’s sound quality is further enriched by its CALLISTO-inspired 29mm soft dome tweeter design, offering a premium audio experience from Dali’s flagship range that brings out the best in your music. It doesn’t stop there, as Dali has also included its High-Frequency Range Ribbon Tweeter, which enhances the high-frequency performance for a more immersive listening experience. The integration of the 29mm soft dome tweeter, which seamlessly crosses over to the ribbon tweeter at 10kHz, ensures a smooth and comprehensive audio range. This speaker is designed to excel in various settings, whether it’s placed in cabinets, open spaces, or in close proximity to walls, providing consistent and outstanding performance wherever you choose to position it.
The Opticon Vokal’s design is a testament to its aesthetic appeal. The two-tone front fascia design offers a selection of colours, allowing you to choose the one that best complements your decor and personal style. It’s not just about looks; this speaker’s custom-engineered 6.5″ SMC mid-range driver, constructed using fine paper pulp and reinforced wood fibre, ensures exceptional sound quality, making your listening experience truly remarkable.
SMC Technology
The SMC used in OPTICON MK2’s magnet motor system has very high magnetic permeability and very low electrical conductivity. It works primarily by minimising eddy currents in the magnet system pole piece. This improves flux linearity, reducing the magnetic hysteresis. Resulting in a significant reduction of electro-acoustic distortion.
Hybrid Tweeter

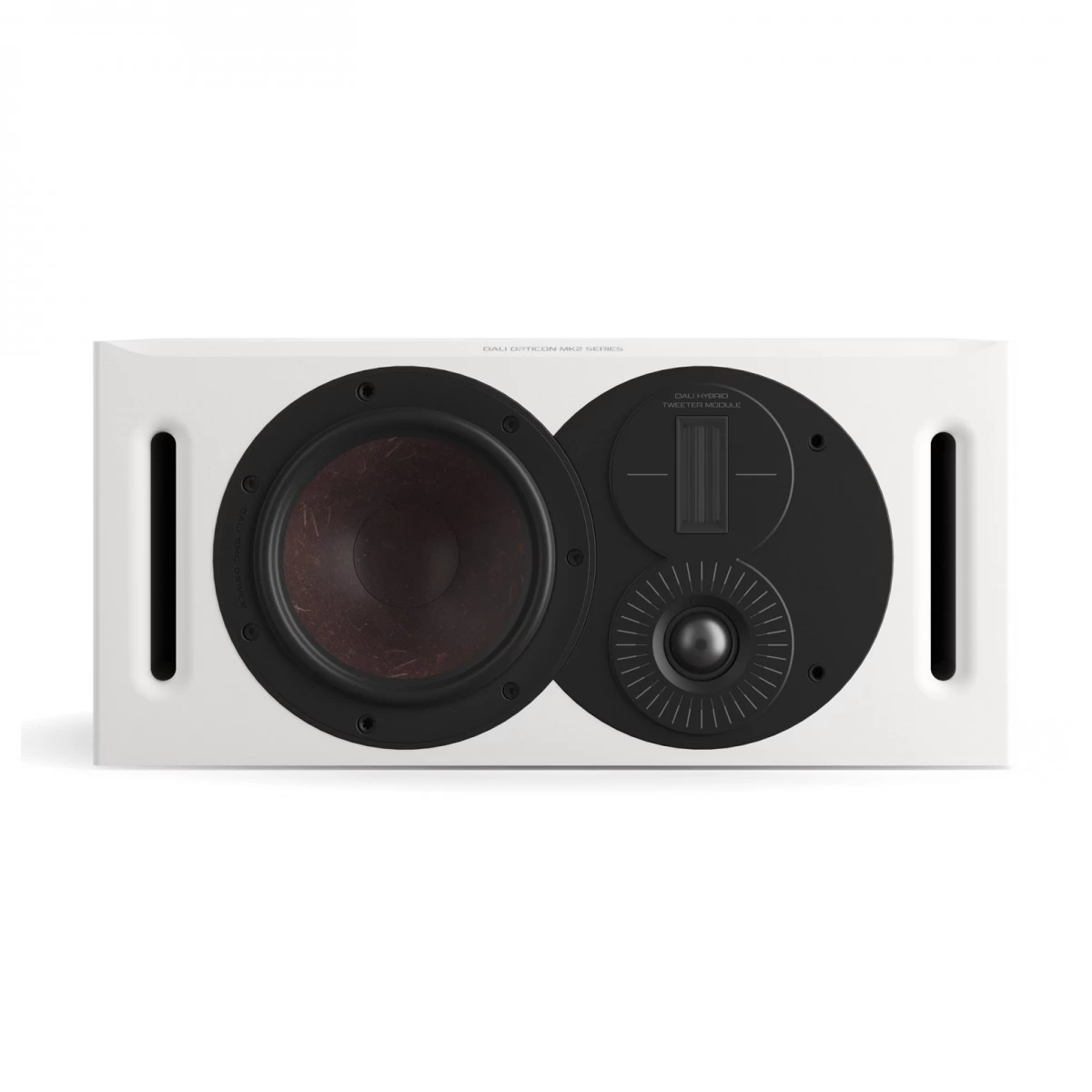

The new OPTICON MK2 hybrid tweeter marries the CALLISTO-derived 29 mm soft dome with a custom 17 x 45 mm ribbon – mounted on a cast aluminium faceplate that incorporates dispersion control detailing. This combination offers the clarity, speed and dynamics of a dome tweeter, with the very high frequency detail and smooth finesse of a ribbon tweeter.
Slim Reflex Ports
The twin letterbox style reflex ports face forward to enable the OPTICON VOKAL MK2 to be enclosed in furniture units. Flaring is less critical on a system designed primarily for voice reproduction, which allows for slim reflex ports in a compact enclosure without affecting the performance.
Made In Denmark
Manufacture of the OPTICON MK2 series has been retained firmly at our Danish factory. Our in-house woodworking facility handles everything from cutting the MDF enclosure panels to applying the surface finishes. Assembly by hand, testing and quality approval on each and every speaker is also handled on our own assembly lines.
| Frequency Range (+/-3 dB) [Hz] | 47 – 30,000 |
|---|---|
| Sensitivity (2.83V/1m) [dB] | 88 |
| Nominal Impedance [ohm] | 4 |
| Maximum SPL [dB] | 109 |
| Recommended Amplifier Power [Watt] | 30-150 |
| Crossover Frequency [Hz] | 800 / 2,400 / 14,000 |
| Crossover Principle | 2½-way |
| High Frequency Driver | 1 x 29 mm Soft Dome | 1 x 17 x 45 mm Ribbon |
| Low Frequency / Mid-Range Driver(s) | 1 x 6½” |
| Enclosure Type | Bass Reflex |
| Bass Reflex Tuning Frequency [Hz] | 44 |
| Connection Input(s) | Single |
| Recommended Placement | Shelf |
| Recommended Distance From Rear Wall To Speaker’s Rear Panel [cm] | 0 – 30 |
| Dimensions (H x W x D) [mm] | 201 x 435 x 312 |
| Dimensions (H x W x D) [inches] | 7.9 x 17.1 x 12.3 |
| Weight [kg/lb] | 9.2 / 20.2 |
| Included Accessories | Rubber Feet, Manual |
