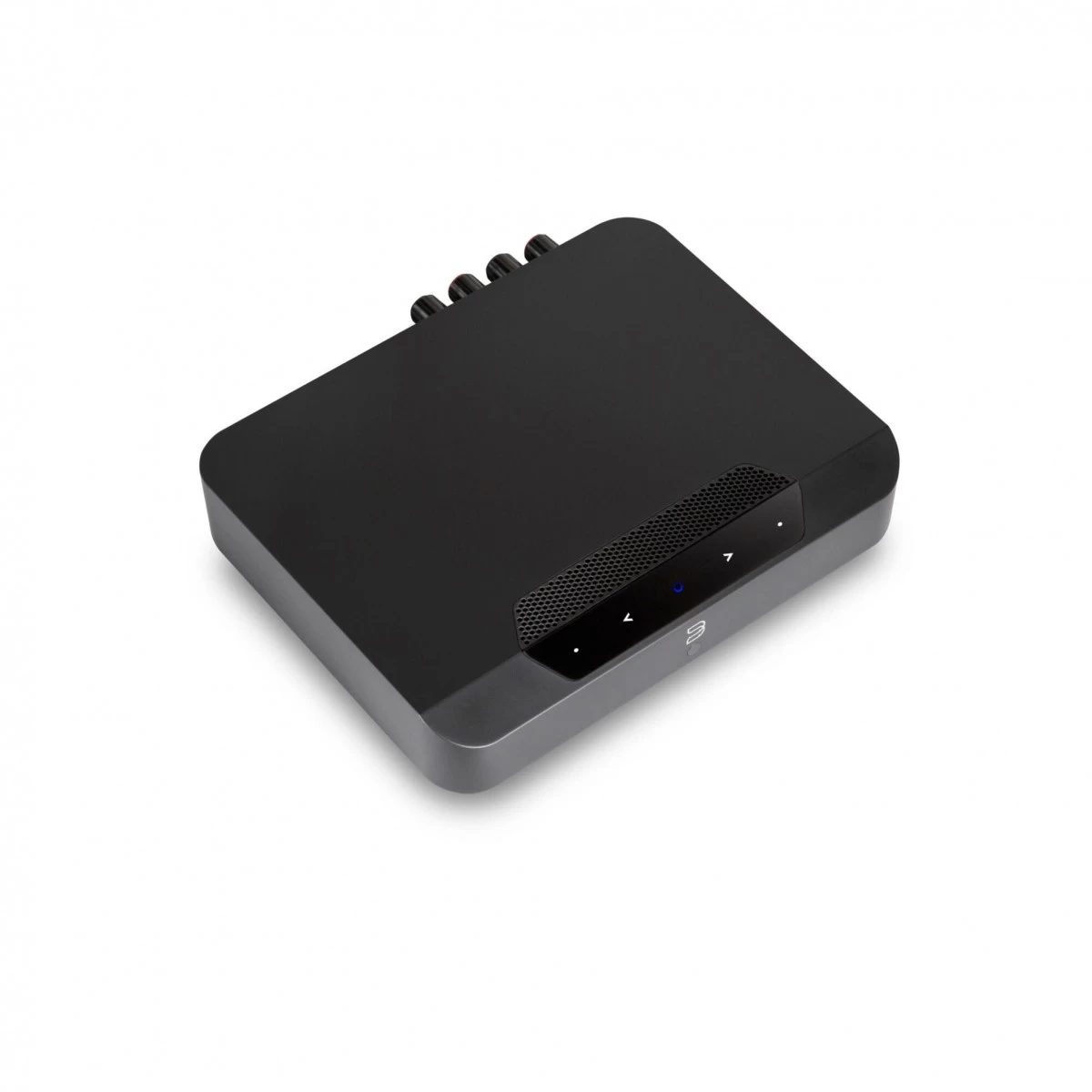

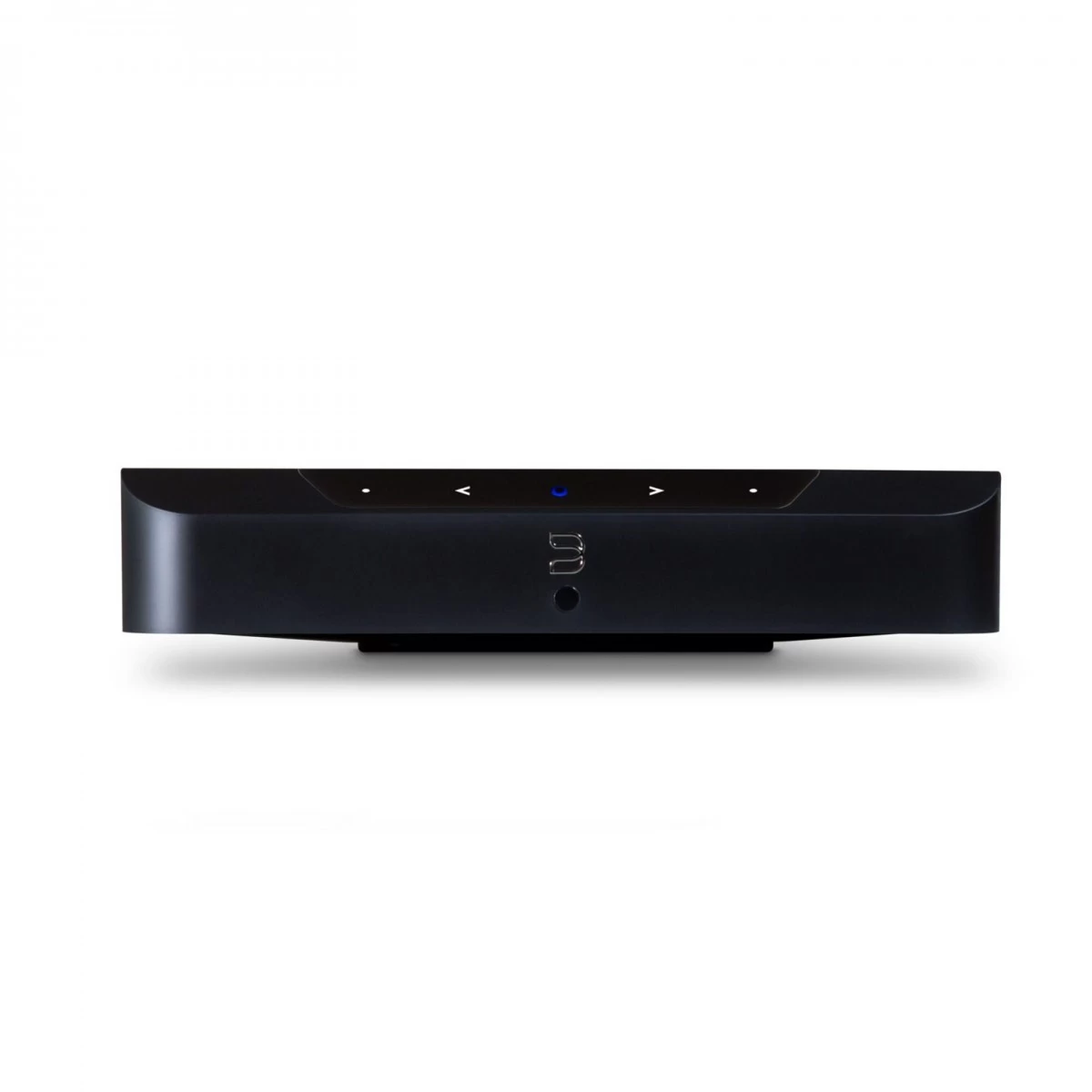

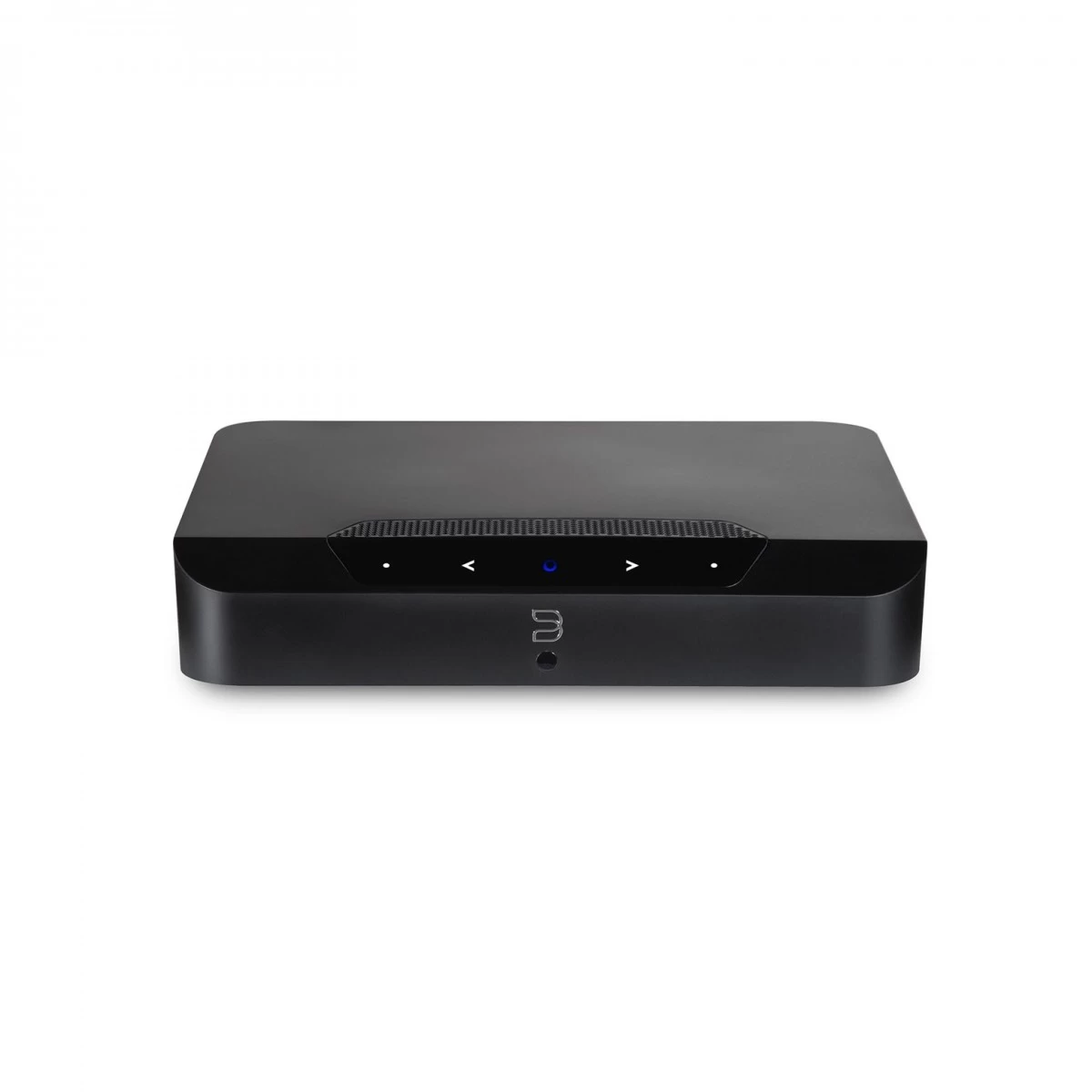

Bluesound POWERNODE EDGE Wireless Music Streaming Amplifier, Black

What’s in the box

• 120V AC Power Cord
• 230V AC Power Cord
• Ethernet Cable
• TOSLINK Optical to 3.5mm Mini Adapter
• Metal Mounting Bracket
• Metal Mounting Screw
• Rubber Mount Attachment
• Safety/ Warranty Guide
• Quick Setup Guide

Features

• Easily power a pair of passive speakers
• 40 Watts per channel of DirectDigital™ amplification technology handling 24 bit/192 kHz files
• A state-of-the-art Quad-Core 1.8GHz ARM® Cortex A53 Processor
• HDMI eARC connectivity
• Digital optical and analog input options, subwoofer output, and Bluetooth® wireless headphone output
• Dolby® Digital decoding
• Dual-band Wi-Fi, Gigabit Ethernet and support for 2-way Bluetooth® aptX™ HD
• Stream hi-res content from internet radio stations, cloud music services or your own local music players
• Intuitive control with the BluOS Controller app
• Elegant capacitive touch panel for quick-access controls (Play, Pause, Volume Up/Down, Previous/Next Track)
• Includes an easy-to-install, multi-orientation wall-mounting bracket
• IR remote learning capability – optional control using the RC1 Remote Controller
• Connect with the BluVoice skill to enable voice assistants like Alexa, Google Assistant and Siri to control Players around the home.
• AirPlay 2 lets you play music or podcasts from wireless stereo components throughout your house — all in sync.

Audio

Supported Audio File Formats	MP3, AAC, WMA, WMA-L, OGG, ALAC, OPUS
Supported Hi-Res Audio File Formats	FLAC, MQA, WAV, AIFF, MPEG-4 SLS
Supported Multi-Channel Audio Formats	Dolby® Digital
Native Sampling Rates	Up to 192 kHz
Bit Depth	16-24
Audio Controls & EQ	BluOS Controller App
Signal-to-Noise Ratio	-91dBA
Distortion	THD+N, 0.008
Amplification	DirectDigital™
Rated Power Output	40W x 2 (8 Ohms)
IHF Dynamic Power	80W (4 Ohms) / 50W (8 Ohms)
Minimum Impedance	4 Ohms

Software & Integrations

Operating System	BluOS
App Controller Operating System	iOS, Android, Windows, macOS
Processor	ARM® Cortex™-A53, Quad-Core, 1.8GHz per core
Supported Network File Sharing	Server Message Block (SMB) up to 200,000 files
Album Art Supported	JPG, PNG
Music Services & Internet Radio	23+
3rd Party Integrations	AirPlay 2, Spotify Connect, Tidal Connect, Roon Ready
Control System Integrations	Cestron, Control4, RTI, ELAN, URC, Lutron
Voice Control Integrations	Amazon Alexa Skills; Actions on Google
BluOS Home Theater	Yes – rear surround channels

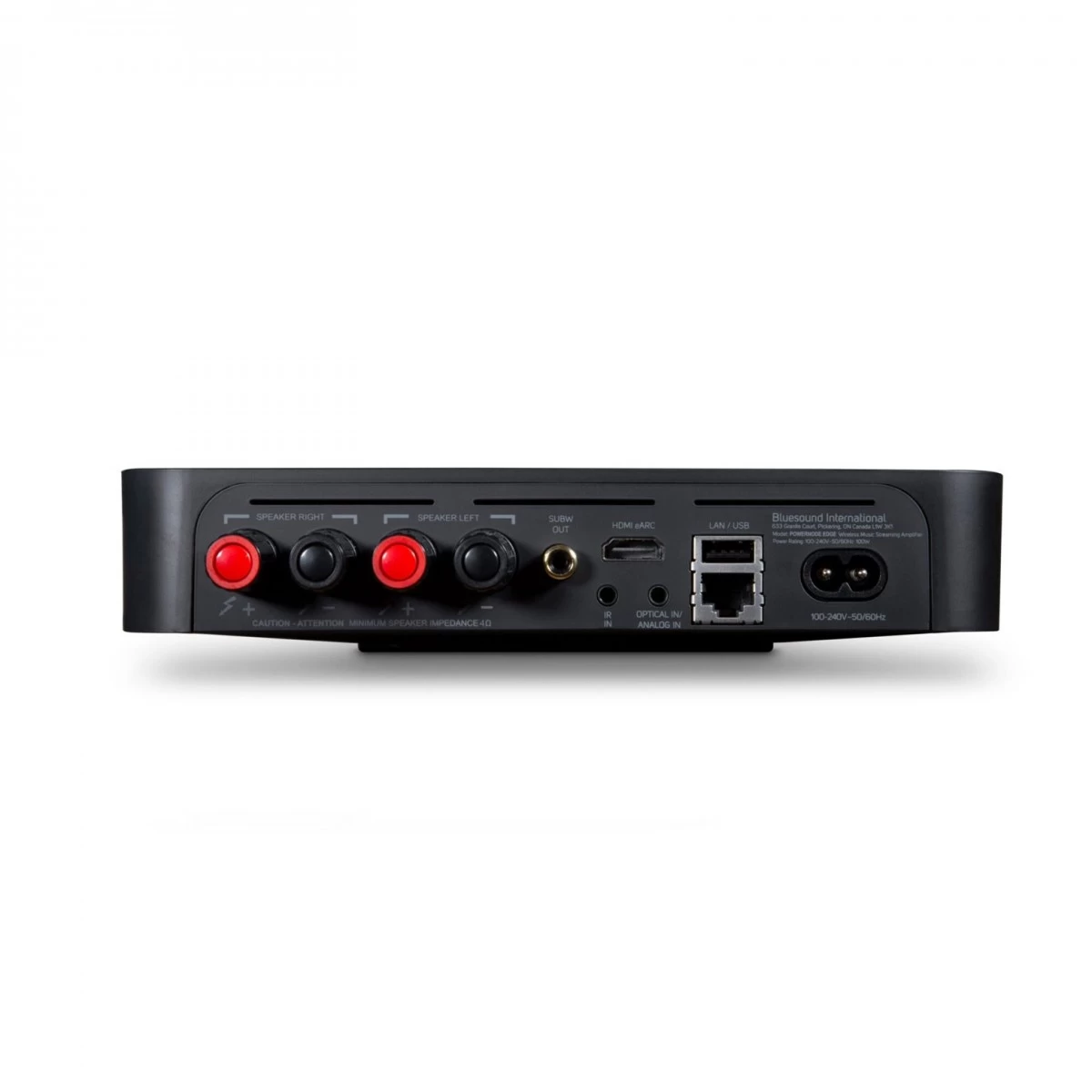

Connections

Power Supply	Universal bi-pin AC cord input (100-240AC)
Ethernet/LAN	Ethernet RJ45, Gigabit 1000 Mbps
Wi-Fi Built In	Wi-Fi 5 (802.11ac), dual-band
Bluetooth Quality	Bluetooth 5.0 aptX HD
Bluetooth Connectivity	Two-Way (transmit & receive)
IR Optical Built In	IR Sensor Built In – front panel with IR Remote Learning
IR Input	3.5mm Jack
Optical/Analog Input	Combo – Mini TOSLINK/Stereo 3.5mm
HMDI Input	HDMI eARC
USB IN	Type A (Fat32 Formatted)
Headphone Output	Bluetooth only
Subwoofer Output	RCA x 1; Wireless to PULSE SUB+
Speaker Terminals	5-Way Binding Post

User Interface & Control

Status Indicator	LED
Play/Pause Button	Touch LED
Volume Control Buttons	Touch LED
Previous/ Next Track Buttons	Touch LED
Preset Buttons	In-App only

General

Storage Environment	-10°C to 50°C, 20 to 80 relative humidity
Operating Environment	0°C to 40°C
Finish	Black; Matte Satin Paint
Version	N230

Dimensions

Dimensions (H x W x D) (mm)	219 x 44.5 x 193

Weight

Weight (kg)	1.37
