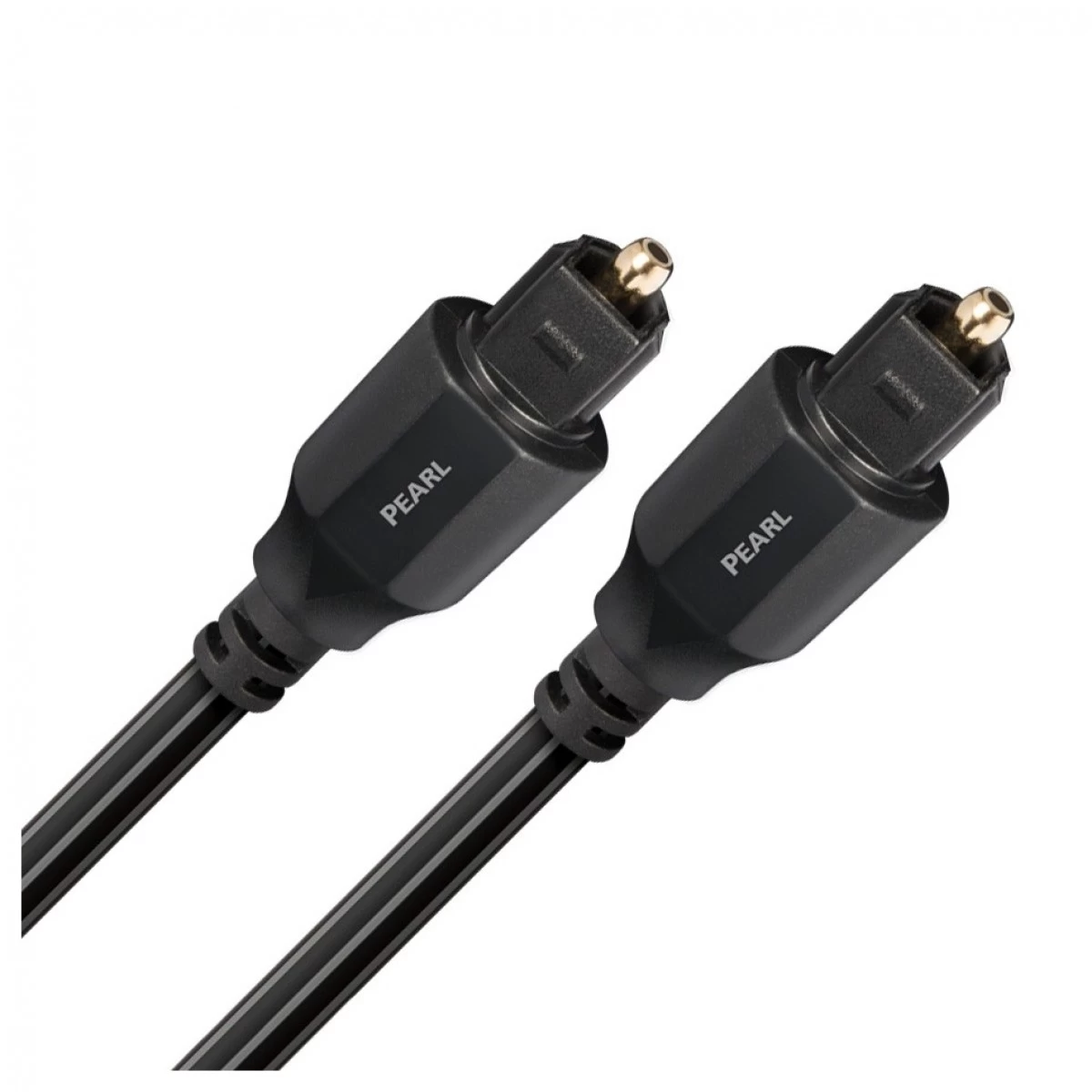

AudioQuest Pearl Digital Optical Cable 1.5m

Full Description

The AudioQuest Pearl digital optical cable features a low-dispersion fibre conductor for low-jitter and is ideal for connecting all manner of devices from TV’s to Sky+ HD boxes, computers, media streamers, Blu-Ray players and games consoles. With better materials used in the construction – better polymers and quartz for example – the result is an enjoyable listen that’s free from interruption.

Pearl OptiLink Features

The audio frontier is abuzz these days with the pleasure possible though HDMI, USB, FireWire® and Ethernet connections. However, these current generation digital technologies are only part of the story, just as the challenge of designing, manufacturing and choosing the best analogue interconnects and speaker cables is as important as ever. The S/P-DIF (Sony Philips Digital InterFace), which arrived in 1983 along with the CD, is still very much a part of our world today. S/P-DIF is transmitted through Digital Coax and Toslink fibre optics (EIA-J), making them still some of the most important cables in electronic entertainment.

While, thanks to HDMI, Toslink is not so often used to connect a DVD player to an A/V receiver, Toslink connectors are common on cable-boxes, TV sets, subwoofers, all sorts of products. And now, the 3.5mm Mini Optical connector, also somewhat incorrectly known as Mini-Toslink, is everywhere… from the 3.5mm dual-purpose headphone jack on a Mac laptop, to inputs on some of the finest portables.

“How can digital optical cables change the sound?”

The answer is easier to explain than for almost any other type of cable. If the light source were a coherent laser, firing into a vacuum, all the light would stay straight, arriving at its destination at the same time. Even if the LED light source in a Toslink system were coherent, the light entering a fibre-optic cable is scattered and dispersed by imperfections and impurities in the fibre. This can be measured as a loss of amplitude … but amplitude is not the problem, a 50% true loss would have no effect on sound quality.

The problem is that the dispersed light does get through the cable, but only after it has taken a longer path, like a pool ball bouncing off the side-rails, causing it to arrive later. This delayed part of the signal prevents the computer charged with decoding this information from being able to decode properly, or even at all. The inability to decode shows first at higher frequencies (not audio frequencies, this is a mono stream of digital audio information), so reduced bandwidth is a measurable signature of light being dispersed by a fibre. The punch line: The less dispersion in the fibre, the less distortion in the final analogue audio signal presented to our ears.

There is another serious dispersal mechanism in the Toslink system. The fibre is a relatively huge 1mm in diameter, and the LED light source is also relatively large, spraying light into the fibre at many different angles. Even if the fibre were absolutely perfect, the signal would be spread across time because light rays entering at different angles take different length paths and arrives with different amounts of delay.

The almost complete solution to this problem is to use hundreds of much smaller fibres in a 1mm bundle. Because each fibre is limited as to what angle of input can enter the fibre, there is far less variety, and far less dispersion over time. This narrow-aperture effect is similar to how a pin-hole camera can take a picture without a lens … by letting in light at only a very limited range of angles, a picture can be taken, whereas removing the lens from a wider aperture would make photography impossible. Less light gets through a multi-fibre cable, but the light that does get into the fibres comes out within in a much smaller time-envelope.

• Low-Dispersion Fibre
• Low-Jitter (Digital Timing Errors)
• Precision Polished Fibre Ends
• Black / Gray Stripe In-Wall Rated PVC

Conductor	Low-Dispersion Fibre
Jacket	PVC
Terminations	Standard Toslink (Both Ends)
Type	Digital Optical Cable
