Full Description

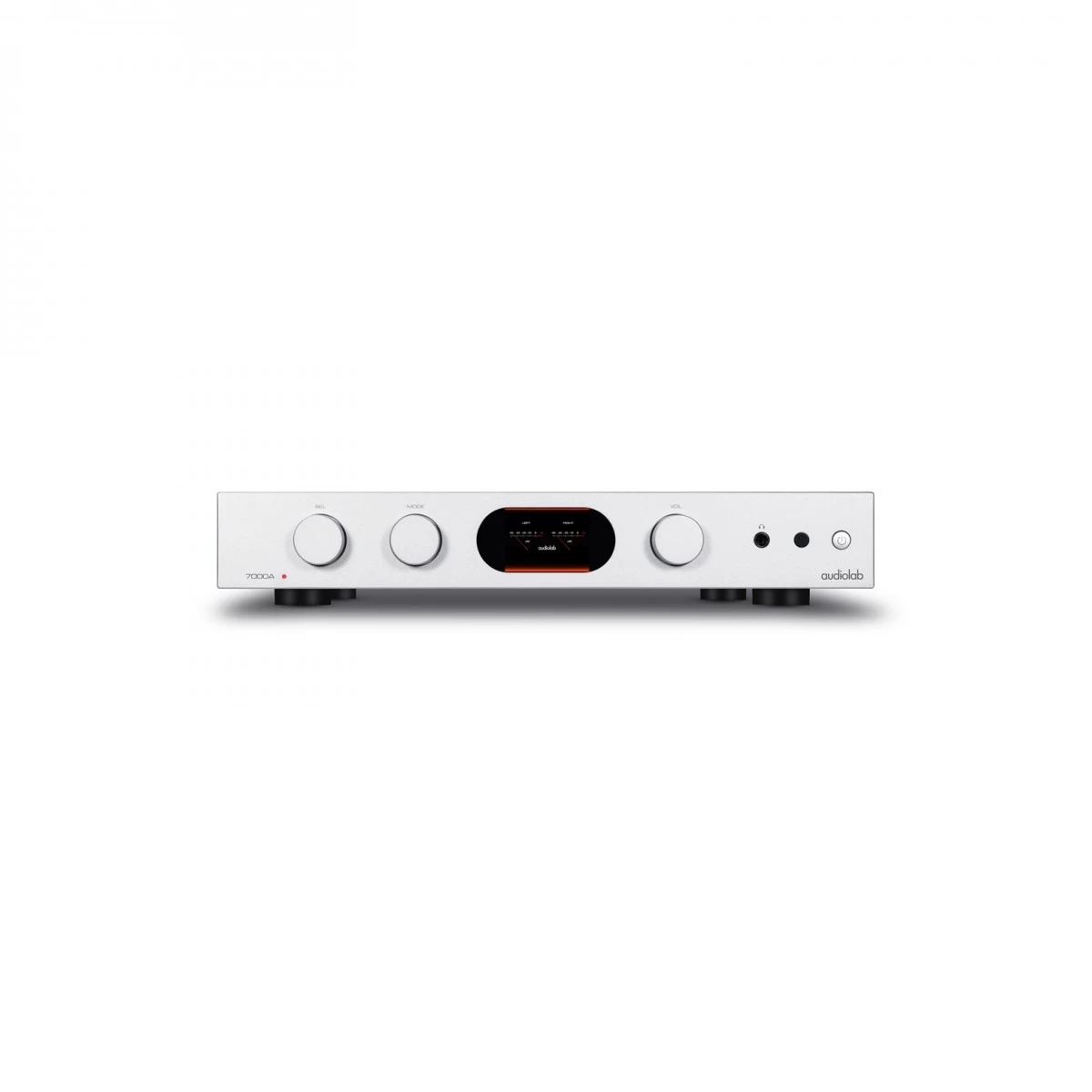

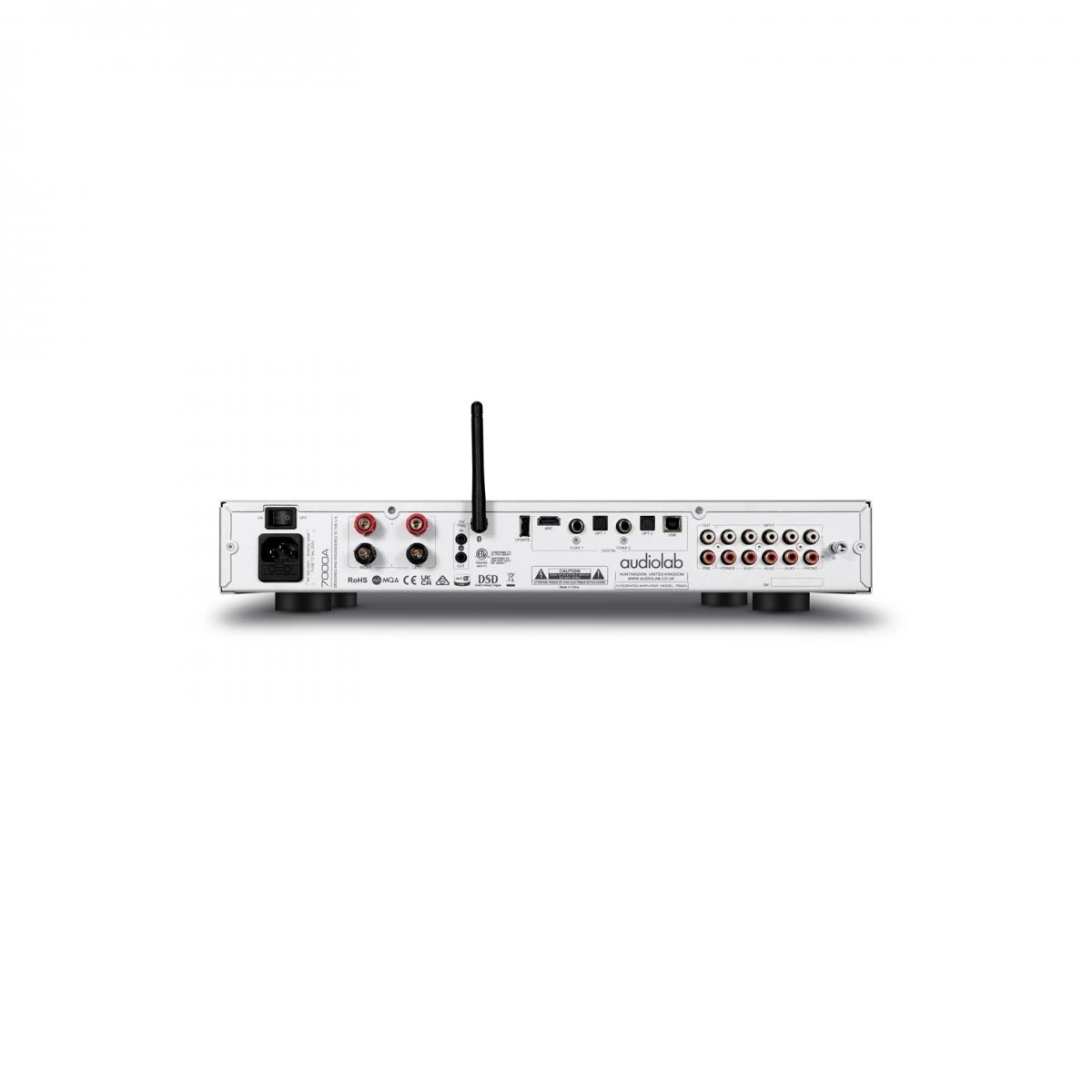

Audiolab 7000A Stereo Amplifier
Class AB power
The 7000A has a discrete Class AB power amp stage which delivers 70W per channel into eight ohms, and for difficult loads a maximum current delivery of 9A amps. Superior linearity and excellent thermal stability are ensured with the output stage of the discrete power amp circuits using a CFB topology. And the amp stays in firm control of the music with excellent dynamic range, helped by the 250VA toroidal transformer and the 4x15000uF reservoir capacity.
Multiple Sources
Cover all bases with high quality for all. For CD players and line-level sources, you have dual analog inputs, for digital sources dual Coax and SPDIF inputs, and for wireless audio playback and smart devices, you have a Bluetooth aptX receiver. Plus, the Audio Return Channel (ARC) connection allows for use with screens, and there is a direct-to-PC connection via USB.
Cutting-edge DAC
The 7000A’s ESS ES9038Q2M chip reaffirms the integration and synergy standard with Audiolab integrated amplifiers. It utilises both 32–bit HyperStream architecture and Time Domain Jitter Eliminator from ESS Technology. Plus, it has ultra-low noise and high dynamic range thanks to a post-DAC filter based on class A topology and its proprietary DC-coupled high-gain electronic amp.
Key Features
- Stereo Hi-Fi Amplifier for driving speakers and connecting to a variety of sources
- High-quality Class AB power amp stage for crystal-clear sound
- 70 W power per channel with 8 ohm impedance
- Complementary Feedback topology on output stage for stable temperatures and linear performance
- Power supply with a built-in toroidal transformer and high reservoir capacity enhances the dynamic range
- Three analogue RCA Auxiliary inputs for line-level sources
- Phono input for turntable connectivity
- Dual coaxial and optical inputs for connecting to digital audio sources
- Bluetooth aptX receiver for wireless audio playback and connectivity to smart devices
- Audio Return Channel provides a connection to televisions or projectors for home cinema use
- Flagship conversion from ESS Technology Sabre chip
- Post-DAC filtering to reduce noise and maintain dynamics of sound
- Full MQA decoding provides expanded connectivity with Tidal
- Dedicated headphone amp with current-feedback circuitry
What’s in the box?
- Audiolab 7000A Stereo Amplifier
- Antennas
- Remote control
- Power cord
- User manual
Specifications
General
| Net Weight | 8.4kg |
|---|---|
| Gross Weight | 10.7kg |
| Dimensions (mm) (W x D x H) | 444 x 340 x 78 |
| Carton Size (mm) (W x D x H) | 500 x 455 x 140 |
| Standby Power Consumption | <0.5W |
| Finish | Black / Silver |
| Power Requirements | 220-240V 50/ 60Hz; |
| (depending on region) | 100-120V 50/ 60Hz |
| Standard Accessories | Power Cord, Remote Control, User Manual, Antennas, etc. |
| Inputs | 3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier, 2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC, 1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger |
| Outputs | 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger |
| Sampling Frequency | Optical / Coaxial: 44.1kHz – 192kHz
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512 |
Preamplifier Section
| Gain | +6dB (Line); +55dB (Phono MM) |
|---|---|
| Input Sensitivity | 820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB) |
| Input Impedance | 10K (Line); 47K // 100pF (Phono MM) |
| Total Harmonic Distortion (THD) | < 0.0005% (1kHz @ 2V, Volume = 0dB) |
| Frequency Response | 20Hz-20kHz (+/-0.1dB) |
| Output Voltage | 2.3V max. (Volume = 0dB) |
| Output Impedance | 100 ohms |
| Signal-to-Noise Ratio | > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted) |
DAC
| D to A Converter | ES9038Q2M |
|---|---|
| Total Harmonic Distortion (THD) | < 0.0005% (1KHz @ 0dBFS) |
| Output Level (0dBFS, 1kHz) | 2.1Vrms |
| Max. Sampling Frequency | Optical, Coaxial: 192kHz;
Ethernet, WiFi: 192kHz;
USB A: 48kHz;
PC USB: PCM768kHz, DSD512 |
Power Amplifier Section
| Gain | +29dB |
|---|---|
| Rated Power Output | 2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%) |
| Frequency Response | 20Hz-20kHz (+/-0.3dB) |
| Total Harmonic Distortion (THD) | <0.003% (1kHz @ 40W / 8 ohms) |
| Input Sensitivity | 720mV |
| Signal-to-Noise Ratio (S/N) | > 110dB (A-weighted) |
| Max. Output Current | 9A |
Headphone Amplifier
| Total Harmonic Distortion (THD) | < 0.01% (1kHz, 50mW) |
|---|---|
| Output Impedance | 4.7 ohms |
| Load Impedance | 20-600 ohms |

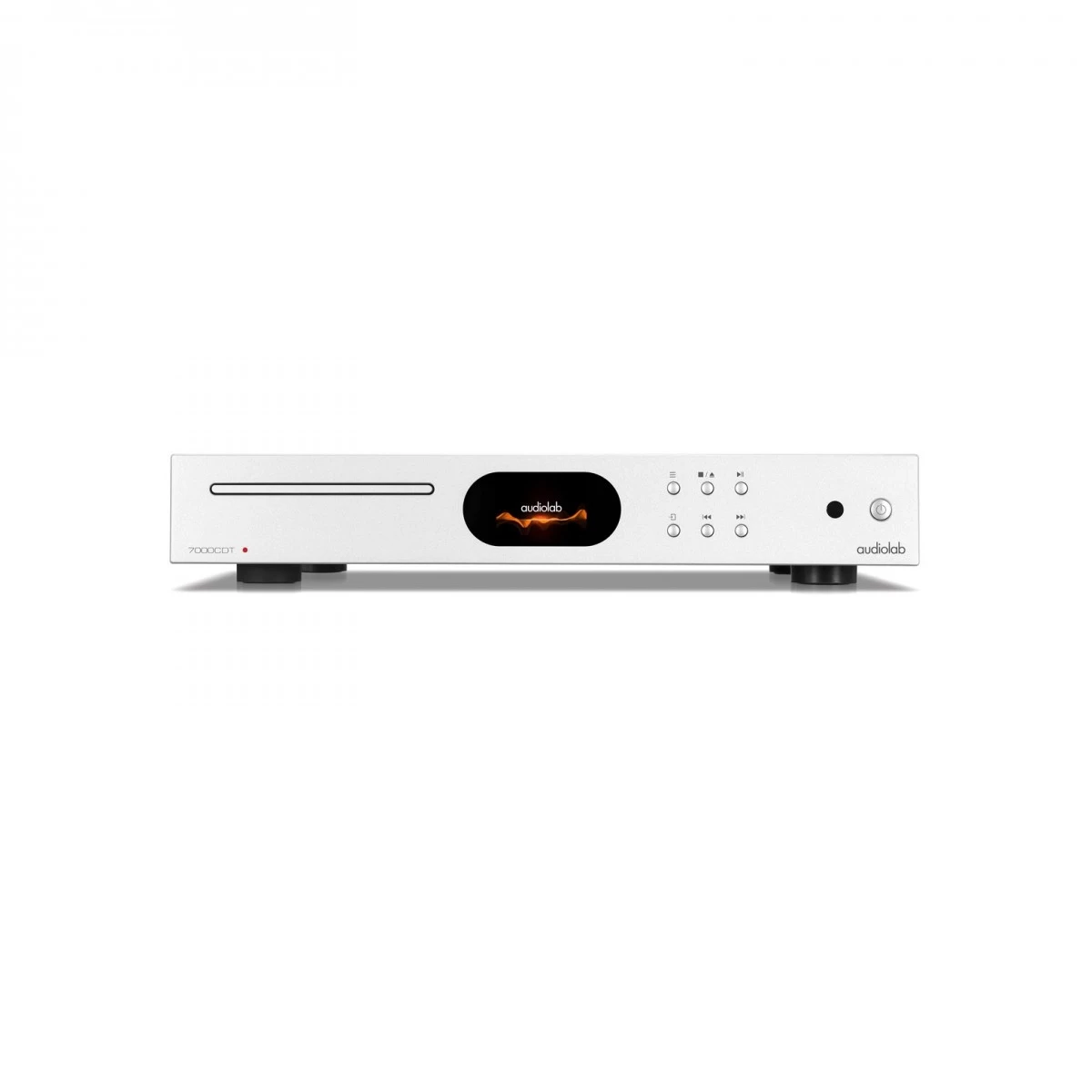

Audiolab 7000CDT CD Transport
Enhanced Digital Playback
The 7000CDT uses an accurate optical system with electronic buffering for smooth, high-quality CD playback to reduce artifacts. Its read-ahead buffer also helps to prevent reading failures, and anticipate issues such as scratches to prevent them from interrupting your listening experience. This CD Transport’s coaxial output is fed by a differential line driver to prevent noise before reaching the DAC. The CDT’s master clock is controlled by a highly-accurate crystal oscillator that eliminates jitter for a distortion-free signal.
Vibration Prevention
This CD transport utilises a range of design techniques to prevent transferring vibrations through your desk or to other units stacked with it. Its loading tray features a low-friction design to reduce vibrations at the source of the disc drive itself, preventing the high-velocity motor from interfering with the sound quality. The 7000CDT’s electromagnetically shielded aluminium enclosure and dedicated power supply help reduce resonance and noise even further.
Digital Playback Hub
While capable of playing back CDs, the 7000CDT also provides USB connectivity to play back from external drives or memory sticks. When used in this way, the 7000CDT is compatible with all major lossless digital audio formats, like WAV, AAC, and WMA, as well as compressed legacy MP3 files.
Key Features
- Premium digital audio from dedicated CD player with USB connectivity
- Precise optical system delivers smooth, accurate CD playback
- Read-ahead electronic data buffer helps prevent dropouts and read failures from scratches and damage
- Differential line driver before conversion reduces noise for accurate signal
- Crystal oscillator controls master clock to minimise jitter in coaxial and optical outputs
- Low-friction loading tray reduces vibrations from disc driver motor
- Electromagnetically shielded enclosure with dedicated power supply prevents noise
- USB connectivity allows playback from memory sticks and external drives
- Supports WAV, AAC, WMA, and compressed legacy MP3 file playback
- Simple and colourful LCD display provides track information, settings, folder navigation and metering
What’s in the box?
- Audiolab 7000CDT CD Transport
- Remote control
- Power cord
- User manual
Specifications
| General Description | CD Transport |
|---|---|
| Core Technology | Compatible with CD/CD-R/CD-RW
Support playing USB storage devices (MP3/WMA/AAC/WAV)
Display indication
Adjustable screen brightness
Activate the device automatically via 12V trigger
Auto standby function can be turned on or off |
| USB Storage Device Audio Format | MP3, WMA, AAC, WAV format playback |
| USB Storage Device File System | FAT12, FAT16, FAT32 |
| Digital Output Amplitude | 500 ± 50 mVpp |
| Output Impedance | 75Ω |
| Frequency Response | -0.01 dB (20 Hz – 20 kHz, ref. 1 kHz) |
| Total Harmonic Distortion | < 0.002% |
| Sampling Rate | 44.1 kHz |
| Digital Output Interface | 1 x Coaxial, 1 x Optical |
| Standby Power Consumption | < 0.5 W |
| Power Requirements | 220 – 240 V, 50/60 Hz
100 – 120 V, 50/60 Hz |
| Dimensions (W x D x H) | 444 x 322 x 78 mm |
| Net Weight | 5.5 kg |

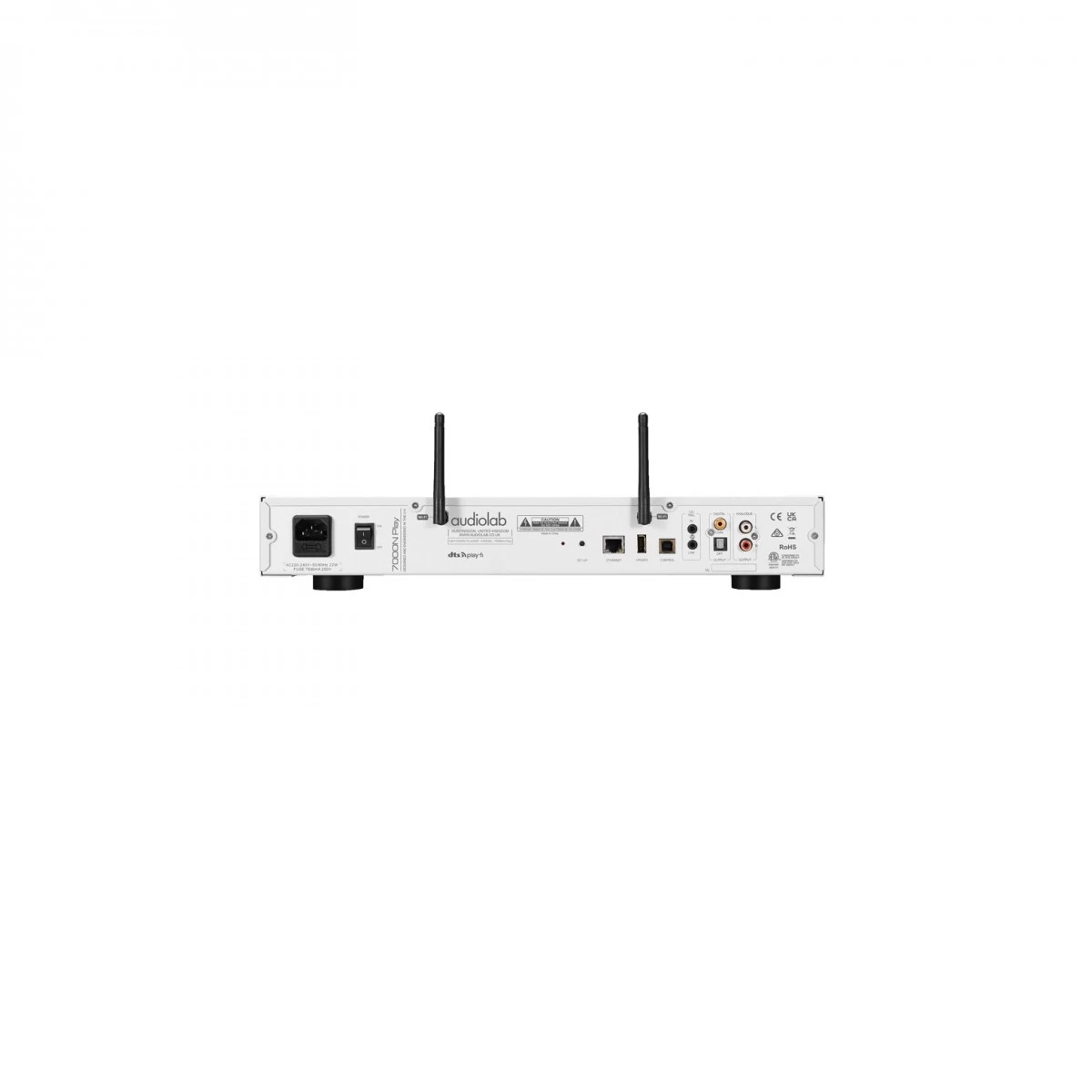

Audiolab 7000N Play Network Player
Quality Wi-Fi Streaming at Home
The 7000N Play improves music streaming, making it compatible with Hi-Fi setups of all kinds. Whether you have a top-of-the-range Hi-Fi system, or a modest home entertainment system that you want to give a boost, this wireless network player will fit in great with anyone who loves the convenience of streaming services with audiophile sound quality. Compatible with multiple formats, platforms, and sources, you can stream your music however you like to. With connectivity to DTS Play-Fi, Spotify Connect, and Apple AirPlay 2, Audiolab’s latest offering will let you stream however you like.
DTS Play-Fi Compatible
DTS’ renowned Play-Fi system allows for high-resolution wireless streaming via both Ethernet or Wi-Fi. This connectivity being added to the 7000N allows you to easily stream from any source on your network. From smartphones to tablets, PCs to NAS drives or home media servers. Eaaily expandable into a multi-room system, Play-Fi lets you control and set up a full, cohesive home sound system. Compatible with streaming services like Spotify, Tidal, HD Tracks, Deezer, Amazon Music, Napster, Qobuz, and plenty more. Play-Fi also supports a wide range of audio codecs including MP3, MP4A, AAC, FLAC, WAV, and AIFF, with two listening modes offering 24-bit/192 kHz audio resolution, or a CD quality bandwidth-saving 16-bit/48 kHz resolution for multi-room use.
Improved Circuitry
The 7000N Play offers a lot of new playback features that improve its sound for a marginal increase in pricing. Using a next-generation ES9038Q2M DAC converter chip from ESS instantly improves clarity and dynamic range of the material you feed through it, adding much more depth to its sound. Pairing this with ESS Technology’s HyperStream II and Time Domain Jitter Eliminator circuitry, your streamed signal remains stable, clear, and consistent, with a flat noise floor of 200 kHz and 10 dB lower distortion than comparable chips.
Key Features
- Compact Wi-Fi and Ethernet streamer for wireless home audio
- Compatible with DTS Play-Fi wireless audio platform to deliver flexible connectivity
- Supports Spotify Connect and AirPlay 2 for alternate audio platform access
- Connects to network via Wi-Fi or Ethernet cable
- Works in conjunction with Tidal, Spotify, Amazon Music, Qobuz, Deezer, Napster, and more
- Supports internet radio and podcast platforms like iHeartRadio, SiriusXM, and Pandora
- Access and stream audio via smartphone, tablet, PC, NAS drive, or personal media servers
- Stereo RCA analogue output and digital coaxial or optical outputs for connecting to amplifiers and DACs
- New and improved DAC chip from ESS Technology for incredible dynamic range and high resolution audio
- HyperStream II and Time Domain Jitter Eliminator circuitry for improved performance and low noise floor
- Isolated power supply with toroidal transformer to prevent electrical noise
- LCD display provides a wide range of customisable visual feedback including VU metering
- Advanced menu options like adjustable sample rate, output modes, 12V trigger, and auto-standby settings
- Digital filter selection with five settings for producing your chosen sonic character
- Included remote control for easy operation and six display buttons with preset selection
- Supports MP3, M4A, AAC, FLAC, WAV, and AIFF audio formats
- Critical Listening mode offers 24-bit/192 kHz high-resolution audio
- Multiroom compatibility with second listening mode at 16-bit/48 kHz CD quality to save bandwidth
- Play-Fi TV integration allows for wireless home cinema audio
What’s in the box?
- Audiolab 7000N Play Network Audio Player
- Remote control
- Power cord
- USB cable
- User manual
Specifications
Core Technologies
| General Description | Wireless Audio Streaming Player |
|---|---|
| Digital-to-Analogue Conversion | ESS Sabre ES9038Q2M Reference DAC |
| Core Technology | Isolated Power Supply
2.8″ (480 x 640 mm) Full View IPS LCD
DTS Play-Fi Technology
Support for Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, PANDORA, Qobuz, QQ Music and more
Apple AirPlay 2 compatible
Multi-room/Multi Speaker Group Support
Android/iOS/Kindle Fire/Windows PC Control Support
Automatic Equipment Activation via 12V trigger and link
Wired Internet Connection for High Bandwidth Applications
USB Firmware Upgrade Input |
Digital Section
| Digital Output Intensity | 500 ± 50 mVpp |
|---|---|
| Output Impedance | 75 ohms |
| Frequency Response | -0.01 dB (20 Hz – 20 kHz, ref. 1 kHz) |
| Max. Sampling Frequency | 192 kHz/24-bit |
| Digital Outputs | 1 x Coaxial, 1 x Optical, 1 x RCA Line Output |
D to A Converter
| Variable Output Voltage | 0 – 2.1 V |
|---|---|
| DAC | ES9038Q2M |
| Frequency Response | ± 0.5 dB (20 Hz – 20 kHz, ref. 1 kHz) |
| Total Harmonic Distortion (THD) | < 0.0005% (1 kHz @ 2.1 Vrms) |
| Max. Sampling Frequency | 192 kHz/24-bit |
| Signal-to-Noise Ratio (S/N) | > 115 dB (A-weighted) |
| Output Impedance | 100 ohms |
General
| Standby Power Consumption | < 0.5 W |
|---|---|
| Dimensions (W x D x H) | 444 x 340 x 78 mm |
| Net Weight | 5.0 kg |
| Finish | Black/Silver |
| Power Requirements | 220 – 240 V ∼ 50/60 Hz (region-dependent)
100 – 120 V ∼ 50/60 Hz (region-dependent) |
| Safety Regulation Conformity | 20 – 600 ohms |
| Standard Accessories | Power Cord, USB Cable, User Manual |
