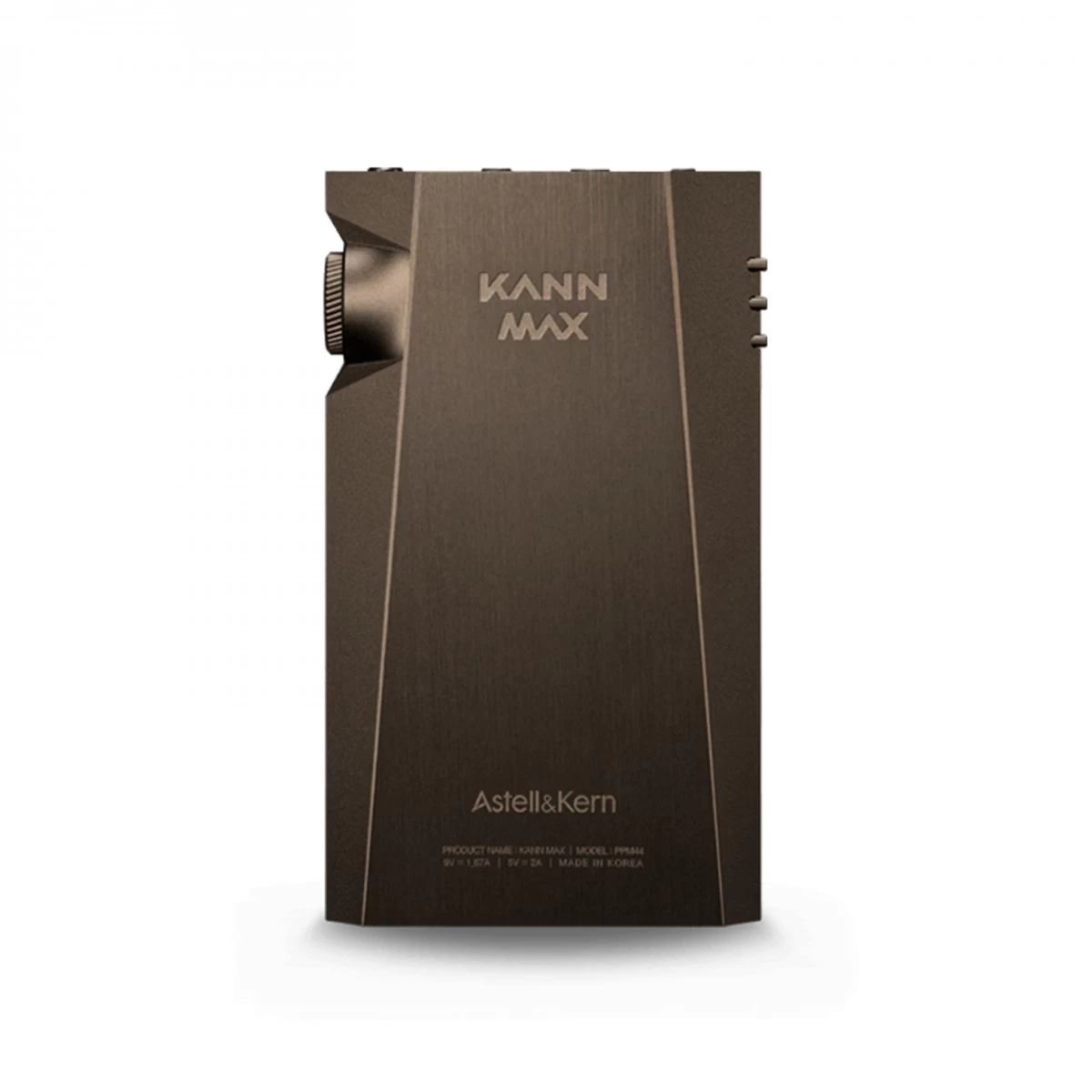

Astell&Kern KANN MAX Digital Audio Player, Limited Edition Mud

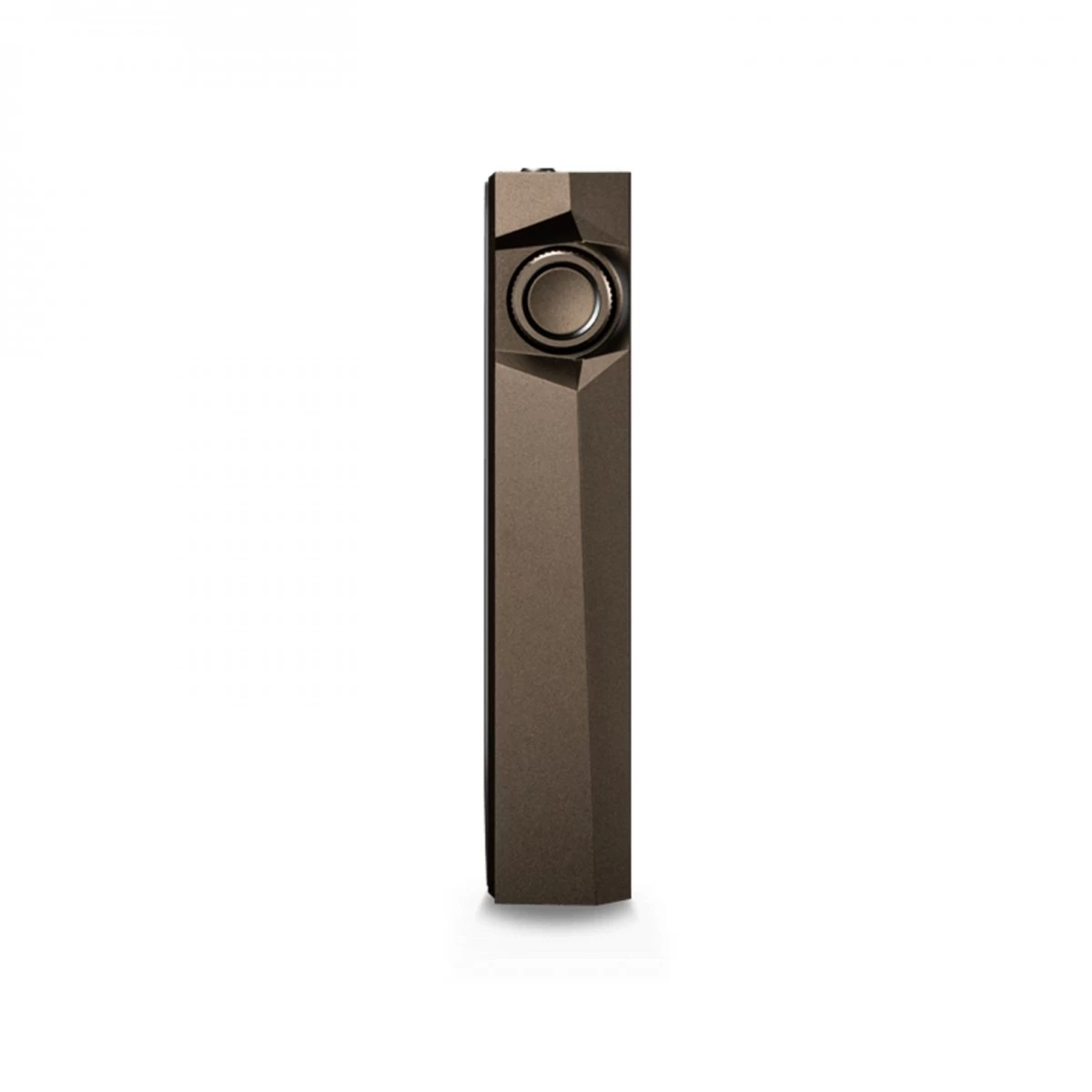

Astell&Kern KANN MAX Digital Audio Player, Limited Edition Mud - Image 2

Astell&Kern KANN MAX Digital Audio Player, Limited Edition Mud

Original price was: £399.00.Current price is: £95.99.

SKU: YXYUY 6111 Categories: HiFi Systems, Portable Media Players

Free Shipping Worldwide
fast shipping
Safe Payments, the Smart Choice
Enjoy top quality items for less

Description
Reviews (0)

Full Description

HiFi Audio

Despite the compact design, the KANN MAX digital audio player offers a 4-step gain level with 15Vrms output, generating crisp audio signals. Providing ultra-high output, 32-bit/768kHz, and Native DSD512 bit-to-bit playback, the KANN MAX will deliver immersive audio with minimal distortion. Equipped with 4 ES9038Q2M DACs, the audio player supplies incredible sound quality that creates a brilliant, portable listening experience.

TERATON ALPHA and Connectivity

This Astell & Kern audio player is also harnessed with AK ULTIMATE SOUND SOLUTION, TERATON ALPHA technology, that will seamlessly produce a great playback sound. The Gold PVD Output Coating will help propel the sound quality of your music even further. Offering Bluetooth 5.0 connectivity that supports Wireless 24-bit aptX™-HD and LDAC Codecs, you can effortlessly connect your wireless headphones to the KANN MAX, with the BT Sink feature also providing connectivity to your smartphone.

Easy Listening and Brilliant Design

Supplied with the ReplayGain feature, you can easily adjust sound sources with separate volumes to the same level. The AK File Drop feature also offers simple, wireless file transfer. The KANN MAX is designed to perfection with the LED volume wheel, which displays the volume and bit-rate level of your music. This Astell & Kern audio player is a slim shape with an aluminium coating to reduce the risk of damage. It also offers a 13-hour battery life, allowing you to get fully engrossed in your music.

Features

4-step gain level with 15Vrms output offers sharp audio signals
ESS ES9038Q2M Quad-DAC reproduces clear output
Gold PVD Output Coating reduces contact noise
32-bit/768kHz, Native DSD512 bit-to-bit playback creates brilliant audio
AK ULTIMATE SOUND SOLUTION, TERATON ALPHA technology generates great sounds
Bluetooth 5.0 and BT Sink offer wireless connectivity
ReplayGain enhances your volume quality
AK File Drop provides stress-free wireless file transfer
Compact design allows for easy portability

Specifications

General

Model	KANN MAX
Body Colour	Brown Mud
Body Material	Aluminum
Display	720 x 1280 touch screen
Supported Audio Formats	WAV FLAC WMA MP3 OGG APE AAC ALAC AIFF DFF DSF MQA
Sample Rate	PCM: 8kHz 768kHz (8/16/24/32bits per Sample) DSD Native: DSD64(1bit 2.8MHz), Stereo / DSD128(1bit 5.6MHz), Stereo / DSD256(1bit 11.2MHz), DSD512(1bit, 22.4MHz) Stereo
Output Level	[Low] Unbalanced 2Vrms / Balanced 4Vrms (Condition No Load) [Mid] Unbalanced 4Vrms / Balanced 8Vrms (Condition No Load) [High] Unbalanced 6Vrms / Balanced 12Vrms (Condition No Load) [Super] Unbalanced 8Vrms / Balanced 15Vrms (Condition No Load)
CPU	Quad-core
DAC	ESS ES9038Q2M x4 (Quad-DAC)
Decoding	Support up to 32-bit/768kHz Bit-to-Bit Playback
Input	USB Type-C input (for charging & PC & MAC)
Outputs	Unbalanced Out (3.5mm), Optical Out (3.5mm) Balanced Out (2.5mm, only 4-pole supported \| 4.4m, only 5-pole supported)
Wi-Fi	802.11 b/g/n (2.4GHz)
Bluetooth	V5.0 (A2DP, AVRCP, Qualcomm® aptX™ HD, LDAC)
Dimensions	68.3mm [W] x 117mm [H] x 23.6mm [D]
Weight	about 305g
Feature Enhancements	Firmware upgrade supported (OTA)
Operating Temperature	0℃ ~ + 40℃ (32℉~ 104℉)

Audio Performance

Frequency Response	±0.023dB (Condition : 20Hz 20kHz) Unbalanced │ ±0.026dB (Condition : 20Hz 20kHz) Balanced ±0.035dB (Condition : 20Hz 70kHz) Unbalanced │ ±0.072dB (Condition : 20Hz 70kHz) Balanced
S/N	114dB @ 1kHz, Unbalanced │ 115dB @ 1kHz, Balanced
Crosstalk	-124dB @ 1kHz, Unbalanced │ -135dB @ 1kHz, Balanced
THD+N	0.0003 @ 1kHz, Unbalanced │ 0.0004 @ 1kHz, Balanced
IMD SMPTE	0.0007 800Hz 10kHz (4:1) Unbalanced │ 0.0007 800Hz 10kHz (4:1) Balanced
Output Impedance	Unbalanced Out 3.5mm (1ohm) │ Balanced Out 2.5mm (1.6ohm), 4.4mm (1.6ohm)

Other

Clock Jitter	25ps (Typ)
Reference Clock Jitter	70ps
Battery Capacity	5,600mAh 3.8V Li-Polymer
Battery Charge Time	about 3.5 hours (9V 1.67A Fast Charging) \| 5.5hours (5V 2A General Charging)
Playback Time	about 13 hours (Standard: FLAC, 16bit, 44.1kHz, Unbalanced, Vol.40, LCD Off, LED On, Low Gain)
Built-in Memory	64GB [NAND]
External Memory	microSD x1 (Max. 1TB)
Supported OS	Windows 7,8,10(32/64bit) MAC OS X 10.7
